Used filters for sale: industrial solid-liquid separation for consistent, high-purity output

Shop used, secondhand and surplus filters from IPP – in stock and engineered for chemical, pharmaceutical, and food-grade applications

Streamline your process with IPP’s ready-to-ship filters designed to reduce waste, recover product, and meet regulatory standards

Featured Nutsche Filters

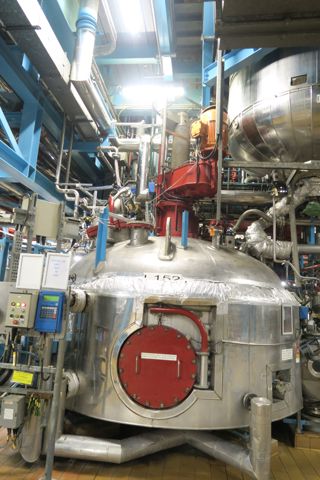

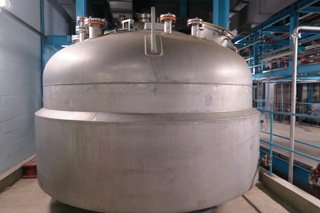

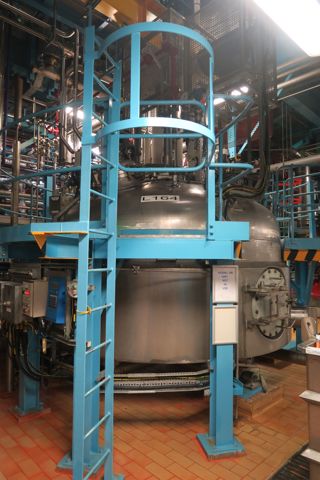

Stainless Steel 316L Cogeim FFP 800 FF-S Agitated Jacketed Pressure Nutsche Filter

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FFP 800 FF-S

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

design pressure internal 4 bar + full vacuum @ -29/185 degrees C,
jacket 10 bar + full vacuum @ -29/185 degrees C,
fixed bed design,
5.8-11.8 rpm shaft speed,
driven by 18/9.9kw 3/50/415 volt 1500-750 rpm EEx de IIB T4 motor via a reduction gearbox,

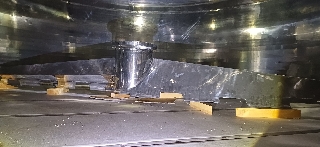

reversing agitator for discharging,
packed gland,
shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
304L stainless steel half pipe coil jacket on straight side,
carbon steel half pipe coil jacket on filter base,
side discharge with hydraulic valve,
slurry outlet with a 100/80mm SCHUF valve,

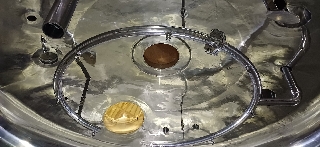

internal wash ring/spray bar,
weld dished top, weld flat bottom,
3.2m diameter x 1060mm straight side,
side inspection manway with cover and davit,
design code: ASME VIII DIV 1 ED.89 + ADD 90,

system includes

(1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes: (1) 340 Nm3/hr 316L stainless steel vacuum pump, manufactured by Sulzer, driven by 37kW, 3/50/415 volt, 975 rpm EEx de IIB T4 motor, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel tube and shell heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
(2) 316L stainless steel centrifugal pumps, manufactured by Girdlestone, type 12CABC2G, 16 bar @ 20 degrees C, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor,

Orientation: Vertical. Pressure: 4 bar (58 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 185 °C (365 °F).

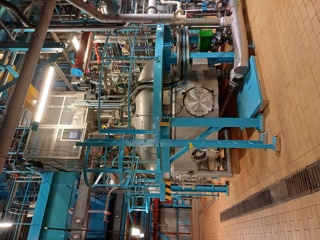

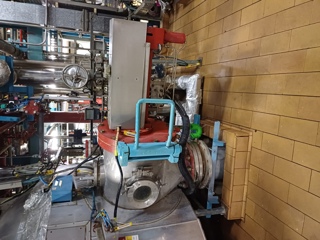

Hastelloy - C276 Cogeim agitated jacketed pressure Nutsche Filter

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FFP 600 FF-S

Condition: Used

Material: Hastelloy - C276

Filtration Area: 6 m² (64.6 ft²)

Diameter: 2,800 mm (110.2 in)

design pressure internal 4 bar + full vacuum @ -29/185 degrees C (9100 liter),
jacket 10 bar + full vacuum @ -29/185 degrees C (165 liter),
fixed bed design,
6.5-13 rpm shaft speed,
driven by 10/6.6kw 3/50/415 volt, 1500/750 rpm EExd IIB T4 motor via a reduction gearbox,
reversing agitator for discharging,
packed gland,
shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 4kw, 3/50/415 volt 1500 rpm EExd IIB T4 motor,
side discharge with hydraulic valve,
304L stainless steel half pipe coil jacket on straight side,
carbon steel half pipe coil jacket on filter base,
slurry outlet with a 100/80mm SCHUF valve,
weld dished top, weld flat bottom,
2.8m diameter x 1050mm straight side,
internal wash ring/spray bar,
side inspection manway with cover and davit,
mounted on feet with load cells,
design code: ASME VIII DIV I ED 89 + ADD 90,

system includes

(1) 340 Nm3/hr 316L stainless steel Apovac PMZK 3817 D3x6 vacuum pump skid, manufactured by Sulzer, skid includes (1) 340 Nm3/hr 316L stainless steel PMZK 3817 D3x6 vacuum pump, manufactured by Sulzer Burkhardt, serial #52771, (1) 6.7 square meter 316L stainless steel tube and shell heat exchanger (liquid ring cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 10 square meter 316L stainless steel tube and shell heat exchanger (exhaust gas cooler), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 5 square meter 316L stainless steel heat exchanger (N2 Heater), manufactured by Kasag, pressure tube side -1/4 barg @ -29/185 degrees C, shell -1/10 barg @ -29/185 degrees C, (1) 190 liter 316L stainless steel pressure tank (condensate receiver), manufactured by Kasag, pressure -1/4 barg @ 50 degrees C,
(1) 60m3/hr @ 13.6m head 316 stainless steel centrifugal pump (P1), manufactured by Girdlestone, type 12CSD2G, serial #53451, size 80-50-175, driven by 7.5kW, 3/50/415 volt, 2890 rpm EEx de IIB T4 motor, sealless type, mounted on a baseplate,
(1) 10m3/hr @ 26m head PFA lined centrifugal pump (P2), manufactured by Richter, type PCK/F 32-160, serial #917493/3/3, 2900 rpm, 147mm diameter impellor, driven by 5.5kW, 3/50/415 volt, 2900 rpm EEx de IIB T4 motor, mechanical seal, mounted on a baseplate

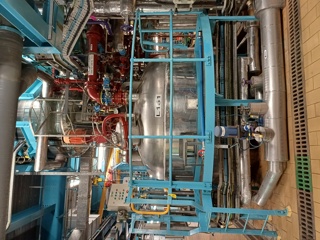

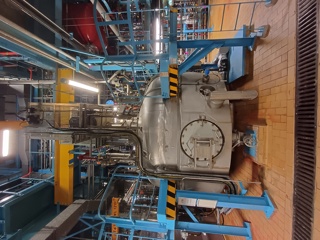

Stainless Steel 316 Cogeim FPP 800 FF Agitated Jacketed Pressure Nutsche Filter

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: FPP 800 FF

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
jacket 10 bar + full vacuum @ -28.8/185 degrees C (140 liter),
internals mirror polished to 0.4um Ra,
fixed bed design,
3.2m diameter x 1.2m straight side,
bottom discharges,
shaft with internal bellows,
shaft driven by 30kw 3/50/400 volt IP55 EExd IIB T4 motor via a 210:1 ratio reduction gearbox,
shaft speed 1.43-10.7 rpm,
mechanical seal with lubricator,
shaft with Hydraulic raise/lower mechanism, driven by a hydraulic power pack with a 7.5kw 3/50/400 volt IP55 EExd IIB T4 motor,
jacket on straight side and bottom filter bed,
internal wash ring/spray bar,
side inspection manway with cover and davit,
design code: 97/23/CE (supported by ASME VIII DIV 1 Ed 2000),

(1) centrifugal pump, driven by 11/12.5kW 3/50-60/690-400/660-380/415-440 volt, 2936/2929/2942/3526 rpm EEx de IIB T4 B3 ATEX motor,

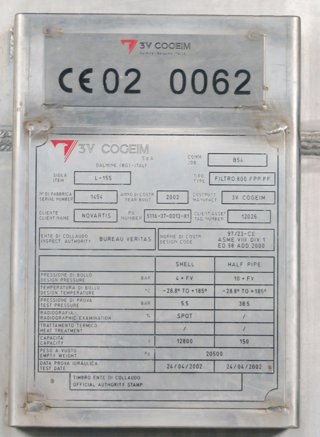

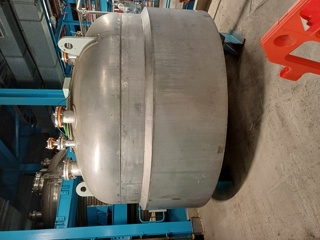

Stainless Steel 316L Cogeim Filtro 800 FPP FF Nutsche Filter

Type: Filter

Subtype: Nutsche

Manufacturer: Cogeim

Model: Filtro 800 FPP FF

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,200 mm (126 in)

pressure jacketed Nutsche filter body only,
design pressure internal 4 bar + full vacuum @ -28.8/185 degrees C (12800 liter),
jacket 10 bar + full vacuum @ -28.8/185 degrees C (150),
jacket on straight side and bottom filter bed,
fixed bed design,
hydraulic raise and lower mechanism on drive,
drive gearbox type R-FV/400, serial #M101, 207:1 ratio, 24kW input power, 1500 rpm input speed,
internal wash ring/spray bar,
side inspection manway with cover and davit,
design code: 97/23-CE, ASME VIII DIV 1, ED.98 ADD.2000

Used filters are essential components in countless process operations where solids must be separated from liquids. Whether you’re removing fine particulates, clarifying solutions, or recovering valuable materials, industrial filters play a critical role in improving product quality, protecting downstream equipment, and maintaining compliance. With more than 47 years of experience, IPP supplies used, secondhand, and surplus filters from 20 global plant sites and maintains an extensive inventory of 15,000+ process systems.

IPP stocks a wide range of filter types—pressure leaf, plate and frame, cartridge, vacuum drum, nutsche, and candle filters—from leading brands like Sparkler, Pall, Funda, and Millipore.

Primary uses across industries

In chemical processing, for separating solids from liquids in catalyst recovery, resin filtration, and acid clarification
In pharmaceuticals, for sterile filtration of intermediates, APIs, and final formulations
In food and beverage, for wine clarification, edible oil filtration, and sugar refining
In environmental and wastewater, for sludge dewatering and contaminant removal

Types of materials processed

Slurries, suspensions, and solutions with fine particulates
Heat-sensitive or viscous liquids requiring gentle handling
Solvent-based, aqueous, or corrosive mixtures

Common materials of construction

Industrial filters are built to resist corrosion, handle pressure, and maintain hygiene:

Stainless steel for sanitary, pharma and food-grade use
Carbon steel for robust chemical and utility processes
Hastelloy, titanium or lined steel for aggressive media or high-purity applications

Key features of process filters

Multiple filter formats to match flow rate and solids content
Jacketed options for temperature-sensitive operations
ASME code-rated vessels available for pressure applications
Options for automated cake discharge or backflushing
Compact, modular systems designed for integration and easy maintenance

Learn more about industrial filtration technologies and applications from Chemical Processing.

Filter FAQ

Have questions about Filters or our services? Learn more about our products and why customers choose IPP.

Pressure leaf filters offer continuous, enclosed operation ideal for fine filtration, while plate and frame units are great for batch operations and easier cake discharge.

Yes – many are built to sanitary standards and can be revalidated or retrofitted with new filter media and gaskets.

Key factors include particle size, solids concentration, flow rate, operating pressure, temperature, and chemical compatibility.

IPP offers significant savings, reduced lead times, and global support based on more than 47 years of equipment expertise.

Find your industrial filter at IPP

Search the IPP inventory or contact IPP’s filter experts to locate the right used, surplus, or secondhand filter for your process. With trusted manufacturers, quality systems, and rapid delivery, IPP helps you reduce downtime and improve filtration efficiency.
