When you need reliable flash dryers with immediate availability, turn to IPP. With over 47 years of experience, 20 complete process plant sites, and 15,000+ pieces of process equipment ready to ship, IPP provides cost-effective drying solutions trusted by manufacturers worldwide.
Flash dryers excel at quickly drying wet solids, slurries, and pastes by exposing them to a high-velocity hot air stream. This rapid process evaporates moisture almost instantly, leaving behind dried particles that are efficiently separated in a cyclone or bag filter. Known for their compact footprint and fast throughput, flash dryers are indispensable in industries requiring high-speed drying, including chemicals, pharmaceuticals, food, and minerals processing.
These systems are ideal for processing materials such as:
Flash dryers are typically constructed from:
Learn more about flash drying technology in this technical guide from Process Heating.
Search the IMS inventory or contact IPP for expert advice and pricing to secure your flash dryer today. With thousands of dryers in stock, IMS and IPP deliver fast, cost-effective solutions to keep your production running smoothly.

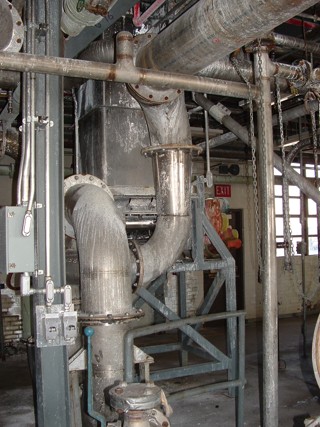

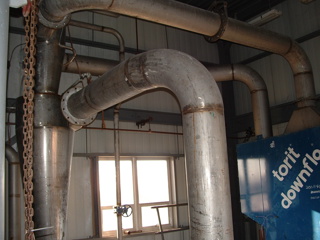

Type: Dryer-Flash
Manufacturer: Aljet
Model: SBDF-50 CF-3-N/2
Condition: Used
Air Flow: 4,626 m3/h (2,723 CFM)
Evaporation Rate: 64.6 kg/h (142.5 lb/h)
2500 lbs/ hour feed,
2357.5 lbs/hr product feed rate,
.3 to .4% product moisture.

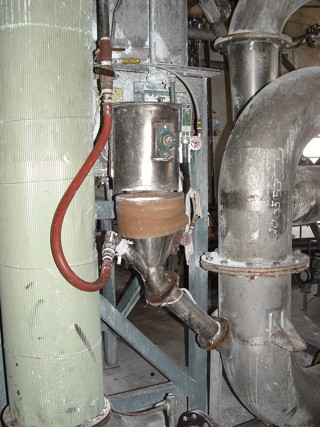

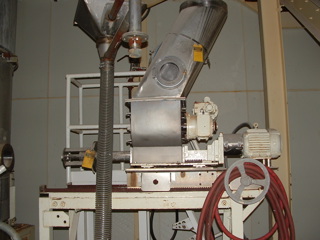

with integral internal classifier, 1.75" venturi feed injector.

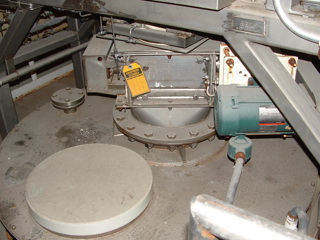

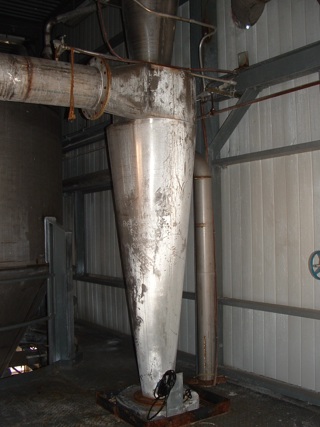

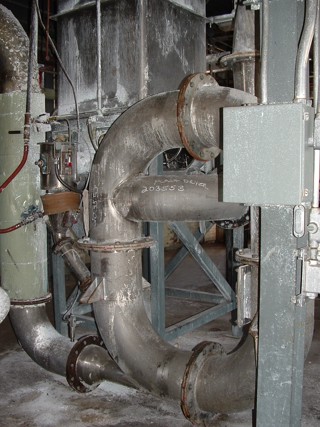

Cyclone collector discharge, model 30, with 10 CuFt Vortex breaking bin and 304 SS rotary airlock on cyclone bottom.

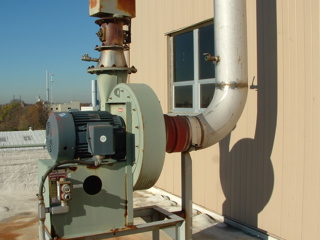

Blowers include (1)American Fan Turbo Pressure Blower, model VP-6-08-25B, driven by a 30HP TEFC motor and (1)American Fan Turbo Pressure Blower, driven by a 25HP TEFC motor.

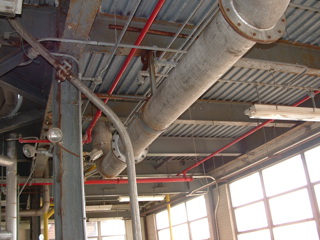

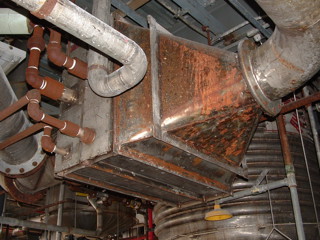

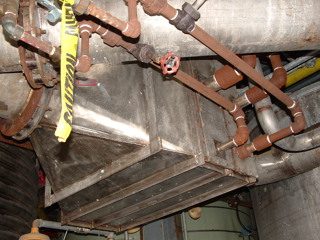

Dryer heated through an American Standard Steam Coil air heater with 304SS headers. All 304SS interconnecting 12" diameter ductwork.
Diameter: 304.8 mm (12 in). Pressure: 1.01 bar (14.7 psi). Temperature: 60 °C (140 °F). Heating Type: Steam. Feeder: Yes. Product Feed Rate: 1,069 kg/h (2,358 lb/h). Outlet Moisture %: 0.3.
Type: Dryer-Flash
Manufacturer: AKSH Engineering LTD
Condition: Used
Material: Stainless Steel 316
Air Flow: 8,534 m3/h (5,023 CFM)
Evaporation Rate: 189 kg/h (416.7 lb/h)

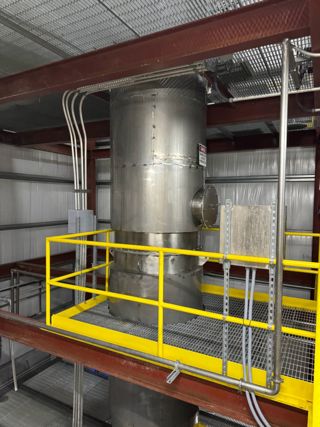

309 kg./hr. feed rated, Product rate is 120 kg./hr.at 10 % w/w moisture. Sanitary, and Rated for food grade with Clean in Place. Mode of heating is by natural gas. The flash drying system consists of the following main components:
Diameter: 1,200 mm (47.2 in). Temperature: 146 °C (294.8 °F). Heating Type: Gas. Controls: Yes. Feeder: Yes. Product Feed Rate: 309 kg/h (681.2 lb/h). Inlet Moisture %: 35. Outlet Moisture %: 10. Exhaust Fan: Yes. Dust Collection: Yes.
Type: Dryer-Flash
Manufacturer: APV Anhydro
Model: III Number 55
Condition: Used
Material: Stainless Steel Other
Evaporation Rate: 200 kg/h (440.9 lb/h)
Diameter: 500 mm (19.7 in)

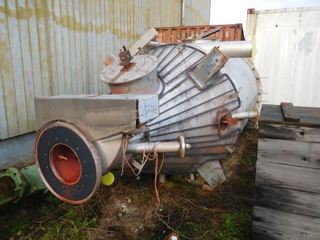

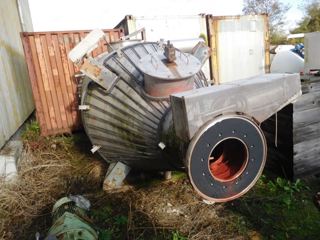

APV spin flash dryer system 1450 Kg/Hr air flow , 685 Kg/Hr feed volume 70% DS in the feed, 485 Kg/Hr powder production @ 1% humidity. Direct heated, 22 NCuM/Hr gas conusmption, 15 Kw power consumption, 7 NCuM/Hr Compressed air consumption With air Heater, filters etc. Does not include controls.
Temperature: 500 °C (932 °F). Feeder: Yes. Product Feed Rate: 685 kg/h (1,510 lb/h). Inlet Moisture %: 70. Outlet Moisture %: 1.
Type: Dryer-Flash
Manufacturer: Hosokawa Alpine
Model: MDV-4
Condition: Used
Material: Stainless Steel 304
Air Flow: 8,155 m3/h (4,800 CFM)
Evaporation Rate: 349.3 kg/h (770 lb/h)
original product (Artificial Sweetener) design rate Micron Pulverizer/Dryer Micron pulverizer/dryer/classifier is 304SS with (2) 32" x 24" access doors Pulverizing section, is driven by a 50 HP 3/60/460V motor,600 rpm 39.4" diameter Classifying section is driven by a 10HP 3/60/460V motor, 45 to 450 rpm rotor speed. With delumper, live bottom feed bin, Micron/Hosokawa pulverizer/dryer/classifier Original product designed 770 to 925 Lbs/Hr, of 50% solids feed, drying to an end product moisture content of 4%, 0.46 Specific Gravity, and particle size of 100 to 325 mesh Crystals are dropped into a 304SS Jacobson delumper, which discharges into 100 cu ft 304LSS live bottom bin, 60" diameter x 54"SS. 16.4 to 164 rpm with a 3" diameter screw. This feeds into the bottom of the Hosokawa Micron pulverizer/dryer/classifier, and remains in the dryer until the desired particle size is met. The product fineness is accomplished by changing rotor speed of the classifier and air flow. The hot air flows enter the bottom of the dryer with the product con-currently. The dried particles are discharged through a classifier at the top of the dryer Heater not included, but original design was: Inert heating gas inlet temperature is 300 degrees F(149 deg. C); Heating gas outlet temperature is 192 degrees F (90 deg C); Heating gas flow rate is 4,800 SCFM (21, 390 lbs.hr; Maximum Thermal Capacity is 60,700 to 81, 300 BTU/Min; Product outlet Temperature is 90 to 110 degrees F. Con-current air flow design Previous use: Artificial Sweetener No Heater and no controls
Diameter: 1,100 mm (43.3 in). Pressure: 0.98 bar (14.2 psi). Feeder: Yes. Product Feed Rate: 419.6 kg/h (925 lb/h). Inlet Moisture %: 50. Outlet Moisture %: 4.
