Diameter: 34.9 mm (1.38 in). Length: 1,184 mm (46.6 in). Span: 152.4 mm (6 in). Vessel Size: 567.8 L (150 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: None.

flange mount Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

downward finger baffle Fits a SA 2000 gallon . Diameter: 101.6 mm (4 in). Length: 2,400 mm (94.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,438 mm (96 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail.

Diameter: 139.7 mm (5.5 in). Length: 2,794 mm (110 in). Span: 174.6 mm (6.9 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,356 mm (92.8 in). Span: 177.8 mm (7 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Integral.

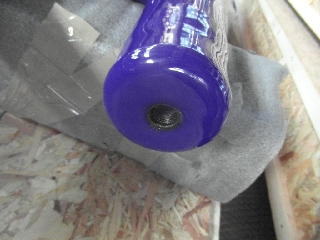

With a bore for tip 5/8"-18 UNF (purchase separately). Diameter: 76.2 mm (3 in). Length: 1,759 mm (69.3 in). Span: 381 mm (15 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

5/8"-18UNF threaded bore (sensor not included). Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 330.2 mm (13 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,168 mm (46 in). Span: 215.9 mm (8.5 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Fits 300 gallon EM Series reactor Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 330.2 mm (13 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

58" long Fits an EL series 300 gallon reactor Diameter: 76.2 mm (3 in). Length: 1,473 mm (58 in). Span: 254 mm (10 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Fits an EL300 gallon reactor Diameter: 76.2 mm (3 in). Length: 1,473 mm (58 in). Span: 254 mm (10 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

3 finger up with integral tip Designed to fit a 2000/3000 gallon reactor. Diameter: 101.6 mm (4 in). Length: 3,112 mm (122.5 in). Span: 381 mm (15 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

3 finger up with integral tip designed to fit a 2000/3000 gallon reactor. Diameter: 101.6 mm (4 in). Length: 3,023 mm (119 in). Span: 381 mm (15 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Tip threaded for 5/8"-18 UNF threads. Diameter: 168.3 mm (6.6 in). Length: 4,242 mm (167 in). Span: 304.8 mm (12 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

5/8"-18UNF threads Diameter: 127 mm (5 in). Length: 2,807 mm (110.5 in). Span: 431.8 mm (17 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Tip threads are 5/8"-18 UNF. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 323.9 mm (12.8 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,096 mm (82.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Fits an EL300 gallon reactor Diameter: 76.2 mm (3 in). Length: 1,473 mm (58 in). Span: 254 mm (10 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Fits an ELL 500 and an EL 300 Gallon reactor Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 323.9 mm (12.8 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

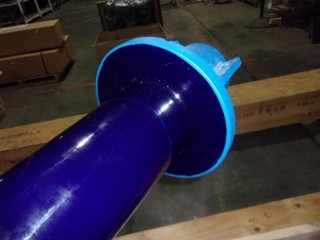

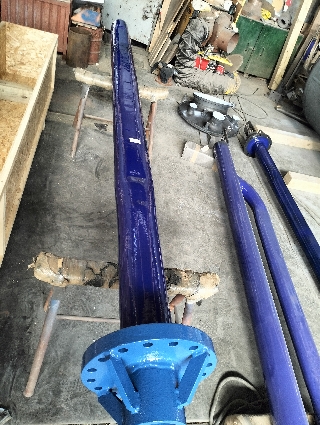

flange mount Diameter: 152.4 mm (6 in). Length: 3,594 mm (141.5 in). Span: 182.4 mm (7.2 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

with flange mount with 10" nozzle Length: 4,166 mm (164 in). Vessel Size: 18,927 L (5,000 gallons). Glass Baffle Type: Beavertail.

with flange mount with 10" nozzle Length: 4,166 mm (164 in). Vessel Size: 18,927 L (5,000 gallons). Glass Baffle Type: Beavertail.

Reglassed by UGE 2008. Diameter: 171.5 mm (6.8 in). Length: 3,785 mm (149 in). Span: 431.8 mm (17 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes.

Diameter: 127 mm (5 in). Length: 2,832 mm (111.5 in). Span: 431.8 mm (17 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

two finger up baffle threaded for 5/8"-18UNF threads. Fits a 750 gallon reactor Diameter: 76.2 mm (3 in). Length: 2,172 mm (85.5 in). Span: 381 mm (15 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

with a 3 3/4" long integral tip For a 6" nozzle Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 123.8 mm (4.9 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

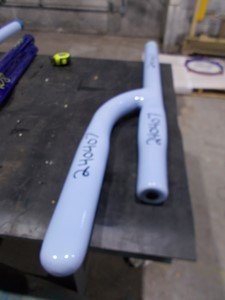

Light blue glass Fits a 100 Gallon P reactor. Diameter: 28.6 mm (1.13 in). Length: 1,168 mm (46 in). Span: 152.4 mm (6 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

With hole threaded 5/8-18 UNC for a removable tip (tip not included but may be purchased separate) Fits a 750 Gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 317.5 mm (12.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 127 mm (5 in). Length: 3,785 mm (149 in). Span: 419.1 mm (16.5 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 114.3 mm (4.5 in). Length: 2,451 mm (96.5 in). Span: 431.8 mm (17 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,613 mm (63.5 in). Span: 254 mm (10 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

5/8"-18 UNF. Threads taped for RTD sensor (sensor not included) Diameter: 76.2 mm (3 in). Length: 1,492 mm (58.8 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Has 1-1/8" threaded hole for RTD Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

with 5/8-18UNF threaded bore for removable RTD tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 317.5 mm (12.5 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

RA/ELL Series reactor Diameter: 76.2 mm (3 in). Length: 2,111 mm (83.1 in). Span: 317.5 mm (12.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,118 mm (44 in). Span: 228.6 mm (9 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 33.3 mm (1.31 in). Length: 885.8 mm (34.9 in). Span: 76.2 mm (3 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

with 5/8-18 UNF threaded hole for removable RTD tip (Not Included) Diameter: 101.6 mm (4 in). Length: 2,172 mm (85.5 in). Span: 193.7 mm (7.6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Fits 750 gal RA Series reactor. Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 368.3 mm (14.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Two finger up with integral tip. Designed to fit an EL 300 Gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,600 mm (63 in). Span: 330.2 mm (13 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

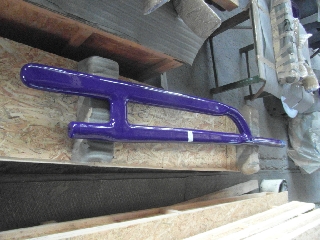

2-finger downward deflecting baffle plain tip Diameter: 38.1 mm (1.5 in). Length: 1,105 mm (43.5 in). Span: 254 mm (10 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

with drill and tap for 5/8"-18 UNF. Diameter: 73 mm (2.9 in). Length: 2,121 mm (83.5 in). Span: 142.9 mm (5.6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Drilled and taped for a removable tip (tip sold separately) 5/8" -18 UNF threads Diameter: 127 mm (5 in). Length: 2,737 mm (107.8 in). Span: 222.3 mm (8.8 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Diameter: 127 mm (5 in). Length: 2,972 mm (117 in). Span: 431.8 mm (17 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

tip sold separately Diameter: 127 mm (5 in). Length: 3,613 mm (142.3 in). Span: 419.1 mm (16.5 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

Finger baffle with threads for tip. Fits a 6,000 Gallon reactor. Diameter: 168.3 mm (6.6 in). Length: 4,242 mm (167 in). Span: 304.8 mm (12 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

Flange mounted 109" vertical length With 6"nozzle opening. Diameter: 101.6 mm (4 in). Length: 2,997 mm (118 in). Span: 120.7 mm (4.8 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 127 mm (5 in). Length: 2,915 mm (114.8 in). Span: 165.1 mm (6.5 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Diameter: 88.9 mm (3.5 in). Length: 2,502 mm (98.5 in). Span: 196.9 mm (7.8 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

2000/3000 gallon with 5/8" threads for sensor Diameter: 101.6 mm (4 in). Length: 2,870 mm (113 in). Span: 193.7 mm (7.6 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,007 mm (79 in). Span: 149.2 mm (5.9 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

Two Finger upward flecting baffle with 5/8" threads for sensor Diameter: 76.2 mm (3 in). Length: 1,295 mm (51 in). Span: 215.9 mm (8.5 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 114.3 mm (4.5 in). Length: 2,464 mm (97 in). Span: 419.1 mm (16.5 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 114.3 mm (4.5 in). Length: 2,464 mm (97 in). Span: 431.8 mm (17 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,356 mm (92.8 in). Span: 177.8 mm (7 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,502 mm (98.5 in). Span: 152.4 mm (6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Fits a 50 reactor Diameter: 33.3 mm (1.31 in). Length: 898.5 mm (35.4 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

with 5/16" RTD hole Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 127 mm (5 in). Length: 3,785 mm (149 in). Span: 419.1 mm (16.5 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Fits an EL 500 gallon reactor Diameter: 76.2 mm (3 in). Length: 2,172 mm (85.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Used 4000 gallon Wide-I baffle

horizontal Two finger baffle with 4" fingers. Fits "P" series reactor Diameter: 38.1 mm (1.5 in). Length: 714.4 mm (28.1 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

UNUSED Fits a 50 gallon reactor. Diameter: 31.8 mm (1.25 in). Length: 1,080 mm (42.5 in). Span: 171.5 mm (6.8 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: None.

threaded 5/8"-18. Diameter: 76.2 mm (3 in). Length: 1,156 mm (45.5 in). Span: 228.6 mm (9 in). Vessel Size: 567.8 L (150 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

5/8"- 18UNF threaded tip for RTD sensor (sensor not included) For P reactor. Diameter: 38.1 mm (1.5 in). Length: 1,162 mm (45.8 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Fin baffle with threads for a removable RTD. (tips sold separate at an additional cost) Fits 2000 gallon RA series reactor. 18UNF threads. Diameter: 114.3 mm (4.5 in). Length: 2,908 mm (114.5 in). Span: 241.3 mm (9.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

For E10000 liter reactor. Vessel Size: 10,000 L (2,642 gallons).

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 279.4 mm (11 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 101.6 mm (4 in). Length: 2,921 mm (115 in). Span: 177.8 mm (7 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,108 mm (83 in). Span: 381 mm (15 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,375 mm (93.5 in). Span: 177.8 mm (7 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Fin Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 101.6 mm (4 in). Length: 2,242 mm (88.3 in). Span: 193.7 mm (7.6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

200 gallon EM series Diameter: 76.2 mm (3 in). Length: 1,378 mm (54.3 in). Span: 317.5 mm (12.5 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,378 mm (54.3 in). Span: 330.2 mm (13 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 330.2 mm (13 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,861 mm (73.3 in). Span: 317.5 mm (12.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 168.3 mm (6.6 in). Length: 4,089 mm (161 in). Span: 431.8 mm (17 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 33.3 mm (1.31 in). Length: 819.2 mm (32.3 in). Span: 76.2 mm (3 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Fin Baffle. Reglassed: Yes. Tip Type: None.

Fits a 500 or 750 gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 127 mm (5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Fin Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 34.9 mm (1.38 in). Length: 819.2 mm (32.3 in). Span: 76.2 mm (3 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Fin Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 330.2 mm (13 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 168.1 mm (6.6 in). Length: 3,969 mm (156.3 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

Diameter: 168.3 mm (6.6 in). Length: 3,988 mm (157 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 165.1 mm (6.5 in). Length: 3,931 mm (154.8 in). Span: 431.8 mm (17 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,051 mm (80.8 in). Span: 142.9 mm (5.6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Fintail Baffle threaded for RTD 1 1/8" Diameter: 76.2 mm (3 in). Length: 1,930 mm (76 in). Span: 152.4 mm (6 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Fin Baffle. Tip Type: Removable.

2" integral tip Diameter: 114.3 mm (4.5 in). Length: 2,921 mm (115 in). Span: 355.6 mm (14 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

threaded with a 1 1/8" RTD. Diameter: 114.3 mm (4.5 in). Length: 2,769 mm (109 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Diameter: 114.3 mm (4.5 in). Length: 2,972 mm (117 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 127 mm (5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Fin Baffle. Tip Type: Removable.

5/8" threaded RTD end. ( RTD not included) Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Fin Baffle. Tip Type: Removable.

Fits a 300 gallon Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 317.5 mm (12.5 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

taped for 5/8"-18 UNF Threads Fits a Model 100P Diameter: 44.5 mm (1.75 in). Length: 1,168 mm (46 in). Span: 152.4 mm (6 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 168.3 mm (6.6 in). Length: 3,969 mm (156.3 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,108 mm (83 in). Span: 152.4 mm (6 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

Diameter: 101.6 mm (4 in). Length: 2,286 mm (90 in). Span: 203.2 mm (8 in). Glass Baffle Type: Beavertail. Tip Type: Removable.

Diameter: 101.6 mm (4 in). Length: 2,248 mm (88.5 in). Span: 203.2 mm (8 in). Glass Baffle Type: Beavertail. Tip Type: Removable.

Diameter: 101.6 mm (4 in). Length: 2,057 mm (81 in). Span: 203.2 mm (8 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

Diameter: 101.6 mm (4 in). Length: 2,248 mm (88.5 in). Span: 203.2 mm (8 in). Glass Baffle Type: Beavertail. Tip Type: Removable.

Vessel Size: 15,142 L (4,000 gallons).

2-finger upward deflecting baffle with 5/8" threads for removable RTD sensor (sensor not included) Diameter: 76.2 mm (3 in). Length: 1,346 mm (53 in). Span: 381 mm (15 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

1000 gallon glass lined Beavertail baffle with integral tip

with 20' x 20" flange Length: 3,810 mm (150 in). Span: 228.6 mm (9 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

round baffle with flange with bolt holes Diameter: 355.6 mm (14 in). Length: 3,823 mm (150.5 in). Span: 177.8 mm (7 in). Reglassed: Yes.

with flange flange 20"x 20" with 12 bolt holes 7"intergral tip. Diameter: 5,042 mm (198.5 in). Span: 228.6 mm (9 in). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

with 1/2" -20 RTD Diameter: 33.4 mm (1.32 in). Length: 660.4 mm (26 in). Span: 76.2 mm (3 in). Vessel Size: 75.7 L (20 gallons). Glass Baffle Type: Fin Baffle. Tip Type: Removable.

Diameter: 33.4 mm (1.32 in). Length: 527.1 mm (20.8 in). Span: 88.9 mm (3.5 in). Vessel Size: 37.9 L (10 gallons). Glass Baffle Type: Fin Baffle. Tip Type: Integral.

for 8000 gal reactor Length: 4,166 mm (164 in). Span: 228.6 mm (9 in). Vessel Size: 30,283 L (8,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

for 8000 gallon Diameter: 254 mm (10 in). Length: 4,166 mm (164 in). Span: 228.6 mm (9 in). Vessel Size: 30,283 L (8,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,486 mm (58.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Diameter: 38.1 mm (1.5 in). Length: 1,108 mm (43.6 in). Span: 63.5 mm (2.5 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: Fin Baffle. Reglassed: Yes. Tip Type: Removable.

Fits a 300 gallon Diameter: 76.2 mm (3 in). Length: 1,473 mm (58 in). Span: 304.8 mm (12 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 168.3 mm (6.6 in). Length: 3,962 mm (156 in). Span: 406.4 mm (16 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Span: 406.4 mm (16 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 317.5 mm (12.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Span: 406.4 mm (16 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 114.3 mm (4.5 in). Length: 2,794 mm (110 in). Span: 431.8 mm (17 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Nucerite H baffle Fits a 50 "p" series. Diameter: 38.1 mm (1.5 in). Length: 1,162 mm (45.8 in). Span: 152.4 mm (6 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Designed to fit a 4000 Gallon. Diameter: 165.1 mm (6.5 in). Length: 3,556 mm (140 in). Span: 304.8 mm (12 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

W/restricted tip Diameter: 76.2 mm (3 in). Length: 2,032 mm (80 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle.

Nucerite EL Series 4" dia nozzle. Diameter: 76.2 mm (3 in). Length: 1,600 mm (63 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

D-baffle For E4000 Series reactor. Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: D-Baffle.

UNUSED, Nucerite 8000 glass. For E16000 reactor. Vessel Size: 16,000 L (4,227 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

2-finger up baffle for a CE6300 reactor blue glass Vessel Size: 23,848 L (6,300 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 38.1 mm (1.5 in). Length: 596.9 mm (23.5 in). Span: 88.9 mm (3.5 in). Vessel Size: 189.3 L (50 gallons).

110" Wet Length , 118OAL ( Fits 8" nozzle ) Length: 2,997 mm (118 in). Vessel Size: 11,356 L (3,000 gallons). Tip Type: Integral.

110" Wet Length , overall 118" fits 8" nozzle ( Wide Baffle ) Length: 28,397 mm (1,118 in). Vessel Size: 11,356 L (3,000 gallons).

110" Wet Length ( Fits 8" nozzle ) Wide Baffle . Length: 2,997 mm (118 in). Span: 177.8 mm (7 in). Vessel Size: 11,356 L (3,000 gallons). Tip Type: Integral.

RTD not included ( 5/18" -18" threads) Diameter: 127 mm (5 in). Length: 3,607 mm (142 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Thin Baffle.

Diameter: 127 mm (5 in). Length: 3,607 mm (142 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

with a threaded tip for RTD(not included) 5/8-18 UNF threads. Diameter: 171.5 mm (6.8 in). Length: 4,407 mm (173.5 in). Span: 406.4 mm (16 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

fits a 750 gallon RS series reactor Diameter: 76.2 mm (3 in). Length: 2,032 mm (80 in). Span: 177.8 mm (7 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Integral.

three finger up baffle 4.5" OD Diameter: 114.3 mm (4.5 in). Length: 3,010 mm (118.5 in). Span: 330.2 mm (13 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,045 mm (80.5 in). Span: 117.5 mm (4.6 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 127 mm (5 in). Length: 2,972 mm (117 in). Span: 431.8 mm (17 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

with 1 1/8 hole for RTD Diameter: 114.3 mm (4.5 in). Length: 2,972 mm (117 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 168.1 mm (6.6 in). Length: 3,969 mm (156.3 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

Diameter: 168.1 mm (6.6 in). Length: 3,969 mm (156.3 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

Used Wide I baffle with integral tip for TMI. Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

1 1/8"threaded hole for RTD Diameter: 168.3 mm (6.6 in). Length: 4,121 mm (162.3 in). Glass Baffle Type: D-Baffle. Reglassed: Yes.

Used Diameter: 168.3 mm (6.6 in). Length: 3,975 mm (156.5 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

with 5/8"-18 UNF threads with a 6 & 5/8" span ( tip available at additional cost) Diameter: 168.3 mm (6.6 in). Length: 3,918 mm (154.3 in). Span: 406.4 mm (16 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

with 20' x 20" flange with single hole tip Length: 4,648 mm (183 in). Span: 292.1 mm (11.5 in). Glass Baffle Type: Beavertail. Tip Type: Removable.

Vessel Size: 18,927 L (5,000 gallons).

Diameter: 330.2 mm (13 in). Length: 3,861 mm (152 in). Span: 177.8 mm (7 in). Glass Baffle Type: Beavertail.

4" diameter shaft with 3 fingers Diameter: 101.6 mm (4 in). Length: 3,861 mm (152 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 203.2 mm (8 in). Length: 3,689 mm (145.3 in). Span: 114.3 mm (4.5 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail.

with RTD installed. Diameter: 279.4 mm (11 in). Length: 4,267 mm (168 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

Fin Baffle with integral tip Glass Baffle Type: Thin Baffle. Tip Type: Integral.

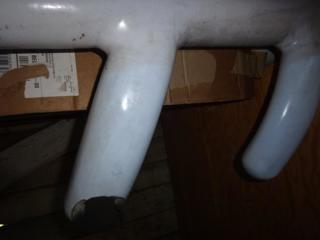

2 finger baffle White Glass. Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle.

2 finger up Integral Tip Diameter: 76.2 mm (3 in). Length: 1,295 mm (51 in). Span: 254 mm (10 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

Has 5/8-18 threaded hole for RTD Diameter: 114.3 mm (4.5 in). Length: 2,807 mm (110.5 in). Span: 431.8 mm (17 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

RA Series reactor. Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Span: 355.6 mm (14 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

3 1/4" ID X 6 7/16 OD Baffle packing support with 4" nozzle

5 5/8" ID X 8 1/2 OD Baffle packing support with 4" nozzle

Baffle packing gland for 8" nozzle Diameter: 168.1 mm (6.6 in).

Baffle packing gland for 8" nozzle Diameter: 168.1 mm (6.6 in).

Baffle packing gland for 8" nozzle Diameter: 168.1 mm (6.6 in).

Baffle packing gland for 8" nozzle Diameter: 168.1 mm (6.6 in).

Baffle packing gland for 8" nozzle Diameter: 168.1 mm (6.6 in).

Baffle packing gland for 8" nozzle Diameter: 168.1 mm (6.6 in).

Fits a 2000 gallon reactor. Diameter: 101.6 mm (4 in). Length: 2,870 mm (113 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

with a 1 1/2" Integral tip SA 2000/3000 gallon reactor . Diameter: 101.6 mm (4 in). Length: 3,023 mm (119 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

upward Finger baffle. Diameter: 76.2 mm (3 in). Length: 2,261 mm (89 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 62 mm (2.4 in). Length: 990 mm (39 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: Beavertail.

3-finger up baffle 80mm long carbon steel stub end blue glass fits a 4000 liter vessel Diameter: 100 mm (3.9 in). Length: 2,320 mm (91.3 in). Vessel Size: 4,000 L (1,057 gallons). Glass Baffle Type: Finger Baffle.

2-finger up baffle white glass fits approx. 3000 to 4000 liter vessel Diameter: 90 mm (3.5 in). Length: 2,070 mm (81.5 in). Vessel Size: 4,000 L (1,057 gallons). Glass Baffle Type: Finger Baffle.

155mm diameter flange with no bolt holes 85mm wide flat section Diameter: 75 mm (3 in). Length: 1,515 mm (59.6 in). Span: 85 mm (3.3 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Beavertail.

2-finger up baffle 140mm long carbon steel stub end blue glass Diameter: 85 mm (3.3 in). Length: 1,420 mm (55.9 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

blue glass lined flat part 180mm wide 260mm diameter flange (no holes) fits approx. 8000/11000 liter vessel Diameter: 142 mm (5.6 in). Length: 3,000 mm (118.1 in). Span: 180 mm (7.1 in). Vessel Size: 11,000 L (2,906 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

blue glass lined 172mm wide x 2060mm long flat section fits approx. 8000/11000 liter vessel Diameter: 142 mm (5.6 in). Length: 3,000 mm (118.1 in). Span: 172 mm (6.8 in). Vessel Size: 11,000 L (2,906 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

white glass lined 2-sensors 270mm wide x 2500mm long flat part Diameter: 144 mm (5.7 in). Length: 4,000 mm (157.5 in). Span: 27 mm (1.06 in). Vessel Size: 20,000 L (5,283 gallons). Glass Baffle Type: Beavertail.

white glass lined 3-finger up baffle each finger is 290mm long and 150mm wide. Diameter: 140 mm (5.5 in). Length: 3,700 mm (145.7 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

white glass lined with 2-sensors flat part 184mm wide x 2110mm long fits approx. 8000 to 11000 liter vessel Diameter: 143 mm (5.6 in). Length: 3,100 mm (122 in). Vessel Size: 11,000 L (2,906 gallons). Glass Baffle Type: Beavertail.

white glass lined flat part 181mm wide 265mm diameter flange (no holes) with 2-sensors Diameter: 144 mm (5.7 in). Length: 2,440 mm (96.1 in). Vessel Size: 6,000 L (1,585 gallons). Glass Baffle Type: Beavertail.

3 finger upwards deflecting baffle. Diameter: 114.3 mm (4.5 in). Length: 3,861 mm (152 in). Span: 406.4 mm (16 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

2-Finger up-deflecting baffle with M22 x 1.5 threaded hole Diameter: 100 mm (3.9 in). Length: 2,400 mm (94.5 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

2-Finger upward deflecting baffle M22 x 1.5 threaded hole Diameter: 100 mm (3.9 in). Length: 1,900 mm (74.8 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

2-Finger downward deflecting baffle Diameter: 100 mm (3.9 in). Length: 1,900 mm (74.8 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 90 mm (3.5 in). Length: 2,300 mm (90.6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 63.5 mm (2.5 in). Length: 1,219 mm (48 in). Vessel Size: 378.5 L (100 gallons). Reglassed: Yes. Tip Type: Integral.

Diameter: 101.6 mm (4 in). Length: 2,413 mm (95 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

2-finger up baffle 70mm long carbon steel stub end blue glass Diameter: 80 mm (3.1 in). Length: 1,420 mm (55.9 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

removable tip. Diameter: 127 mm (5 in). Length: 2,756 mm (108.5 in). Span: 406.4 mm (16 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 171.5 mm (6.8 in). Length: 3,569 mm (140.5 in). Span: 406.4 mm (16 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,438 mm (96 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Beavertail baffle with removable RTD Diameter: 127 mm (5 in). Length: 2,750 mm (108.3 in). Span: 215.9 mm (8.5 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

1 finger down baffle with no tip. Diameter: 38.1 mm (1.5 in). Length: 482.6 mm (19 in). Span: 127 mm (5 in). Vessel Size: 18.9 L (5 gallons). Glass Baffle Type: Finger Baffle. Tip Type: None.

NUCERITE, with integral restricted tip. Diameter: 127 mm (5 in). Length: 3,353 mm (132 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

W/1" bore. Diameter: 101.6 mm (4 in). Length: 2,235 mm (88 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Two Finger baffle Diameter: 72.9 mm (2.9 in). Length: 1,600 mm (63 in). Span: 209.6 mm (8.3 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: None.

3-finger up baffle. Diameter: 101.6 mm (4 in). Length: 2,413 mm (95 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

UNUSED, For E6300 glass lined reactor. Vessel Size: 6,300 L (1,664 gallons). Reglassed: Yes.

blue glass 210mm carbon steel stub end 365mm wide 'D' section Diameter: 85 mm (3.3 in). Length: 1,420 mm (55.9 in). Span: 365 mm (14.4 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: D-Baffle.

blue glass 2-sensors flat part 136mm wide Diameter: 79 mm (3.1 in). Length: 1,400 mm (55.1 in). Span: 136 mm (5.4 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: Beavertail.

blue glass lined 2-sensors 142mm wide x 800mm long flat section Diameter: 88 mm (3.5 in). Length: 1,980 mm (78 in). Span: 142 mm (5.6 in). Vessel Size: 3,000 L (792.5 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

Designed to fit a 1000-1500 Gallon reactor Diameter: 76.2 mm (3 in). Length: 2,553 mm (100.5 in). Span: 146.1 mm (5.8 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

white glass lined 3-finger up baffle with tantelum tip Diameter: 92 mm (3.6 in). Length: 2,640 mm (103.9 in). Vessel Size: 8,000 L (2,113 gallons). Glass Baffle Type: Finger Baffle.

E2000 Series reactor. 4" (100mm) dia nozzle. Diameter: 82.6 mm (3.3 in). Length: 1,829 mm (72 in). Vessel Size: 2,006 L (530 gallons). Glass Baffle Type: D-Baffle.

Nucerite Beaver tail baffle W/removable tip (no tip) Fits 530 gal (440 Imperial gal) E2000 Series reactor 4" (100mm) dia nozzle. Diameter: 82.6 mm (3.3 in). Length: 1,854 mm (73 in). Vessel Size: 2,006 L (530 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

blue glass lined 2-finger up baffle with a hole for a tip Diameter: 78 mm (3.1 in). Length: 2,170 mm (85.4 in). Vessel Size: 4,000 L (1,057 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

3-finger down baffle white glass Diameter: 142 mm (5.6 in). Length: 2,200 mm (86.6 in). Vessel Size: 4,000 L (1,057 gallons). Glass Baffle Type: Finger Baffle. Tip Type: None.

2-finger down baffle with (2) holes for tips 100mm carbon steel stub end Diameter: 110 mm (4.3 in). Length: 2,420 mm (95.3 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

For CE12500 glass lined reactor. Vessel Size: 12,500 L (3,302 gallons). Glass Baffle Type: Beavertail.

UNUSED,reglassed For E16000 glass lined reactor. Vessel Size: 16,000 L (4,227 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

UNUSED For CE12500 glass lined reactor. W/T-type sensor. Vessel Size: 12,500 L (3,302 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

3-finger down baffle with tantelum tip fits approx. 8000/11000 liter vessel Diameter: 140 mm (5.5 in). Length: 3,100 mm (122 in). Vessel Size: 11,000 L (2,906 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

195mm wide x 1280mm long flat section blue glass Diameter: 85 mm (3.3 in). Length: 2,490 mm (98 in). Span: 195 mm (7.7 in). Vessel Size: 6,000 L (1,585 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

white glass lined flat part 272mm wide x 1900mm long bottom diameter 210mm Diameter: 142 mm (5.6 in). Length: 3,300 mm (129.9 in). Span: 272 mm (10.7 in). Vessel Size: 11,000 L (2,906 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

5/8" threads for tip (sensor not included) Diameter: 76.2 mm (3 in). Length: 1,219 mm (48 in). Span: 215.9 mm (8.5 in). Vessel Size: 567.8 L (150 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

'D' section is 360mm wide blue glass Diameter: 82 mm (3.2 in). Length: 2,990 mm (117.7 in). Span: 360 mm (14.2 in). Vessel Size: 8,000 L (2,113 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes.

3-finger up baffle blue shaft Diameter: 140 mm (5.5 in). Length: 4,000 mm (157.5 in). Span: 360 mm (14.2 in). Vessel Size: 20,000 L (5,283 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

3-finger up baffle blue glass Diameter: 102 mm (4 in). Length: 2,645 mm (104.1 in). Span: 370 mm (14.6 in). Vessel Size: 8,000 L (2,113 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

flat section is 194mm wide blue glass fits approx. 11,000 to 12000 liter vessel Diameter: 102 mm (4 in). Length: 3,050 mm (120.1 in). Span: 194 mm (7.6 in). Vessel Size: 12,000 L (3,170 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

360mm wide 'D' section blue glass fits approx. 11000 to 12000 liter vessel Diameter: 100 mm (3.9 in). Length: 3,055 mm (120.3 in). Span: 360 mm (14.2 in). Vessel Size: 12,000 L (3,170 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes.

2-finger up baffle blue glass 150mm long carbon steel stub end fits approx. 2000 liter vessel Diameter: 80 mm (3.1 in). Length: 1,620 mm (63.8 in). Vessel Size: 2,000 L (528.3 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

360mm wide 'D' fits approx. 2000 liter vessel Diameter: 80 mm (3.1 in). Length: 2,170 mm (85.4 in). Span: 360 mm (14.2 in). Vessel Size: 2,000 L (528.3 gallons). Glass Baffle Type: D-Baffle.

190mm carbon steel stub end 360mm wide 'D' hole for a tip white glass fits approx. 2000 liter vessel Diameter: 85 mm (3.3 in). Length: 1,810 mm (71.3 in). Span: 360 mm (14.2 in). Vessel Size: 2,000 L (528.3 gallons). Glass Baffle Type: D-Baffle. Tip Type: Removable.

2-finger up baffle hole for a tantelum tip 50mm long carbon steel stub end blue glass fits approx. 2000 liter vessel Diameter: 80 mm (3.1 in). Length: 1,550 mm (61 in). Vessel Size: 2,000 L (528.3 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

2-finger up baffle blue glass no hole for tip fits approx. 2000 liter vessel Diameter: 75 mm (3 in). Length: 1,870 mm (73.6 in). Vessel Size: 2,000 L (528.3 gallons). Glass Baffle Type: Finger Baffle. Tip Type: None.

2-finger up baffle with a hole for a tantalum tip blue glass 250mm long carbon steel stub end fits approx. 2000 liter vessel Diameter: 80 mm (3.1 in). Length: 2,125 mm (83.7 in). Vessel Size: 2,000 L (528.3 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

downward finger baffle fits 150 gallon EM series. Diameter: 76.2 mm (3 in). Length: 1,346 mm (53 in). Vessel Size: 567.8 L (150 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 76.2 mm (3 in). Length: 2,083 mm (82 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes.

Diameter: 76.2 mm (3 in). Length: 2,413 mm (95 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

With Tantalum tip. Vessel Size: 567.8 L (150 gallons). Glass Baffle Type: H-Baffle.

2-finger up baffle. Diameter: 76.2 mm (3 in). Length: 1,524 mm (60 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

2-finger up baffle E2000 Series reactor. Diameter: 88.9 mm (3.5 in). Length: 1,422 mm (56 in). Vessel Size: 1,987 L (525 gallons). Glass Baffle Type: Finger Baffle.

12" wide with removable glass tip Diameter: 203.2 mm (8 in). Length: 5,448 mm (214.5 in). Span: 304.8 mm (12 in). Vessel Size: 37,854 L (10,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

flange mount with 1/2" threads for RTD tip No tip with baffle. Diameter: 139.7 mm (5.5 in). Length: 2,743 mm (108 in). Span: 165.1 mm (6.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: None.

With 5/8 - 18' UNF threads for tip. Diameter: 101.6 mm (4 in). Length: 3,048 mm (120 in). Span: 254 mm (10 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

Flange mounted fin baffle. Dark blue glass. Fits a 750-500 gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,905 mm (75 in). Span: 127 mm (5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

downward finger baffle Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

3-finger up baffle 200mm long carbon steel stub end white glass fits approx. 3500 - 4000 liter (1000 gallon) reactor Diameter: 80 mm (3.1 in). Length: 2,480 mm (97.6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

3 finger upward baffle Reglassed by UGE 2008 Diameter: 101.6 mm (4 in). Length: 2,965 mm (116.8 in). Span: 355.6 mm (14 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

concave baffle Diameter: 76.2 mm (3 in). Length: 1,410 mm (55.5 in). Span: 76.2 mm (3 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: Concave. Reglassed: Yes. Tip Type: Integral.

750 gallon Pfaudler RA series 2-finger upward deflecting baffle Diameter: 76.2 mm (3 in). Length: 1,994 mm (78.5 in). Span: 381 mm (15 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

For an 8" nozzle. Diameter: 88.9 mm (3.5 in). Length: 1,575 mm (62 in). Span: 152.4 mm (6 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Beavertail.

with 1 1/8" dia thread port Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Span: 406.4 mm (16 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

three finger down deflecting baffle Reglassed by UGE 2007. Diameter: 101.6 mm (4 in). Length: 2,883 mm (113.5 in). Span: 330.2 mm (13 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

with 5/8"-18 UNF threaded end for sensor (sensor not included) Reglassed by UGE 2008. Diameter: 171.5 mm (6.8 in). Length: 4,407 mm (173.5 in). Span: 431.8 mm (17 in). Vessel Size: 30,283 L (8,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

RTD sensor (sensor not included). Reglassed by UGE 2008. Diameter: 28.6 mm (1.13 in). Length: 793.8 mm (31.3 in). Span: 79.4 mm (3.1 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

With Flange mount for 12" nozzles. Diameter: 215.9 mm (8.5 in). Length: 4,623 mm (182 in). Vessel Size: 30,283 L (8,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

2000/3000 gal 3-Finger Baffle Reglassed by UGE 2005 Diameter: 101.6 mm (4 in). Length: 3,023 mm (119 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Fits 500 gallon RA 48 series reactor. Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

with RTD tantalum sensor and terminal head. Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 127 mm (5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

P series reactor. 5/8 - 18 NFT threads to accept RTD tip. Tip not included. Diameter: 38.1 mm (1.5 in). Length: 914.4 mm (36 in). Span: 139.7 mm (5.5 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Wide I baffle 137" wet length Flange mount design for 12" nozzle. 20" dia flange with 16 bolt holes. Diameter: 254 mm (10 in). Length: 3,581 mm (141 in). Vessel Size: 22,712 L (6,000 gallons).

Used 129 1/2" wet length (143" over all length including terminal head for TMI sensor) Flange mount design for a 8" nozzle 12" od flange Diameter: 127 mm (5 in). Length: 3,289 mm (129.5 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Integral.

Used 108" wet length 117" over all length Flange mount design for a 6" nozzle, 13 1/2" od flange with (8) bolt holes. Diameter: 114.3 mm (4.5 in). Length: 2,972 mm (117 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

with uni-tip 164" wet length 174" over all length x 10" wide Flange mount designe for 12" nozzle. 20" x 20" square flange with 16 bolt holes. Diameter: 203.2 mm (8 in). Length: 4,420 mm (174 in). Span: 254 mm (10 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: Beavertail.

with uni-tip 180" over all length x 10" wide. Flange mount design for a 12" nozzle with 20" x 20" square flange and 16 bolt holes. Diameter: 203.2 mm (8 in). Length: 4,572 mm (180 in). Span: 254 mm (10 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: Beavertail.

7" wide with integral tip white glass. Diameter: 101.6 mm (4 in). Length: 2,972 mm (117 in). Span: 177.8 mm (7 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

M20 threaded hole Diameter: 80 mm (3.1 in). Length: 2,100 mm (82.7 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

14" wide Diameter: 76.2 mm (3 in). Length: 2,083 mm (82 in). Span: 355.6 mm (14 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

with 5/8" threaded end for sensor. Diameter: 76.2 mm (3 in). Length: 1,829 mm (72 in). Span: 139.7 mm (5.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,524 mm (60 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: None.

5/8" threaded end for sensor. Diameter: 127 mm (5 in). Length: 2,794 mm (110 in). Span: 177.8 mm (7 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

5 7/8" wide with 5/8" threaded tip for sensor. Diameter: 101.6 mm (4 in). Length: 2,388 mm (94 in). Span: 193.7 mm (7.6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Diameter: 127 mm (5 in). Length: 3,099 mm (122 in). Span: 158.8 mm (6.3 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

Diameter: 127 mm (5 in). Length: 3,099 mm (122 in). Span: 155.6 mm (6.1 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 127 mm (5 in). Length: 3,099 mm (122 in). Span: 158.8 mm (6.3 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

threaded end for sensor Diameter: 101.6 mm (4 in). Length: 2,251 mm (88.6 in). Span: 196.9 mm (7.8 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

with 5/8" threads for sensor Will fit either a 200 or a 300 gallon reactor with a 5" or 6" nozzle Diameter: 101.6 mm (4 in). Length: 1,407 mm (55.4 in). Span: 133.4 mm (5.3 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,791 mm (70.5 in). Span: 149.2 mm (5.9 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

with 5/8" threads for sensor Diameter: 76.2 mm (3 in). Length: 1,746 mm (68.8 in). Span: 146.1 mm (5.8 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,905 mm (75 in). Span: 149.2 mm (5.9 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Three Finger upward deflecting baffle 5/8' threads for sensor Diameter: 101.6 mm (4 in). Length: 2,826 mm (111.3 in). Span: 355.6 mm (14 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

5/8-18 UNF threads. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

two finger upward baffle Designed to fit a 500-750 gallon reactor. Diameter: 76.2 mm (3 in). Length: 2,007 mm (79 in). Span: 393.7 mm (15.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

Fits a 10 Gallon reactor. Diameter: 33.3 mm (1.31 in). Length: 539.8 mm (21.3 in). Span: 76.2 mm (3 in). Vessel Size: 37.9 L (10 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes.

Threaded for a removable tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Threaded for a removable tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Threaded for a removable tip Diameter: 76.2 mm (3 in). Length: 1,372 mm (54 in). Span: 228.6 mm (9 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

two finger up baffle Threaded for a removable tip Diameter: 76.2 mm (3 in). Length: 1,372 mm (54 in). Span: 355.6 mm (14 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 381 mm (15 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

Threaded for a removable tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Threaded for a removable tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Threaded for a removable tip Fits a 750 or a 500 gallon reactor Diameter: 76.2 mm (3 in). Length: 1,829 mm (72 in). Span: 355.6 mm (14 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

Vessel Size: 18,927 L (5,000 gallons).

Vessel Size: 18,927 L (5,000 gallons).

with 1 1/8" dia thread hole for external RTD. Diameter: 76.2 mm (3 in). Length: 1,372 mm (54 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,346 mm (53 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

with 1 1/8" threaded hole. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,994 mm (78.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle.

For E2000 Series reactor 210mm long carbon steel stub end hole for Tantelum tip Diameter: 80 mm (3.1 in). Length: 1,611 mm (63.4 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Removable.

white glass 365mm wide 'D' Diameter: 85 mm (3.3 in). Length: 1,410 mm (55.5 in). Span: 365 mm (14.4 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: D-Baffle.

blue glass 90mm wide beavertail section 155mm diameter top flange with no bolt holes no hole for tip fits approx. 1200 liter vessel Diameter: 75 mm (3 in). Length: 1,510 mm (59.4 in). Span: 90 mm (3.5 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

'D'baffle with tantalum tip 200mm long carbon steel stub end 360mm wide 'D' fits approx. 4000 liter vessel Diameter: 83 mm (3.3 in). Length: 2,485 mm (97.8 in). Span: 360 mm (14.2 in). Vessel Size: 4,000 L (1,057 gallons). Glass Baffle Type: D-Baffle. Tip Type: Removable.

D-Baffle with no tip Diameter: 168.1 mm (6.6 in). Length: 3,969 mm (156.3 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: None.

Diameter: 168.1 mm (6.6 in). Length: 3,969 mm (156.3 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

Diameter: 114.3 mm (4.5 in). Length: 2,934 mm (115.5 in). Span: 406.4 mm (16 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: None.

Diameter: 165.1 mm (6.5 in). Length: 3,962 mm (156 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail.

Diameter: 31.8 mm (1.25 in). Length: 863.6 mm (34 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Thin Baffle.

with 7/8" threaded end for removeable RTD. Diameter: 25.4 mm (1 in). Length: 599.9 mm (23.6 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

with 1 1/8" threaded end. Diameter: 25.4 mm (1 in). Length: 736.6 mm (29 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

150/200 gallon tapped for 5/16" tip. Diameter: 76.2 mm (3 in). Length: 1,321 mm (52 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

tapped for 5/16" tip. Diameter: 76.2 mm (3 in). Length: 1,372 mm (54 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 114.3 mm (4.5 in). Length: 2,489 mm (98 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes.

Diameter: 76.2 mm (3 in). Length: 2,375 mm (93.5 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes.

Diameter: 76.2 mm (3 in). Length: 1,549 mm (61 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 76.2 mm (3 in). Length: 2,007 mm (79 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 76.2 mm (3 in). Length: 1,981 mm (78 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 76.2 mm (3 in). Length: 2,362 mm (93 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

upward finger baffle Fits a EL 300 gallon reactor Diameter: 76.2 mm (3 in). Length: 1,600 mm (63 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle.

Diameter: 76.2 mm (3 in). Length: 1,664 mm (65.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: D-Baffle.

with 1 1/8" RTD hole Diameter: 76.2 mm (3 in). Length: 1,473 mm (58 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

upward finger baffle Fits a SA 3000 gallon reactor Diameter: 101.6 mm (4 in). Length: 3,023 mm (119 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle.

with 1 1/8" RTD sensor Diameter: 101.6 mm (4 in). Length: 2,146 mm (84.5 in). Span: 1,118 mm (44 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

downward finger baffle Fits a SA 2000 gallon . Diameter: 101.6 mm (4 in). Length: 2,743 mm (108 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,702 mm (67 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

with 1 1/8" hole for RTD Diameter: 76.2 mm (3 in). Length: 1,708 mm (67.3 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 101.6 mm (4 in). Length: 3,023 mm (119 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

upward finger baffle Diameter: 69.9 mm (2.8 in). Length: 1,260 mm (49.6 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Finger Baffle.

Fits a 500/750 gallon Diameter: 76.2 mm (3 in). Length: 1,956 mm (77 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

with 5/16" RTD Hole Diameter: 26.9 mm (1.06 in). Length: 577.9 mm (22.8 in). Vessel Size: 37.9 L (10 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

with 1 1/8" RTD hole Diameter: 76.2 mm (3 in). Length: 1,327 mm (52.3 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

with 1 1/8" RTD hole Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Upward Finger Baffle with 1 1/8" RTD hole Diameter: 76.2 mm (3 in). Length: 1,257 mm (49.5 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

for a 8" nozzle Length: 3,048 mm (120 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

with 1 1/8" hole for RTD Diameter: 76.2 mm (3 in). Length: 2,261 mm (89 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 127 mm (5 in). Length: 3,581 mm (141 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

for assembly only Diameter: 101.6 mm (4 in). Length: 2,927 mm (115.3 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail.

with threads for tip Tip threaded for 5/8"-18 threaded for a RTD Diameter: 76.2 mm (3 in). Length: 1,848 mm (72.8 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

with 5/8" tapped hole for RTD. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,365 mm (53.8 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Diameter: 114.3 mm (4.5 in). Length: 2,959 mm (116.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

RTD Installed Diameter: 76.2 mm (3 in). Length: 1,930 mm (76 in). Span: 139.7 mm (5.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,588 mm (62.5 in). Span: 127 mm (5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

with 5/8-18 threads Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 317.5 mm (12.5 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

with 5/8-18 threads Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 317.5 mm (12.5 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

with threaded hole for RTD Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

with threaded 1 1/8 hole for RTD Diameter: 76.2 mm (3 in). Length: 1,359 mm (53.5 in). Span: 228.6 mm (9 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,511 mm (59.5 in). Span: 120.7 mm (4.8 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

7/8 threaded hole Fits a 200 Gallon "EM" Diameter: 69.9 mm (2.8 in). Length: 1,359 mm (53.5 in). Span: 152.4 mm (6 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Integral tip hole Diameter: 76.2 mm (3 in). Length: 1,772 mm (69.8 in). Span: 381 mm (15 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,283 mm (50.5 in). Span: 254 mm (10 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

H Baffle with tip hole Fits a 300 Gallon EL series reactor Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 330.2 mm (13 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Fits a 200 Gallon Em series reactor Diameter: 82.6 mm (3.3 in). Length: 1,372 mm (54 in). Span: 228.6 mm (9 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,096 mm (82.5 in). Span: 260.4 mm (10.3 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

3 Finger baffle with hole for tip Diameter: 101.6 mm (4 in). Length: 2,845 mm (112 in). Span: 406.4 mm (16 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

with (1) hole for tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

with (1) hole for integral tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 317.5 mm (12.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Two finger baffle with hole for tip. Diameter: 76.2 mm (3 in). Length: 1,969 mm (77.5 in). Span: 381 mm (15 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

with hole for tip Fits a 500 gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,842 mm (72.5 in). Span: 184.2 mm (7.3 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

with 5/8-18 threads for RTD (RTD not included) Fits a 1500 gallon . Diameter: 114.3 mm (4.5 in). Length: 2,432 mm (95.8 in). Span: 254 mm (10 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

PFA Coated H Baffle 1 1/8 x 12 threaded removable tip. Diameter: 114.3 mm (4.5 in). Length: 2,464 mm (97 in). Span: 431.8 mm (17 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

with hole for tip Diameter: 76.2 mm (3 in). Length: 2,400 mm (94.5 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

with 1 1/8 hole for Rtd Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

with hole for tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Good Used with flange and hole for tip Diameter: 101.6 mm (4 in). Length: 2,502 mm (98.5 in). Span: 139.7 mm (5.5 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

5/8-18" threaded hole for RTD Diameter: 76.2 mm (3 in). Length: 2,400 mm (94.5 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

with 2" tip hole Diameter: 76.2 mm (3 in). Length: 1,372 mm (54 in). Span: 304.8 mm (12 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: D-Baffle.

TMI installed. Length: 2,769 mm (109 in). Vessel Size: 18,927 L (5,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,438 mm (96 in). Span: 177.8 mm (7 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

2-Finger up Baffle Diameter: 76.2 mm (3 in). Length: 1,397 mm (55 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

Diameter: 127 mm (5 in). Length: 3,759 mm (148 in). Span: 431.8 mm (17 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

For 100 gallon P Series Diameter: 38.1 mm (1.5 in). Length: 1,168 mm (46 in). Span: 152.4 mm (6 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle.

Tip threaded for 5/16"-24 UNF Fits a 50 Gallon "P" series reactor Diameter: 33.3 mm (1.31 in). Length: 863.6 mm (34 in). Span: 76.2 mm (3 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

Two Finger Up Baffle Fits an ES 100 series reactor Diameter: 69.9 mm (2.8 in). Length: 1,448 mm (57 in). Span: 330.2 mm (13 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

Two Finger Up Baffle For an SA300 gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,321 mm (52 in). Span: 241.3 mm (9.5 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

Diameter: 38.1 mm (1.5 in). Length: 1,168 mm (46 in). Span: 152.4 mm (6 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes.

Beavertail baffle with removable RTD Diameter: 101.6 mm (4 in). Length: 2,864 mm (112.8 in). Span: 193.7 mm (7.6 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

With 5/8-18 UNF threads for removable RTD tip (Not Included) Diameter: 76.2 mm (3 in). Length: 2,045 mm (80.5 in). Span: 142.9 mm (5.6 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

with 5/8-18 UNF threads for removable RTD tip Diameter: 101.6 mm (4 in). Length: 2,242 mm (88.3 in). Span: 196.9 mm (7.8 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

3/4" threaded end for removable RTD Top of baffle has 3" threaded hole Diameter: 127 mm (5 in). Length: 4,359 mm (171.6 in). Span: 222.3 mm (8.8 in). Vessel Size: 30,283 L (8,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

3 finger up baffle RA series reactor Diameter: 114.3 mm (4.5 in). Length: 3,010 mm (118.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

500 gallon ELL series Diameter: 76.2 mm (3 in). Length: 2,111 mm (83.1 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes.

With RTD hole threads are 1 & 1/8" Three inch upper. Length: 1,886 mm (74.3 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

Tip is wired Length: 2,934 mm (115.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,930 mm (76 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Three finger up Designed to fit a 2000/3000 Gallon reactor. Diameter: 101.6 mm (4 in). Length: 3,023 mm (119 in). Span: 381 mm (15 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 34.9 mm (1.38 in). Length: 898.5 mm (35.4 in). Span: 133.4 mm (5.3 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

5.5" diameter at the holder 8" on the flat Diameter: 139.7 mm (5.5 in). Length: 3,747 mm (147.5 in). Span: 228.6 mm (9 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 127 mm (5 in). Length: 3,759 mm (148 in). Span: 228.6 mm (9 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Fits 2000/3000 gallon reactor. Diameter: 101.6 mm (4 in). Length: 3,023 mm (119 in). Span: 177.8 mm (7 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,362 mm (93 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Good Used Three finger up style White glass Diameter: 101.6 mm (4 in). Length: 2,845 mm (112 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

Length: 2,946 mm (116 in). Span: 431.8 mm (17 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Fits a short 100 P. Diameter: 38.1 mm (1.5 in). Length: 1,054 mm (41.5 in). Span: 152.4 mm (6 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Tip Type: None.

Used 100 gallon P series 1/2" threads for a tantalum tip Diameter: 38.1 mm (1.5 in). Length: 1,105 mm (43.5 in). Span: 152.4 mm (6 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

with tantalum tip. Fits a 30, or a 30 P. Diameter: 38.1 mm (1.5 in). Length: 825.5 mm (32.5 in). Span: 165.1 mm (6.5 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: H-Baffle.

P Series 2 finger upward with no tip Diameter: 38.1 mm (1.5 in). Length: 1,257 mm (49.5 in). Span: 254 mm (10 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: Finger Baffle. Tip Type: None.

with 5/8-18" UNF threads Diameter: 34.9 mm (1.38 in). Length: 1,029 mm (40.5 in). Span: 134.6 mm (5.3 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

With 5/8-18 UNF threads for removable RTD tip Diameter: 76.2 mm (3 in). Length: 1,219 mm (48 in). Span: 254 mm (10 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

5/8-18 UNF threads for RTD (Not Included) Diameter: 76.2 mm (3 in). Length: 1,892 mm (74.5 in). Span: 304.8 mm (12 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

2 Finger upwards Fits an EL 500 Gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,537 mm (60.5 in). Span: 406.4 mm (16 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,486 mm (58.5 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

5/8" threads for tip For a 500 or 750 gallon vessel. Diameter: 76.2 mm (3 in). Length: 1,956 mm (77 in). Span: 254 mm (10 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 101.6 mm (4 in). Length: 2,921 mm (115 in). Span: 177.8 mm (7 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

With 5/8" 18 threads for removable tip. Diameter: 76.2 mm (3 in). Length: 2,375 mm (93.5 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Pfaudler flange mount beaver tail baffle. Fits 6" nozzle. Fits a 1000. Length: 2,134 mm (84 in). Span: 152.4 mm (6 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Good Used, White Glass no tip Diameter: 76.2 mm (3 in). Length: 2,438 mm (96 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

Good Used, Two finger up baffle. White glass. Diameter: 76.2 mm (3 in). Length: 2,489 mm (98 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

Dark blue Glass. Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 127 mm (5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,956 mm (77 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Wide I Baffle, for 8" nozzle 177" OAL X 8.5" widest point has (2) 5/8-18 threaded holes for (2) RTDS not included. Diameter: 215.9 mm (8.5 in). Length: 4,496 mm (177 in). Vessel Size: 30,283 L (8,000 gallons). Tip Type: Removable.

Diameter: 127 mm (5 in). Length: 2,972 mm (117 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

1 1/8" hole for RTD. Diameter: 127 mm (5 in). Length: 2,800 mm (110.3 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Removable.

Diameter: 101.6 mm (4 in). Length: 2,870 mm (113 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

5/8-18" threads for external RTD Diameter: 76.2 mm (3 in). Length: 1,308 mm (51.5 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

With 1-1/8" threaded hole for external RTD. Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

blue glass lined 174mm wide x 1450mm long flat section, flange mounted with bolt holes and 3-sensors. Diameter: 142 mm (5.6 in). Length: 2,360 mm (92.9 in). Span: 174 mm (6.9 in). Vessel Size: 4,000 L (1,057 gallons). Glass Baffle Type: Beavertail.

Diameter: 76.2 mm (3 in). Length: 1,473 mm (58 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

RA/SA Series reactor 4" dia nozzle. Diameter: 76.2 mm (3 in). Length: 2,413 mm (95 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Reglassed by UGE. Diameter: 76.2 mm (3 in). Length: 2,108 mm (83 in). Span: 279.4 mm (11 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

With 5/8-18 UNF threads for removable RTD tip. Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 317.5 mm (12.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

EM Series reactor. Diameter: 76.2 mm (3 in). Length: 1,461 mm (57.5 in). Span: 304.8 mm (12 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,930 mm (76 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

3/4" socket for tip. Diameter: 76.2 mm (3 in). Length: 1,600 mm (63 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

4" dia nozzle. w/ 5/8" thread tip Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 304.8 mm (12 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

2-finger baffle Reglassed by UGE 2005. Diameter: 34.9 mm (1.38 in). Length: 663.6 mm (26.1 in). Span: 114.3 mm (4.5 in). Vessel Size: 75.7 L (20 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

NO TIP,no bore. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: None.

Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: None.

Fits 1,000 gal RA Series reactor. Diameter: 76.2 mm (3 in). Length: 2,362 mm (93 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Capacity: 300/500 gallons 1 1/8" threaded bore for RTD (sensor not included). Reglassed by UGE 2000 Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

1/2" threads for sensor.
Reglassed by UGE . Diameter: 76.2 mm (3 in). Length: 1,848 mm (72.8 in). Span: 304.8 mm (12 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

2-finger down baffle. W/integral restricted tip Fits 500 gal ELL/R60 Series reactor 4" dia nozzle. Diameter: 76.2 mm (3 in). Length: 1,524 mm (60 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

White glass 2-finger up baffle. No hole or tip. Diameter: 95 mm (3.7 in). Length: 2,100 mm (82.7 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle. Tip Type: None.

RA Series reactor. Diameter: 76.2 mm (3 in). Length: 2,362 mm (93 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

200/300 gallon EL/ELL series With restricted tip. Reglassed by UGE . Diameter: 76.2 mm (3 in). Length: 1,361 mm (53.6 in). Span: 228.6 mm (9 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes.

With threaded tip for RTD sensor (sensor not included). Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 406.4 mm (16 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

2-finger up baffle. 1" socket for tip. Diameter: 76.2 mm (3 in). Length: 1,181 mm (46.5 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 381 mm (15 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,289 mm (50.8 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

with removable tantalum tip. Diameter: 38.1 mm (1.5 in). Length: 647.7 mm (25.5 in). Vessel Size: 37.9 L (10 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

EL series With 1 1/8" threaded bore for RTD Reglassed by UGE 2000. Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 254 mm (10 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

R66 Series reactor. Diameter: 76.2 mm (3 in). Length: 2,134 mm (84 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail.

Reglassed by UGE 2005. Diameter: 34.9 mm (1.38 in). Length: 968.4 mm (38.1 in). Span: 165.1 mm (6.5 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: None.

3/4" socket for tip. Diameter: 76.2 mm (3 in). Length: 1,334 mm (52.5 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Reglassed by UGE . Diameter: 76.2 mm (3 in). Length: 1,362 mm (53.6 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,740 mm (68.5 in). Span: 254 mm (10 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

EM Series reactor. Fits 50 gal EM Series reactor. Diameter: 76.2 mm (3 in). Length: 1,270 mm (50 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

With threaded bore Fits 1,000 gallon reactor. Diameter: 85.7 mm (3.4 in). Length: 2,369 mm (93.3 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

white glass 'D' section is 360mm wide. Diameter: 85 mm (3.3 in). Length: 2,980 mm (117.3 in). Span: 360 mm (14.2 in). Vessel Size: 8,000 L (2,113 gallons). Glass Baffle Type: D-Baffle.

Diameter: 114.3 mm (4.5 in). Length: 2,972 mm (117 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes.

Nucerite Diameter: 76.2 mm (3 in). Length: 1,778 mm (70 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Beavertail.

Diameter: 76.2 mm (3 in). Length: 2,007 mm (79 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

White Glass beavertail baffle with 2-sensors 100mm wide x 500mm long flat section. Diameter: 79 mm (3.1 in). Length: 1,590 mm (62.6 in). Span: 100 mm (3.9 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: Beavertail.

Wide I Baffle 154" wet length Flange mount design for a 10" nozzle. Reglassed by GPS. Diameter: 165.1 mm (6.5 in). Length: 4,140 mm (163 in). Vessel Size: 18,927 L (5,000 gallons). Reglassed: Yes.

W/removable tip (no tip). Diameter: 38.1 mm (1.5 in). Length: 914.4 mm (36 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

1" thread Fits 2000/3000 gal RA/SA Series reactor. 6" dia nozzle. Diameter: 127 mm (5 in). Length: 2,832 mm (111.5 in). Span: 406.4 mm (16 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

with 5/8-18 UNF threads removable RTD tip EL Series reactor. Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 304.8 mm (12 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

EL series with 5/8" threaded bore ( sensor not included) 300/500 gallon Reglassed by UGE. Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

RA Series reactor, 4" dia nozzle. W/ 1" thread tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

RA/SA Series reactor. W/integral tip Diameter: 101.6 mm (4 in). Length: 2,464 mm (97 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

2-finger upward baffle For E4000 Series reactor. Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Finger Baffle.

2-finger baffle Diameter: 75 mm (3 in). Length: 2,000 mm (78.7 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Finger Baffle.

Fits 2000/3000 gal RA/SA Series reactor. Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Span: 431.8 mm (17 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Nucerite R66 Series reactor. 4" dia nozzle Diameter: 76.2 mm (3 in). Length: 1,346 mm (53 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Fits 1,000 gal RA/SA Series reactor. W/ 1"threads Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 406.4 mm (16 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

2-Finger Baffle Dark blue glass. Diameter: 76.2 mm (3 in). Length: 1,930 mm (76 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

4-Finger downward deflecting Baffle Diameter: 114.3 mm (4.5 in). Length: 3,721 mm (146.5 in). Span: 304.8 mm (12 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

2-Finger baffle for RTD sensor. Reglassed by UGE 2005. Diameter: 34.9 mm (1.38 in). Length: 800.1 mm (31.5 in). Span: 177.8 mm (7 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Removable.

Fits a 750 Gallon reactor. Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Span: 317.5 mm (12.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Nucerite W/integral restricted tip Diameter: 31.8 mm (1.25 in). Length: 1,118 mm (44 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

one Finger baffle Reglassed by UGE 2005 Diameter: 38.1 mm (1.5 in). Length: 965.2 mm (38 in). Span: 165.1 mm (6.5 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

Nucerite H-baffle W/integral tip RA Series reactor. Diameter: 76.2 mm (3 in). Length: 2,362 mm (93 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

With 5/8" dia. threads for sensor Reglassed by UGE 2004 Diameter: 76.2 mm (3 in). Length: 2,375 mm (93.5 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

12 3/4" wide With threaded tip for RTD sensor (sensor not included). Reglassed by UGE Diameter: 76.2 mm (3 in). Length: 2,400 mm (94.5 in). Span: 323.9 mm (12.8 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

W/removable tip Nucerite Diameter: 76.2 mm (3 in). Length: 1,956 mm (77 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

With 5/8-18 UNF threaded end for RTD (sensor not included). Diameter: 114.3 mm (4.5 in). Length: 4,102 mm (161.5 in). Span: 225.4 mm (8.9 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Nucerite baffle. For 16000 liter glass lined reactor. Diameter: 101.6 mm (4 in). Vessel Size: 16,000 L (4,227 gallons). Reglassed: Yes.

Reglassed by UGE 2005. Diameter: 34.9 mm (1.38 in). Length: 850.9 mm (33.5 in). Span: 82.6 mm (3.3 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes.

With RTD. Diameter: 76.2 mm (3 in). Length: 1,346 mm (53 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

With 5/8-18 UNF threads. for RTD tip Fits EL Series reactor. Diameter: 76.2 mm (3 in). Length: 1,486 mm (58.5 in). Span: 317.5 mm (12.5 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

RA series Diameter: 127 mm (5 in). Length: 2,946 mm (116 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

P series H-baffle With 1/2"NPT threads for removable RTD. Diameter: 34.9 mm (1.38 in). Length: 927.1 mm (36.5 in). Span: 117.5 mm (4.6 in). Vessel Size: 189.3 L (50 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Nucerite W/integral tip Diameter: 114.3 mm (4.5 in). Length: 2,438 mm (96 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

With 1" threaded end for sensor. Diameter: 76.2 mm (3 in). Length: 1,880 mm (74 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Nucerite Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

6000/8000 gal Reglassed by UGE 2009. Diameter: 168.3 mm (6.6 in). Length: 3,785 mm (149 in). Span: 406.4 mm (16 in). Vessel Size: 30,283 L (8,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes.

300/500 galllon with 1 1/8" threaded bore (sensor not included) Reglassed by UGE 2000. Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 304.8 mm (12 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

beaver tail baffle Diameter: 80 mm (3.1 in). Length: 2,500 mm (98.4 in). Vessel Size: 6,000 L (1,585 gallons). Glass Baffle Type: Beavertail.

white glass lined with sensors Diameter: 170 mm (6.7 in). Length: 2,420 mm (95.3 in). Span: 210 mm (8.3 in). Vessel Size: 6,000 L (1,585 gallons). Glass Baffle Type: Beavertail.

nucerite W/removable restricted tip Fits 300 gal R48 Series reactor. 4" dia nozzle. Diameter: 76.2 mm (3 in). Length: 1,727 mm (68 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: D-Baffle. Tip Type: Removable.

5/16" threaded end for sensor Reglassed by UGE 2006 Diameter: 28.6 mm (1.13 in). Length: 565.2 mm (22.3 in). Span: 79.4 mm (3.1 in). Vessel Size: 37.9 L (10 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

For E2000 Series reactor. Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: D-Baffle.

For E6000 glass lined reactor w/2TW temp sensors. W/glass WWG. Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Removable.

two finger up deflecting baffle Reglassed by UGE 2005. Diameter: 34.9 mm (1.38 in). Length: 682.6 mm (26.9 in). Span: 139.7 mm (5.5 in). Vessel Size: 75.7 L (20 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

nucerite 1 1/8" socket for tip Diameter: 76.2 mm (3 in). Length: 1,930 mm (76 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 101.6 mm (4 in). Length: 2,889 mm (113.8 in). Span: 190.5 mm (7.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes.

Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 317.5 mm (12.5 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

8'' flange mount with integral tip. Diameter: 152.4 mm (6 in). Length: 2,791 mm (109.9 in). Span: 177.8 mm (7 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,524 mm (60 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,946 mm (116 in). Span: 139.7 mm (5.5 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

Wet length 113" Diameter: 38.1 mm (1.5 in). Length: 3,073 mm (121 in). Span: 228.6 mm (9 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Integral.

with 5/8" threaded end for sensor Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 127 mm (5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

threaded for RTD 5/8-18 Diameter: 76.2 mm (3 in). Length: 2,350 mm (92.5 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

threaded for RTD 5/8-18 Diameter: 76.2 mm (3 in). Length: 2,350 mm (92.5 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

2 Finger baffle outward stright Fits a 10 gallon reactor Diameter: 33.3 mm (1.31 in). Length: 571.5 mm (22.5 in). Span: 152.4 mm (6 in). Vessel Size: 37.9 L (10 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

with a removeable threaded tip size 5/18-18 Diameter: 76.2 mm (3 in). Length: 2,210 mm (87 in). Span: 381 mm (15 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,819 mm (111 in). Span: 152.4 mm (6 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Tip Type: Integral.

with 5/8"-18" threaded tip Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 279.4 mm (11 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 279.4 mm (11 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

nucerite Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 381 mm (15 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Thin Baffle.

with 5/16"-18 threaded removebale tip Diameter: 82.6 mm (3.3 in). Length: 831.9 mm (32.8 in). Vessel Size: 113.6 L (30 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,334 mm (52.5 in). Span: 330.2 mm (13 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,626 mm (64 in). Span: 139.7 mm (5.5 in). Vessel Size: 1,136 L (300 gallons). Glass Baffle Type: Concave. Tip Type: Integral.

white glass lined with 2-sensors flat part 180mm wide 260mm diameter flange with holes approx. 8000/11000 liter vessel Diameter: 144 mm (5.7 in). Length: 3,100 mm (122 in). Span: 180 mm (7.1 in). Vessel Size: 11,000 L (2,906 gallons). Glass Baffle Type: Beavertail.

5 1/2" ID X 8 1/2" OD Baffle packing support ring Reglassed: Yes.

Fits a 150 Gallon reactor. Diameter: 33.4 mm (1.32 in). Length: 920.8 mm (36.3 in). Span: 152.4 mm (6 in). Vessel Size: 567.8 L (150 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes.

Fits an EL 500 Gallon reactor. Diameter: 76.2 mm (3 in). Length: 2,096 mm (82.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

with threaded tip Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 323.9 mm (12.8 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,261 mm (89 in). Span: 381 mm (15 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

baffle with a flange mount Fits a 3000 gallon reactor Diameter: 139.7 mm (5.5 in). Length: 2,794 mm (110 in). Span: 181 mm (7.1 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

with threaded 5/8" hole for RTD senor Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 133.4 mm (5.3 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Fits a 500 'ELL series" Diameter: 76.2 mm (3 in). Length: 1,499 mm (59 in). Span: 323.9 mm (12.8 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Fits a 1000/1500 gallon reactor. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 177.8 mm (7 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Integral.

With threads for removable RTD Threaded hole for removable tip is 5/8"-18 UNF.(Tip available but sold separate) Diameter: 168.3 mm (6.6 in). Length: 3,918 mm (154.3 in). Span: 406.4 mm (16 in). Vessel Size: 22,712 L (6,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

Fits 1,000 gallon reactor. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 381 mm (15 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Integral.

No tip Diameter: 101.6 mm (4 in). Length: 2,489 mm (98 in). Span: 152.4 mm (6 in). Vessel Size: 5,678 L (1,500 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: None.

Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Span: 406.4 mm (16 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

with a removeable 5/8"-18 threaded tip (tips sold separately at an additional cost) Diameter: 76.2 mm (3 in). Length: 1,410 mm (55.5 in). Span: 127 mm (5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

Fits a 500 Gallon EL reactor Diameter: 76.2 mm (3 in). Length: 2,111 mm (83.1 in). Span: 254 mm (10 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

No tip Fits a 2000 Gallon reactor Diameter: 101.6 mm (4 in). Length: 2,553 mm (100.5 in). Span: 196.9 mm (7.8 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: None.

Taped out for a removable tip with a tread size of 5/8"-18. Diameter: 76.2 mm (3 in). Length: 2,400 mm (94.5 in). Span: 330.2 mm (13 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 1,378 mm (54.3 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Glass Baffle Type: D-Baffle. Tip Type: Removable.

Diameter: 76.2 mm (3 in). Length: 2,337 mm (92 in). Span: 304.8 mm (12 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

flange type with a 10.5" flange Diameter: 139.7 mm (5.5 in). Length: 2,794 mm (110 in). Span: 174.6 mm (6.9 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

136" wet length. For a 3V reactor Diameter: 203.2 mm (8 in). Length: 3,658 mm (144 in). Span: 177.8 mm (7 in). Glass Baffle Type: Beavertail. Tip Type: None.

UNUSED one finger down baffle Fits a 20 gallon reactor Diameter: 31.8 mm (1.25 in). Length: 685.8 mm (27 in). Span: 82.6 mm (3.3 in). Vessel Size: 75.7 L (20 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes.

Beaver tail baffle Glass Baffle Type: Beavertail.

with threads Glass Baffle Type: H-Baffle. Tip Type: Removable.

5" diameter at holder 8" wide on flat Diameter: 127 mm (5 in). Length: 3,734 mm (147 in). Span: 228.6 mm (9 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Integral.

300 lb. flange end 113 wet length Length: 3,137 mm (123.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Thin Baffle. Tip Type: Integral.

white glass lined with 2-sensors flat part 280mm wide x 2050mm long bottom diameter 220mm Diameter: 145 mm (5.7 in). Length: 3,300 mm (129.9 in). Span: 280 mm (11 in). Vessel Size: 11,000 L (2,906 gallons). Glass Baffle Type: Beavertail.

6.75" ID baffle flange with baffle holder. Diameter: 171.5 mm (6.8 in). Reglassed: Yes.

6.75" ID baffle flange with baffle holder. Diameter: 171.5 mm (6.8 in). Reglassed: Yes.

Glass Baffle Type: Finger Baffle. Reglassed: Yes.

Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: None.

with threaded hole for 5/8" RTD tip Diameter: 31.8 mm (1.25 in). Length: 1,162 mm (45.8 in). Vessel Size: 378.5 L (100 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

2 finger upward Baffle 500 or a 750 gallon reactor Diameter: 76.2 mm (3 in). Length: 2,003 mm (78.9 in). Span: 368.3 mm (14.5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Used with 5/8-18 threads for RTD Diameter: 127 mm (5 in). Length: 3,607 mm (142 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Flanged fin baffle Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes.

3-finger up baffle blue glass no hole for tip 520mm long carbon steel stub end Diameter: 3,175 mm (125 in). Length: 96,520 mm (3,800 in). Vessel Size: 15,142 L (4,000 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

2-finger up baffle 100mm long carbon steel stub end no hole for a tip Diameter: 80 mm (3.1 in). Length: 1,400 mm (55.1 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Integral.

blue glass lined 180mm wide x 1590mm long flat section Diameter: 160 mm (6.3 in). Length: 2,730 mm (107.5 in). Span: 180 mm (7.1 in). Vessel Size: 8,000 L (2,113 gallons). Glass Baffle Type: Beavertail. Tip Type: None.

3-finger down baffle blue glass Diameter: 117 mm (4.6 in). Length: 2,760 mm (108.7 in). Vessel Size: 8,000 L (2,113 gallons). Glass Baffle Type: Finger Baffle. Tip Type: None.

White glass with blue graduation marks. Taped for a removable tip (tip not included) 5/8-18 UNF. Fits a 1000 Gallon reactor. Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 146.1 mm (5.8 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

Threaded for a removable tip. Fits a 750 or a 500 gallon vessel. Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 127 mm (5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

Dark blue Glass. Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 127 mm (5 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Thin Baffle. Reglassed: Yes. Tip Type: Removable.

Fits a 1000 Gallon reactor Diameter: 76.2 mm (3 in). Length: 2,388 mm (94 in). Span: 323.9 mm (12.8 in). Vessel Size: 3,785 L (1,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

blue glass lined 2-sensors flat part 102mm wide x 500mm long Diameter: 79 mm (3.1 in). Length: 1,570 mm (61.8 in). Span: 102 mm (4 in). Vessel Size: 1,200 L (317 gallons). Glass Baffle Type: Beavertail.

blue glass lined 3-finger up baffle hole for tip Diameter: 117 mm (4.6 in). Length: 2,810 mm (110.6 in). Vessel Size: 8,000 L (2,113 gallons). Glass Baffle Type: Finger Baffle. Tip Type: Removable.

with RTD end Diameter: 870 mm (34.3 in). Glass Baffle Type: Thin Baffle. Tip Type: Removable.

Glass Baffle Type: Finger Baffle.

with threaded end for RTD (sensor not included) Reglassed by UGE. Diameter: 177.8 mm (7 in). Length: 4,407 mm (173.5 in). Span: 444.5 mm (17.5 in). Glass Baffle Type: D-Baffle. Reglassed: Yes. Tip Type: Removable.

with threaded hole for 5/8" RTD tip Diameter: 76.2 mm (3 in). Length: 1,378 mm (54.3 in). Vessel Size: 757.1 L (200 gallons). Glass Baffle Type: H-Baffle. Tip Type: Removable.

Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: D-Baffle. Tip Type: Integral.

Upward Finger baffle Fits a 500/750 gallon Diameter: 76.2 mm (3 in). Length: 1,981 mm (78 in). Vessel Size: 2,839 L (750 gallons). Glass Baffle Type: Finger Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 165.1 mm (6.5 in). Reglassed: Yes.

Diameter: 165.1 mm (6.5 in). Reglassed: Yes.

Diameter: 165.1 mm (6.5 in). Reglassed: Yes.

Glass Baffle Type: Beavertail. Reglassed: Yes.

Glass Baffle Type: H-Baffle. Reglassed: Yes.

Baffle Holder Diameter: 114.3 mm (4.5 in). Reglassed: Yes.

Glass Baffle Type: Finger Baffle. Reglassed: Yes.

Baffle Glass Baffle Type: Finger Baffle. Reglassed: Yes.

Glass Baffle Type: H-Baffle.

Baffle Glass Baffle Type: Thin Baffle. Reglassed: Yes.

Glass Baffle Type: Beavertail. Reglassed: Yes.

Glass Baffle Type: H-Baffle. Reglassed: Yes.

Diameter: 228.6 mm (9 in). Length: 5,398 mm (212.5 in). Glass Baffle Type: Thin Baffle. Tip Type: Integral.

with 5/8-18 UNF threads for removable RTD tip Diameter: 101.6 mm (4 in). Length: 2,870 mm (113 in). Span: 196.9 mm (7.8 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: Beavertail. Reglassed: Yes. Tip Type: Removable.

with Integral tip. Fits a RA 3,000 Gallon reactor. Diameter: 127 mm (5 in). Length: 2,972 mm (117 in). Span: 419.1 mm (16.5 in). Vessel Size: 11,356 L (3,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.

Diameter: 76.2 mm (3 in). Length: 1,943 mm (76.5 in). Span: 266.7 mm (10.5 in). Vessel Size: 1,893 L (500 gallons). Glass Baffle Type: H-Baffle. Tip Type: Integral.

Fits a 2,000 gallon reactor. Diameter: 114.3 mm (4.5 in). Length: 2,946 mm (116 in). Span: 419.1 mm (16.5 in). Vessel Size: 7,571 L (2,000 gallons). Glass Baffle Type: H-Baffle. Reglassed: Yes. Tip Type: Integral.
