product contact polished sanitary 3 pc valve and plunger Free standing with its own cabinet Flow Rate: 160 L/h (0.7 GPM). Pressure: 1,200 bar (17,405 psi).
Order Number 1-90.225 Rated capacity 200 L/Hr, @ 4-10 bar input pressure; 1,000 bar homogenization pressure Steam pressure 2.5 bar steam capacity 90kg/h oil volume 11,5-12,5 liter Unit driven by a 7.5 Kw 1430 rpm, type T132M4 motor, V/AC/3x380V/50, 1430 rpm Flow Rate: 200 L/h (0.88 GPM). Pressure: 1,000 bar (14,504 psi). Temperature: 25 °C (77 °F).
high shear inline Homogenizer used for emulsification, dispersion, reacting & Homogenising, belt driven by 45kW, 3/50/400/690 volt, 2980 rpm EExd IIB T4 IP55 motor, mounted on a baseplate Flow Rate: 20,000 L/h (88.1 GPM). Pressure: 10 bar (145 psi). Temperature: 200 °C (392 °F).

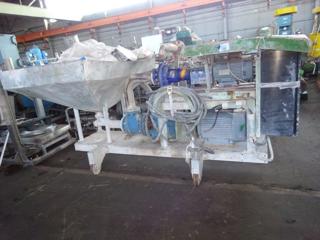

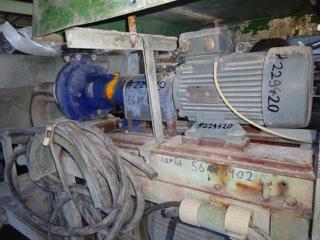

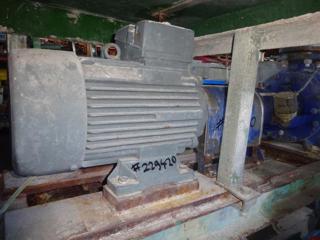

5.5m head carbon steel housing homogenizer(Gorator, wet grinding mill) system (80 degrees C operation temperature) carbon steel rotary disc (all other wetted parts are made of 316 stainless steel ) packing gland on shaft openings (2) DN100, system includes (1) square hopper for product inlet (1) 30 m3/hour @ 35m head carbon steel housing centrifugal pump manufactured by KSB, type KWPK 50-200, 2900 rpm, all wetted parts are made of 316 stainless steel, mechanical seal, driven by 4.6 kW 3/50Hz/400-690V/2900 rpm CE Exe II T3 II 2G motor, openings (1) DN100 inlet and (1) DN50 outlet, Built on Controls, all mounted on a movable skid with (4) wheels. Flow Rate: 10,000 L/h (44 GPM). Pressure: 4 bar (58 psi). Temperature: 50 °C (122 °F).
150 boar (5283 GPH, 2175 psi) Motor and pump head enclosed in a SS housing The cylinder block is Cr-Ni-Mo-steel, with 3 plungers, each plunger is 76.2 mm (3 inches) Homogenizing valve is Cr-Ni-Mo-Steel, type Gaulin Dyna-jet, 2 stage, 80 mm, with hydraulic actuator EEx rated Lubricating oil pump motor is 0.37 kW,EEx rated This is a Two-stage HVA 2 Piloted special size 80 valve. Product inlet is 65mm, product outlet 50 mm, cooling water inlet 1/2", plunger cooling water inlet and outlets are 3/8" Total weight 4700 Kg Flow Rate: 20,000 L/h (88.1 GPM). Pressure: 150 bar (2,175 psi). Temperature: 25 °C (77 °F). Number of Stages: 2.
Gaulin Homogenizer The cylinder block contains three 3/4" plungers, is constructed of forged stainless steel, and the plungers operate at 160 rpm explosion proof Motor 230/460 V Rated for Class I, Gr.D Complete with a Two stage homogenizing valve assembly with a 3/4" plunger Flow Rate: 454.2 L/h (2 GPM). Pressure: 551.6 bar (8,000 psi). Number of Stages: 2.
