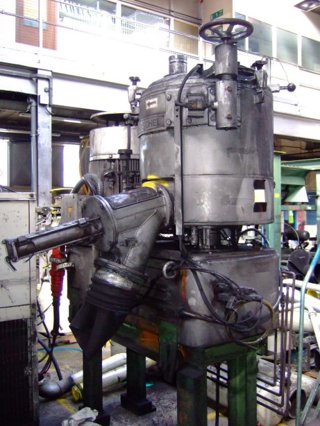

Type: Mixer-Intensive
Manufacturer: Plastechnik Greiz

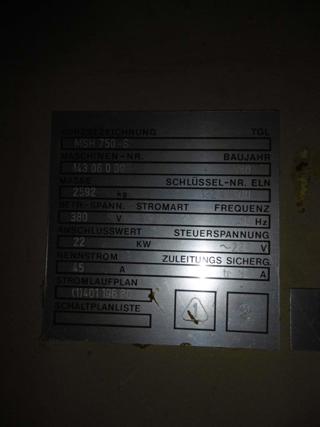

Model: MSH750.4-S
Condition: Unused
Material: Stainless Steel 304
Capacity (Design): 750 L (198.1 gallons)
Motor Power: 22 kW (29.5 HP)

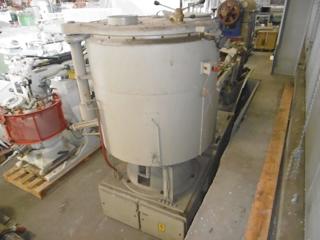

jacketed Trusioma high intensive mixer Aluminum cover Mixer max 450 rpm. Max working capacity 300 liter. 2-tier, 2-blade impellors with baffle. Hinged cover with pneumatic opening. 8" pneumatic discharge valve. switch gear cabinet.
Blade Type: 2 tier 2 blade w/ baffle. Bowl Jacket: Yes. Controls: Yes.
Type: Mixer-Intensive
Manufacturer: Jaygo
Model: DISHO-V-120-85
Condition: Unused
Material: Stainless Steel 304
Capacity (Design): 120 L (31.7 gallons)
Motor Power: 0.75 kW (1 HP)

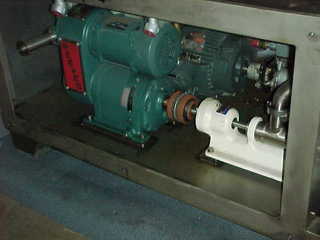

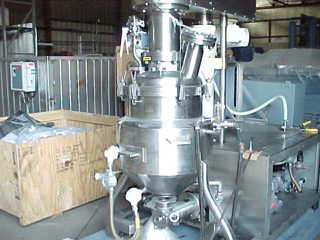

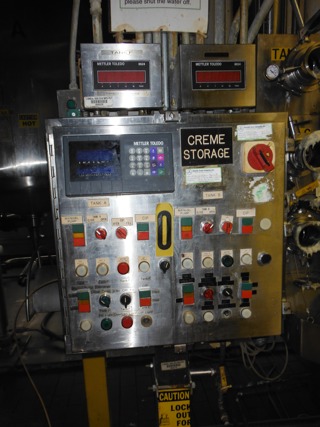

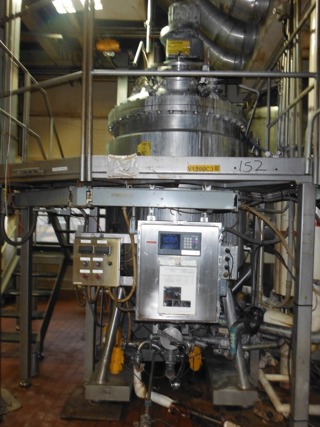

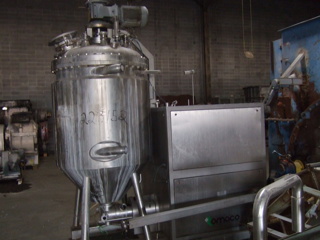

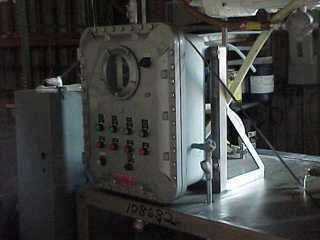

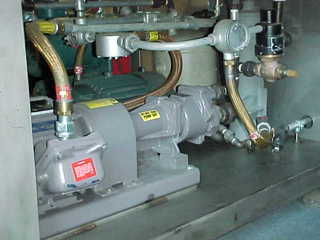

Jaygo vacuum dispersion and homogenizing mixer system Mixing chamber rated 20 psi and full vacuum @ 350 degree F to -20 degree F minimum. All fittings sanitary. Unit measures 20" diameter x 20" straight side x 8" cone bottom clamped dished top. Gate design agitator with teflon scraper blades 5 rpm minimum, 34 rpm maximum. Drive has automatic hydraulic lift mechanism with 24" lift capacity System includes: (1) 3 HP Nash brass vacuum pump, Model #AT34. (1) 1 HP Moyno pump, Model #IFF4SSV, driven by 1 HP Reeves varidrive. (1) approx 5 HP inline disperser. Includes all controls and power box, temperature probes and capacitance probes.
Blade Type: teflon scrapers in gate blade design. Pressure: 1.38 bar (20 psi). Temperature: 176.7 °C (350 °F). Bowl Jacket: Yes. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 176.7 °C (350 °F). Vacuum: Yes. Controls: Yes.
Type: Mixer-Intensive
Manufacturer: Koruma Mashinenbau GmbH
Model: DISHO V180/1300
Condition: Used
Material: Stainless Steel 316L
Capacity (Design): 1,300 L (343.4 gallons)
Motor Power: 51 kW (68.4 HP)

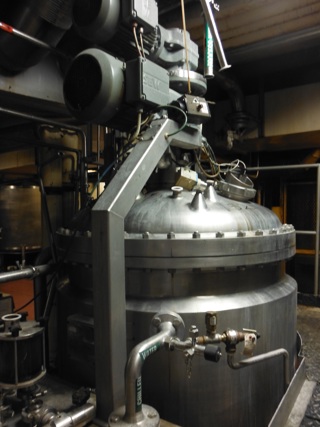

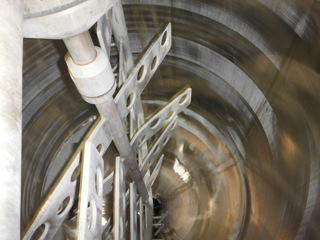

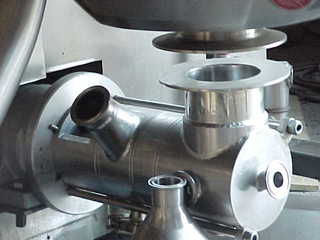

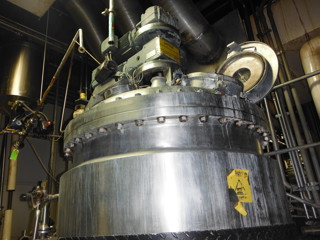

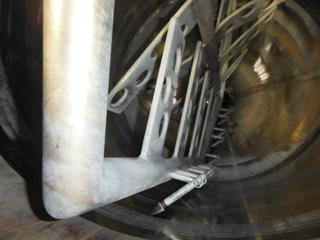

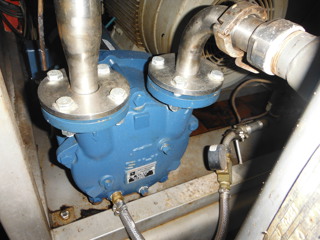

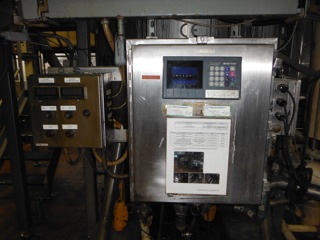

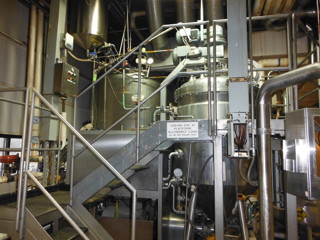

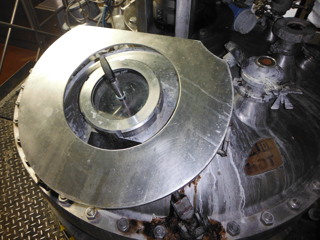

DISHO Vacuum Mixing Dispersing and Homogenizing Unit vessel manufactured by Hebold, rated FV/36 psi at 356 degrees F internal; 24" cone bottom. Flanged and bolted dish top head. Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1". Fully insulated with SS shroud over insulation. Mounted on legs With Top mounted double motion agitator with wide sweep with perforated pitched blades and side wall scrapers, and center shaft with perforated pitched blades that intermesh with counter rotating wide sweep agitator blades. 3/60/230/460 volt motor Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 51 KW 3/60/230/460 volt motor. Complete skid mounted system with approx. 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.
Bowl Diameter: 1,118 mm (44 in). Bowl Depth: 1,829 mm (72 in). Blade Type: wide sweep & pitched perforated blade w/ side wall scraper. Pressure: 2.5 bar (36.3 psi). Temperature: 180 °C (356 °F). Bowl Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 180 °C (356 °F). Vacuum: Yes. Controls: Yes.

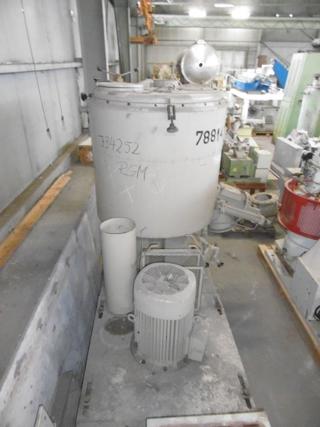

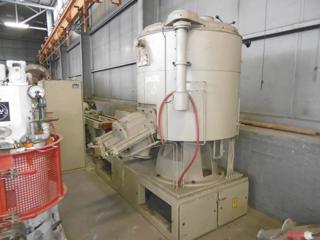

Type: Mixer-Intensive

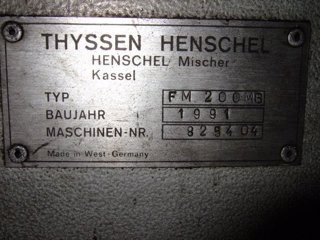

Manufacturer: Henschel
Model: FM-200-MB
Condition: Used
Material: Stainless Steel 321
Capacity (Design): 200 L (52.8 gallons)
Motor Power: 55 kW (73.8 HP)
clamped top with davit carbon steel jacket, Pneumatically operated discharge valve
Bowl Diameter: 600 mm (23.6 in). Bowl Depth: 600 mm (23.6 in). Bowl Jacket: Yes. Jacket Material: Carbon Steel.
Used intensive mixers deliver aggressive mixing action through high-speed rotors and close-clearance chamber designs. These mixers are ideal for compounding dense materials that require rapid shear, dispersion and homogenization—especially in rubber, polymer and chemical production. With more than 47 years of industry expertise, IPP supplies used, surplus and secondhand intensive mixers from 20 global process sites and maintains a massive inventory of 15,000+ ready-to-ship systems.
IPP carries intensive mixers from top-tier manufacturers such as Farrel, Banbury, Werner & Pfleiderer, Kobe, and HF Mixing Group.
To withstand the demands of intensive mixing, these systems are built from:
For a deeper look at how high-shear intensive mixers improve consistency, see this article on polymer compounding advances from PlasticsToday.
Search the IMS inventory or contact IPP’s compounding equipment experts to get a quote on used, surplus or secondhand intensive mixers. With faster delivery and substantial savings, IPP is your trusted partner in industrial blending.
