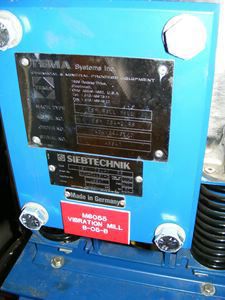

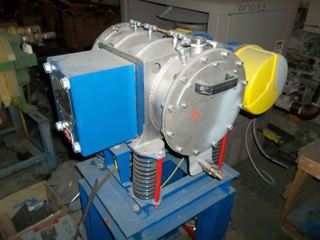

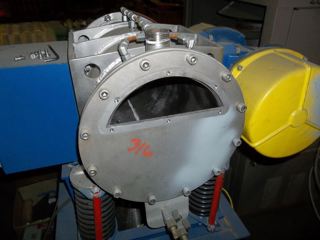

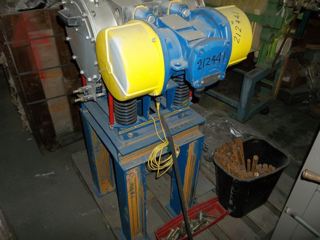

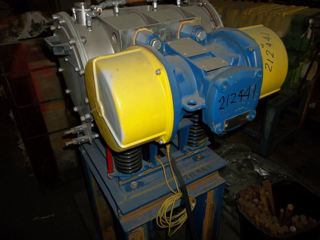

Eccentric vibrating mill Type ESM Ball Mill Usable volumn is 5 liter maximum Total grinding tube volume is 19 liters, grinding medea volume is 15 liters 235 mm ID x 450 mm L. Unit is batch design, suitable for wet and dry grinding, with a feed grain size up to 30mm Can accept rods, balls, and pebble grinding media, comes with CS Rods. The Exciter is side mounted creating ellitical and linear vibrations Capacity (Design): 0.019 m3 (0.67 ft3). Diameter: 254 mm (10 in). Powered By: Electric.

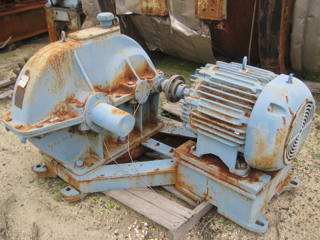

CS/Ni-hard lined 650 deg F. 2"-6" CS ball charge Gear driven by 40 HP, 3/60/220/440 volt thru Falk gear reducer, ratio 32.69:1. Bull and pinion gear ratio 4.85:1. Unit has Manzel fully centralized lubrication system w/6-station Manzel oil pump W/control panel and starter box. Diameter: 1,829 mm (72 in). Pressure: 10.7 bar (155 psi). Temperature: 343.3 °C (650 °F). Vacuum: Yes. Powered By: Electric.

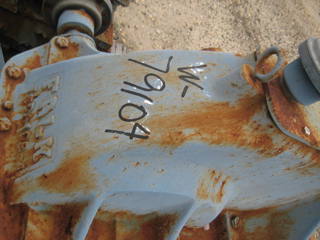

650 deg F. 2"-6" CS ball charge Gear driven by 40 HP, 3/60/220/440 volt, Phila gear reducer ratio 30.6:1. Bull and pinion gear ratio 4.85:1. Unit has Manzel fully centralized lubrication system w/6-station Manzel oil pump. W/control panel and starter box. Diameter: 1,829 mm (72 in). Pressure: 10.7 bar (155 psi). Temperature: 343.3 °C (650 °F). Vacuum: Yes.

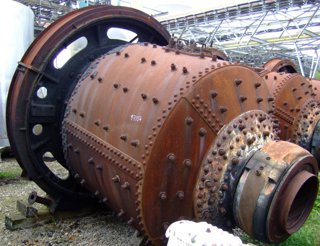

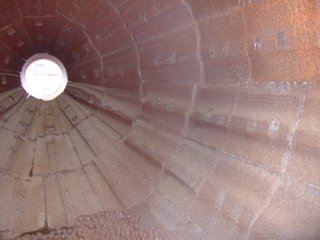

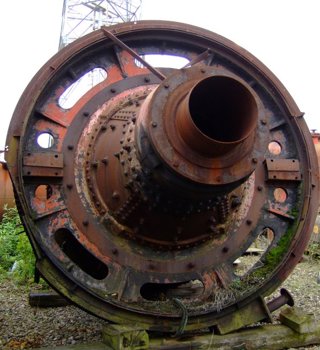

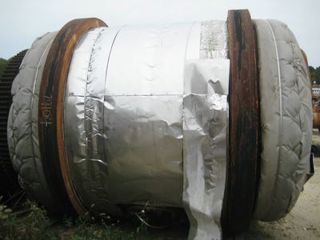

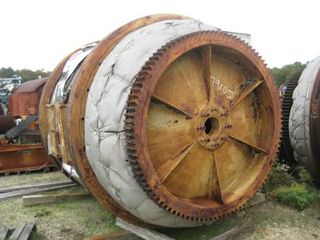

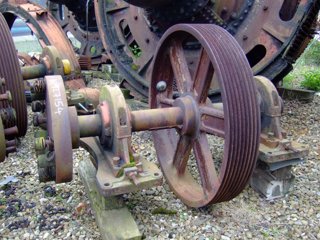

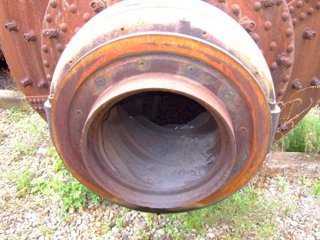

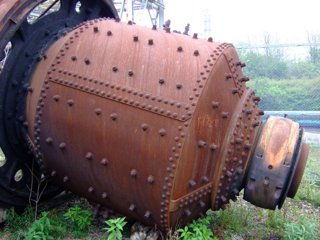

conical ball mill Non drive end ID= approximately 470 mm, (measured at the most narrow point) Drive end ID is approximately 465 mm. belt driven by motor via bull gear Diameter: 2,135 mm (84.1 in).
conical balls. Belt driven by motor via bull gear. Non drive end ID= approximately 470 mm, (measured at the most narrow point) Drive end ID is approximately 465 mm. Diameter: 2,135 mm (84.1 in). Powered By: Electric.
conical ball belt driven by motor via bull gear Non drive end ID= approximately 470 mm, (measured at the most narrow point) Drive end ID is approximately 465 mm. Diameter: 2,135 mm (84.1 in). Powered By: Electric.
conical ball belt driven by motor via bull gear Non drive end ID= approximately 470 mm, (measured at the most narrow point) Drive end ID is approximately 465 mm. Diameter: 2,135 mm (84.1 in).

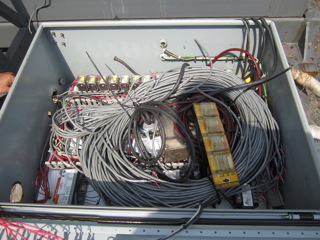

Plastic Lined Pilot Plant Ball mill / bead mill Water jacket on the outside of the shell, the inside of the grinding chamber is completely lined with hard plastic coating. will hold 170 kilograms of beads(media no included). Charging cover seal: has a Viton Rubber 7mm seal. Discharge cover size 3mm. The shell is enclosed in a safety cage. With mill is a Skid with the mill drive system and a control panel with a volt meter, amp meter, inverter, on/off switch, timer, timer reset, and jog button. Capacity (Design): 0.1 m3 (3.5 ft3). Diameter: 508 mm (20 in). Powered By: Electric.

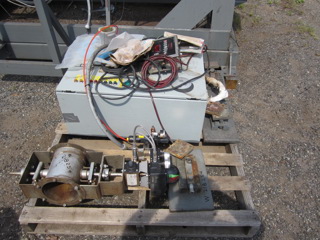

with CS heat box

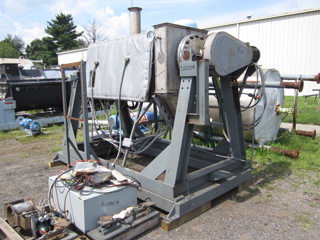

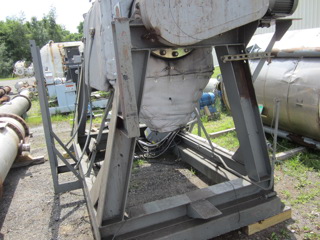

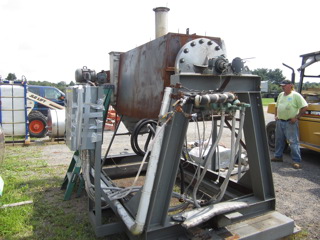

Cylindrical Rod Mill,

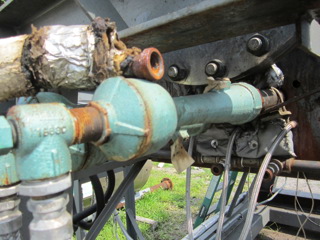

with LP gas fired heating system
Feed line input(liquid) 1.5" diameter pipe.

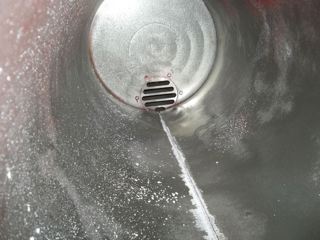

Discharge port is 8" round with a 8.8" x 32" vent

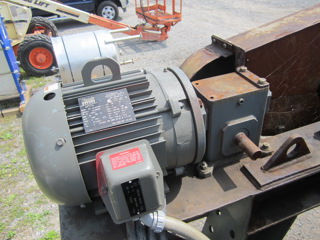

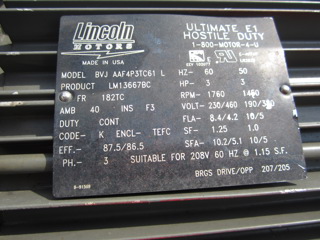

Drive is by a Lincoln AC motor, Model BVJ AAF4P3TC61.
3 hp, 60 Hz. 230/460 volt

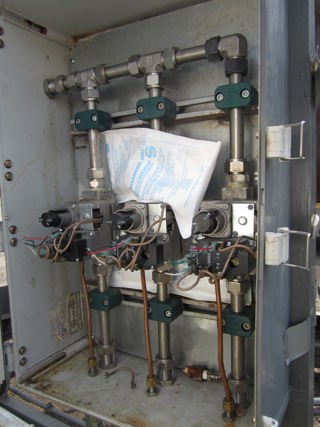

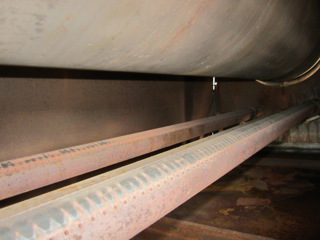

Drum is chain driven. Heating chamber is custom built with three firing bars with auto igniters and pilots(controlled separately).

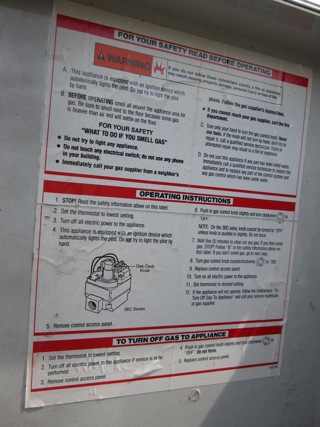

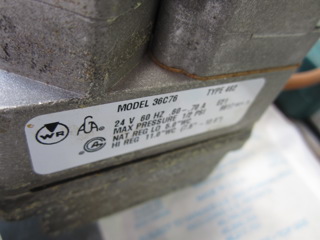

Heating system designed to fire on LP gas.

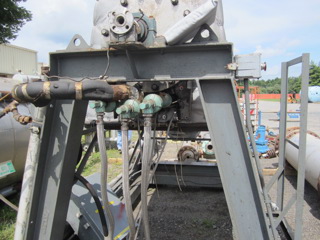

Top mounted exhaust stack with automatic valve to maintain temperature is supplied Capacity (Design): 1.59 m3 (56 ft3). Drive Power: 2.2 kW (3 HP). Powered By: Electric.
Most types of product production lines will have some type of mill or pulverizer for size reduction to make the desired particle size for dry products, wet products, or disperse solids in a slurry. The size reduction occurs either by impact, attrition, or crushing. The capacity of the pulverizer or mill depends on the type of material, and the fineness desired. Pulverizers and mills range in design features for efficient size reduction for a range of products in the chemical, mineral, pharmaceutical and food industries.
The different classifications of Mills are:
