Pneumatically Operated- 2" bag spout. Width: 609.6 mm (24 in). Controls: Yes. Height: 1,626 mm (64 in). Length: 1,219 mm (48 in).
product packaging system Designed by HAF, the system uses an airveyor system to convey the bulk solid product from a spray dryer to an automated bagging system. The entire system operates under a nitrogen purge The airveyor blower package is a Pro-Air System with a 10 HP drive and VFD controls Product discharges from the dryer to a air agitated silo (to eliminate stiration). From the silo the product is sent through a dust collector and a screener with a #8 mesh. From the screener the product goes through a drawer magnet and then to a metal detector with a diverter Product that passes through the metal detector gets bagged in a Choice Bagging Equipment Auger Packer, or gets sent to a super sack bagger. The CBE 230 Auger Bagger discharges via conveyors to a Gramatech Bag sealer. HMI Controls are by Northwind Technical Services. Product flow rate: 260.8 kg/h (575 lb/h). Controls: Yes.
product packaging system. Designed by HAF, the system uses an airveyor system to convey the bulk solid product from a spin flash dryer to an automated bagger. The entire system operates under a nitrogen purge. The blower package is a Pro-Air System with a 10 HP drive and VFD controls. Product discharges from the dryer to a Urschel Comitrol processor, model 1700 for proper sizing prior to being sent through a dust collector and a screener with a #8 mesh. From the screener the product goes through a drawer magnet and then to a metal detector with a diverter. Product that passes through the metal detector gets bagged in a Choice Bagging Equipment Auger Packer, or gets sent to a super sack bagger. The CBE 230 Auger Bagger discharges via conveyors to a Gramatech Bag sealer. HMI Controls are by Northwind Technical Services. Product flow rate: 52.2 kg/h (115 lb/h). Controls: Yes.

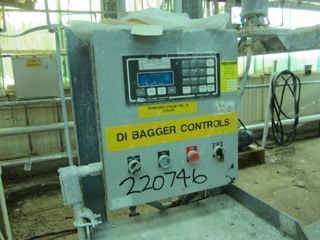

Weightronix scale- WI127 electronic scale controls. Manual operation, with pneumatic assist and manual closer. Packaging Machine Information: Single Bagger. Bags per Hour: 16. Capacity: 22.7 kg (50 lb). Product flow rate: 362.9 kg/h (800 lb/h). Width: 254 mm (10 in). Controls: Yes. Length: 203.2 mm (8 in). Weigh Scale: Yes.
Single spout with adjustable seat. Controls by Flexweigh Corp. Model DWM-4. Width: 406.4 mm (16 in). Controls: Yes. Length: 558.8 mm (22 in).

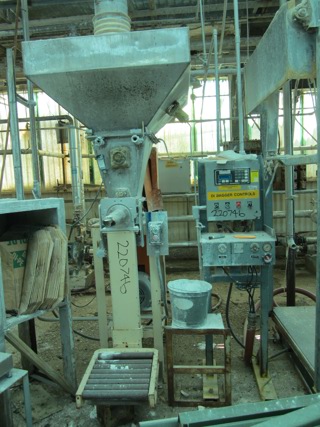

auger valve bag packing machine 10 bags per minute Designed to fill bags 50-55 lbs. Capacity: 24.9 kg (55 lb).

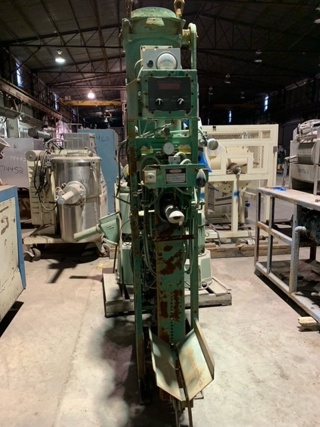

50- 100 lbs packer designed to pack bags with powder with Velcon digital scale. hopper with accessory piping and sight glass. Capacity: 45.4 kg (100 lb). Width: 330.2 mm (13 in). Height: 304.8 mm (12 in). Length: 406.4 mm (16 in).

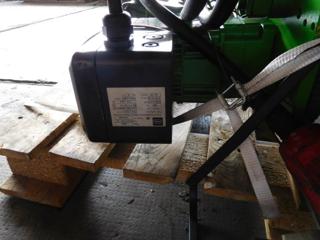

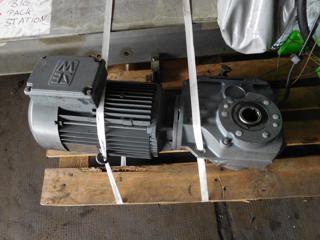

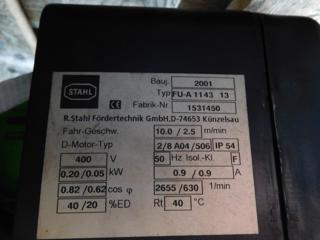

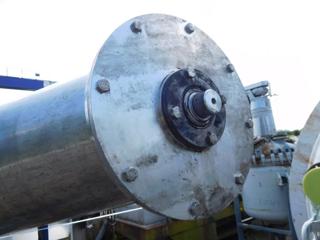

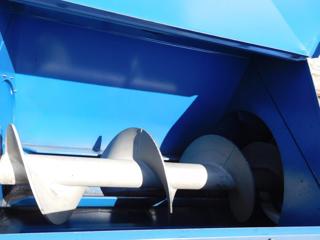

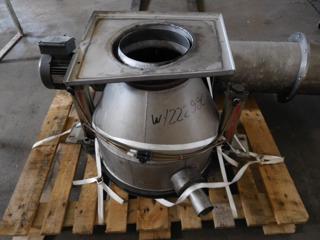

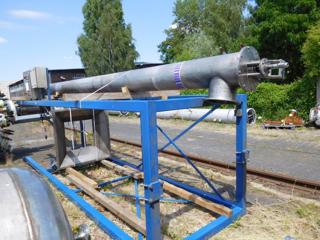

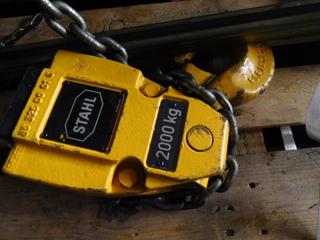

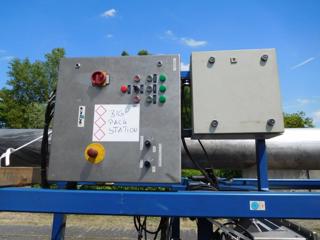

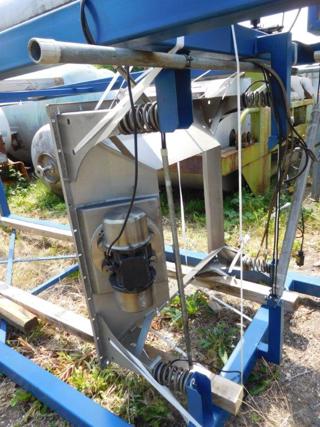

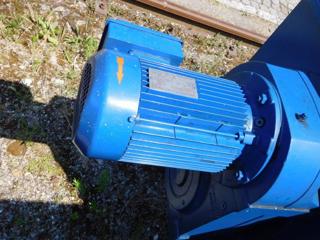

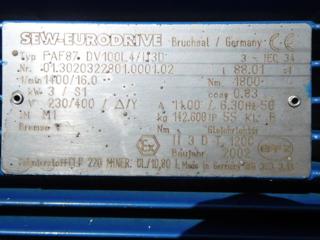

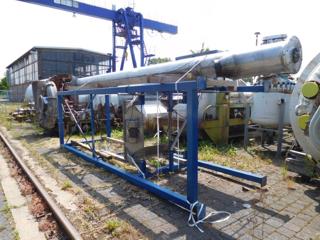

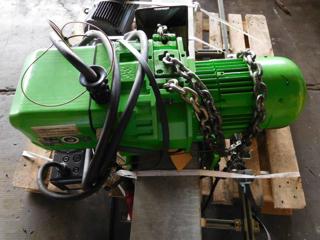

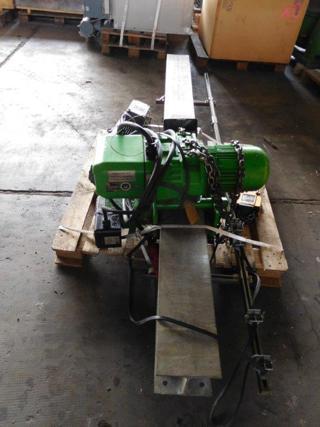

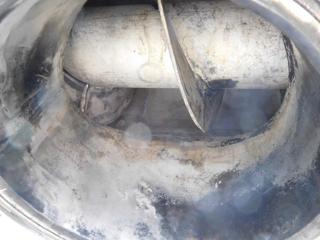

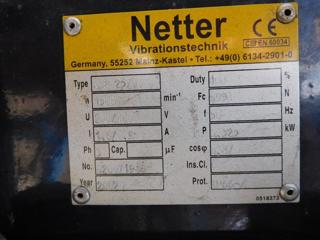

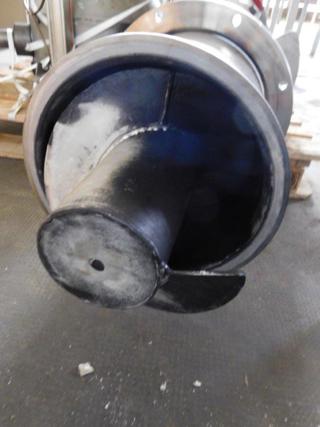

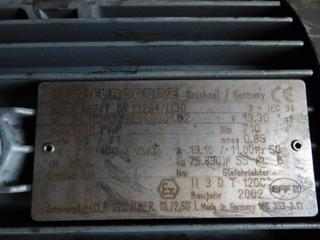

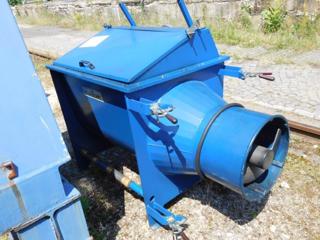

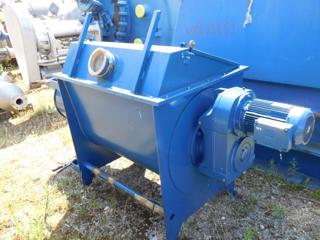

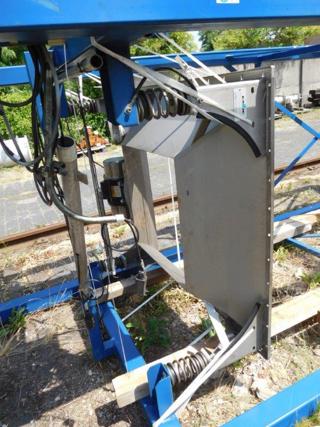

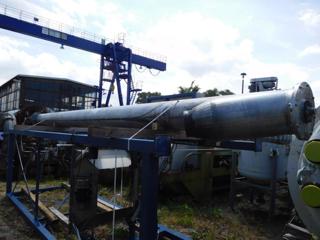

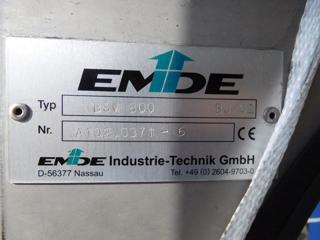

for EX zone 22 (ATEX 95) lifting height 5m, hoist manufactured by Stahl, type FU-A 1143 13, serial #1531450, driven by 0.20/0.05 Kw, 50Hz, 400 volt, 2655/630 rpm motor, product is then emptied into a 304 stainless steel support funnel which has a Netter vibratory motor, driven by 0.525kW, 3/50/230/400 volt, 1500 rpm motor, it then drops into a 250mm x 1260mm long 304 stainless steel horizontal screw conveyor, type RSF-250, driven by 1.5kW, 3/50/230/400 volt, 1410/21 rpm Ex 11 3 D T 120C motor via a reduction gearbox, which then conveys it to a 300mm diameter x 6500mm long 304 stainless steel inclined screw conveyor, type RSF-300, driven by 5.5kW, 3/50/230/400 volt, 1430/740 rpm Ex 11 3 D T 120C motor via a reduction gearbox, system also includes a big bag compactor, type BSV-800, driven by 3kW, 3/50/230/400 volt 1400/16 rpm Ex 11 3 D T 120C motor via a reduction gearbox Capacity: 2,000 kg (4,409 lb). Controls: Yes.

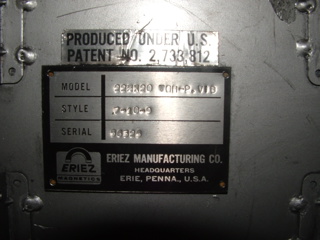

opening and unloading station 35 degree inclined cleated rubber belt for loading bags and conveying up to the slitter, 3/4HP 30 rpm; a 304SS bag slitter, which opens the bag and dumps the contents into a delumping bin, with an Eriez magnet on discharge; Hydraulic 30" x 30" empty bag compactor, rated 2000 psi, which compresses the empty bags for easy removal through a 400mm diameter opening. Product flow rate: 2,040 kg/h (4,497 lb/h). Width: 762 mm (30 in).
