International Process Plants (IPP) offers a wide selection of high-quality used Peeler Centrifuges , including Stainless Steel, Hastelloy, Sanitary and other designs. Our new and refurbished Disc Bowl Centrifuges are ideal for chemical and process industries, ensuring efficiency and reliability in solid-liquid, liquid-liquid & multi-phase operations. Explore our inventory and find the perfect solution for your business needs.
Peeler centrifuges are a type of industrial centrifuge designed for solid-liquid separation. They are particularly effective in handling slurries with a relatively high solid content (typically 5-50%). These machines work on the principle of centrifugal force to separate solid particles from a liquid suspension.
Feeding: The slurry is fed into a rotating basket lined with a filter cloth. Filtration: Centrifugal force drives the liquid through the filter cloth, leaving a cake of solid material on the inner surface of the basket. Washing (Optional): A wash liquid can be introduced to further purify the solid cake. Drying: The solid cake is spun at high speed to remove residual moisture. Discharging: A rotating knife, or "peeler," scrapes the solid cake off the basket wall, discharging it for further processing.
Peeler centrifuges find wide application in various industries, including:
Chemical Industry: Separation of crystals, catalysts, and other solid products from chemical processes.
Pharmaceutical Industry: Purification of active pharmaceutical ingredients (APIs) and other pharmaceutical products.
Food Processing: Separation of solids from liquids in food and beverage production.
Mineral Processing: Recovery of valuable minerals from ores and concentrates.
Wastewater Treatment: Dehydration of sludge and other solid waste materials.
The choice of materials for a peeler centrifuge depends on the specific application and the properties of the materials being processed. Common materials of construction include:
Stainless Steel: A versatile and widely used material, particularly in the food, pharmaceutical, and chemical industries.
Cast Iron: Often used for the base and frame of the centrifuge.
Special Alloys: For applications involving corrosive or abrasive materials, special alloys like Hastelloy, Monel, or titanium may be used.
Polymers: In some cases, polymers like polypropylene or PTFE may be used for specific components.
Corrosion Resistance: The material must be resistant to the chemicals present in the process.
Wear Resistance: The material must be able to withstand the abrasive action of the solid particles.
Strength and Durability: The material must be strong enough to withstand the high centrifugal forces generated during operation.
Cleanability: The material must be easy to clean and maintain.
By carefully selecting the appropriate materials of construction, it is possible to ensure the long-term performance and reliability of a peeler centrifuge.
If you have a specific application in mind, providing more details about the materials being processed and the operating conditions would allow for a more tailored recommendation on suitable materials of construction.
Have questions about Peeler Centrifuges or our services? Learn more about our products and why customers choose IPP.

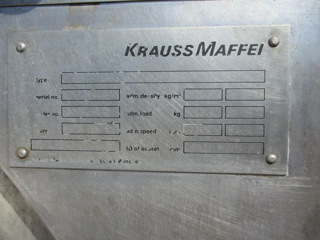

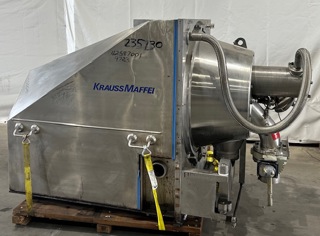

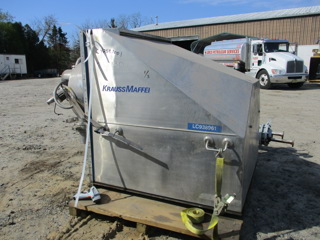

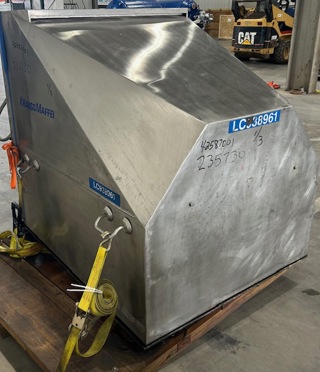

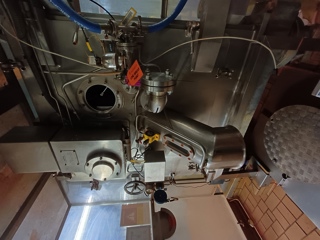

Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ630 PH
Condition: Used
Material: Hastelloy - C22
Basket Diameter: 630 mm (24.8 in)
Basket Depth: 315 mm (12.4 in)

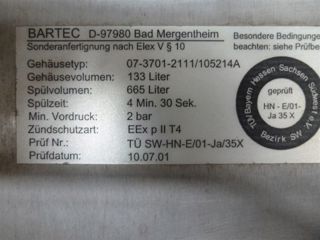

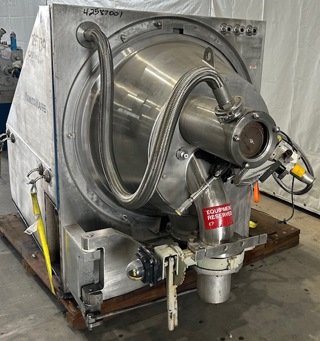

Pharmaceutical design This centrifuge has a clear distinction between the process area/clean room and the drive area. The processing area is free of dead space and allows for complete inspection and sterilization. The filter medium is installed inside the cantilever mounted screen basket. This centrifuge is Gas tight (over -pressure) to 0.04 bar. With feed and wash pipes, hydraulic plow with pneumatic heel cake removal system and solids discharge chute,with door lock switch. Internal accessories are Hastelloy C-22, Gasketing is PTFE.
Filtration Area: 0.6 m² (6.5 ft²). Motor Power: 18 kW (24.1 HP). Speed-RPM Maximum: 2,365. G Force: 1,960. Load Weight: 54 kg (119 lb). Gas Tight: Yes.

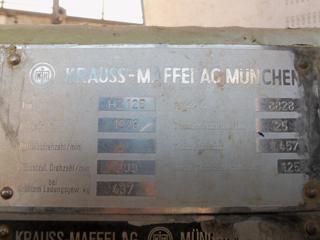

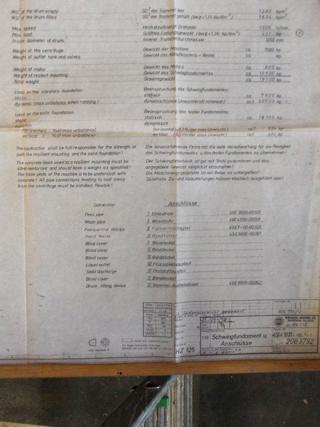

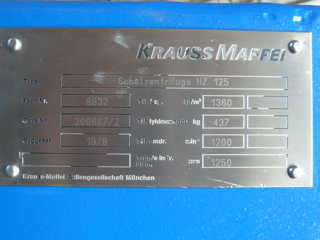

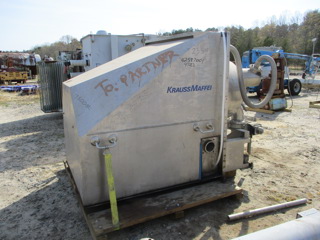

Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ-125
Condition: Used
Material: Stainless Steel Austenitic
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 625 mm (24.6 in)

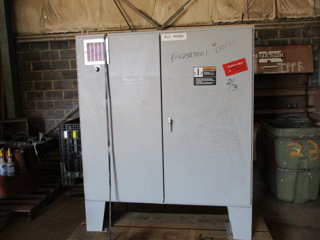

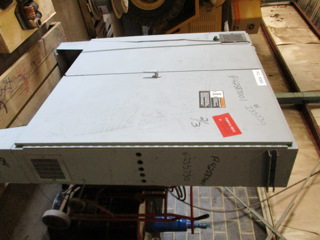

wall thickness 25 mm belt driven by 45 kw motor, 3/50/380-660 volt, 80mm feed, 300mm discharge on front door, 260mm wide x 660mm long filtrate, central lubrication system, and controls
Filtration Area: 0.016 m² (0.17 ft²). Motor Power: 45 kW (60.3 HP). Speed-RPM Maximum: 1,200. Load Weight: 437 kg (963.4 lb). Controls: Yes.

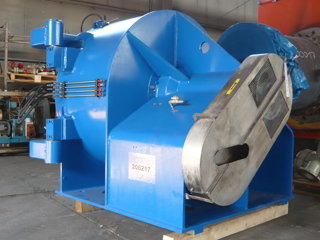

Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ-125-SI
Condition: Used
Material: Stainless Steel 316L
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 625 mm (24.6 in)

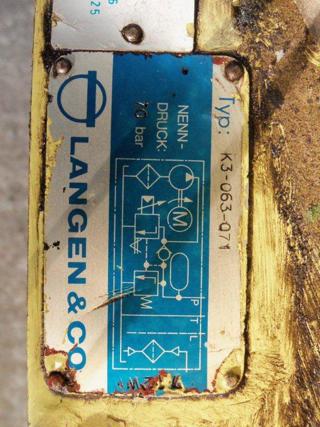

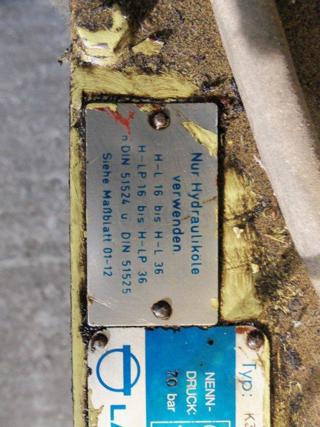

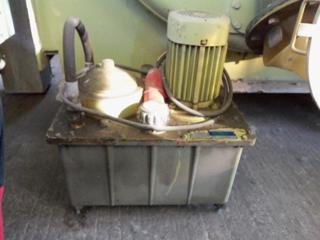

24mm basket thickness hydraulic driven basket via a powerpack
Filtration Area: 2.5 m² (26.5 ft²). Motor Power: 58 kW (77.8 HP). Speed-RPM Maximum: 1,150. Load Weight: 433 kg (954.6 lb).

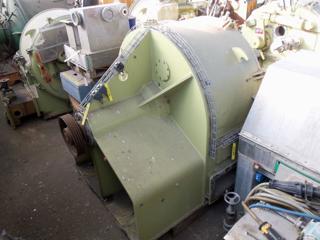

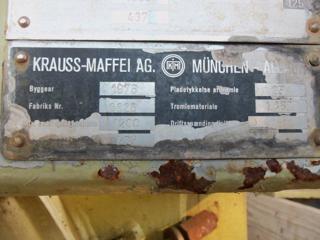

Type: Centrifuge-Peeler
Manufacturer: Krauss Maffei
Model: HZ 160/4A
Condition: Used
Material: Rubberlined
Basket Diameter: 1,600 mm (63 in)
Basket Depth: 800 mm (31.5 in)

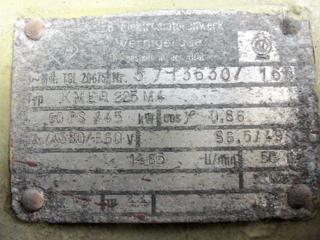

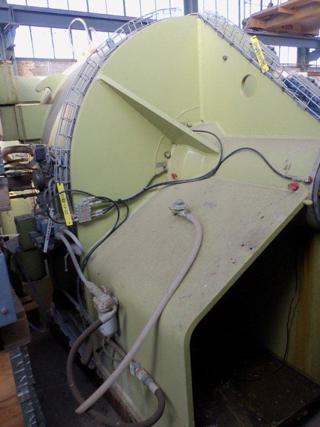

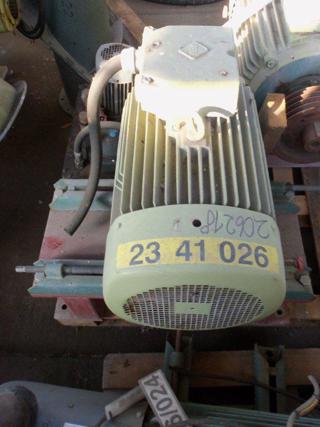

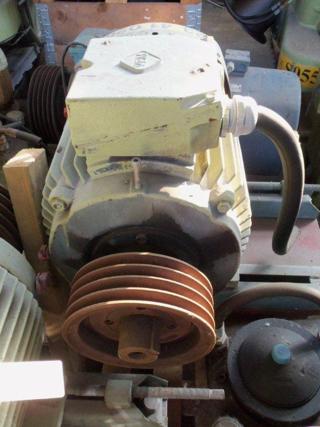

solid basket peeler centrifuge drum#32353 wall thickness: 26 mm belt driven by Loher 90 kW motor 3~/500V/130A/50Hz/1485rpm Hastelloy plow blade discharge on front door rubber lined internal housing
Motor Power: 90 kW (120.7 HP). Speed-RPM Maximum: 950. Load Weight: 851 kg (1,876 lb).
