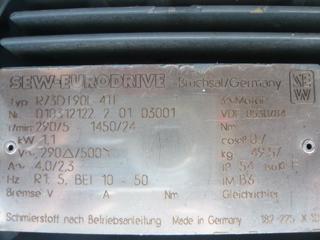

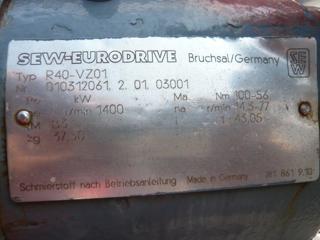

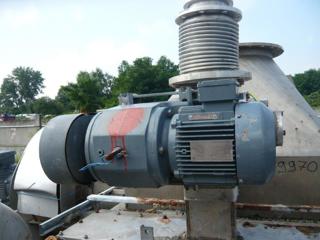

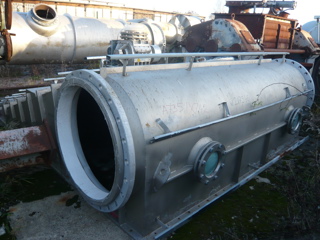

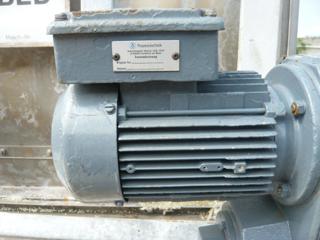

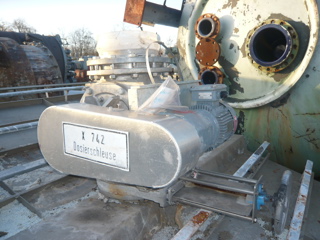

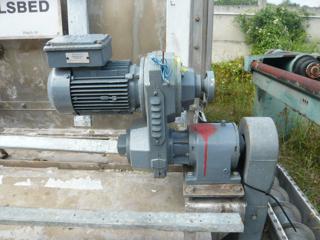

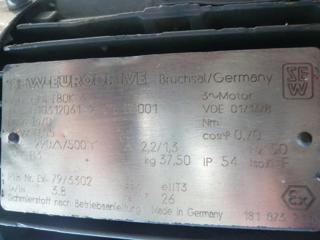

Volume: 30m³ With stainless steel cover, mounted on cover is a 265mm inlet x 250mm outlet (1.4571) stainless steel rotary valve, manufactured by Waeschle, type ZGB.320.1.19.SS, serial number 58113.10, pressure rated 1,2bar @ 180 dgrees C, driven by a 1,5 KW electrical motor, manufactured by SEW, type R62D190L4, serial number 3001522303000197, 3~/50Hz/290-500V/maximum 1466rpm, CE confirm 1.4541 stainless steel tube and shell heater bank (calorifier), manufactured by Calorifer AG, serial number 5555 design pressure jacket 0,15 bar @ 250 degrees C design pressure tubeside 25 bar @ 250 degrees C, volume 260 liter, (910) 14,5mm diameter x 1972mm long 1.4541 stainless steel tubes, with welded on top and bottom cone section openings tubeside: (3) 25mm, (1) 15mm, openings jacket side (2) cone with 1200mm, mounted on (4) stainless steel lugs; (2) 17500 liter 316L (1.4541) stainless steel vertical cyclone separator, manufactured by TREMA GmbH, type GA 215 - OKRB-240, serial number 3234, internal pressure 0,1 bar @ 250 degrees C, bolted coned bottom section, weld slight coned top. 2142 mm diameter x 3760mm straight side x 1940mm cone section, total height 6800mm; (1) maximum 24,57 m³/sec 1.4541 stainless steel exhaust fan, manufactured by FIMA, type RMS1 U800 KGB GL360, serial number 72780/1, 331kW, rated 0.915 kg/m³ @ 133 degrees C, fan mounted on baseplate fan is clutch driven by a 550kW electrical motor, manufactured by Loher, type AMSA-450MB-02A, serial number 5125593, 3~/50Hz/500V/2990rpm 550 kW/500V/710 A/50 HZ/2990 rpm, EX proof, mounted on baseplate; Used as a pre-crystallizer for a Solid State Polymerization system. Pressure: 0.007 bar (0.1 psi). Temperature: 250 °C (482 °F).

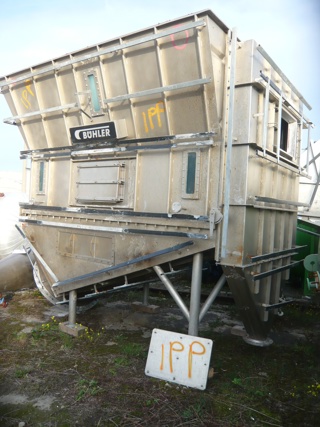

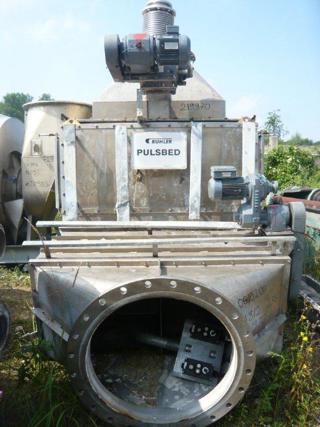

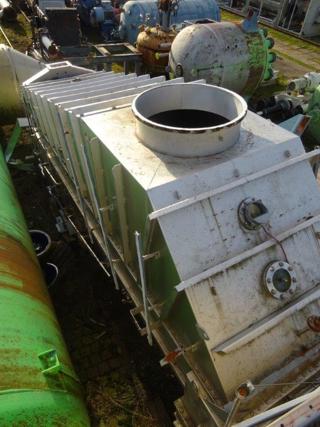

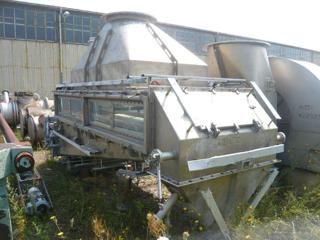

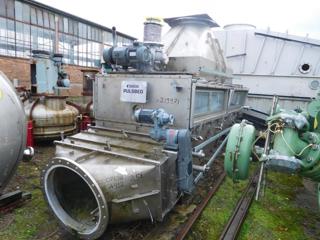

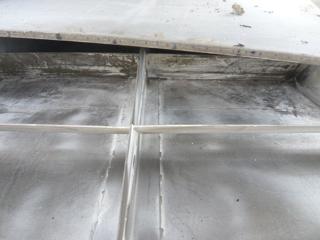

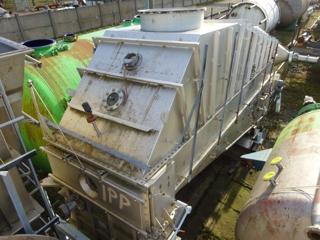

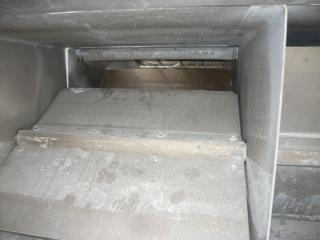

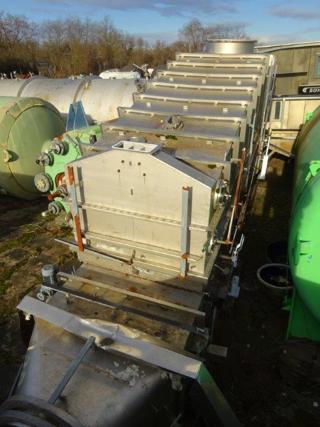

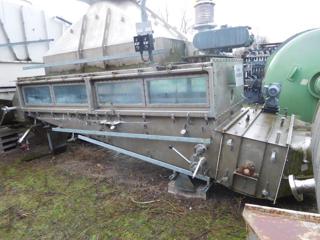

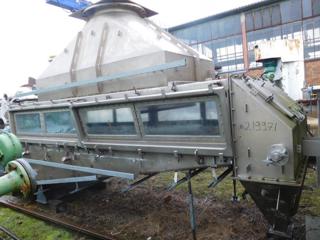

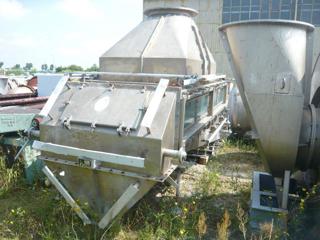

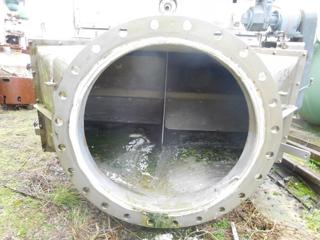

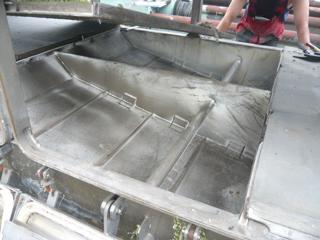

stainless steel fluid bed crystallizer used on PET pellets with heated nitrogen total pressure drop, ca.30 mbar, differential pressure ca 2 mbar, design pressure pe=90 mbar product thickness ca.200mm approximate bed with glass inspection hatches 1.6m wide x 3.3m long x 500mm deep with glass inspection hatches Openings include: product inlet 100mm diameter with rotary valve, hot air inlet 700mm diameter, hot air outlet 700mm diameter, product outlet 150mm x 185mm, chamber with hood, Pressure: 0.06 bar (0.87 psi). Temperature: 400 °C (752 °F). Height: 500 mm (19.7 in). Length: 83,820 mm (3,300 in).

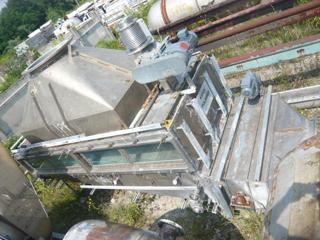

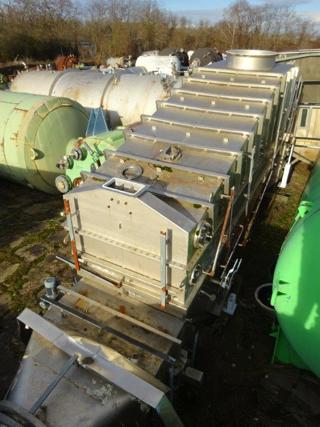

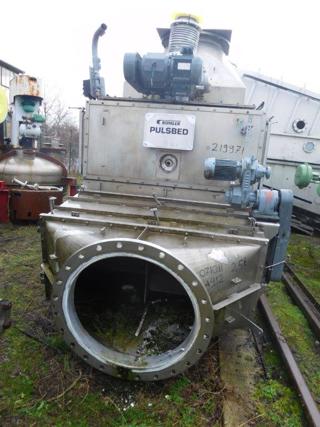

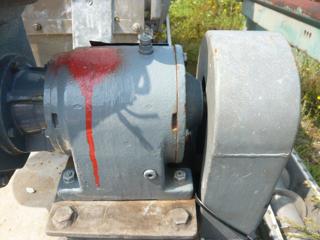

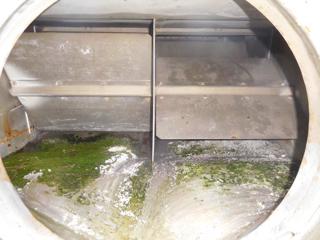

Vibrating fluid bed with enclosed chamber rated pe=60 mbar total pressure drop, ca.30 mbar differential pressure ca 2 mbar design pressure pe=90 mbar @ 200 deg C, 400 deg C product thickness ca.200mm Openings include: product inlet 100mm diameter with rotary valve, hot air inlet 700mm diameter, hot air outlet 700mm diameter, product outlet 150mm x 185mm, chamber with hood Pressure: 0.06 bar (0.87 psi). Temperature: 400 °C (752 °F).
