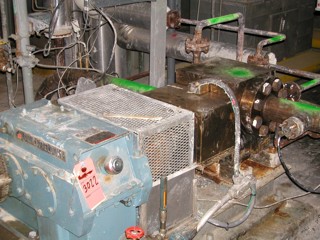

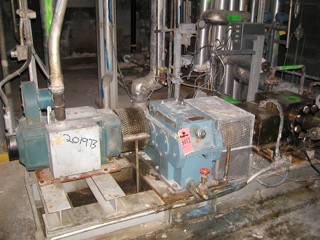

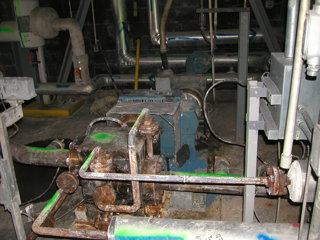

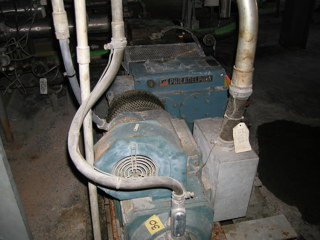

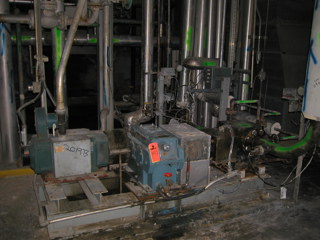

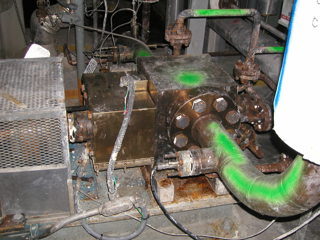

3" inlet x 3" outlet steam heated hot melt gear pump
Continous, plastic pellet heater Approximatly 4" diameter x 12" long chamber, 3/4" diameter jacketed discharge. Electrically heated chamber, with roatary gear pump on discharge. Length: 304.8 mm (12 in). Feeders: 304SS Acrison 101-D feeder .
Type: Underwater strand pelletizer
the vertical design provides space savings and easy access to the cutter head
Designed to Process the following PET: Melt density 1.18 g/cm3, Solid density 1.34 g/cm3. Melt temperature 285-290 degrees C. at 200-500 Pas viscosity. 90 strands with a maximum through put of 6900.
Die plate design (pn# 10295462) 5,5 mm hole diameter. With a quick change cutting head
The Cutter head diameter is 162.5 mm, 30 teeth, with a 2 degree helix angle and # 2 tooth profile.
The feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW.
This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure. Capacity (Design): 6,900 kg/h (15,212 lb/h). Pressure: 160 bar (2,321 psi). Temperature: 350 °C (662 °F).
Type: Underwater strand pelletizer cutter the vertical design provides space savings and easy access to the cutter head Designed to Process the following PET: Melt density 1.18 g/cm3, Solid density 1.34 g/cm3. Melt temperature 285-290 degrees C. at 200-500 Pas viscosity. 90 strands with a maximum through put of 6900. Die plate design (pn# 10295462) 5,5 mm hole diameter. With a quick change cutting head. The Cutter head diameter is 162.5 mm, 30 teeth, with a 2 degree helix angle and # 2 tooth profile. The feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW. This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure. Capacity (Design): 6,900 kg/h (15,212 lb/h). Pressure: 160 bar (2,321 psi). Temperature: 350 °C (662 °F).
Type: Underwater strand pelletizer the vertical design provides space savings and easy access to the cutter head Designed to Process the following PET: Melt density 1.18 g/cm3, Solid density 1.34 g/cm3. Melt temperature 285-290 degrees C. at 200-500 Pas viscosity. 90 strands with a maximum through put of 6900. Die plate design (pn# 10295462) 5,5 mm hole diameter. With a quick change cutting head. The Cutter head diameter is 162.5 mm, 30 teeth, with a 2 degree helix angle and # 2 tooth profile. The feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW. This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure. Capacity (Design): 6,900 kg/h (15,212 lb/h). Pressure: 160 bar (2,321 psi). Temperature: 350 °C (662 °F).
Type: Underwater strand pelletizer the vertical design provides space savings and easy access to the cutter head Designed to Process the following PET: Melt density 1.18 g/cm3, Solid density 1.34 g/cm3. Melt temperature 285-290 degrees C. at 200-500 Pas viscosity. 90 strands with a maximum through put of 6900. Die plate design (pn# 10295462) 5,5 mm hole diameter. With a quick change cutting head. The Cutter head diameter is 162.5 mm, 30 teeth, with a 2 degree helix angle and # 2 tooth profile. The feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure. Capacity (Design): 6,900 kg/h (15,212 lb/h). Pressure: 160 bar (2,321 psi). Temperature: 350 °C (662 °F).
Automatik USG300/2 cutting system Including 2 cutters, 1 dryer and controls 33-60 strands 800/1200/1500mm strand guide length, 80-350 m/min draw in speed. 230/460 V Automatik Dryer Model GT400/2 – L0, Machine number 18.021-602, (Blower fan not available). Includes operating spare cutter. Capacity (Design): 4,191 kg/h (9,240 lb/h). Length: 1,500 mm (59.1 in).

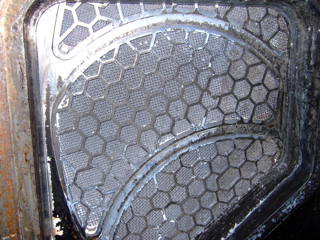

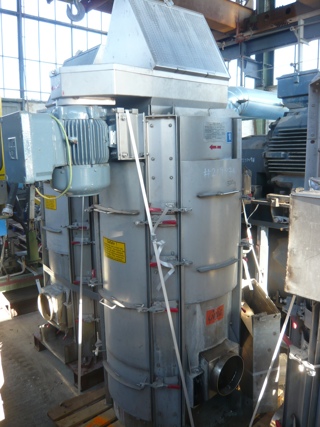

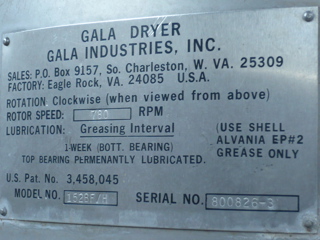

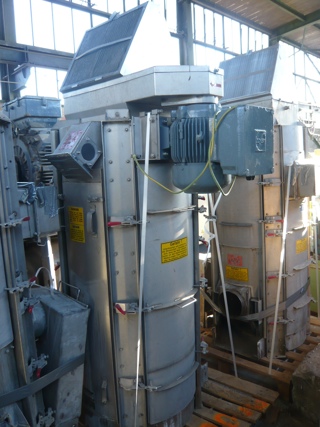

centrifugal dryer rotor speed 780 rpm dryer used for plastic pellets/granules. 6500 Kg/hr product throughput. 50 m3/hr water rate approx 2550 nm3/hr Capacity (Design): 6,500 kg/h (14,330 lb/h).
centrifugal dryer for plastic pellets/granules rated 6500 Kg/H product throughput 50 CuM/H water rate approx 2,550 NM3/h 1440 u/m Capacity (Design): 6,500 kg/h (14,330 lb/h).
centrifugal dryer for plastic pellets/granules rated 6500 Kg/H product throughput 50 CuM/H water rate approx 2,550 NM3/h 1440 u/m Capacity (Design): 6,500 kg/h (14,330 lb/h).

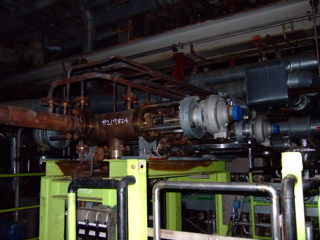

ET Pellet line including Polymer filtration, through cutting, with quench system. Major items include: (2) 0.38m² / 25 liter 316 SSTi Auto Back Flushing filter, (2) Gneuss Model RSF250 ZP Polymer filter, continous rotary filtration system, (2) 4.0 t/h, s/steel (1.4571) BARMAG tooth wheel pumps, (3) Rieter (Automatik), USG 600 H, PET pellet mill with Rieter Die Head, (1) 29.88 m³/h 32.5m head @ 1465rpm stainless steel (1.4408) centrifugal pump, (1) 35 m³/h 30m head @ 1450rpm stainless steel (1.4408) centrifugal pump, (1) 35 m³/h 30m head @ 1450rpm cast steel (GGG40.3) centrifugal pump, (2) 4.5m³/h 25m head @ 2900rpm stainless cast steel (1.4581) magnetic (14Nm) centrifugal pumps, (2) 2664m³/h carbon steel exhaust fans, (1) 1500 liter/min stainless steel water tank system with stainless steel ribbon, (4) approx 70 liter stainless steel hopper with a stainless steel sieve insert, stainless steel top cover, welded cone bottom, mounted on a stainless steel saddle, (1) pallet with a electrical rope winch. Capacity (Design): 4,000 kg/h (8,818 lb/h).

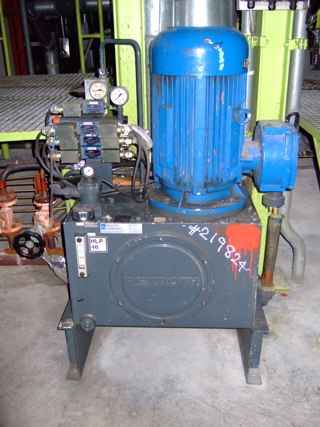

Polymer filter continous rotary filtration system 1220 SqCm active screen area 9500 Cm/Hr capacity, 48000 watt oil/vapor heating capacity, with 2 heater zones. CS construction. RexRoth 11 KW power pack 3/50/500 volt 1460 Rpm. 2900 Kg Filter
Polymer filter continous rotary filtration system Rated 1220 SqCm active screen area, 9500 Cm/Hr capacity, 48000 watt oil/vapor heating capacity, with 2 heater zones. CS construction a RexRoth 11 KW power pack 3/50/500 volt 1460 Rpm 2900 Kg Filter
USG 600 H, PET pellet mill.
Cutter is Model 1.60/051141, rated 4500 Kg/Hr, 60 strands maximum capacity.
Designed for PET, Specific Weight 1.25 g/CuCM, with 240 to 370 pas viscosity.
Unit produces 4500 Kg/Hr product capacity, with a minimum draw-in speed of 80 m/min, and a maximum draw-in speed of 240 m/min.
Operating voltage is 5000 V/AC, Control Voltage is 230 V/AC; 24 V/DC, 50 Hz with a E E Designed to make a 4mm long x 2.8 x 3.8 diameter pellet.
With a E Ex eII T3 Enclosure.
Requires 4-6 bar pneumatic air supply.
0.03-0.05mm cutting gap, 0.2mm cutting gap transport.
2850 Kg Weight for the pellet mill.
280 Kg weight. Capacity (Design): 4,500 kg/h (9,921 lb/h). Pressure: 6 bar (87 psi).
centrifugal dryer, for plastic pellets/granules rated 6500 Kg/H product throughput 50 CuM/H water rate approx 2,550 NM3/h 1440 u/m Capacity (Design): 6,500 kg/h (14,330 lb/h).
centrifugal dryer, for plastic pellets/granules rated 6500 Kg/H product throughput, 50 CuM/H water rate, approx 2,550 NM3/h 1440 u/m Capacity (Design): 6,500 kg/h (14,330 lb/h).
centrifugal dryer, for plastic pellets/granules rated 6500 Kg/H product throughput, 50 CuM/H water rate, approx 2,550 NM3/h 1440 u/m Capacity (Design): 6,500 kg/h (14,330 lb/h).
centrifugal dryer, for plastic pellets/granules rated 6500 Kg/H product throughput, 50 CuM/H water rate, approx 2,550 NM3/h 1440 u/m Capacity (Design): 6,500 kg/h (14,330 lb/h).
centrifugal dryer, for plastic pellets/granules rated 6500 Kg/H product throughput, 50 CuM/H water rate, approx 2,550 NM3/h Capacity (Design): 6,500 kg/h (14,330 lb/h).
centrifugal dryer, for plastic pellets/granules rated 6500 Kg/H product throughput, 50 CuM/H water rate, approx 2,550 NM3/h 1440 u/m Capacity (Design): 6,500 kg/h (14,330 lb/h).
diverter valve and screen changer masch #20004017, 2- 110 cm2 screens screen dimensions 120mm x 0.5mm x 93mm (+0.5), 230-600 kg/hr throughput, heating capacity of the 6-cartirdges is 6 x 1000 watt, Gebhard/HLP type cartridges, hydraulically driven by a Heusinger and Salmon powerpack, powerpack driven by a 11/12.7 kw, 3/50/60/380/660/420/720/380/660/480/830 volt, 1440/1465/1730/1755 rpm 2-speed motor, local control panel on a davit,

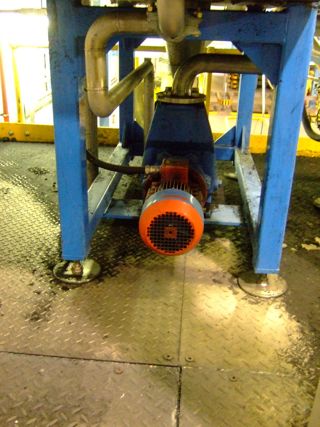

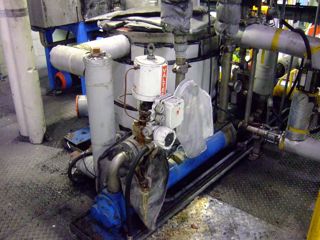

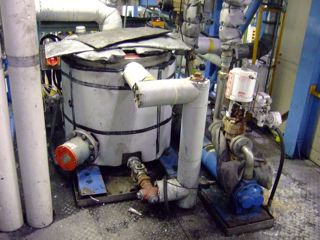

50m /h" radius curved screen 149 micron mesh, (1) 30 m3/hr @ 50m head KSB centrifugal pump, type Etachrom-BC, driven by 7.5 kw, 3/50/400/690 volt 2910 rpm motor, (1) 80 GPM stainless steel hot water tank, electric heated 700mm diameter x 700mm straight side,

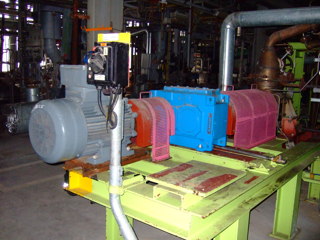

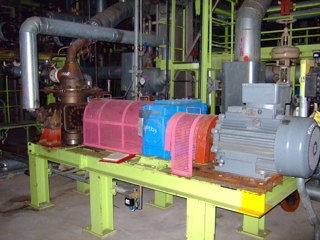

250-500kg/hr Maag hot melt gear pump viscosity at 10/sec 70 to 3000 Pas inlet pressure 10 bar, outlet pressure 250 bar, (4) heating cartridges (1250 Watt, 415 volt), driven by 18.5 kw, 3/50/60/380/420/480 volt, 1457-1465/1740-1765 rpm mounted on a carbon steel frame, Capacity (Design): 500 kg/h (1,102 lb/h). Pressure: 10 bar (145 psi). Temperature: 300 °C (572 °F).
pellet size 3.2mm x 3.2mm, 18 m3/hr water rate (max), 3-rotor screens top side mounted 0.61 m3/second blower, driven by 0.66 kw, 2850 rpm motor, agglomarator catcher, 5-sets of 4 spray nozzles, belt driven by 5.5 kw, 3/50/60/400/690 volt, 1455/1755 rpm motor, Capacity (Design): 4,500 kg/h (9,921 lb/h). Temperature: 80 °C (176 °F). Length: 3.2 mm (0.13 in).
Width: 24" Cutting method: Wet Serial # not available Pelletizer type: Waterslide Control type: Explosion proof belt driven cutter head Pneumatic assist cover Capacity (Design): 10,433 kg/h (23,000 lb/h). Height: 1,778 mm (70 in). Length: 2,134 mm (84 in).
Width: 24" Cutting method: Wet Pelletizer type: Waterslide Control type: Explosion proof Cutter head: Belt driven Pneumatic assist cover Capacity (Design): 10,433 kg/h (23,000 lb/h). Height: 1,778 mm (70 in). Length: 2,134 mm (84 in).
Width: 24" Cutting method: Wet Pelletizer type: Waterslide Controls: Explosion proof Cutter head: Belt driven Pneumatic assist cover Capacity (Design): 10,433 kg/h (23,000 lb/h). Height: 1,778 mm (70 in). Length: 2,134 mm (84 in).

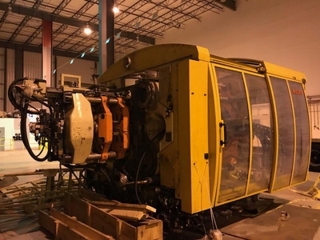

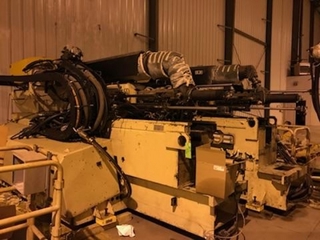

injection molding machine for PET (homopolymer) used to produce the "pre forms" for PET plastic bottle blow molding The Index 400 PET Multi material pre form machine, has a 64 cavity turret system. The Injection molding system, is comprised of 3 main sections, these sections are the clamp unit, the injection unit and the control unit (including human machine interface) The clamp unit supports the rotary mold and directs the mold movement and contains two sections, stationary planten and turret assembly. The Injection unit utilizes a screw to plasticize the resin pellets, and then an injection piston puts the melt into the mold. A distributor valve directs the resin flow, depending on what stage of the cycle is active. The multi material machine can use resin pellets, reground plastic and barrier material. The human interface is a IBM compatible PC. A 10.4" color, flat panel display, alphanumeric keypad, mouse, and hinge mount are standard features. Specifications: screw feed 60 rpm, Installed pump HP is 200, Machine heater 92 kW, Mold heater 82 kW. With optional dehumidification hood. Capacity (Design): 499 kg/h (1,100 lb/h).
24" wide, wet cut, waterslide pelletizer. Explosion proof controls, belt driven cutter head Pneumatic assist cover Capacity (Design): 10,433 kg/h (23,000 lb/h). Height: 1,778 mm (70 in). Length: 2,134 mm (84 in).
24" wide, wet cut, waterslide pelletizer Serial # not available Explosion proof controls, belt driven cutter head Pneumatic assist cover Capacity (Design): 10,433 kg/h (23,000 lb/h). Height: 1,778 mm (70 in). Length: 2,134 mm (84 in).

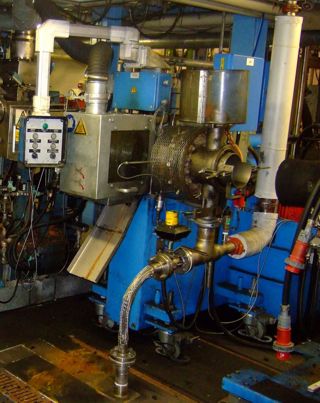

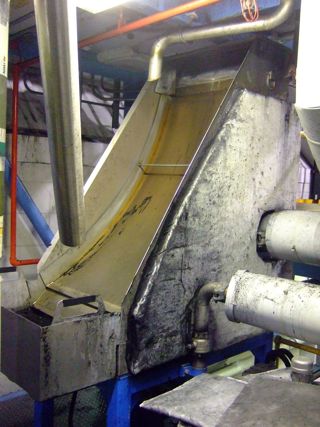

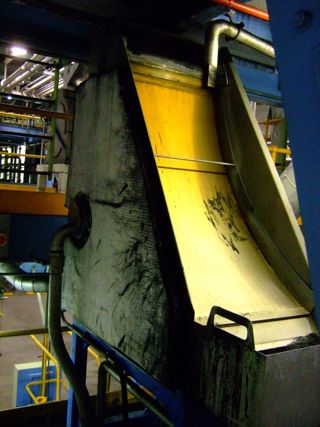

Underwater strand pelletizing system Cutter included: Rieter M-USG 900 V Strand transfer equipment included Pellet cooler included Screener included The cutter IPP Stock # 205764- Rieter (Maag), M-USG 900 V Underwater strand pelletizer, vertical design, 316 SS contact, where the vertical design provides space savings and easy access to the cutter head Designed to process PET with the following properties: Melt density: 1.18 g/cm3 Solid density: 1.34 g/cm3 Melt temperature: 285-290 degrees C Viscosity: 200-500 Pas 90 strands with- Quick change cutting head Cutter head diameter: 162.5 mm a maximum throughput of 6900 Die plate design (pn# 10295462) with 5.5 mm hole diameter Cutter head teeth: 30 Helix angle: 2 degrees Tooth profile: #2 The cutter main drive system is direct drive, with a three phase AC motor The feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW. This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure. Strand cooling with water, pellet cooling with water on a 200 mm x 7 meter long cooler, Dryer by Aero, Model 800, the Aero dryer is rated for 40 m3/hr. water with 30 kw motor and air throughput of 100 m3/min. Water from the dryer is returned to the process loop. and vibratory screener by Rieter. Capacity (Design): 6,900 kg/h (15,212 lb/h).
Type: Underwater strand pelletizing system Included components: Rieter M-USG 900 V cutter, strand transfer equipment, pellet cooler, and screener The cutter IPP Stock # 205767- Rieter (Maag), M-USG 900 V the vertical design provides space savings and easy access to the cutter head Designed to Process the following PET: Melt density 1.18 g/cm3, Solid density 1.34 g/cm3. Melt temperature 285-290 degrees C. at 200-500 Pas viscosity. 90 strands with a maximum through put of 6900. Die plate design (pn# 10295462) 5,5 mm hole diameter. With a quick change cutting head. The Cutter head diameter is 162.5 mm, 30 teeth, with a 2 degree helix angle and # 2 tooth profile. he feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW. The machine is supplied with an operator control panel. This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure. Strand cooling with water, pellet cooling with water on a 200 mm x 7 meter long cooler, Dryer by Aero, Model 800, the Aero dryer is rated for 40 m3/hr. water with 30 kw motor and air throughput of 100 m3/min. Water from the dryer is returned to the process loop. and vibratory screener by Rieter. Capacity (Design): 6,900 kg/h (15,212 lb/h).
Type: Underwater strand pelletizing system
Components: Rieter M-USG 900 V cutter, strand transfer equipment, pellet cooler, and screener
The cutter IPP Stock # 205765- Rieter (Maag), M-USG 900 V
the vertical design provides space savings and easy access to the cutter head
Designed to Process the following PET: Melt density 1.18 g/cm3, Solid density 1.34 g/cm3. Melt temperature 285-290 degrees C. at 200-500 Pas viscosity. 90 strands with a maximum through put of 6900.
Die plate design (pn# 10295462) 5,5 mm hole diameter. With a quick change cutting head. The Cutter head diameter is 162.5 mm, 30 teeth, with a 2 degree helix angle and # 2 tooth profile.
The feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW. The machine is supplied with an operator control panel.
This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure.
Strand cooling with water, pellet cooling with water on a 200 mm x 7 meter long cooler, Dryer by Aero, Model 800, the Aero dryer is rated for 40 m3/hr. water with 30 kw motor and air throughput of 100 m3/min. Water from the dryer is returned to the process loop. and vibratory screener by Rieter. Capacity (Design): 6,900 kg/h (15,212 lb/h).
Type: Underwater strand pelletizing system
Complete system includes the Rieter M-USG 900 V cutter. strand transfer equipment, pellet cooler and screener
The cutter IPP Stock # 205766- Rieter (Maag)
the vertical design provides space savings and easy access to the cutter head
Designed to Process the following PET: Melt density 1.18 g/cm3, Solid density 1.34 g/cm3. Melt temperature 285-290 degrees C. at 200-500 Pas viscosity. 90 strands with a maximum through put of 6900.
Die plate design (pn# 10295462) 5,5 mm hole diameter. With a quick change cutting head. The Cutter head diameter is 162.5 mm, 30 teeth, with a 2 degree helix angle and # 2 tooth profile.
The feed rolls are timed, with a belt drive, driven by a three phase AC motor, rated for 5.5 kW.
The machine is supplied with an operator control panel. This system requires the following utilities: Compressed air-4-6 bar. (dry and oil free), Electrical-400 volt 3 phase. Cooling water, 30 m3/h at 30 degrees C at 6 bar maximum pressure.
Strand cooling with water, pellet cooling with water on a 200 mm x 7 meter long cooler, Dryer by Aero, Model 800, the Aero dryer is rated for 40 m3/hr. water with 30 kw motor and air throughput of 100 m3/min. Water from the dryer is returned to the process loop. and vibratory screener by Rieter. Capacity (Design): 6,900 kg/h (15,212 lb/h).
