Motor Power: 11.2 kW (15 HP). Speed (RPM): 6,000. Orientation: Horizontal.
w/(3) feed screws. Discharge hopper w/out valve Stirrup type hammers. Rotor belt driven by 30 HP, 3/60/230/460 volt, 1770 rpm TEFC motor. Feeder belt driven by 1/2 HP, 3/60/220/440 volt, 1140 rpm TEFC motor. Inlet Diameter: 381 mm (15 in). Motor Power: 22.4 kW (30 HP). Orientation: Horizontal.
No drive. Inlet Diameter: 939.8 mm (37 in). Orientation: Horizontal.
TEFC motor Has CS 32" dia x 20" swing knife rotor. CS swing hammers Inlet Diameter: 304.8 mm (12 in). Motor Power: 93.2 kW (125 HP). Orientation: Horizontal.
w/screw feed Unit has 12" x 12" hopper w/feed screw Screw driven by 3/4 HP, US varidrive 3/60/230/460 volt. UL label Inlet Diameter: 304.8 mm (12 in). Motor Power: 11.2 kW (15 HP). Orientation: Horizontal.
Location: Wilsonville, OR opening on the top, with a round grinding tub, with fixed bed knives and fixed fly knives on the center rotor. Rotor is under driven with a belt to a 100 HP vertical motor. Pulverizing chamber has a fiberglass top cover with a side feed side feed opening 35" X 35" plus bolt section that is 22" X 26". approx weight 15,000 lbs. Inlet Diameter: 1,346 mm (53 in). Outlet Discharge Diameter: 558.8 mm (22 in). Motor Power: 74.6 kW (100 HP). Orientation: Vertical.
Beta grinde mill Bowl 22" diameter x 14" straight side with discharge chute. with pneumatic hammer to dislodge product from agitator. Inlet Diameter: 558.8 mm (22 in). Motor Power: 5.4 kW (7.3 HP). Orientation: Vertical.
Guilo cutter with UL label 3/60/220/440 volt and 1/4 HP varidrive with UL label Motor Power: 29.8 kW (40 HP). Orientation: Horizontal.
10 HP Fixed knives blunt one side, w/reversible rotor. Unit driven by approx 10 HP, US varidrive. Screw feed driven by 1/4 HP, 3/60/230/460 volt US varidrive 3/60/230/460 volt US varidrive. Motor Power: 7.5 kW (10 HP).
Motor Power: 5.6 kW (7.5 HP).
w/(3) feed screws Stirrup type hammers Feeder drive: Belt driven by 1/2 HP, 3/60/220/440 volt TEFC motor Rotor drive: Belt driven by 30 HP, 3/60/220/440 volt, 1750 rpm TEFC motor Spare screw feeder Inlet Diameter: 203.2 mm (8 in). Motor Power: 22.4 kW (30 HP). Orientation: Horizontal.
Steel hammer mill grinding machine. Type Gladiator, Shaft speed 4500 rpm. Chamber 300mm dia x 250mm wide. Feed end has Erietz magnetic detector/separator. Screw size 248mm x 530mm. Output per hr 100-700 Kg Inlet Diameter: 250 mm (9.8 in). Motor Power: 5.5 kW (7.4 HP). Speed (RPM): 4,500. Orientation: Vertical.

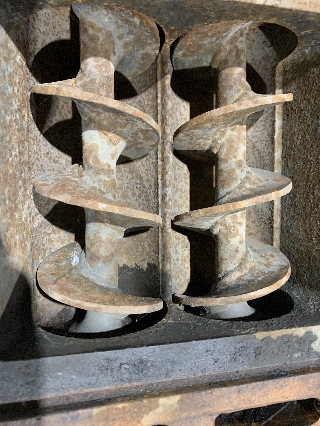

driven by approx 1/2HP US motor. motor, Screen discharge into a bolted on hopper bottom Twin screw feed Capacity (Design): 28.3 L (1 ft3). Motor Power: 11.2 kW (15 HP). Speed (RPM): 6,900. Orientation: Vertical.
Single Rotor Crusher fixed hammers. Crusher walls are 1/4" thick, shaft is 1 15/16" diameter. Unit has a SS feed chute, screen discharge with 1/2" holes 230/460 volt motor Inlet Diameter: 609.6 mm (24 in). Outlet Discharge Diameter: 635 mm (25 in). Motor Power: 11.2 kW (15 HP). Orientation: Vertical.
reversable hammer mill Rated for 250 TPH at 900 rpm, designed to crush Coal at 50 PCF. 6 rows of hammers (17) hammers each with 2 end hammers per row staggered. With feed and discharge shuts, vibrater on feed side. Motor Power: 372.9 kW (500 HP). Speed (RPM): 900. Orientation: Horizontal.
Hammer mill pulverizer with product heater with left hand drive Rated for 1200 rpm with 12 hammers Machine has auto oiler for bearings. With Spinner and blower to move sized product to plant. Weight on hammer mill 14,660 lbs with spinner 22,565 lbs. Product heater is rated 6 mm BTU, CS, North American air dryer powered by natural gas With Blower, Gas train and heater installed on skid. Skid dimensions are 193" long x 61" wide x 74" high. Air inlet is rectangular flange 15" x 11". Air Outlet is round 19" diameter Complete automated fuel train by, with series 2300 turbo blower. Product air heater is also listed under IPP # 221295. Inlet Diameter: 381 mm (15 in). Outlet Discharge Diameter: 482.6 mm (19 in). Motor Power: 111.9 kW (150 HP). Speed (RPM): 1,200. Orientation: Vertical.
Hammer mill pulverizer with product heater with left hand drive Rated for 1200 rpm with 12 hammers Machine has auto oiler for bearings. With Spinner and blower to move sized product to plant. with spinner 22,565 lbs. Product heater is rated 6 mm BTU, CS, North American air dryer powered by natural gas With Blower, Gas train and heater installed on skid Skid dimensions are 193" long x 61" wide x 74" high Air inlet is rectangular flange 15" x 11". Air Outlet is round 19" diameter Complete automated fuel train by, with series 2300 turbo blower. Product air heater is also listed under IPP # 221294. Inlet Diameter: 381 mm (15 in). Outlet Discharge Diameter: 482.6 mm (19 in). Motor Power: 111.9 kW (150 HP). Speed (RPM): 1,200. Orientation: Vertical.
Granulator Hammer Mill hardened steel construction for size reduction of brittle materials. Fixed hammer design, with heavy counter knives and several rows of pre-breakers. (2) stator knives, 7 x 2 rotor knives. Rotor diameter 800 mm x1200 mm wide With feed chute into the pulverizing chamber, Feed opening is 1200 mm x 940 mm. motor type Y2-315L1-4 System includes hydraulic power pack, dust blower and cyclone separator for dust control, and control panel. Inlet Diameter: 1,200 mm (47.2 in). Motor Power: 180 kW (241.4 HP). Orientation: Horizontal.
Used Pulverizers Most Pulverizers have a housing with and internal rotors that spins at a high speed with either fixed or swinging knives, hammers, or rods/pins to size reduction using impact. Most have a screen discharge, where the product stays in the pulverizing chamber until it is small enough to fall through the screen. For finer particle sizes, Air classification mills are used, where the product stays in the pulverization chamber until it is light enough to flow out of the mill in an air stream. The different types of Pulverizers are: • Knife mills – Fitzpatrick, Fitzmills, Commutators • Hammer Mills – Micro Pulverizer, Pulva Mills • Pin Mills – Alpine mills, Bauer mills • Rotary Mills – Williams, Jeffery • Air Class Mills – Micro Atomizer, Hosikowa, ACM, Imp Mills
