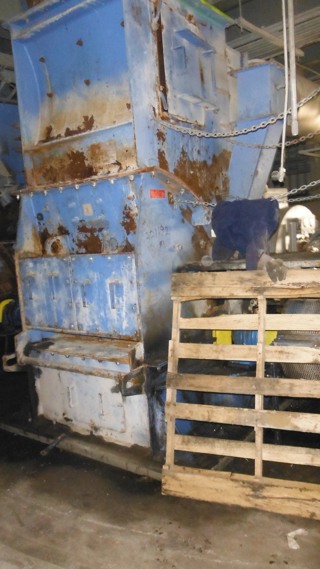

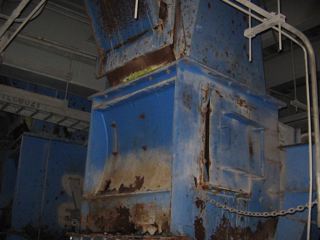

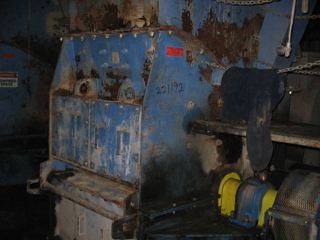

Carbon Steel Hammer Pulverizer 372.9 kW (500 HP) For Sale

Type:

Pulverizer

Subtype:

Hammer

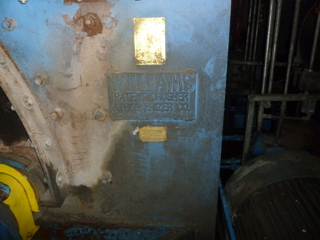

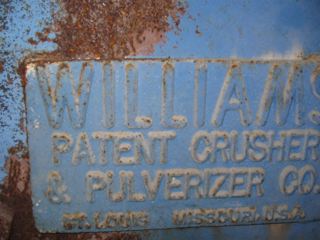

Manufacturer:

Pennsylvania

Model:

SXCAG 104-42

Condition:

Used

Material:

Carbon Steel

Capacity:

283.2 m3 (10,000 ft3)

Outlet Discharge Diameter:

2,019 mm (79.5 in)

Inlet Diameter:

1,880 mm (74 in)

Motor Power (Design):

372.9 kW (500 HP)

Speed (RPM):

900

Orientation:

Horizontal

Length:

3,067 mm (120.7 in)

Width:

2,623 mm (103.3 in)

Height:

1,899 mm (74.8 in)

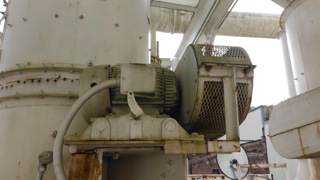

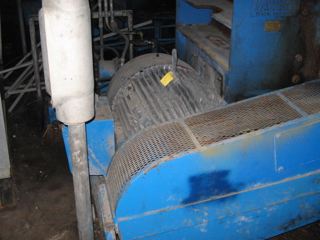

Motor Make:

Reliance

Motor Serial:

1VA003100 A1 SP 1

Motor Frame size:

27EC 5810S

Motor Speed:

889

Motor Voltage:

4000

Motor Hertz:

Motor Cycles:

Motor TEFC:

Yes

Number of Hammers:

114

Rows of Hammers:

Swing Hammers:

Yes

Additional Info:

reversible hammer mill
Rated for 250 TPH at 900 rpm, designed to crush Coal at 50 PCF.

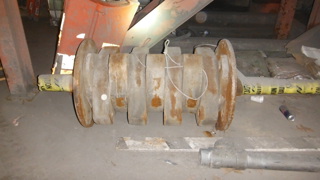

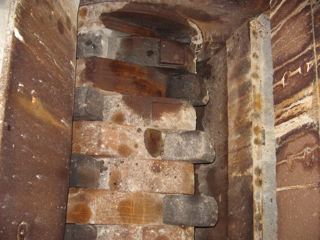

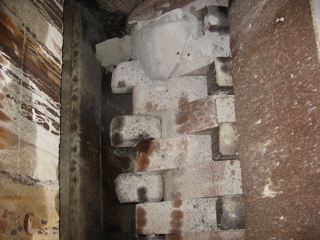

6 rows of hammers (17) hammers each with 2 end hammers per row staggered.\

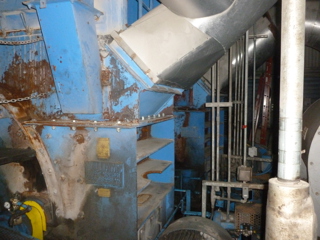

With feed and discharge shuts, vibrater on feed side.
10,000 Cu Ft based on 1 ton =40 cu ft

Carbon Steel Hammer Pulverizer - IPP# 221187
