Hammer Pulverizer Williams 40GA - IPP# 221292

Type: Pulverizer

Subtype: Hammer

Manufacturer: Williams

Model: 40GA

Condition: Used

Material: Carbon Steel

Outlet Discharge Diameter: 483 mm (19 in)

Inlet Diameter: 381 mm (15 in)

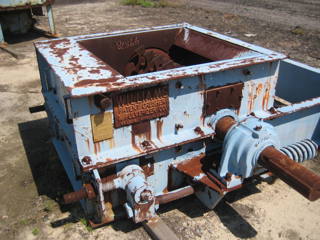

Hammer mill pulverizer with product heater
with left hand drive

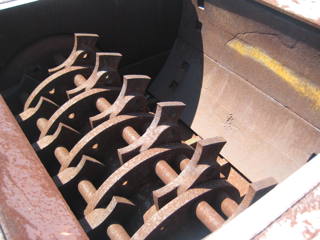

Rated for 1200 rpm with 12 hammers
Machine has auto oiler for bearings. With Spinner and blower to move sized product to plant.
with spinner 22,565 lbs. Product heater is rated 6 mm BTU, CS, North American air dryer powered by natural gas
With Blower, Gas train and heater installed on skid
Skid dimensions are 193" long x 61" wide x 74" high
Air inlet is rectangular flange 15" x 11". Air Outlet is round 19" diameter
Complete automated fuel train by, with series 2300 turbo blower.
Product air heater is also listed under IPP # 221294.

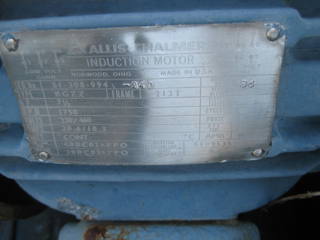

Motor Power (Design): 112 kW (150 HP). Speed (RPM): 1,200. Orientation: Vertical.

Type: Pulverizer

Subtype: Hammer

Manufacturer: Williams

Condition: Used

Material: Carbon Steel

Inlet Diameter: 305 mm (12 in)

Motor Power (Design): 93.2 kW (125 HP)

TEFC motor
Has CS 32" dia x 20" swing knife rotor.
CS swing hammers

Orientation: Horizontal.

Type: Pulverizer

Subtype: Hammer

Manufacturer: Williams

Condition: Used

Material: Carbon Steel

Inlet Diameter: 940 mm (37 in)

Motor Power (Design): 5.59 kW (7.5 HP)

No drive.

Orientation: Horizontal.

Type: Pulverizer

Subtype: Hammer

Manufacturer: Pulva Corp

Model: B hammer mill

Condition: Used

Material: Carbon Steel

Capacity: 0.0283 m3 (1 ft3)

Motor Power (Design): 11.2 kW (15 HP)

driven by approx 1/2HP US motor. motor, Screen discharge into a bolted on hopper bottom
Twin screw feed

Speed (RPM): 6,900. Orientation: Vertical.
