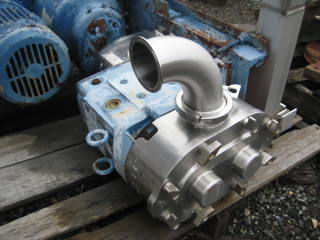

Sanitary Rotary Lobe pump Johnson Pump (UK) Model Number OL43/0324 Bare pump only Flow Rate: 68.1 m3/h (300 GPM). Pressure: 13.8 bar (200 psi). Orientation: Horizontal.
Sanitary Rotary Lobe pump Johnson Pump (UK) Model Number OL43/0324, Serial number L25507/A/00 rated maximum 15 Bar Bare pump only Flow Rate: 68.1 m3/h (300 GPM). Pressure: 13.8 bar (200 psi). Orientation: Horizontal.
Frame 1GOHS1
Powered By: Electric. Motor Power: 3.7 kW (5 HP). Motor Speed (RPM): 1,170.
Type: CXT Hard rubber stator.
316SS/Hast C ECO gear chem pump 1/2" x 1/2" UL label Flow Rate: 0.68 m3/h (3 GPM). Pump Head: 3 m (10 ft). Orientation: Horizontal. Powered By: Electric. Motor Power: 0.37 kW (0.5 HP). Motor Speed (RPM): 1,725.
316SS/Hast C ECO gear chem pump 1/2" x 1/2" UL label Flow Rate: 0.68 m3/h (3 GPM). Pump Head: 3 m (10 ft). Orientation: Horizontal. Powered By: Electric. Motor Power: 0.37 kW (0.5 HP). Motor Speed (RPM): 1,725.
Type SSO, Form CO. Flow Rate: 11.4 m3/h (50 GPM). Pressure: 10.3 bar (150 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 11.2 kW (15 HP). Motor Speed (RPM): 1,750.
Flow Rate: 11.4 m3/h (50 GPM). Pressure: 10.3 bar (150 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 11.2 kW (15 HP). Motor Speed (RPM): 1,750.
Pressure: 75.8 bar (1,100 psi).
Pressure: 75.8 bar (1,100 psi).
gear pump. Orientation: Horizontal.

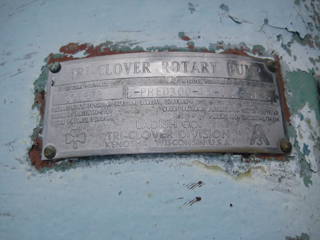

Pump type: Tri-Clover rotary lobe pump. Fittings: Sanitary x-proof electric motor Output torque: 8292 Flow Rate: 28.2 m3/h (124 GPM). Pressure: 1.38 bar (20 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 18.6 kW (25 HP). Motor Speed (RPM): 1,760.
rotary head pump Drive type: Gear driven Used as East Luwa tar pump. Flow Rate: 0.68 m3/h (3 GPM). Pump Head: 36.9 m (121 ft). Orientation: Horizontal. Powered By: Electric. Motor Power: 3.7 kW (5 HP). Motor Speed (RPM): 1,700.
Duplex positive displacement rotary lobe pump differential pressure 20 bar 2-50mm openings for screw type fittings Flow Rate: 41.8 m3/h (183.9 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 2.2 kW (3 HP). Motor Speed (RPM): 1,410.
Pump type: Duplex s/steel positive displacement rotary lobe pump differential pressure 20 bar 5.5/6.6 kw, 3/50/60, 380-415/440-480 volt, 1435-1720 rpm Fitting openings: 2-75mm for screw type fittings Flow Rate: 41.8 m3/h (183.9 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 6.6 kW (8.9 HP). Motor Speed (RPM): 1,720.
Positive displacement rotary lobe pump 2-50mm openings for screw type fittings Flow Rate: 41.8 m3/h (183.9 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 2.2 kW (3 HP).
Pump type: Duplex s/steel positive displacement rotary lobe pump 5.5/6.6 kw, 3/50/60, 380-415/440-480 volt, 1435-1720 rpm 2-75mm openings for screw type fittings Flow Rate: 41.8 m3/h (183.9 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 6.6 kW (8.9 HP). Motor Speed (RPM): 1,720.
Mono s/steel rotary pump Shaft seal: Packed gland 220-250/380-440 volt 2-50mm openings Orientation: Horizontal. Powered By: Electric. Motor Power: 3 kW (4 HP). Motor Speed (RPM): 1,440.
Shaft seal: Packed gland 3/50/60, 220-240/380-420/440-480 volt, 1410-1690 rpm 2-speed motor, 2-50mm openings Pressure: 1 bar (14.5 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 3 kW (4 HP). Motor Speed (RPM): 1,690. Temperature: 20 °C (68 °F).
3/50/60, 220-240/380-420/440-480 volt, 1410-1690 rpm 2-speed motor packed gland on shaft 2-50mm openings Pressure: 1 bar (14.5 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 3 kW (4 HP). Motor Speed (RPM): 1,690. Temperature: 20 °C (68 °F).
Fitting openings: 2-50mm for screw type fittings- Pump 380/415 volt 2-50mm openings for screw type fittings Flow Rate: 41.8 m3/h (183.9 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 4 kW (5.4 HP). Motor Speed (RPM): 1,420.
Fitting openings: 2-50mm for screw type fittings 380/415 volt 2-50mm openings for screw type fittings Flow Rate: 41.8 m3/h (183.9 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 4 kW (5.4 HP). Motor Speed (RPM): 1,420.
Sanitary s/steel positive displacement rotary lobe pump heavy duty design 350/230-400 volt 1430-283 rpm 2-100mm openings for screw type fittings Flow Rate: 38.2 m3/h (168 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 7.5 kW (10.1 HP). Motor Speed (RPM): 1,430.
Duplex s/steel positive displacement rotary lobe pump only
Positive displacement rotary lobe pump 2-75mm openings for screw type fittings, Flow Rate: 41.8 m3/h (183.9 GPM). Orientation: Horizontal. Powered By: Electric.
Sanitary s/steel positive displacement rotary lobe pump medium duty design 3.077:1 ratio gearbox, Flow Rate: 16.8 m3/h (74 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 17 kW (22.8 HP). Motor Speed (RPM): 450.
Rev master reduction gearbox 64-330 rpm, 2-100mm openings, Flow Rate: 41.8 m3/h (183.9 GPM). Powered By: Electric. Motor Power: 18.5 kW (24.8 HP). Motor Speed (RPM): 1,420.
screw pump, Shaft seal: Packed gland 3/50Hz/500V/22A/1450 rpm motor. Flow Rate: 3 m3/h (13.2 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 13.5 kW (18.1 HP). Motor Speed (RPM): 1,450. Temperature: 60 °C (140 °F).
Rotary lobe pump Pacific Scientific DC electric motor Build code: 21032/5 Fittings: 3/4" sanitary fittings Rated for 1 HP, 1150 rpm, 90 vdc, 10.2 amps. Orientation: Horizontal. Powered By: Electric. Motor Power: 0.75 kW (1 HP). Motor Speed (RPM): 1,150.
7.500-17.00 ltr/min s/steel gear pump Flow Rate: 1.02 m3/h (4.5 GPM). Pressure: 15 bar (217.6 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 2.2 kW (3 HP). Motor Speed (RPM): 2,870. Temperature: 100 °C (212 °F).
Sanitary Pump type: Positive displacement rotary lobe pump Design: Heavy duty Fitting openings: 2-45mm for screw type fittings 2-45mm openings Flow Rate: 1 m3/h (4.4 GPM). Pressure: 3 bar (43.5 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 2.2 kW (3 HP). Motor Speed (RPM): 1,410. Temperature: 80 °C (176 °F).
290-500V/14,4A 2-80mm openings Orientation: Horizontal. Powered By: Electric. Motor Power: 5 kW (6.7 HP). Motor Speed (RPM): 1,425.
P=0,40kW, N=600 1/m by 600 rpm 15. Explosion proof rating: T3 Flow Rate: 1 m3/h (4.4 GPM). Pressure: 6 bar (87 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 0.75 kW (1.01 HP). Motor Speed (RPM): 2,805.
50 liter/hour - 550 liter/hour 3~/50Hz/500V/0,87A Flow Rate: 0.55 m3/h (2.4 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 0.37 kW (0.5 HP). Motor Speed (RPM): 1,375.
2-65mm opnings Flow Rate: 2 m3/h (8.8 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 1.35 kW (1.81 HP). Motor Speed (RPM): 1,415. Temperature: 60 °C (140 °F).
120-550 liter/h Pump seal: mechanical Motor type: DNGW-090LX-04C Flow Rate: 2.4 m3/h (10.7 GPM). Pump Head: 3 m (9.8 ft). Pressure: 2 bar (29 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 1.1 kW (1.48 HP). Motor Speed (RPM): 1,410. Temperature: 20 °C (68 °F).
4.0 ton/hour designed for polymers Order number: 40/5291 Rated nominal output: 1.500 cm³/rpm differential pressure 300 bar @ max The heating chamber is rated 20 bar @ 300 degrees C, Gear reducer: Flender Atb-Loher gear reducer, with propshaft, type 587, Poly coupling, type PKA 19, all mounted on carbon steel frame Spare gearbox available: (1) Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 15 kW (20.1 HP). Motor Speed (RPM): 720. Temperature: 300 °C (572 °F).
4.0 ton/hour CE confirmed Order Number 40/6529
2-stage rotary screw pump pump size 031 standard type, geometry and configuration pin joint design Motor: 462 rpm openings: (2) DN 50 PN16 Flow Rate: 2 m3/h (8.8 GPM). Pressure: 12 bar (174 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 1.73 kW (2.3 HP). Motor Speed (RPM): 1,660.
102' TDH Hastelloy C Flow Rate: 5 m3/h (22 GPM). Pump Head: 31.1 m (102 ft). Orientation: Horizontal. Powered By: Electric. Motor Power: 1.49 kW (2 HP). Motor Speed (RPM): 1,800.
Hastelloy C Flow Rate: 5 m3/h (22 GPM). Pump Head: 23.2 m (76 ft). Orientation: Horizontal. Powered By: Electric. Motor Power: 1.49 kW (2 HP). Motor Speed (RPM): 1,800.
Hastelloy C Model 2F036P1HHBDBB, AS2222697 Flow Rate: 8.2 m3/h (36 GPM). Pump Head: 31.1 m (102 ft). Orientation: Horizontal. Powered By: Electric. Motor Power: 3.7 kW (5 HP). Motor Speed (RPM): 1,800.
Flow Rate: 4 m3/h (17.6 GPM). Pressure: 40 bar (580.2 psi). Orientation: Horizontal. Temperature: 300 °C (572 °F).
3/50/400/690 volt Flow Rate: 10 m3/h (44 GPM). Pressure: 25 bar (362.6 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 18.5 kW (24.8 HP). Motor Speed (RPM): 1,470. Temperature: 120 °C (248 °F).
3/50/400/690 volt Flow Rate: 10 m3/h (44 GPM). Pressure: 25 bar (362.6 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 18.5 kW (24.8 HP). Motor Speed (RPM): 1,470. Temperature: 120 °C (248 °F).
Viking Durabobe Sanitary Rotary Lobe pump Johnson Pump (UK) Serial number 26180/A/03 Bare pump only. No motor Flow Rate: 28.4 m3/h (125 GPM). Pressure: 15 bar (217.6 psi).
Sanitary Rotary Lobe pump Johnson Pump (UK) Model Number 3/0054 Serial number L26608/B/00 rated maximum 12 Bar With 2" x 2" sanitary inlet and outlet Bare pump only. Flow Rate: 28.4 m3/h (125 GPM). Pressure: 12 bar (174 psi).
Sanitary
Rotary Lobe pump
with sanitary flanges.
Bare Pump opnly. Flow Rate: 1.6 m3/h (7 GPM). Pressure: 10 bar (145 psi).
Rotary Lobe pump
Sanitary
with sanitary flanges.
Bare Pump only. Flow Rate: 1.6 m3/h (7 GPM). Pressure: 10 bar (145 psi). Orientation: Horizontal.
TriClover Rotary Lobe With sanitary flanges Bare pump only Flow Rate: 1.6 m3/h (7 GPM). Pressure: 10 bar (145 psi). Orientation: Horizontal.
high pressure diaphragm seal less pump Flow Rate: 2 m3/h (8.8 GPM). Pressure: 103.4 bar (1,500 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 1.12 kW (1.5 HP). Motor Speed (RPM): 1,425.
high pressure diaphragm seal less pump. Catalog # L3703, specification 37011-469. Flow Rate: 2 m3/h (8.8 GPM). Pressure: 103.4 bar (1,500 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 1.49 kW (2 HP). Motor Speed (RPM): 1,140.
Circulating Pump S4S with 20 HP drive Rated for 90,000 lbs./hr. 3" rotary lobe Motor Power: 14.9 kW (20 HP).
Metering Pump Rated for 25,000 lbs./Hr.
Circulating Pump S4S with 20 HP drive. Rated for 90,000 lbs./hr
Metering Pump Rated for 25,000 lbs./Hr.
Circulating Pump S4S with 20 HP drive. Rated for 90,000 lbs./hr Motor Power: 14.9 kW (20 HP).
Metering Pump Rated for 25,000 lbs./Hr.
Circulating Pump S4S with 20 HP drive. Rated for 90,000 lbs./hr Motor Power: 14.9 kW (20 HP).
Connection type: Dairy screw connections "Dairy type" screw connections. Belt and pulley drive to Carter Type MA3 variable speed gearbox with Ritespeed fixed ratio gearbox 5.13:1 direct coupled to pump. No baseplate. Powered By: Electric. Motor Power: 7.5 kW (10.1 HP). Motor Speed (RPM): 1,440.
4" x 4" sanitary connections Tri-lobe pump Orientation: Horizontal. Powered By: Electric. Motor Power: 5.5 kW (7.4 HP). Motor Speed (RPM): 1,450.
Mono type pump Bare shaft. no motor Orientation: Horizontal.
flameproof motor 3 3/4" in/out. Flow Rate: 262 m3/h (1,154 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 22 kW (29.5 HP). Motor Speed (RPM): 1,460.
rotary lobe pump Size 3" x 3" flameproof motor. Flow Rate: 95 m3/h (418.3 GPM). Pressure: 5.2 bar (75 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 5.5 kW (7.4 HP). Motor Speed (RPM): 1,430.
Packing gland. Openings: inlet 2-50mm; outlet 1-87mm. Pressure: 40 bar (580.2 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 15 kW (20.1 HP). Motor Speed (RPM): 1,470. Temperature: 250 °C (482 °F).
ITT Pureflo rotary lobe pump. Size 2-1/2" x 2-1/2" Flow Rate: 95 m3/h (418.3 GPM). Pressure: 7 bar (101.5 psi). Powered By: Electric. Motor Power: 5.5 kW (7.4 HP). Motor Speed (RPM): 950.
Merlin rotary pump Type CAC12HR3-H1, Cast iron with 316 stainless steel rotor and rubber stator Packing gland. Flow Rate: 14 m3/h (61.6 GPM). Pressure: 4.5 bar (65.3 psi). Motor Power: 2.2 kW (3 HP). Motor Speed (RPM): 1,415. Temperature: 20 °C (68 °F).
ITT Pureflo rotary lobe pump Size 2 1/2" x 2 1/2" Flow Rate: 95 m3/h (418.3 GPM). Pressure: 7 bar (101.5 psi). Powered By: Electric. Motor Power: 5.5 kW (7.4 HP). Motor Speed (RPM): 950.
ITT Pureflo rotary lobe pump Size 2 1/2" x 2 1/2" Flow Rate: 95 m3/h (418.3 GPM). Pressure: 7 bar (101.5 psi). Powered By: Electric. Motor Power: 5.5 kW (7.4 HP). Motor Speed (RPM): 950.
Peristaltic hose pump, aluminium rotor, internal natural rubber hose, direct driven, (2) 15mm s/steel openings, Flow Rate: 0.36 m3/h (1.59 GPM). Powered By: Electric. Motor Power: 0.75 kW (1.01 HP). Motor Speed (RPM): 72.
0.3 ltr/hr, gear pump, max temp 4.2 kgf/cm2, 1:5 ratio geared motor, Motor Power: 0.4 kW (0.54 HP). Motor Speed (RPM): 300.
0.3 ltr/hr gear pump, max temp 4.2 kgf/cm2, 1:5 ratio geared motor, Motor Power: 0.4 kW (0.54 HP). Motor Speed (RPM): 300.
double mechanical seal direct driven throgh an SEW gearbox 230/460V Flow Rate: 73.8 m3/h (325 GPM). Pressure: 20 bar (290 psi). Motor Power: 11.2 kW (15 HP). Motor Speed (RPM): 1,750.
driven by 7.5kW, 3/50/220-380/230-400/240-415 volt, 1450 rpm IP55 motor via a vari speed gearbox, mounted on a baseplate Flow Rate: 60 m3/h (264.2 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 7.5 kW (10.1 HP). Motor Speed (RPM): 1,450.
driven by 11kW, 3/50/400/690 volt, 1440 rpm IP55 motor Flow Rate: 78 m3/h (343.4 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 11 kW (14.8 HP). Motor Speed (RPM): 1,140.
driven by 11kW, 3/50-60/400-690/480-828 volt, 1460/1750 rpm IP55 motor, Flow Rate: 78 m3/h (343.4 GPM). Orientation: Horizontal. Powered By: Electric. Motor Power: 11 kW (14.8 HP).
Duplex s/steel positive displacement rotary lobe pump Fitting openings: 2-50mm for screw type fittings 380/415 volt 2-50mm openings for screw type fittings Flow Rate: 41.8 m3/h (183.9 GPM). Pressure: 20 bar (290.1 psi). Orientation: Horizontal. Powered By: Electric. Motor Power: 4 kW (5.4 HP). Motor Speed (RPM): 1,420.
Pumps move liquids. All process plants have pumps. The types of pumps include centrifugal, hydraulic, rotary, reciprocating, and vacuum pumps.
The capacity of a pump is defined by the amount of fluid passing through the unit rated in GPM (Gallons per Minute), and the discharge pressure rated at Head Feet. The head is the height of the column of fluid that the pump can push.
Types of pumps:
Centrifugal pumps - the most widely used pumps in processing plants are Centrifugal pumps. They consist of an impellor rotating within a casing
Reciprocating pumps – positive displacement pumps that have a higher efficiency than centrifugal pumps. The classes of reciprocating pumps include piston pumps, plunger pumps, and diaphragm pumps.
Rotary pumps - In rotary pumps mechanical displacement of the liquid is produced by rotation of one or more members within a stationary housing. This type of pump includes gear pumps that have two impellors in a housing for thicker liquids, Moyno pumps which are progressive cavity pumps, and screw pumps.
Hydraulic pumps – designed to generate fluid power.
Vacuum pumps - designed to pull vacuum.
