Because most industrial processes are centered in some type of batch reactor, there is a wide variety to choose from in the market. IPP's selection is no different with over 1,000 different reactor vessels in stock covering all common reactor materials of construction, a wide range of pressure reactor ratings and supported temperature ranges, both horizontal and vertical reactor orientations, an array of agitated reactor styles as well as specific process reactor types like slurry, oscillatory baffled, laboratory, bench scale, catalyst and Buss loop reactors among others. If you are looking for hydrogenation reactors, check out stock numbers 218175, 217830, 90768.
Our broad array of batch and continuous reactors were produced by over 60 different companies, ranging from leading chemical reactor manufacturers like Pfaudler, De Dietrich, Brighton and Paul Mueller to custom fabrication companies like Roben Manufacturing Inc.
Narrow your search by choosing one of the product sub-groups first. We sort by the 2 primary characteristics that distinguish different types of reactors:
Find your glass-lined reactor in one of the industry's largest selections of new/unused, good quality used and reconditioned glass reactors by well-known glass lined reactor manufacturers like Pfaudler and De Dietrich. IPP has the exclusive ability to redo the glass in chemical reactors through its affiliate partnership with Pfaudler known as Universal Glasteel Equipment (UGE).
Choose from reactors made from carbon steel (CS), various grades of stainless steel (SS) such as 304, 316, 316L or from reactors and vessels made from high performance cobalt and nickel alloys like HASTELLOY® C-276, Special Metals' Monel 400 & K-500, Inconel 600 & 625, Incoloy 904 as well as from Titanium and Zirconium alloys.
Most chemical reactors are jacketed reactors where a heat transfer fluid flowing in the space between the jacket and the reactor vessel outer wall is used instead of a heating coil. The common types of jackets are:
Type: Reactor
Subtype: Batch Type Body Only
Manufacturer: Pfaudler
Model: KC
Condition: Unused
Material: Glasslined
Capacity Design: 18,927 L (5,000 gallons)
Internal Pressure: 6.2 bar (90 psi)
Internal Full Vacuum: Yes. Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 204.4 °C (400 °F). Body Only: Yes. Diameter: 2,743 mm (108 in). Straight Side Length: 4,547 mm (179 in). Support Type: Legs.
Type: Reactor
Subtype: Batch Type Body Only

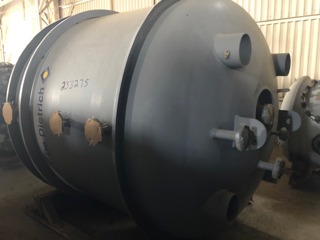

Manufacturer: DeDietrich
Model: BE
Condition: Used
Material: Glasslined
Capacity Design: 3,470 L (916.7 gallons)
Internal Pressure: 6 bar (87 psi)
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 2,232 mm (87.9 in). Support Type: Legs.
Type: Reactor
Subtype: Batch Type Body Only
Manufacturer: Pfaudler
Model: R
Condition: Re-glassed
Material: Glasslined
Capacity Design: 2,839 L (750 gallons)
Internal Pressure: 3.4 bar (50 psi)
Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,524 mm (60 in). Straight Side Length: 1,321 mm (52 in). Support Type: Legs.
Type: Reactor
Subtype: Batch Type Body Only
Manufacturer: Pfaudler
Model: EL series
Condition: Re-glassed
Material: Glasslined
Capacity Design: 1,893 L (500 gallons)
Internal Pressure: 3.4 bar (50 psi)
Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,372 mm (54 in). Straight Side Length: 1,499 mm (59 in). Support Type: Legs.
Type: Reactor
Subtype: Batch Type Body Only
Manufacturer: Thale
Condition: Re-glassed
Material: Glasslined
Capacity Design: 5,678 L (1,500 gallons)
Internal Pressure: 6.9 bar (100 psi)
Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 1,524 mm (60 in). Support Type: Legs.
Type: Reactor
Subtype: Batch Type Body Only
Manufacturer: DeDietrich
Model: STU
Condition: Needs Reglass
Material: Glasslined
Capacity Design: 1,300 L (343.4 gallons)
Internal Pressure: 6.1 bar (88 psi)
Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.1 bar (88 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight Side Length: 1,016 mm (40 in). Support Type: Legs.

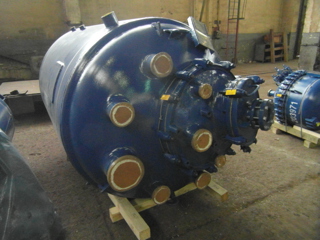

Type: Reactor
Subtype: Batch Type Body Only
Manufacturer: DeDietrich
Model: SA
Condition: Used
Material: Glasslined
Capacity Design: 2,839 L (750 gallons)
Internal Pressure: 6.9 bar (100 psi)
Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,562 mm (61.5 in). Straight Side Length: 1,270 mm (50 in). Support Type: Legs.
Type: Reactor
Subtype: Batch Type Body Only
Manufacturer: Thale
Model: G6.3/1e-5H0.6-0.6EHW-N680/03
Condition: Unused
Material: Glasslined
Capacity Design: 7,160 L (1,891 gallons)
Internal Pressure: 6 bar (87 psi)
Internal Full Vacuum: Yes. Internal Temperature: 100 °C (212 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,475 mm (58.1 in). Support Type: Lugs.
