Because most industrial processes are centered in some type of batch reactor, there is a wide variety to choose from in the market. IPP's selection is no different with over 1,000 different reactor vessels in stock covering all common reactor materials of construction, a wide range of pressure reactor ratings and supported temperature ranges, both horizontal and vertical reactor orientations, an array of agitated reactor styles as well as specific process reactor types like slurry, oscillatory baffled, laboratory, bench scale, catalyst and Buss loop reactors among others. If you are looking for hydrogenation reactors, check out stock numbers 218175, 217830, 90768.
Our broad array of batch and continuous reactors were produced by over 60 different companies, ranging from leading chemical reactor manufacturers like Pfaudler, De Dietrich, Brighton and Paul Mueller to custom fabrication companies like Roben Manufacturing Inc.
Narrow your search by choosing one of the product sub-groups first. We sort by the 2 primary characteristics that distinguish different types of reactors:
Find your glass-lined reactor in one of the industry's largest selections of new/unused, good quality used and reconditioned glass reactors by well-known glass lined reactor manufacturers like Pfaudler and De Dietrich. IPP has the exclusive ability to redo the glass in chemical reactors through its affiliate partnership with Pfaudler known as Universal Glasteel Equipment (UGE).
Choose from reactors made from carbon steel (CS), various grades of stainless steel (SS) such as 304, 316, 316L or from reactors and vessels made from high performance cobalt and nickel alloys like HASTELLOY® C-276, Special Metals' Monel 400 & K-500, Inconel 600 & 625, Incoloy 904 as well as from Titanium and Zirconium alloys.
Most chemical reactors are jacketed reactors where a heat transfer fluid flowing in the space between the jacket and the reactor vessel outer wall is used instead of a heating coil. The common types of jackets are:

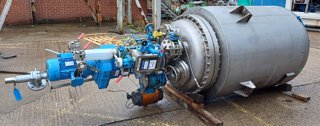

Type: Reactor
Subtype: Hydrogenation
Manufacturer: Johann Stahl Mannheim/Germany
Condition: Used
Material: Stainless Steel Austentic
Clad: Yes
Capacity Design: 8,900 L (2,351 gallons)
Internal Pressure: 84 bar (1,218 psi)
jacketed high pressure reactor Jacket volume: 1700 liter Total length: 8000 mm Jacket wall thickness: 30 mm
Internal Full Vacuum: Yes. Internal Temperature: 250 °C (482 °F). Jacket Pressure: 25 bar (362.6 psi). Jacket Temperature: 250 °C (482 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 3,500 mm (137.8 in).

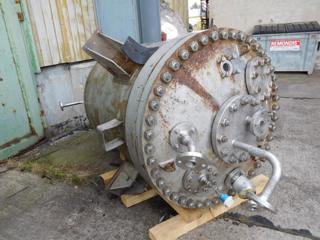

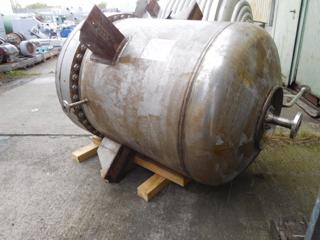

Type: Reactor
Subtype: Hydrogenation
Manufacturer: Applied Fusions Ltd
Condition: Used
Material: Stainless Steel 316
Capacity Design: 3,000 L (792.5 gallons)
Internal Pressure: 37.9 bar (550 psi)
Batch Hydrogenation Reactor internal operating pressure 500 psig + full vacuum @ 220 degrees C, internal coil 80 psig @ 100 degrees C, external half pipe coil 150 psig @ 180 degrees C top section 5’ diameter x 4’ straight side bottom section 3’9” diameter x 2’11” straight side bottom section and bottom dish with 3” carbon steel half pipe coil jacket internal 316 stainless steel 2” diameter heating/cooling coil with 14-turns
Internal Full Vacuum: Yes. Internal Temperature: 250 °C (482 °F). Jacket Pressure: 11.4 bar (165 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Support Type: Lugs.

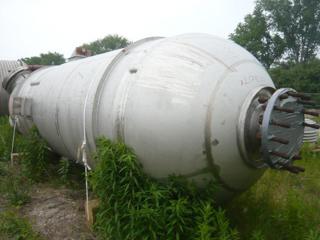

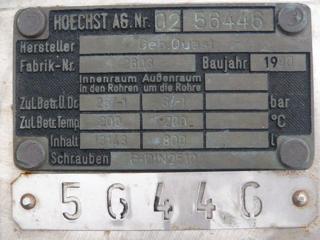

Type: Reactor
Subtype: Hydrogenation
Manufacturer: Gebr. Quast/Gothe KG
Condition: Used
Material: Stainless Steel Other
Capacity Design: 13,143 L (3,472 gallons)
Internal Pressure: 25 bar (362.6 psi)
working capacity: 12 m³ Type: BUSS LOOP reactor Pressure range: -1/25 bar@ 200 °C Max operating pressure: 16 bar@ 105°C Heat exchanger: Material: 1.4439 SS Type: Shell and tube Manufacturer: Gessner Apparatebau GmbH /Germany Volume (pipes): 870 l Volume (shell): 1.139 l Diameter: 700 mm Length: 5 m Connected to AW 413 double jacket pipe: Material: 1.4571 SS Pressure range: 10 bar@ 120°C Volume: 5 l both sides Plate heat exchanger: Material: 1.4571 SS Manufacturer: Vicarb Area: 30.6 m² Pressure range: 8 bar@110°C Volume (each side): 70 l Serial number: D 3660 Pressure tank: Material: 1.4571 SS Volume: 995 l Pressure range: -1/26 bar @ 200°C Manufacturer: Weisstaler Serial number: 38644 Used as Hydrogen buffer tank.
Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F).

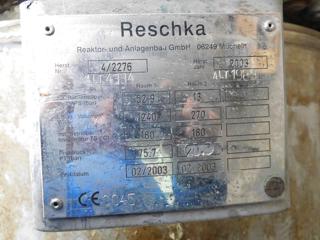

Type: Reactor
Subtype: Hydrogenation
Manufacturer: Reschka GmbH
Condition: Used
Material: Stainless Steel Austentic
Capacity Design: 1,240 L (327.6 gallons)
Internal Pressure: 52.9 bar (767.2 psi)
internal pressure rated 52,9 bar @180 degrees C (volume 1240 liter), jacket pressure rated 13 bar @180 degrees C (volume 270 liter) CE stamped
Internal Temperature: 180 °C (356 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 180 °C (356 °F). Jacket Material of Construction: Stainless Steel 304. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,245 mm (49 in). Support Type: Lugs.

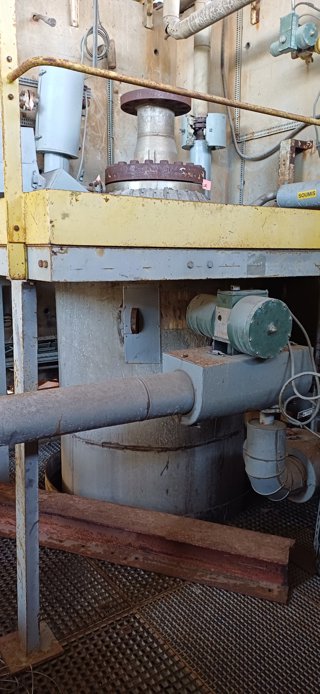

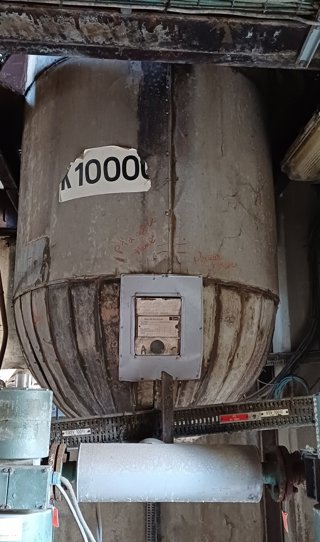

Type: Reactor
Subtype: Hydrogenation
Manufacturer: Johann Stahl
Condition: Used
Material: Stainless Steel Other
Capacity Design: 10,600 L (2,800 gallons)
Internal Pressure: 50 bar (725.2 psi)
Material: Duplex stainless steel (1.4462) High pressure hydrogenation reaction vessel Total height: 7.5m Top Side has a Manway with Bolted cover
Internal Full Vacuum: Yes. Internal Temperature: 170 °C (338 °F). Orientation: Vertical. Diameter: 1,450 mm (57.1 in). Straight Side Length: 6,200 mm (244.1 in). Support Type: Lugs.

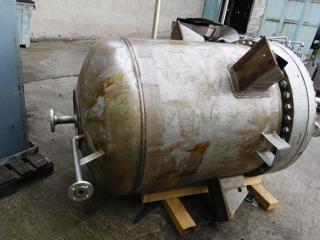

Type: Reactor
Subtype: Hydrogenation
Manufacturer: Reschka GmbH
Condition: Used
Material: Stainless Steel 316
Capacity Design: 1,240 L (327.6 gallons)
Internal Pressure: 52.9 bar (767.2 psi)
Internal Temperature: 180 °C (356 °F). Jacket Pressure: 13 bar (188.5 psi). Jacket Temperature: 180 °C (356 °F). Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,245 mm (49 in). Support Type: Lugs.
Type: Reactor
Subtype: Hydrogenation
Condition: Used
Internal Pressure: 67.5 bar (979 psi)
Orientation: Vertical
Buss Loop hydrogenation reactor,
