Distillation Plant- US Gulf Coast (For Sales or Lease & Operation in Place) Chemical and Specialty Chemical For Sale IPP# 603131

Description

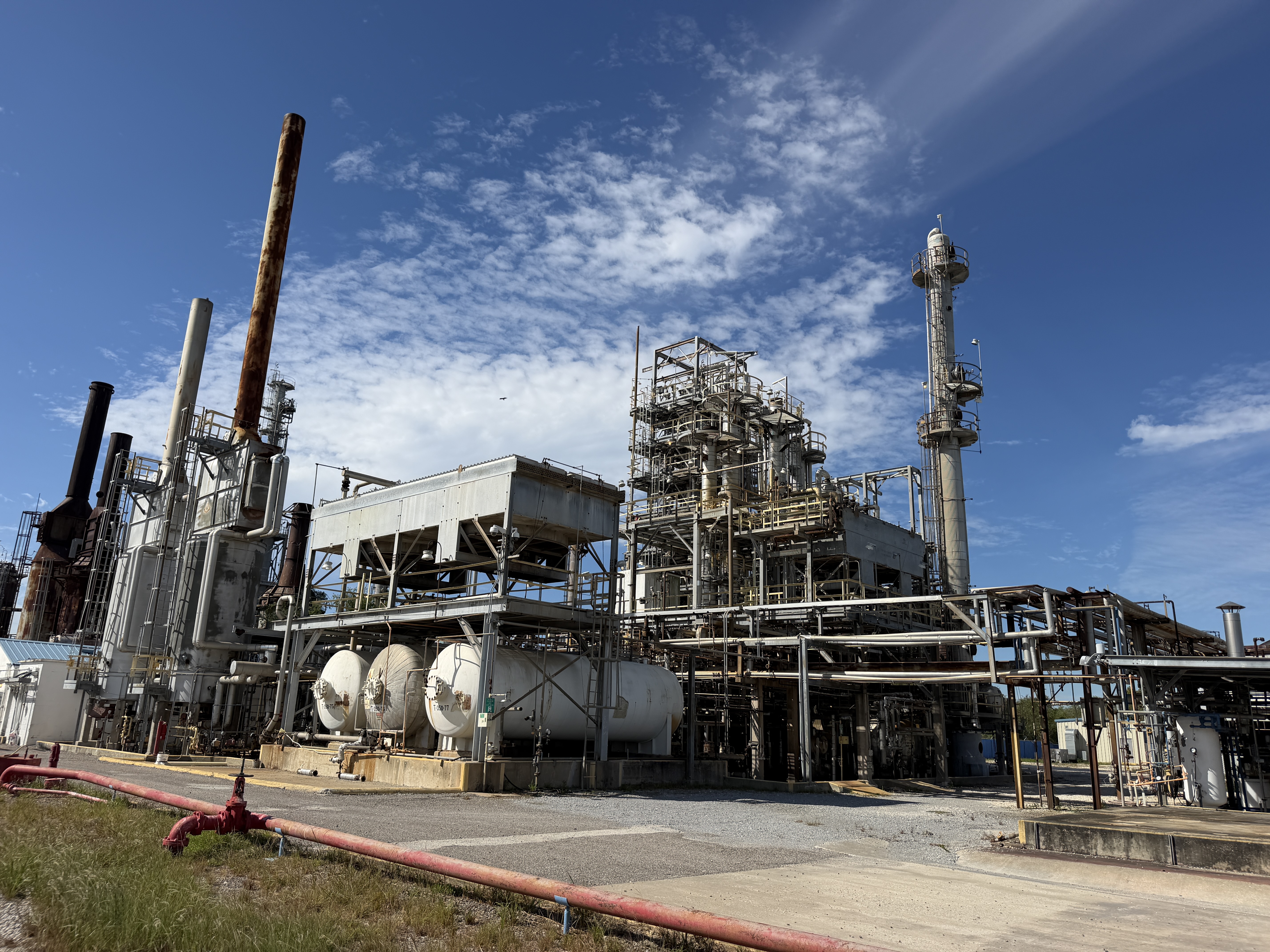

DISTILLATION PLANT

AVAILABLE FOR SALE OR LEASE

Well-maintained distillation and distribution facility with robust process equipment capabilities, utilities, and infrastructure strategically located between the Houston and Beaumont-Port Arthur-Orange, Texas Petrochemical Corridors.

SITE OVERVIEW

~4.5 ACRES	TRUCK LOADING	LOCATION	EXTENSIVE EQUIPMENT
Total site area with core processing on just over 1.5 acres	Tank truck loading / unloading facilities on site	Winnie, Texas Jefferson County Gulf Coast Industrial Corridor	Columns, heat exchangers, boilers, fired heaters, tanks, and supporting utilities.

FACILITY HIGHLIGHTS

FLEXIBLE DISTILLATION CAPABILITIES

Robust distillation assets to cover a variety of dedicated or toll process requirements.

WELL MAINTAINED

Owned and operated by a major multinational chemical manufacturer until 2026. Formerly used to manufacture specialty phenolics (meta- and para-cresol).

EXTENSIVE EQUIPMENT

Columns, heat exchangers, boilers, fired heaters, tanks, and supporting utilities.

STRATEGIC LOCATION

Situated in the Gulf Coast chemical corridor with excellent logistics and access to markets.

PROPERTY MAP LABELS

Tract I — 1.805 Acres
Tract II — .483 Acre
Tract III — 1.805 Acres
Tract IV — 0.56 Acre

MAJOR EQUIPMENT INVENTORY

The following is a complete inventory of the major process equipment included in this Winnie, Texas facility.

DISTILLATION & PROCESS COLUMNS

EQUIPMENT TYPE	SIZE (DIA x HEIGHT)	MAWP	MOC	MANUFACTURER
Chamber Feed #1 (South)	48" x 49' 7.5"	206 psig @ 380°F	CS	Merichem Co
Chamber Feed #2 (North)	48" x 49' 7.5"	206 psig @ 380°F	CS	Merichem Co
Extract Column	48" x 74' 3.5"	220 psig @ 500°F	CS	Fabuleco
Meta Clean-Up Column	2' 6" x 42' (40' T/T)	139 psig @ 575°F	CS / 316SS Trays	Offenhouser Co.
Para Clean-Up / Debut Column	2' 6" x 49' 6"	75 psig @ 320°F	304 SS / 316SS Trays	Souder Crown Tech
Primary Column	30" x 48' (40' T/T)	50 psig @ 600°F	CS / 316SS Trays	Wyatt Industries Inc.
Secondary Column	24" x 41' 8"	50 psig @ 600°F	CS / 316SS Trays	Wyatt Industries Inc.

HEAT EXCHANGERS & COOLERS

EQUIPMENT TYPE	SIZE / SURFACE AREA	SHELL / TUBE	MAWP	MOC
Meta Pot Cooler	—	Shell & Tube	Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F	CS
C-350-40-A/B Feed Preheater	52 sq ft	Bare Tube	Shell: 300 psig @ 650°F Tube: 500 psig @ 700°F	CS / CS
V-350-P Reboiler	263 sq ft	CEU / EJ	Shell: 300 psig @ 700°F Tube: 100 psig @ 575°F	CS
V-350-P Reboiler	277 sq ft	AEM	Shell: 300 psig @ 725°F Tube: 100 psig @ 150°F	CS / 304SS
V-350-P Feed Preheater	40 sq ft (2 x 20 sq ft)	Shell & Tube	Shell: 300 psig @ 650°F Tube: 300 psig @ 650°F	CS
C-350-40-A/B Circuit Heater #2	—	Circuit Heater	Shell: 500 psig @ 650°F Tube: 300 psig @ 650°F	CS
C-350-40-A/B Circuit Heater #1	—	Circuit Heater	Shell: 500 psig @ 650°F Tube: 300 psig @ 650°F	CS
Flare West Condenser	—	Shell & Tube	Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F	CS
Feed Dryer Gas Cooler	—	Shell & Tube	Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F	CS
Dryer Gas Heater	20 sq ft	Shell & Tube	Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F	CS
Chamber Sample Cooler	—	Shell & Tube	Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F	CS
C-350-41 Reboiler	1,087 sq ft	AEM / EJ	Shell: 300 psig @ 750°F Tube: 120 psig @ 400°F	CS / 316SS
COH Cooler	225 sq ft	Shell & Tube	Shell: 300 psig @ 600°F Tube: 100 psig @ 175°F	CS / 304SS
Methanol Condenser	80 sq ft	Shell & Tube	Shell: 100 psig @ 300°F Tube: 100 psig @ 160°F	CS

FIRED HEATERS

EQUIPMENT TYPE	DUTY	FUEL	MOC	MANUFACTURER
Circuit Heater #2	Fired Heater	Gas	CS	—
Circuit Heater #1	Fired Heater	Gas	CS	—
Feed Preheater (2 in Series)	Fired Heater	Gas	CS	Brown Fintube Co.
Dryer Gas Heater	Fired Heater	Gas	CS	—

BOILERS

EQUIPMENT TYPE	CAPACITY / DUTY	MAWP	MOC	MANUFACTURER
Scotblow Units Boiler	—	150 psig	CS	York Shipley
B-710 Boiler – SN 14896	26,825 lbs/hr	150 psig	CS	Victory Energy Ops.

MAJOR EQUIPMENT INVENTORY

The following is a complete inventory of the major process equipment included in this Winnie, Texas facility.

HEAT EXCHANGERS & COOLERS (CONTINUED)

EQUIPMENT TYPE	SIZE / SURFACE AREA	SHELL / TUBE	MAWP	MOC
Feed Preheater	92 sq ft	Shell & Tube	Shell: 20 psig @ 300°F Channel: 100 psig @ 100°F	CS
Methanol Heater	105 sq ft	Shell & Tube	Shell: 30 psig @ 300°F Channel: 300 psig @ 750°F	CS / 304SS
Condenser	80 sq ft	Shell & Tube	Shell: 30 psig @ 300°F Channel: 75 psig @ 100°F	CS
Condenser	112 sq ft	Shell & Tube	Shell: 75 psig @ 300°F Channel: 75 psig @ 100°F	CS
Condenser	152 sq ft	Shell & Tube	Shell: 75 psig @ 300°F Channel: 75 psig @ 100°F	CS
Condenser	315 sq ft	Shell & Tube	Shell: 75 psig @ 100°F Channel: 75 psig @ 100°F	CS

COMPRESSORS

EQUIPMENT TYPE	CAPACITY	MAWP	MODEL	MOC	MANUFACTURER
Air Compressor SN API 1795910	229.8 acfm	197 psig	ZT45	CS	Atlas Copco

FILTERS

EQUIPMENT TYPE	EQUIPMENT TYPE	SIZE / CAPACITY	MAWP	MOC
Bag Filter	DuoDrum NT Type	2,270 Gallon	150 psig	CS
Bag Filter	—	—	100 psig	CS
Bag Filter	Combined Quadtech Receivers	1,800 Gallon	100 psig	CS

AIR RECEIVER

EQUIPMENT TYPE	SIZE / CAPACITY	MAWP	MOC
Air Receiver	360 Gallon	200 psig	CS

STORAGE TANKS

EQUIPMENT TYPE	CAPACITY	ORIENTATION	SIZE (DIA x LENGTH/HEIGHT)	MAWP	MOC
Meth. Storage Tank	10,000 Gallon	Horizontal	7' DIA x 31' L	50 psig @ 150°F	CS
Meth. Storage Tank	10,000 Gallon	Horizontal	7' DIA x 31' L	50 psig @ 150°F	CS
Feed Storage Tank	13,000 Gallon	Horizontal	8' DIA x 38' L	50 psig @ 150°F	CS
Feed Storage Tank 28	13,000 Gallon	Horizontal	8' DIA x 38' L	50 psig @ 150°F	CS
Para Storage Tank	102,700 Gallon	Horizontal	12' DIA x 47' L	50 psig @ 200°F	CS
Pura Storage Tank	102,700 Gallon	Horizontal	12' DIA x 47' L	50 psig @ 200°F	CS
Column Bottoms Blowdown Tank	15,000 Gallon	Vertical	24' DIA x 23' H	—	CS
Cooling Water Return Blowdown Tank	15,000 Gallon	Vertical	24' DIA x 23' H	—	CS
Waste Water Blowdown Tank	2,000 Gallon	Vertical	+21" IHC @ 200°F	—	CS
Para Hold Tank	2,000 Gallon	Vertical	+21" IHC @ 200°F	—	CS
