AVAILABLE FOR SALE OR LEASE

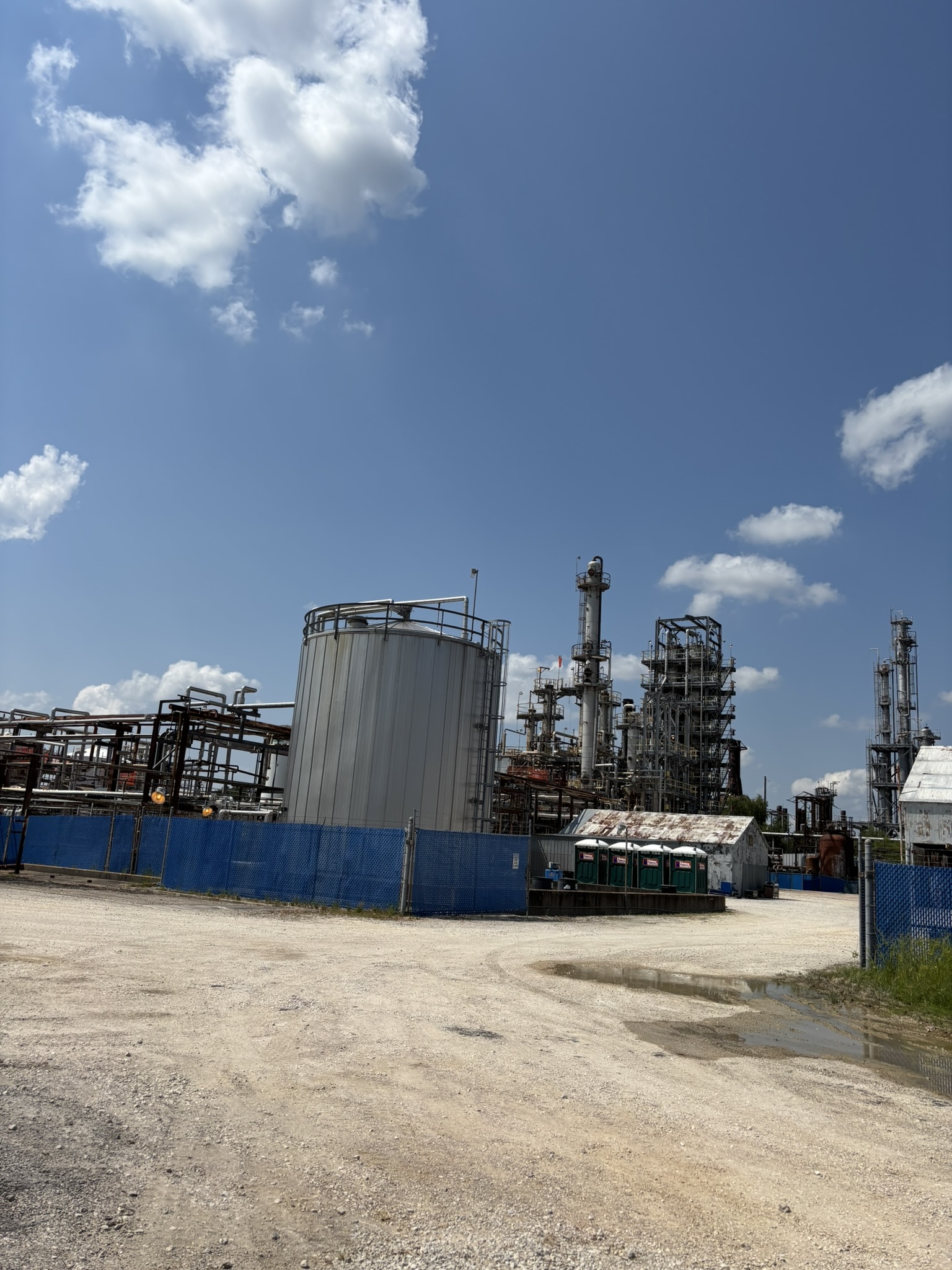

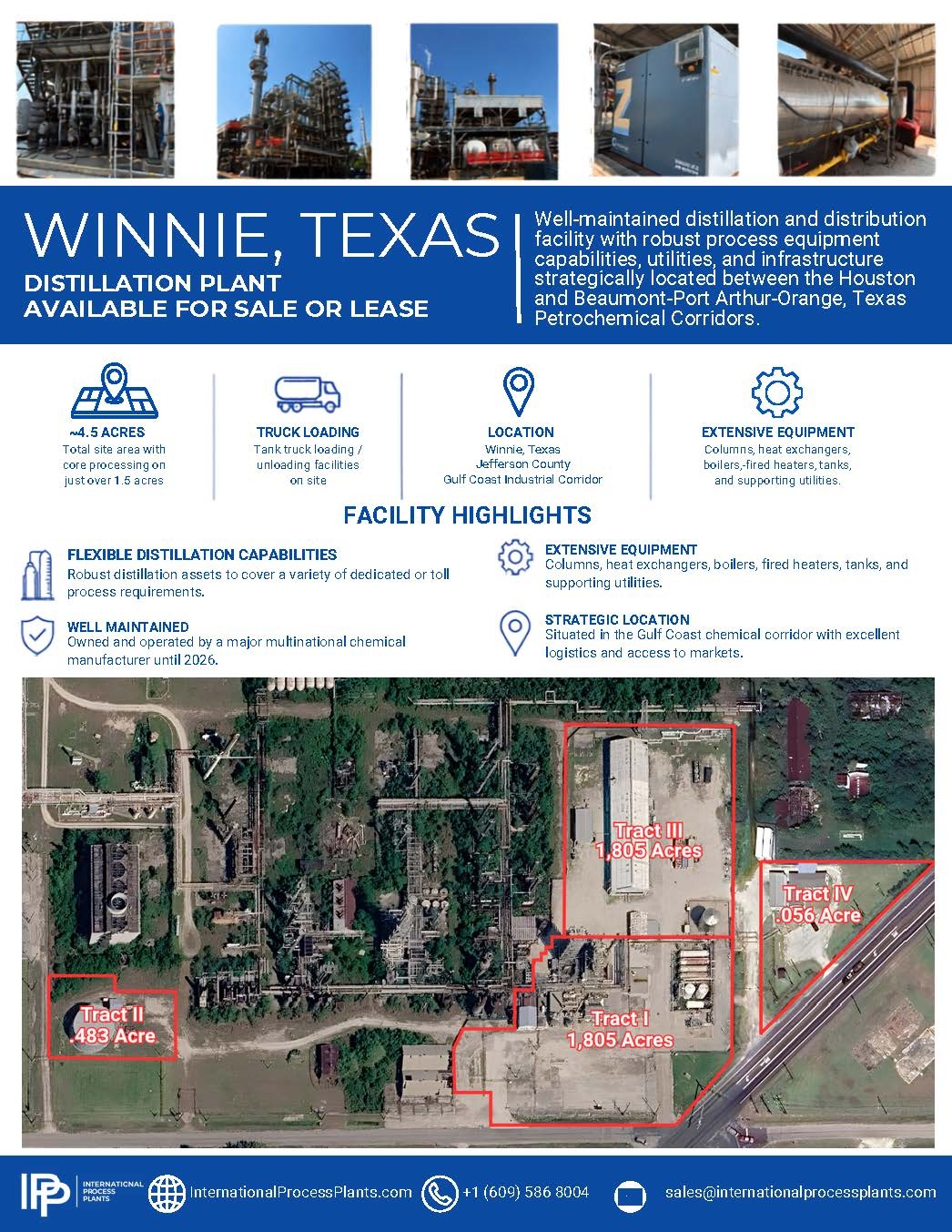

Well-maintained distillation and distribution facility with robust process equipment capabilities, utilities, and infrastructure strategically located between the Houston and Beaumont-Port Arthur-Orange, Texas Petrochemical Corridors.
| ~4.5 ACRES | TRUCK LOADING | LOCATION | EXTENSIVE EQUIPMENT |
|---|---|---|---|

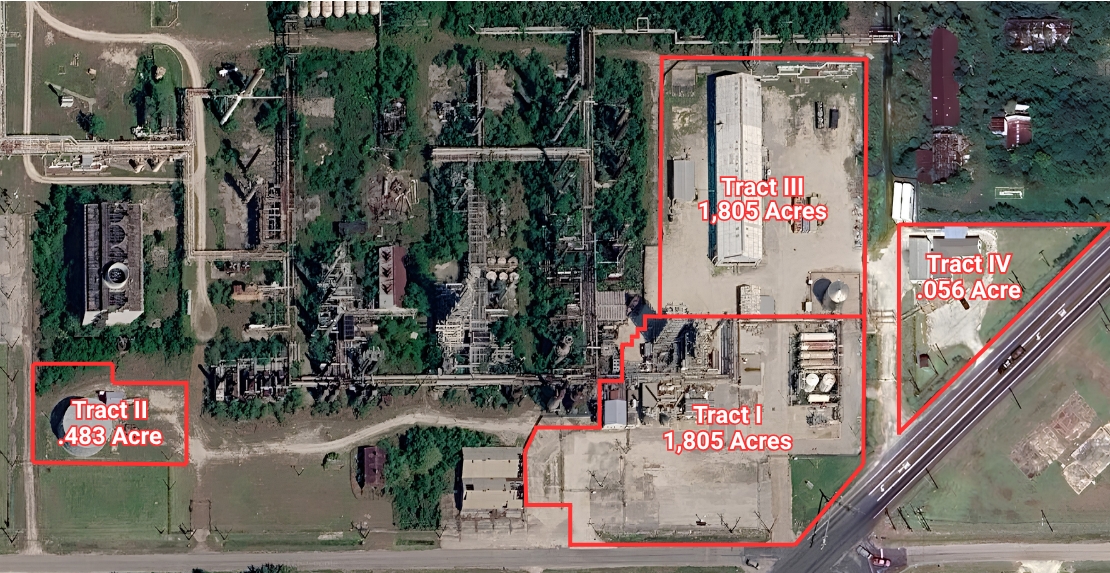

| Total site area with core processing on just over 1.5 acres | Tank truck loading / unloading facilities on site | Winnie, Texas Jefferson County Gulf Coast Industrial Corridor | Columns, heat exchangers, boilers, fired heaters, tanks, and supporting utilities. |
Robust distillation assets to cover a variety of dedicated or toll process requirements.
Owned and operated by a major multinational chemical manufacturer until 2026. Formerly used to manufacture specialty phenolics.

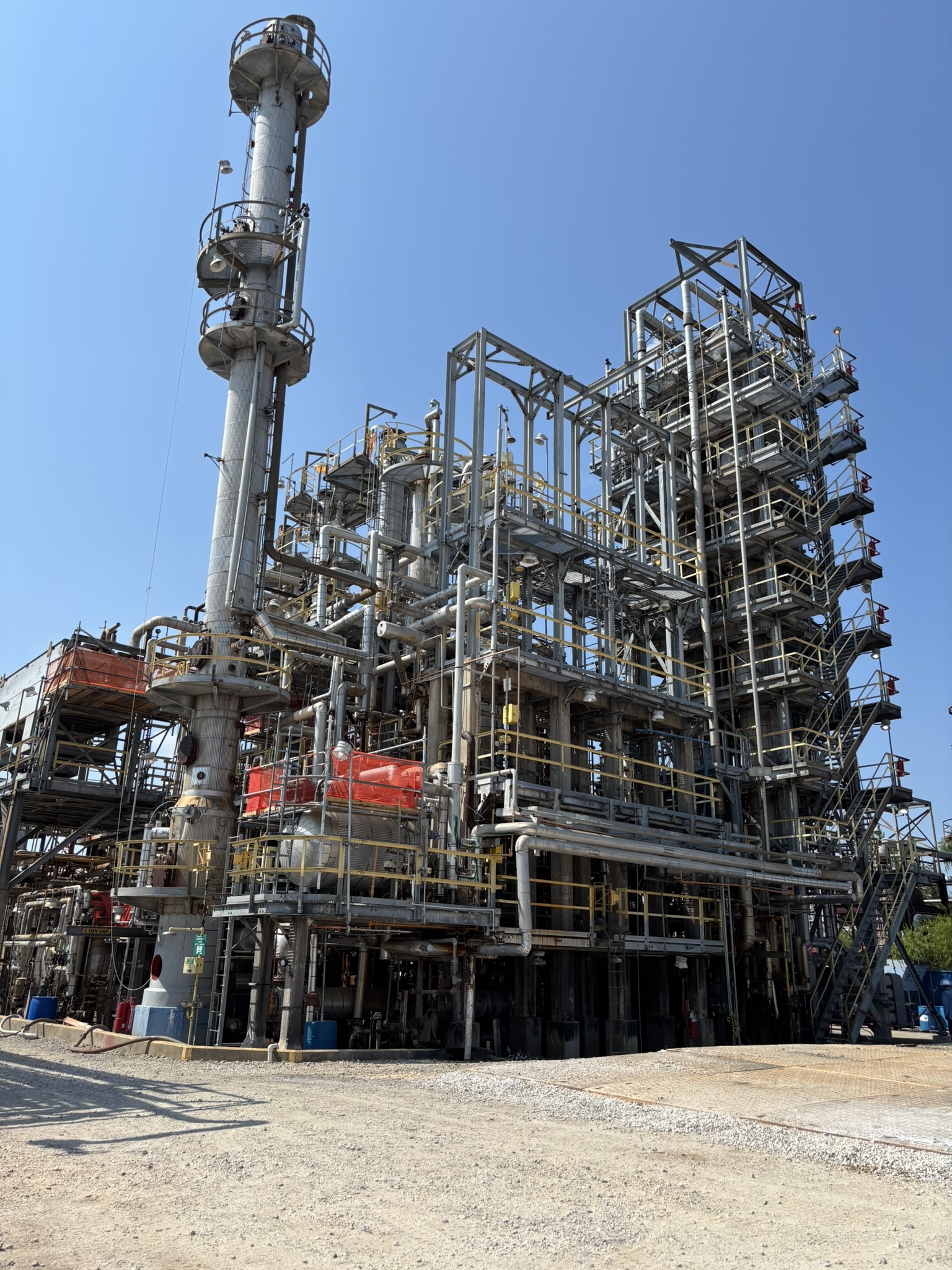

Columns, heat exchangers, boilers, fired heaters, tanks, and supporting utilities.
Situated in the Gulf Coast chemical corridor with excellent logistics and access to markets.

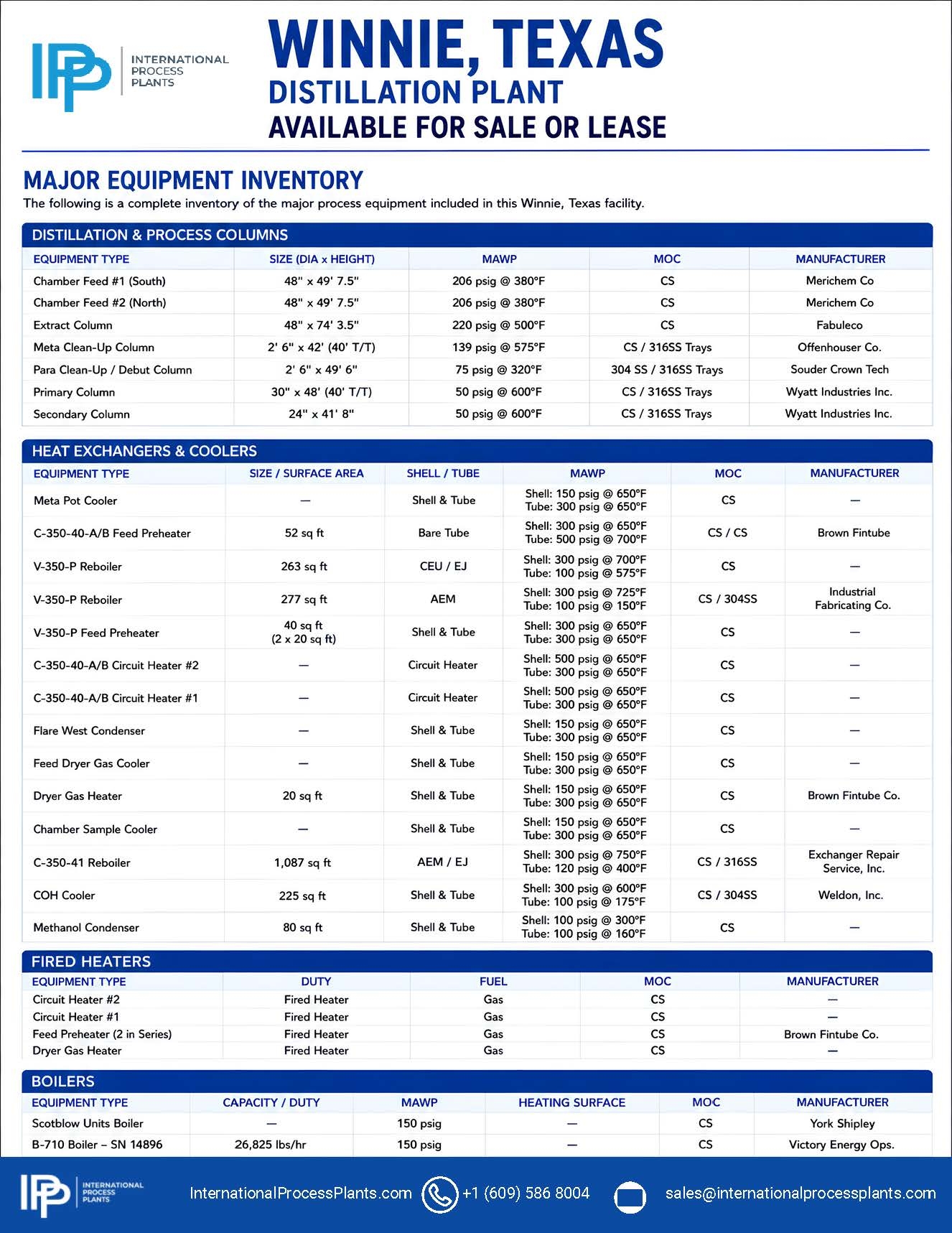

The following is a complete inventory of the major process equipment included in this Winnie, Texas facility.
| EQUIPMENT TYPE | SIZE (DIA x HEIGHT) | MAWP | MOC | MANUFACTURER |
|---|---|---|---|---|
| Chamber Feed #1 (South) | 48" x 49' 7.5" | 206 psig @ 380°F | CS | Merichem Co |
| Chamber Feed #2 (North) | 48" x 49' 7.5" | 206 psig @ 380°F | CS | Merichem Co |
| Extract Column | 48" x 74' 3.5" | 220 psig @ 500°F | CS | Fabuleco |
| Meta Clean-Up Column | 2' 6" x 42' (40' T/T) | 139 psig @ 575°F | CS / 316SS Trays | Offenhouser Co. |
| Para Clean-Up / Debut Column | 2' 6" x 49' 6" | 75 psig @ 320°F | 304 SS / 316SS Trays | Souder Crown Tech |
| Primary Column | 30" x 48' (40' T/T) | 50 psig @ 600°F | CS / 316SS Trays | Wyatt Industries Inc. |
| Secondary Column | 24" x 41' 8" | 50 psig @ 600°F | CS / 316SS Trays | Wyatt Industries Inc. |
| EQUIPMENT TYPE | SIZE / SURFACE AREA | SHELL / TUBE | MAWP | MOC | MANUFACTURER |
|---|---|---|---|---|---|
| Meta Pot Cooler | — | Shell & Tube | Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F |
CS | — |
| C-350-40-A/B Feed Preheater | 52 sq ft | Bare Tube | Shell: 300 psig @ 650°F Tube: 500 psig @ 700°F |
CS / CS | Brown Fintube |
| V-350-P Reboiler | 263 sq ft | CEU / EJ | Shell: 300 psig @ 700°F Tube: 100 psig @ 575°F |
CS | — |
| V-350-P Reboiler | 277 sq ft | AEM | Shell: 300 psig @ 725°F Tube: 100 psig @ 150°F |
CS / 304SS | Industrial Fabricating Co. |
| V-350-P Feed Preheater | 40 sq ft (2 x 20 sq ft) | Shell & Tube | Shell: 300 psig @ 650°F Tube: 300 psig @ 650°F |
CS | — |
| C-350-40-A/B Circuit Heater #2 | — | Circuit Heater | Shell: 500 psig @ 650°F Tube: 300 psig @ 650°F |
CS | — |
| C-350-40-A/B Circuit Heater #1 | — | Circuit Heater | Shell: 500 psig @ 650°F Tube: 300 psig @ 650°F |
CS | — |
| Flare West Condenser | — | Shell & Tube | Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F |
CS | — |
| Feed Dryer Gas Cooler | — | Shell & Tube | Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F |
CS | — |
| Dryer Gas Heater | 20 sq ft | Shell & Tube | Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F |
CS | Brown Fintube Co. |
| Chamber Sample Cooler | — | Shell & Tube | Shell: 150 psig @ 650°F Tube: 300 psig @ 650°F |
CS | — |
| C-350-41 Reboiler | 1,087 sq ft | AEM / EJ | Shell: 300 psig @ 750°F Tube: 120 psig @ 400°F |
CS / 316SS | Exchanger Repair Service, Inc. |
| COH Cooler | 225 sq ft | Shell & Tube | Shell: 300 psig @ 600°F Tube: 100 psig @ 175°F |
CS / 304SS | Weldon, Inc. |
| Methanol Condenser | 80 sq ft | Shell & Tube | Shell: 100 psig @ 300°F Tube: 100 psig @ 160°F |
CS | — |
| EQUIPMENT TYPE | DUTY | FUEL | MOC | MANUFACTURER |
|---|---|---|---|---|
| Circuit Heater #2 | Fired Heater | Gas | CS | — |
| Circuit Heater #1 | Fired Heater | Gas | CS | — |
| Feed Preheater (2 in Series) | Fired Heater | Gas | CS | Brown Fintube Co. |
| Dryer Gas Heater | Fired Heater | Gas | CS | — |
| EQUIPMENT TYPE | CAPACITY / DUTY | MAWP | HEATING SURFACE | MOC | MANUFACTURER |
|---|---|---|---|---|---|
| Scotblow Units Boiler | — | 150 psig | — | CS | York Shipley |
| B-710 Boiler – SN 14896 | 26,825 lbs/hr | 150 psig | — | CS | Victory Energy Ops. |

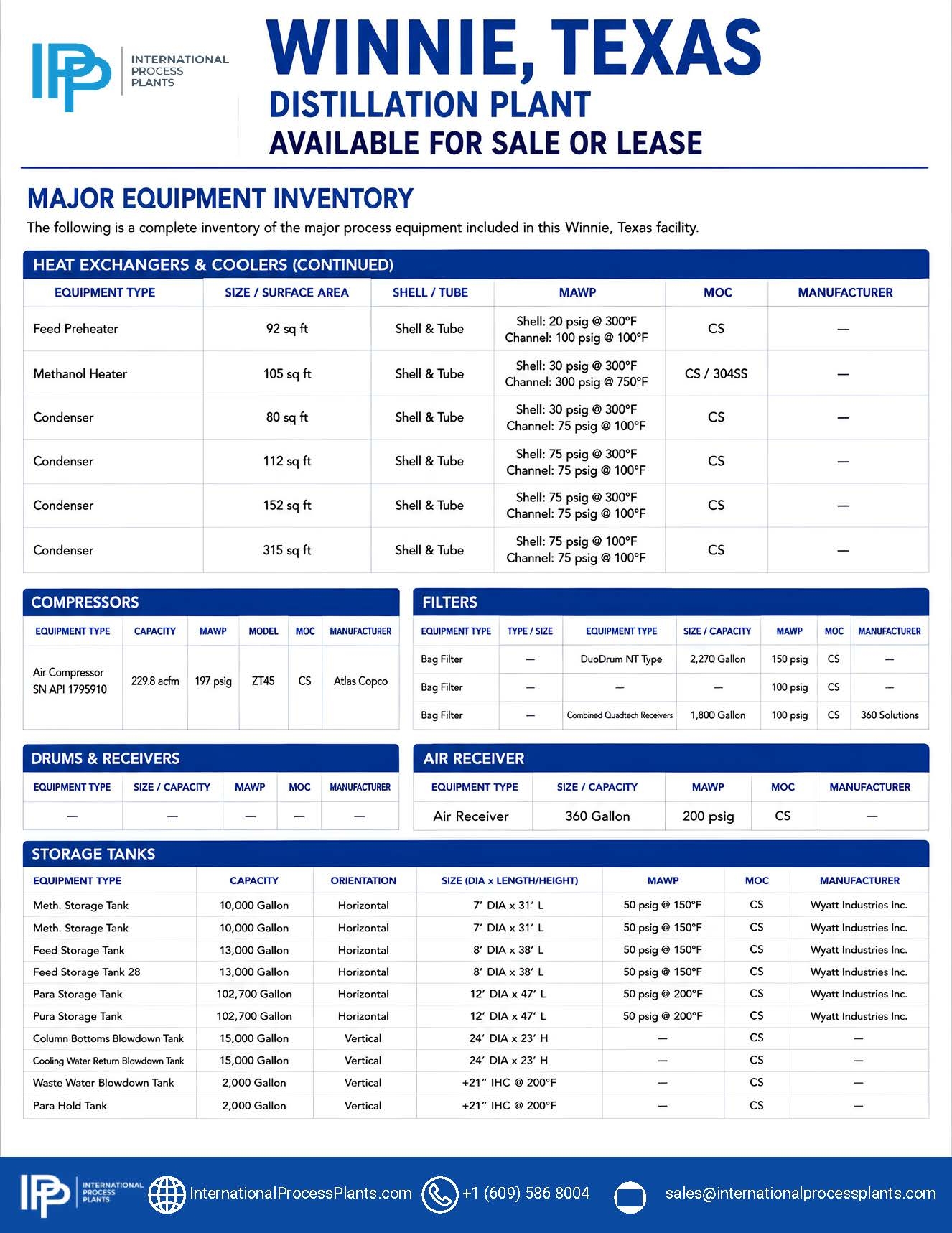

The following is a complete inventory of the major process equipment included in this Winnie, Texas facility.
| EQUIPMENT TYPE | SIZE / SURFACE AREA | SHELL / TUBE | MAWP | MOC | MANUFACTURER |
|---|---|---|---|---|---|
| Feed Preheater | 92 sq ft | Shell & Tube | Shell: 20 psig @ 300°F Channel: 100 psig @ 100°F |
CS | — |
| Methanol Heater | 105 sq ft | Shell & Tube | Shell: 30 psig @ 300°F Channel: 300 psig @ 750°F |
CS / 304SS | — |
| Condenser | 80 sq ft | Shell & Tube | Shell: 30 psig @ 300°F Channel: 75 psig @ 100°F |
CS | — |
| Condenser | 112 sq ft | Shell & Tube | Shell: 75 psig @ 300°F Channel: 75 psig @ 100°F |
CS | — |
| Condenser | 152 sq ft | Shell & Tube | Shell: 75 psig @ 300°F Channel: 75 psig @ 100°F |
CS | — |
| Condenser | 315 sq ft | Shell & Tube | Shell: 75 psig @ 100°F Channel: 75 psig @ 100°F |
CS | — |
| EQUIPMENT TYPE | CAPACITY | MAWP | MODEL | MOC | MANUFACTURER |
|---|---|---|---|---|---|

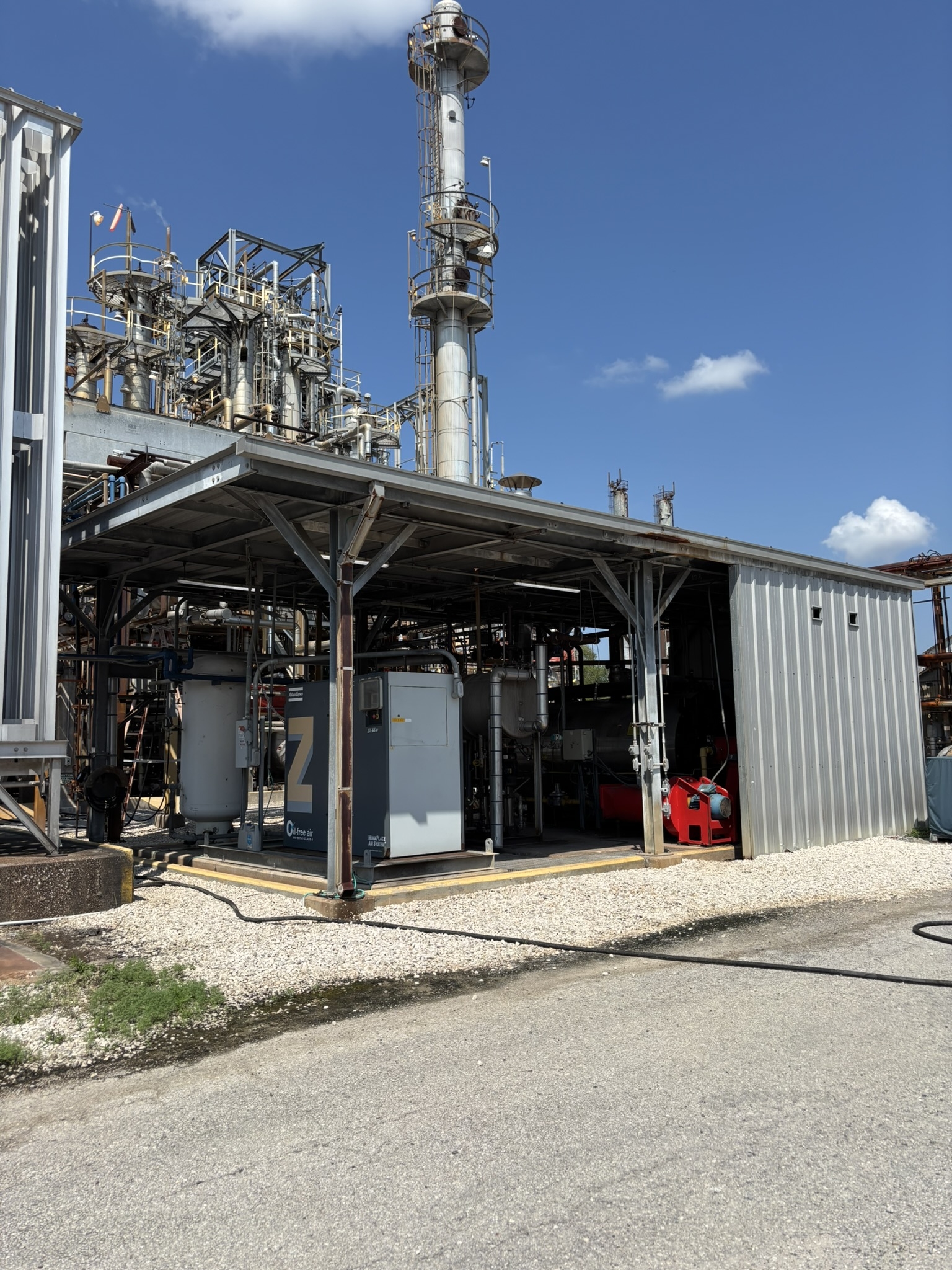

| Air Compressor SN API 1795910 | 229.8 acfm | 197 psig | ZT45 | CS | Atlas Copco |
| EQUIPMENT TYPE | TYPE / SIZE | EQUIPMENT TYPE | SIZE / CAPACITY | MAWP | MOC | MANUFACTURER |
|---|---|---|---|---|---|---|
| Bag Filter | — | DuoDrum NT Type | 2,270 Gallon | 150 psig | CS | — |
| Bag Filter | — | — | — | 100 psig | CS | — |
| Bag Filter | — | Combined Quadtech Receivers | 1,800 Gallon | 100 psig | CS | 360 Solutions |
| EQUIPMENT TYPE | SIZE / CAPACITY | MAWP | MOC | MANUFACTURER |
|---|---|---|---|---|
| — | — | — | — | — |
| EQUIPMENT TYPE | SIZE / CAPACITY | MAWP | MOC | MANUFACTURER |
|---|---|---|---|---|
| Air Receiver | 360 Gallon | 200 psig | CS | — |
| EQUIPMENT TYPE | CAPACITY | ORIENTATION | SIZE (DIA x LENGTH/HEIGHT) | MAWP | MOC | MANUFACTURER |
|---|---|---|---|---|---|---|

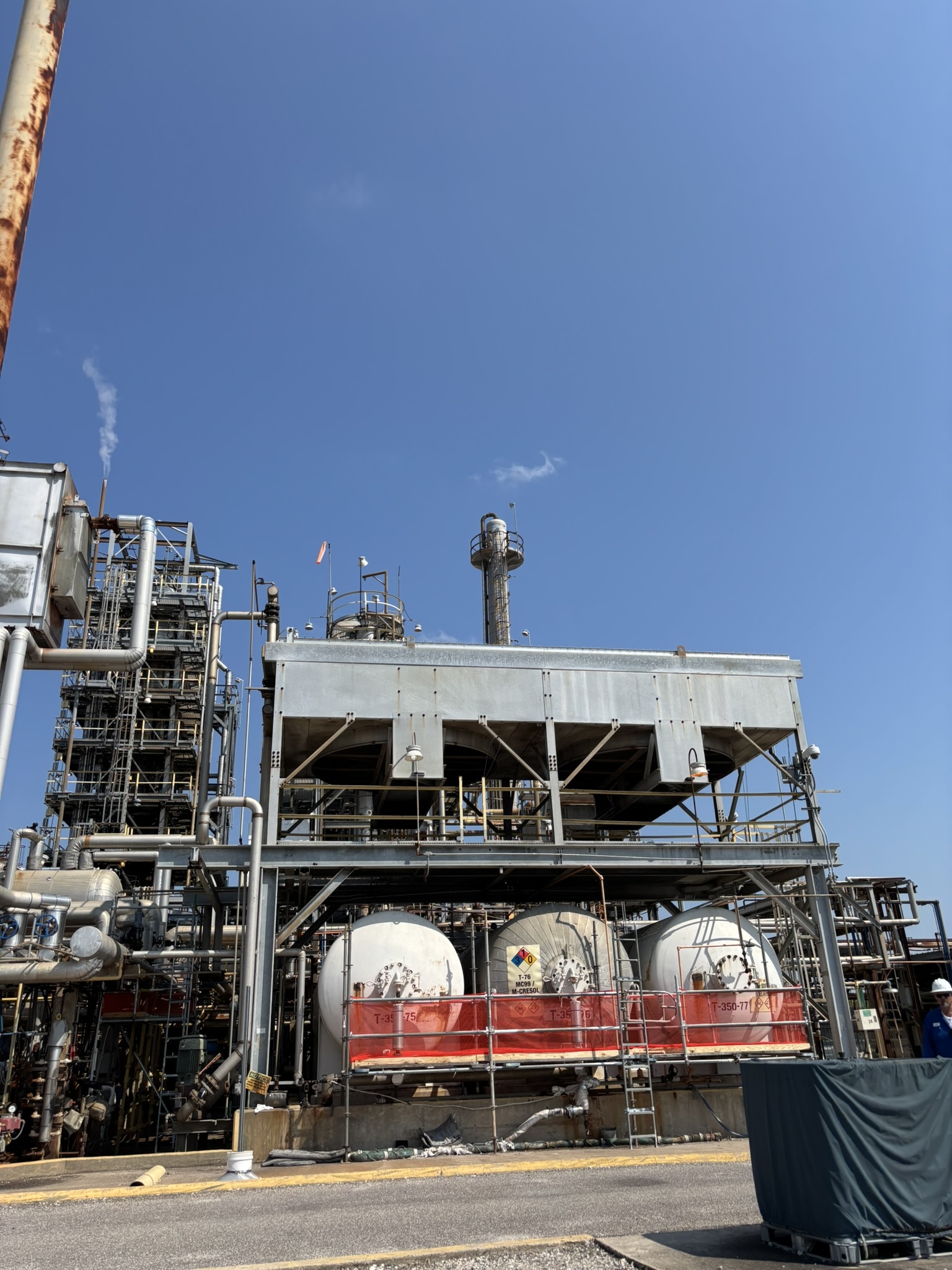

| Meth. Storage Tank | 10,000 Gallon | Horizontal | 7' DIA x 31' L | 50 psig @ 150°F | CS | Wyatt Industries Inc. |
| Meth. Storage Tank | 10,000 Gallon | Horizontal | 7' DIA x 31' L | 50 psig @ 150°F | CS | Wyatt Industries Inc. |
| Feed Storage Tank | 13,000 Gallon | Horizontal | 8' DIA x 38' L | 50 psig @ 150°F | CS | Wyatt Industries Inc. |
| Feed Storage Tank 28 | 13,000 Gallon | Horizontal | 8' DIA x 38' L | 50 psig @ 150°F | CS | Wyatt Industries Inc. |
| Para Storage Tank | 102,700 Gallon | Horizontal | 12' DIA x 47' L | 50 psig @ 200°F | CS | Wyatt Industries Inc. |
| Pura Storage Tank | 102,700 Gallon | Horizontal | 12' DIA x 47' L | 50 psig @ 200°F | CS | Wyatt Industries Inc. |
| Column Bottoms Blowdown Tank | 15,000 Gallon | Vertical | 24' DIA x 23' H | — | CS | — |
| Cooling Water Return Blowdown Tank | 15,000 Gallon | Vertical | 24' DIA x 23' H | — | CS | — |
| Waste Water Blowdown Tank | 2,000 Gallon | Vertical | +21" IHC @ 200°F | — | CS | — |
| Para Hold Tank | 2,000 Gallon | Vertical | +21" IHC @ 200°F | — | CS | — |
