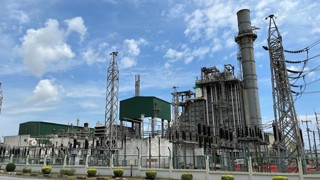

Plant Types: Power Plant

Subtypes: CHP (Combined Cycle)

Capacity: 112 MW

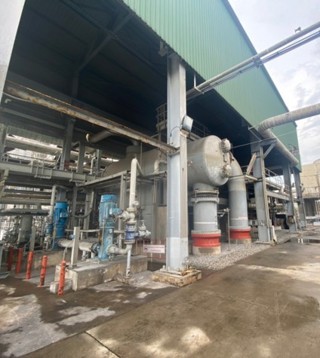

112 MW Combined cycle and Cogeneration

1 on 1 power train configuration

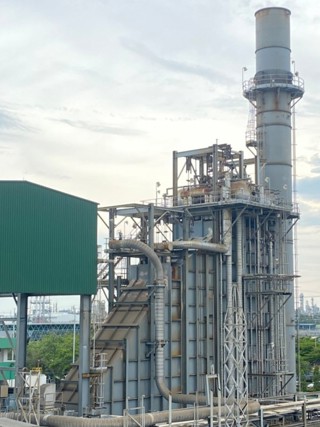

1 Gas turbine, 1 Steam turbine, 1 HRSG

2 x GSUT

1 x 115 kV / 23 kV transformer

1 x 115 kV/ 6.9 kV Aux transformer

2 x 6.9 kV/ 400V Aux transformer

Demin + RO water treatment

Commercial Operation Date on 4th February, 1999

Power dispatch:

• 24 x 7 Baseload Operation
• 115 kV to EGAT and 4 Industrial Users
• 22 kV to 7 Industrial Users

Steam delivery: 20 ton/ hr, 1.3 barg superheated steam to an Industrial User

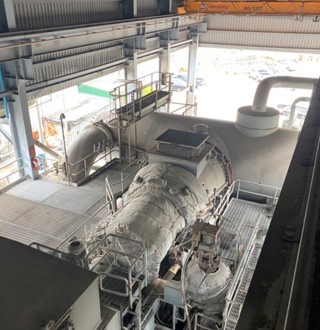

Gas Turbine (1 unit)

GE MS6001FA w/ DLN2.6 combustion NG fired OpFlex Auto Tune, speed 5,200 rpm, Output 64.0 MW

Generator (1 unit)

GE 7A6 Air cooled generator, Output 83.6 MVA, Armature volts 11.5 kV, 50 Hz, 2 Poles, 3 phase , Speed 3000 rpm

Major Changes in Y2014

• Upgraded GTG combustion system from DLN2.0 to DLN2.6
• Upgraded GTG and STG GE control system from Mark V to Mark VIe
• Upgraded GT and ST GE generator exciter control system from EX2000 to EX2100e

Major Changes in Y2017

• Replace GT rotor (new 6FA.01 compressor married with 6FA.01 refurbished turbine rotor)
• Upgraded GT DLN2.6 combustion system to OpFlex Auto Tune in order to operate with new fuel Wobbe Index range

Plant Types: Power Plant

Subtypes: Power Plant

Capacity: 6.72 MW

Combined heat and power cogeneration system, it was built in 2000 and started up in 2001, it was shutdown in early 2016, the engines have operated for 36,300 hours and 34,000 hours

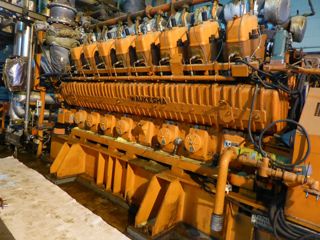

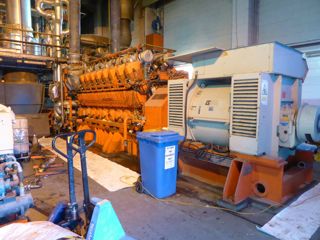

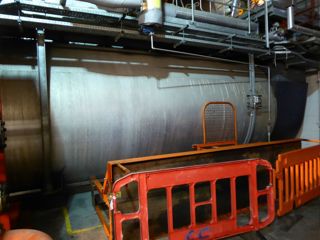

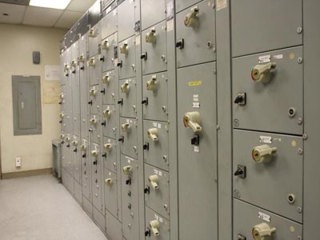

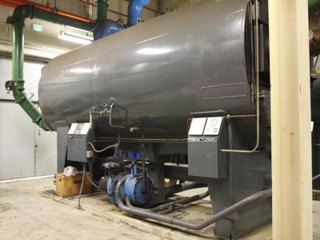

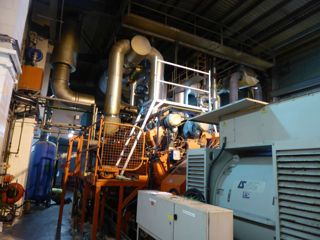

6.72 Megawatt gas fired combined heat and power cogeneration system, system includes: 5000 kg/hr Cochran single pass waste heat recovery boiler, inlet temperature 160 degrees C, outlet 186 degrees C (saturated steam @ 10.5 barg), heat transfer duty 2934 +- 15%, specific gravity/density 0.95 kg/m3, specific heat 1.00 kCal/kg.C, with economiser 2 x 3360.8 Kw (4201 kVA) gas engine driven electrical generator, engine manufactured by Waukesha (Dresser), model #16VAT27GL, serial #C-80859/1 & C-80859/2, SAA #2000-168, natural gas fired, continuous, comp ratio 9/1, min.WKI 91, ignition timing (BTDC) 11-02, service 4650 HP (3469 Kw), altitude limit 500 feet (152 meter), governed speed 1000 rpm, 0.80mm valve intake & exhaust clearance, firing order 1R-1L-4R-4L-7R-7L-6R-6L-8R-8L-5R-5L-2R-2L-3R-3L, AC generator (alternator) manufactured by Leroy Somer, type LSA-56-BM65-6P, serial #167056-2, IP 23, 3360.8 Kw, 4201 kVA power rating, 11000 volt, 220.5 Amp, 3 phase, 50 Hz, 1000 rpm, excitation AREP, all mounted on a carbon steel skid oil lubrication, cooling water system, MCC control panels, some ductwork,

Plant Types: Power Plant

Subtypes: CHP (Combined Cycle)

Capacity: 10 MW

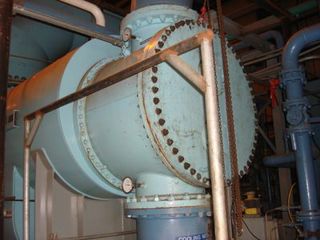

"Green Energy" CHP Steam Power Plant Uses Alternative Methane-based Natural Gas Biofuels Like Biogas & Landfill Gas Also Burns Natural Gas Gas Fired Power Generation of 10 Megawatts (MW)

This biogas cogen plant is the largest of the smaller scale combined heat and power systems IPP has available for sale.  This 10 megawatt (10,200 kw) thermal power station uses Rankine cycle process to produce energy that could supply electricity to ~2,000 - 6,000 residential customers* and includes:

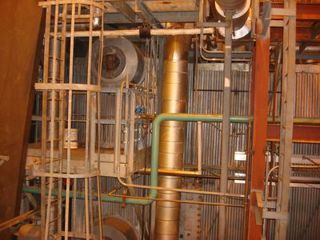

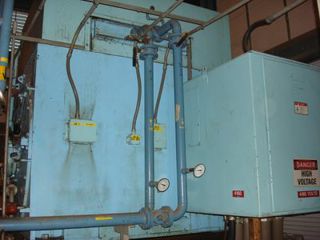

• Deltak gas fired boiler - burns landfill, bio-gas, methane & natural gas

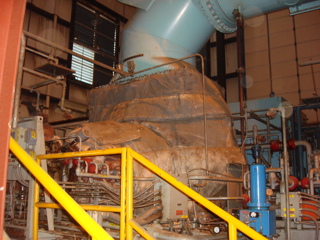

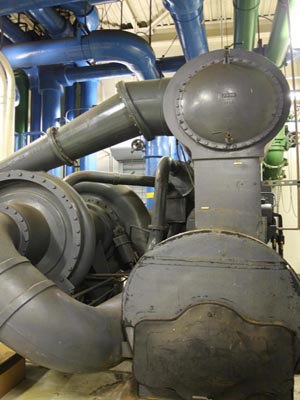

• steam powered turbine

• 10 MW electric power generator by Ideal Electric Co.

• Complete control room

• Complete documentation available including manuals, drawings, inspection and operational data reports

• Estimate based on average annual electricity consumption figures published by the US Energy Information Administration with a peak load factor of 2.0.

Built in 1996-1998, this steam power plant started operating in 1998. The previous use was for combined heat and power generation from biogas feed sourced from a landfill.  The prior owner shut this chp plant down when its bio gas supply increased dramatically and it decided to replace the gas based power plant with a larger capacity landfill gas power plant. Contact IPP for operational data, documentation, complete equipment list

Click Here to View this Video on Youtube

Plant Types: Power Plant

Subtypes: Power Plant

Capacity: 5.25 MW

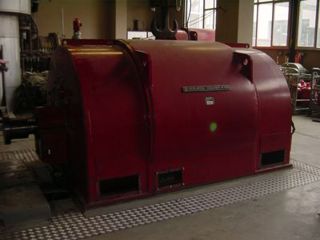

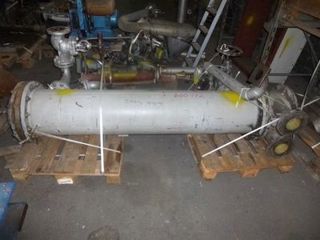

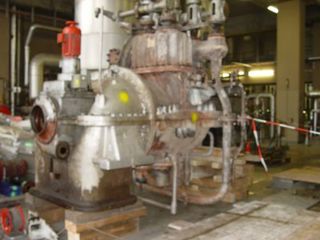

5,250 KW, 50 Cycle, Escher Wyss steam turbine generator set, with extraction.

Turbine:

• Escher Wyss

• Type REA 1600

• Designed for 5,240 KW

• Rpm: 6,600

• Inlet Pressure: 36 Kp/SqCm @ 410 degrees C

• Extraction 1 - non controlled 2800 Kg/H

• Extraction 2 - controlled 27,000 Kg/H, pressure 11-14 Kp/SqCm

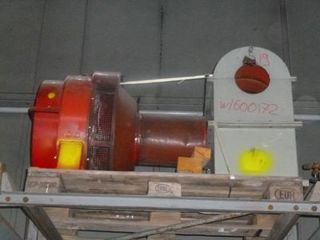

Generator:

• Type 14S250

• 6600 KVA

• COS Phi 0.8

• Voltage: 11 KV, 50 Hz

Plant Types: Power Plant

Subtypes: Power Plant

Capacity: 3.2 MW

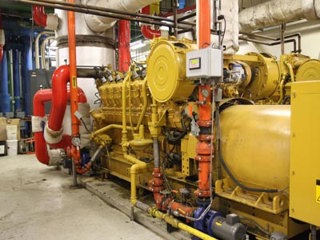

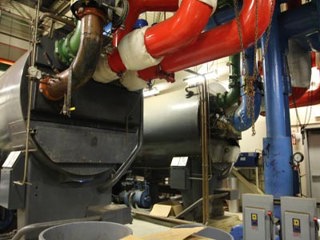

3.2 MW Gas Fired Co-Generation combined heat and power plant.  With (4) 800 KW Caterpillar natural gas-fired, after-cooled, lean burn 3516 90 LE reciprocating engine generator sets each rated at 820kWe output at 480V at the generator terminals.

This chp plant is in excellent condition. All four generators operate at a base load of 700KW, though are capable and have run at their 800KW nameplate. All units are operated on a 24/7 basis with very little downtime for anything other than scheduled maintenance.

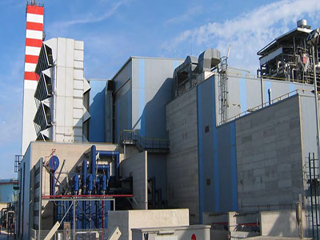

Plant Types: Power Plant

Subtypes: CHP (Combined Cycle)

Capacity: 288 MW

GAS TURBINE

• Type:

• ALSTOM POWER

• Model:

• GT13E2 Version A-MOD (the only one in operation with Syngas)

• Nominal GPO:

• 188 MW @ NOC Conditions

• Fuel:

• Dual - MBTU Syngas / Diesel Oil

• Main Characteristics:

• 5 turbine stages, 22 compressor stages (comp. ratio=15)

• 72 Dual Fuel Burners

• Suitable for mixed operation

• Automatic Emergency Change Over to Diesel operation

• N2/Syngas ratio to keep fuel LHV at 7.0 MJ/kg

  STEAM TURBINE

• Type:

• Alstom Power (Ansaldo Design)

• Model:

• HP-HDS 065/10 / LP-ND 37B

• Nominal GPO:

• 100 MW

• Design Basis:

• 3 TURBINE SECTIONS (HP, MP and LP)

• 4 ADMISSIONS AT DIFFERENT STEAM PRESSURE

• 1st – HHS form HRSG (101Barg@480°C)

• 2nd – HHS from Aux. Boiler (99Barg@490°C)

• 3rd – MS from HRSG (16Barg@490°C)

• 4th - LS from HRSG (4 Barg@175°C)

• 3 EXTRACTION AT DIFFERENT STEAM PRESSURE

• MS to Refinery (13 Barg)

• LS to Refinery (4.5 Barg)

• LLS to Dehareator (1.4 Barg)

• SEA WATER CONDENSER (70/90°C – 35/65mbara)

  POWER SYSTEM

• Plant is connected with the national energy grid

•  2 lines are dedicated to the energy purchasing


The standard consumption is of about 46MW (ab. 365,000 MWh/y)

- 2 lines are dedicated to the delivery of the energy produced The nominal production is 288MW (ab. 2,200,000 MWh/y)

- The Plant is equipped with 4 levels of voltage (tri-phase at 50Hz):

• 132KV for delivery;

• 15.75 KV produced by GT & ST generators (two step-up transformers (196MVA and 121MVA) are used to increase the voltage up to 132KV)

• 10.5 and 6.6 KV for the medium voltage utilities;

• 400 V for low voltage utilities.

  PLANT CONTROL SYSTEM

The Plant Control (SIL3) is based on:

- Control System

DCS : ABB Advant OCS (Unix Operat. System) 16 distributed control nodes from 250 to 1000 ms 15 control stations

- Safety System

PLC: Hima H51q 8 distributed control nodes From 50 to 300ms

- Plant Instrumentation

5000 instruments 4000 control loops 150 authomatic control logics 2000 galvanic barriers 600 electronic cards

- People on Shift

3 Board operators 2 Shift supervisors 5 Field operators
