Stainless Steel 316 APV Baker 3HH-208/1 Plate and Frame Heat Exchanger - IPP# 100862

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: APV Baker

Model: 3HH-208/171

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 0.8 m² (8.6 ft²)

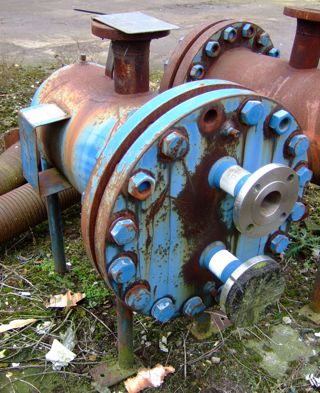

Nozzle Schedule: Openings: tube side 2-2"; shell 2-3"

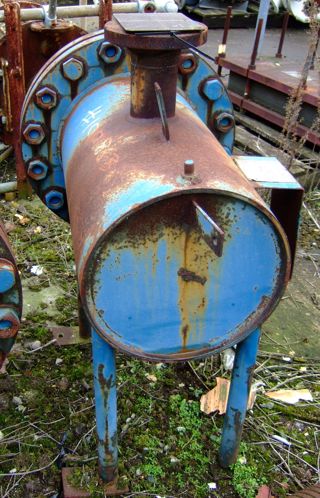

Unit w/cylindrical shell (23) 316SS plates (cylindrical, vert) inside shell

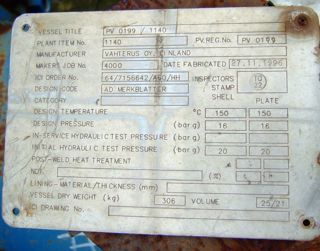

Cold-side Pressure: 16 bar (232.1 psi). Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 16 bar (232.1 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 23.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: GEA Ahlborn GmbH Co KG/Germany

Model: N40

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 47.5 m² (511.5 ft²)

Cold-side Pressure: 12 bar (174 psi)

design BC-12 0.45 squaremeter heat exchange surface per plate, (plate package min 851mm, max 870mm), plate package is 868mm 321 (1.4541) stainless steel frame

Cold-side Temperature: 115 °C (239 °F). Hot-side Pressure: 12 bar (174 psi). Hot-side Temperature: 115 °C (239 °F). Housing Material: Stainless Steel 321. Number of Plates: 105.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Tranter

Model: GC-30NI*28

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 2.2 m² (23.8 ft²)

Nozzle Schedule: - Openings: 4-50mm

pressure side 1= -1/6 bar @ 170 deg C (2.9ltr) side 2= -1/6 bar @ 170 deg C (3.1ltr) test pressure both sides 10 bar c/steel frame

Housing Material: Carbon Steel. Number of Plates: 28.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Tranter

Model: GC-30NI*28

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 2.2 m² (23.8 ft²)

Nozzle Schedule: - Openings: 4-50mm

pressure side 1= -1/6 bar @ 170 deg C (2.9ltr) side 2= -1/6 bar @ 170 deg C (3.1ltr) test pressure both sides 10 bar c/steel frame

Housing Material: Carbon Steel. Number of Plates: 28.
