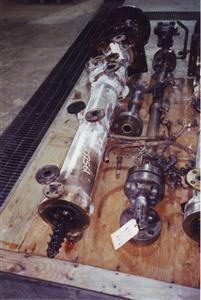

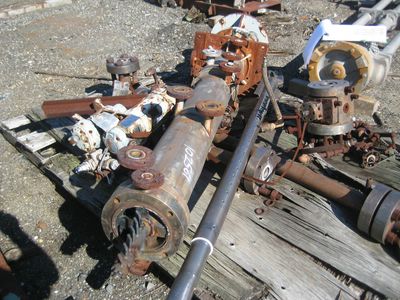

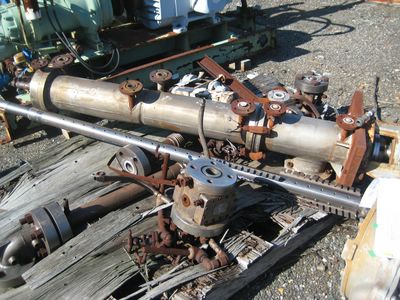

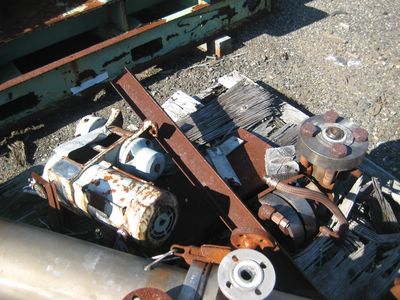

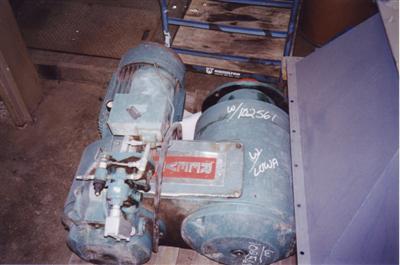

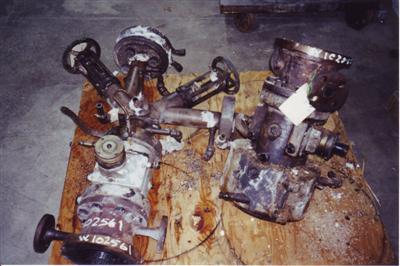

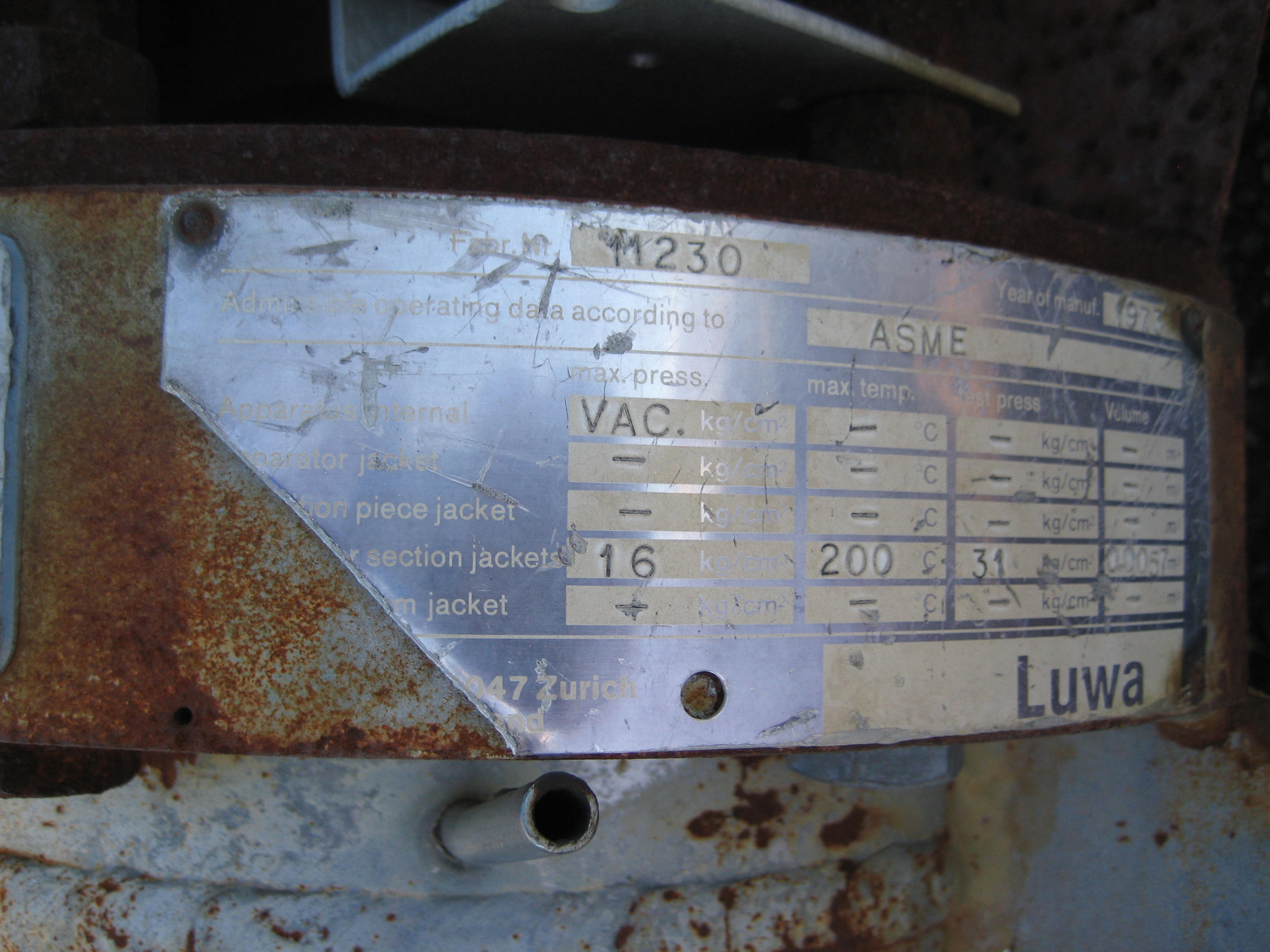

jkt rated 16 kg/sq cm @ 200 deg C. 9 gal capacity W/(2) rows of str blades and (2) rows of positive pitched blades @ 25 deg angle on central core. Driven by 20 HP, 1170 rpm Reeves variable speed drive, 6.2:1 ratio, 64 rpm min, 428 rpm max. C-configuration. Has air operated valve positioner w/mech seal. Has jkt btm cone; rotor extension (removable product propelling rotor section).
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: LB-0050
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)
jacketed wiped thin film evaporator with column and condenser pressure internal -1/3 bar @ 250/350 deg C (38ltr) jacket 29.6/26.9 bar @ 250/350 deg C (6ltr) s/steel jacket on straight side only, rotor belt driven by 1.5 kw 3/50/500 volt 710rpm Exd 3nG5 motor, Crane 109 mechanical seal, evaporator with (1) 300mm diameter x 1.8m high 316L s/steel jacketed packed column, manufactured by Dynamite Nobel, fabrik #521, pressure internal: 13 bar + vak @ 200 deg C (140ltr), jacket: 8 bar @ 200 deg C (30ltr), internal coil 8 bar @ 200 deg C (2.5ltr), bolt flat top, weld dsihed bottom, 300mm diameter x 1020mm high packing section, Sulzer packing, (1) 1.2 sqm 316L s/steel (1.4571) tube, shell and head vertical jacketed heat exchanger, pressure tube side: 6 bar @ 200 deg C (40ltr), shell side: 3 bar + vak @ 200 deg C (50ltr), jacket: 8 bar @ 200 deg C 925ltr), (34) 25mm diameter x 2mm x 2.5m long 316L s/steel tubes, shell 250mm diameter x 2140mm total length, (1) dished head, (1) flat bonnet head, all parts are TUV certified
Orientation: Vertical. Diameter: 180 mm (7.1 in). Height: 1,400 mm (55.1 in). Pressure: 3 bar (43.5 psi). Temperature: 350 °C (662 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: L300
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 1.4 m² (15.1 ft²)
Orientation: Vertical
wiped film evaporator, carbon steel jacket jacket rated 40 psi. 5'6" evaporation section "N" 4-blade fixed rotor. (3) jacket sections. No motor, requires (2) 5 KW motors.
Diameter: 304.8 mm (12 in). Height: 1,676 mm (66 in). Pressure: 0.69 bar (10 psi). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: KH-850-S
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 208.7 kg/h (460 lb/h)
Total Heat Transfer Surface Area: 8.5 m² (91.8 ft²)
Shell rated at FV/16 psi at 662 degrees F. jacket rated at FV/93 psi at 662 degrees Sako Thin Film type. Stainless steel rotor. Requires 40 HP drive system.
Orientation: Horizontal. Pressure: 1.1 bar (16 psi). Temperature: 350 °C (662 °F). Vacuum: Yes. Drive Type: .
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: D-850/4700/10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 267.6 kg/h (590 lb/h)
Total Heat Transfer Surface Area: 11 m² (118.4 ft²)
Jkt rated 13 bar @ 220 deg C Shell 850mm (34") dia x 4800mm (15.8') long, Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.
Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.3 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.
