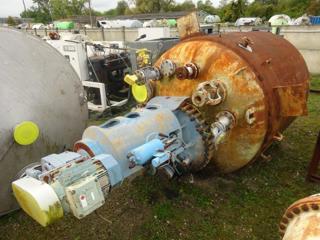

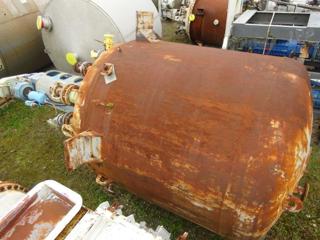

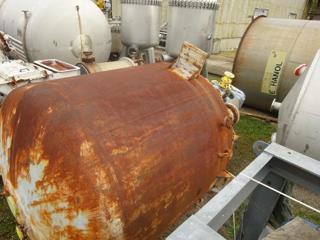

Glasslined DeDietrich STU Batch-Type Agitated Reactor - IPP# 103769

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 9,400 L (2,483 gallons)

Internal Pressure: 6 bar (87 psi)

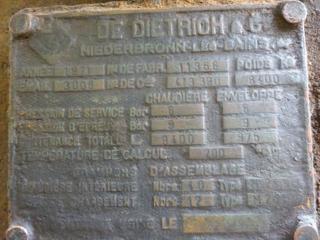

contract number 413390 glass 3008.

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,200 mm (86.6 in). Straight Side Length: 1,930 mm (76 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 6,000 L (1,585 gallons)

Internal Pressure: 6 bar (87 psi)

Code number 418010, internal pressure -1/6 bar @ -25/200 degrees C jacket -1/6 bar @ -25/200 degrees C (792 liters) glass type 3009/blue, CRANE-MCR 90 double mechanical seal, model 100 drive driven by 10.8 kw, 3/50/220/380 volt, 1430 rpm motor, built to CODAP 85 by DeDietrich & Cie, Zinswiller

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,860 mm (73.2 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 4,000 L (1,057 gallons)

Internal Pressure: 6 bar (87 psi)

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,100 mm (82.7 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STU

Condition: Used

Material: Glasslined

Capacity (Design): 1,200 L (317 gallons)

Internal Pressure: 6 bar (87 psi)

internal pressure -1/6 bar @ 200 Degrees C; jacket 6 bar@ 200 Degrees C with drive

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,400 mm (55.1 in).
