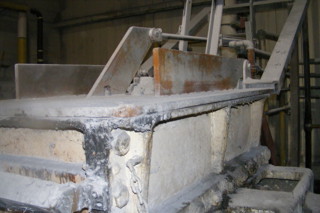

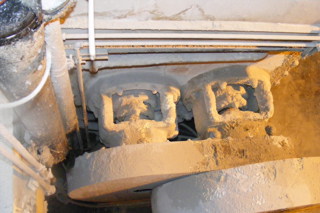

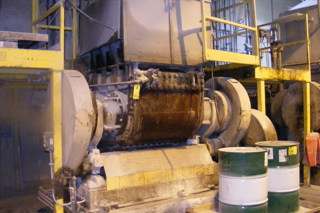

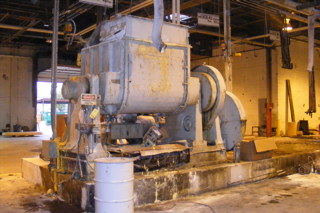

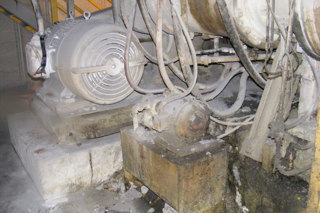

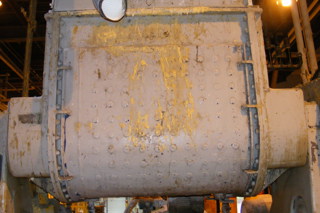

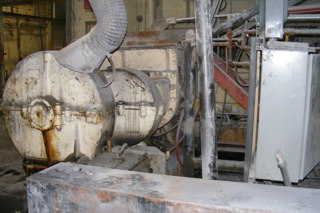

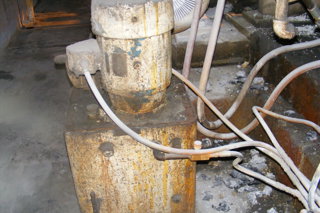

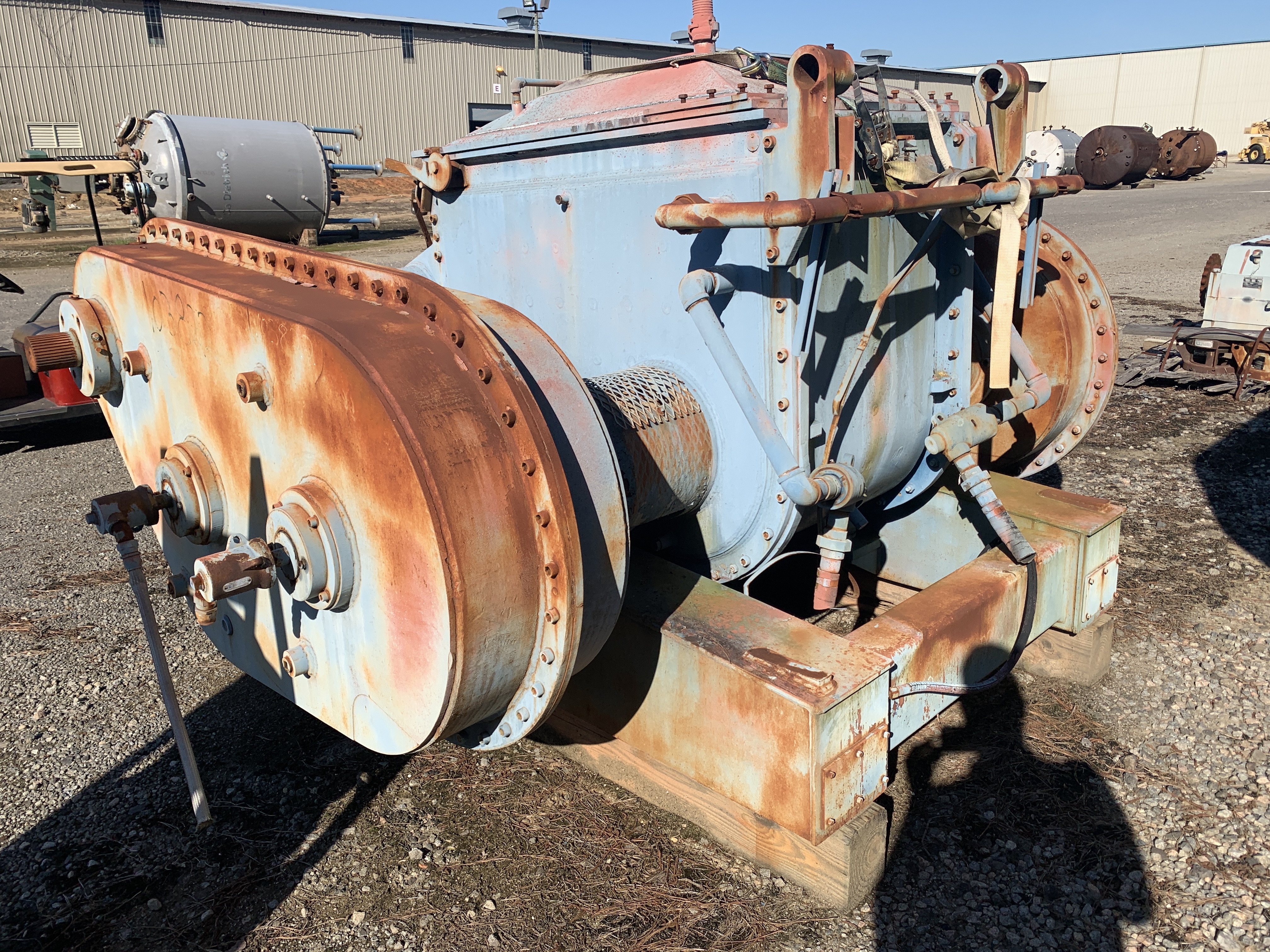

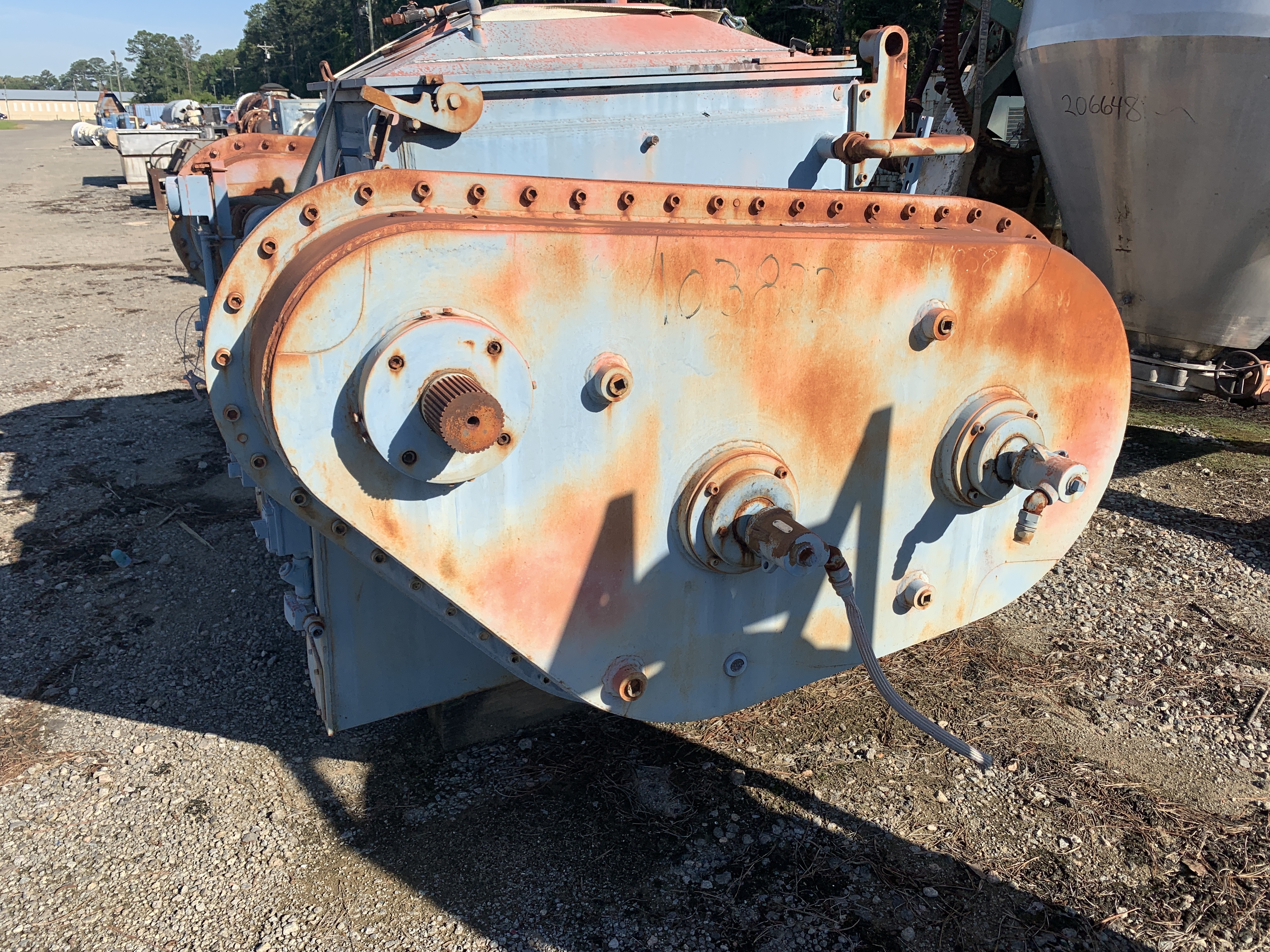

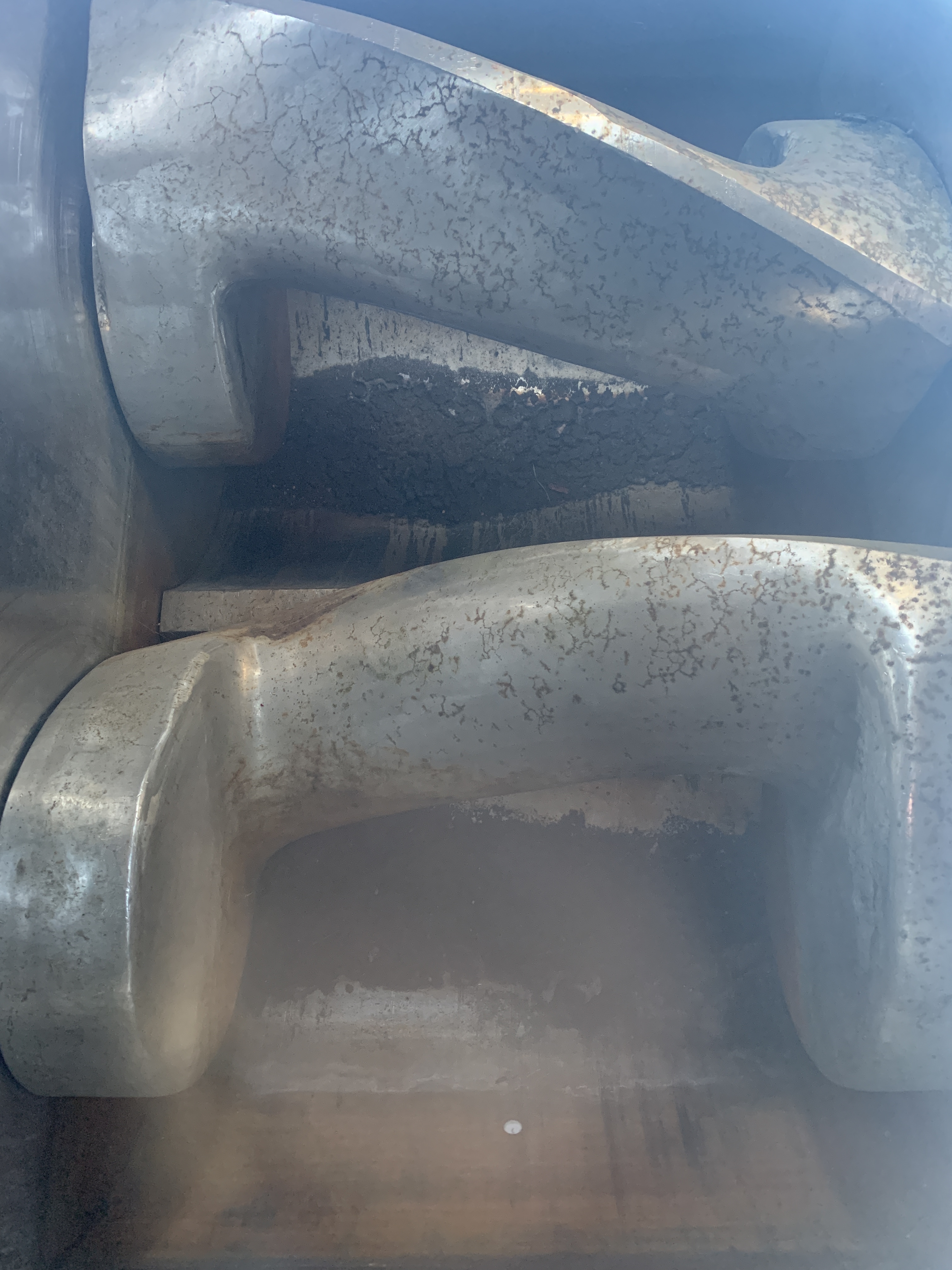

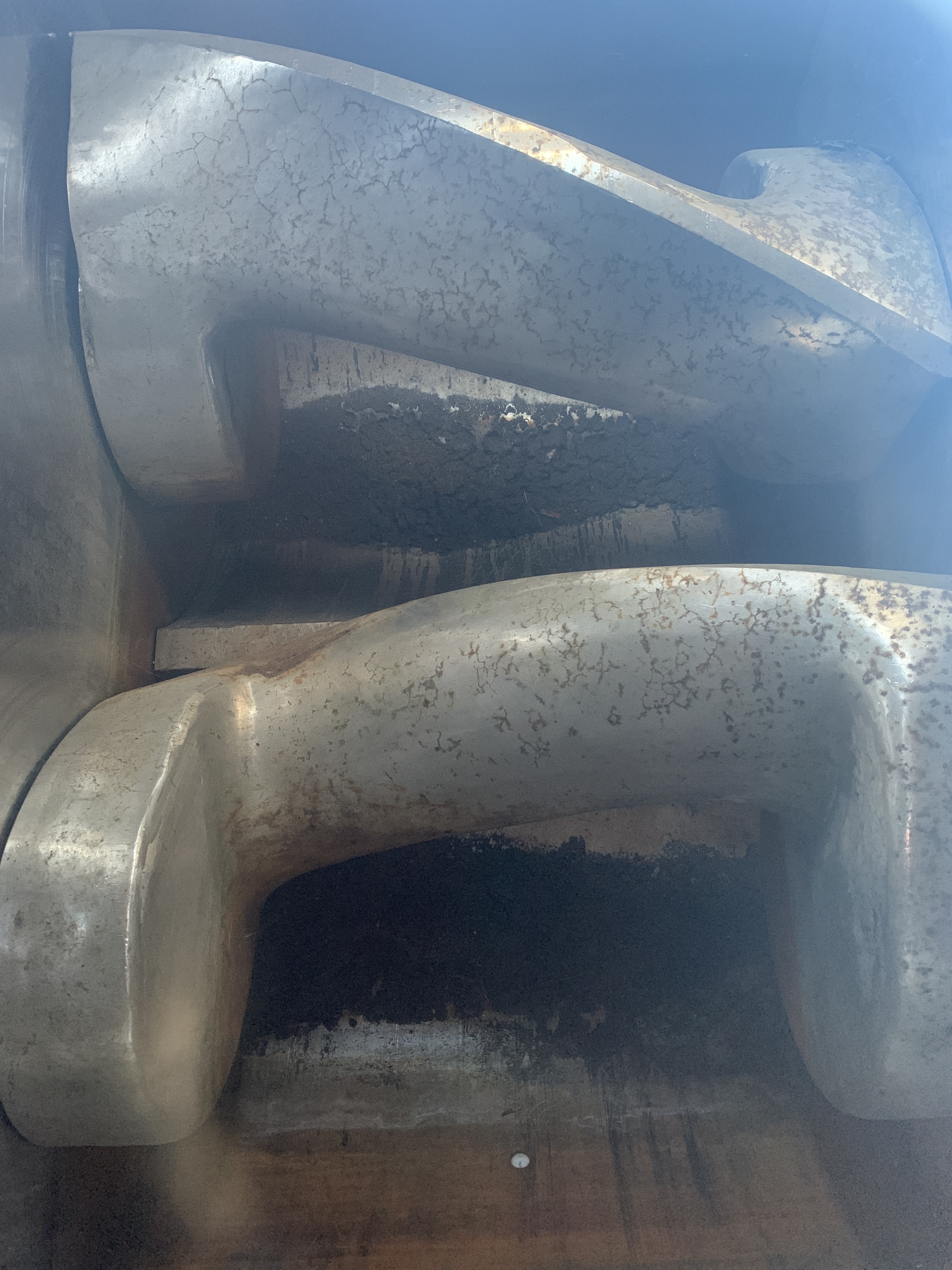

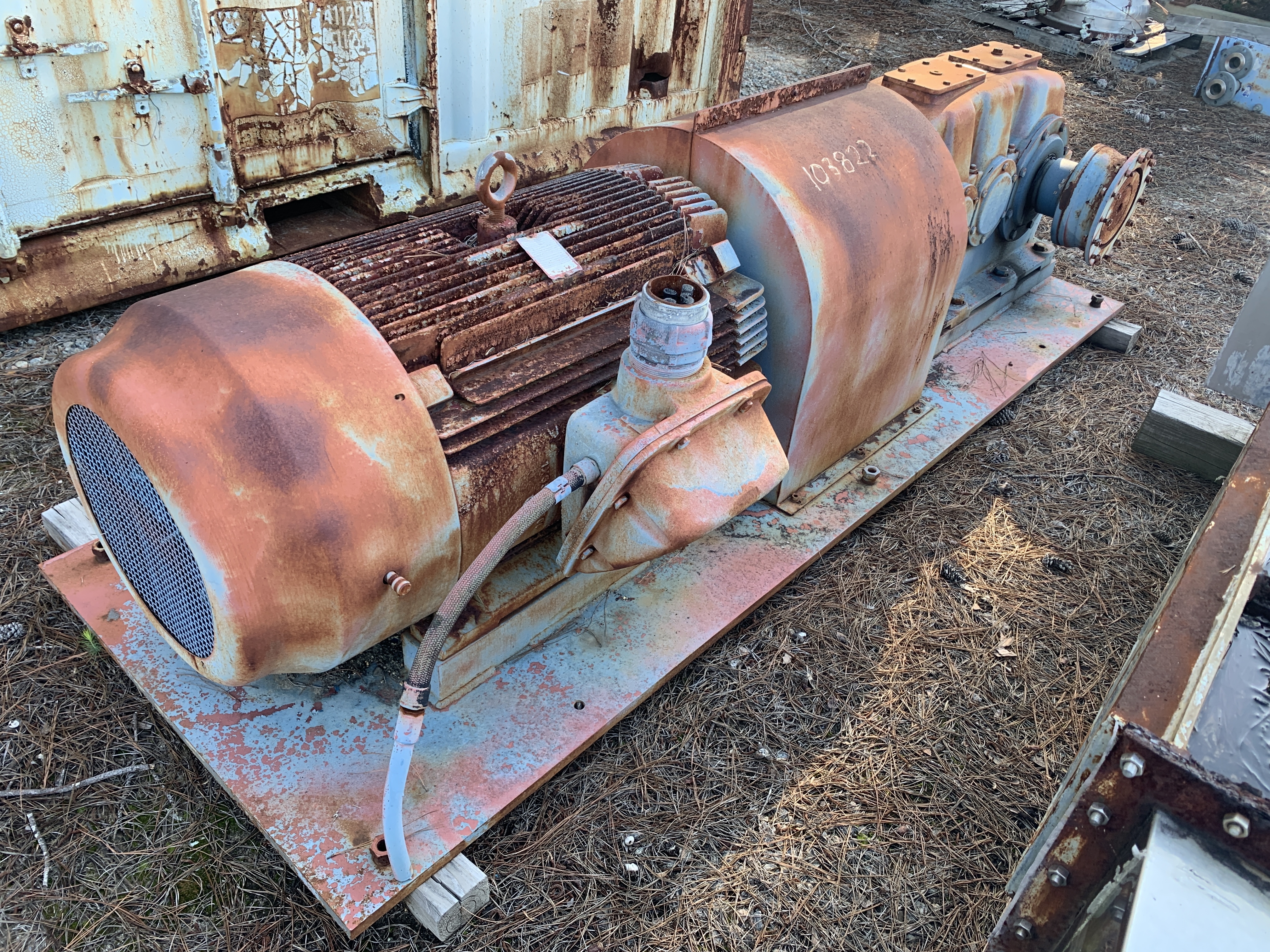

Size 16 Trough dimensions 31" x 49" x 47" deep, hinged cover w/counter balance, w/cored dispersion type mixing blades. Packing gland on shafts Shafts geared both ends and driven by Pacemaker 200/100 HP, 3/60/460 volt, 1770/885 rpm motor, Frame #449T, w/gear reducer. Output rpm on front blade 42/21, rear blade 25/125 driven by 5 HP motor.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 1,703 L (450 gallons)
Capacity (Working): 1,136 L (300 gallons)

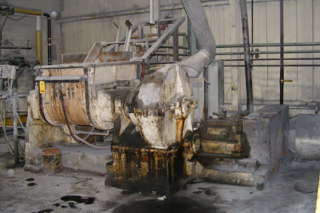

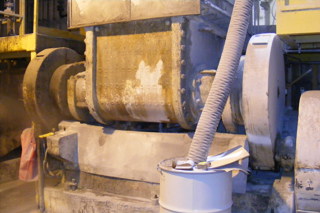

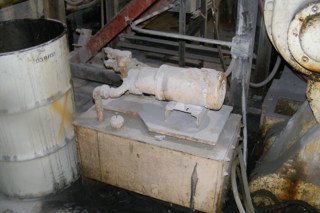

Sigma Blade mixer Jacket trough, with inside dimensions approx 56" long x 50" wide x 48" deep, bolted sides Unit is geared one side, with chain and sprocket drive 230/460 volt Amperage is rated for 174/87a Vessel has a tilt discharge. Hydraulic system is mounted to the machine base for the tilt function.
Blade Type: Sigma Blade. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 567.8 L (150 gallons)
Capacity (Working): 378.5 L (100 gallons)

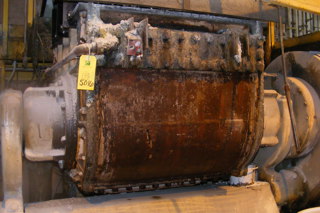

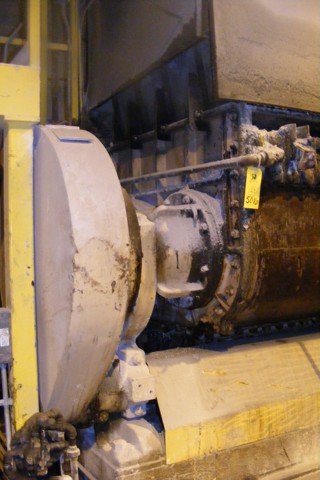

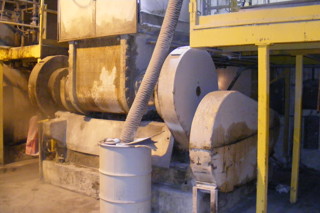

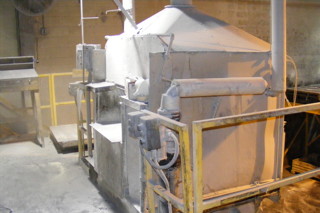

Sigma Blade Mixer jacket trough, tilt discharge. With tangential sigma blades, packing glands on shaft, rated atmospheric internal, with dust cover. Geared both sides, driven through a jack shaft, with chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge.

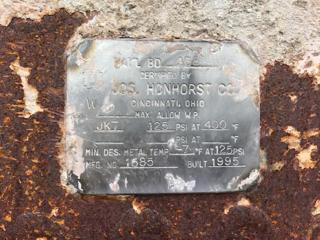

Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 204.4 °C (400 °F). Blade Type: tangential sigma blades. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 567.8 L (150 gallons)
Capacity (Working): 378.5 L (100 gallons)
Sigma Blade Mixer jacket trough, tilt discharge. packing glands on shaft, rated atmospheric internal, with dust cover Geared both sides, driven through a jack shaft, with chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge.
Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 204.4 °C (400 °F). Blade Type: tangential sigma blades. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 757.1 L (200 gallons)
Capacity (Working): 378.5 L (100 gallons)
Sigma Blade Mixer jacket trough, tilt discharge packing glands on shaft, rated atmospheric internal, with dust cover With chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge
Blade Type: tangential sigma blades. Tilting: Yes.
