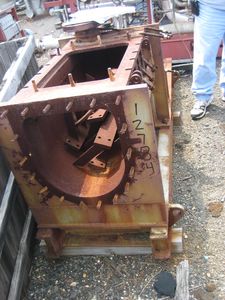

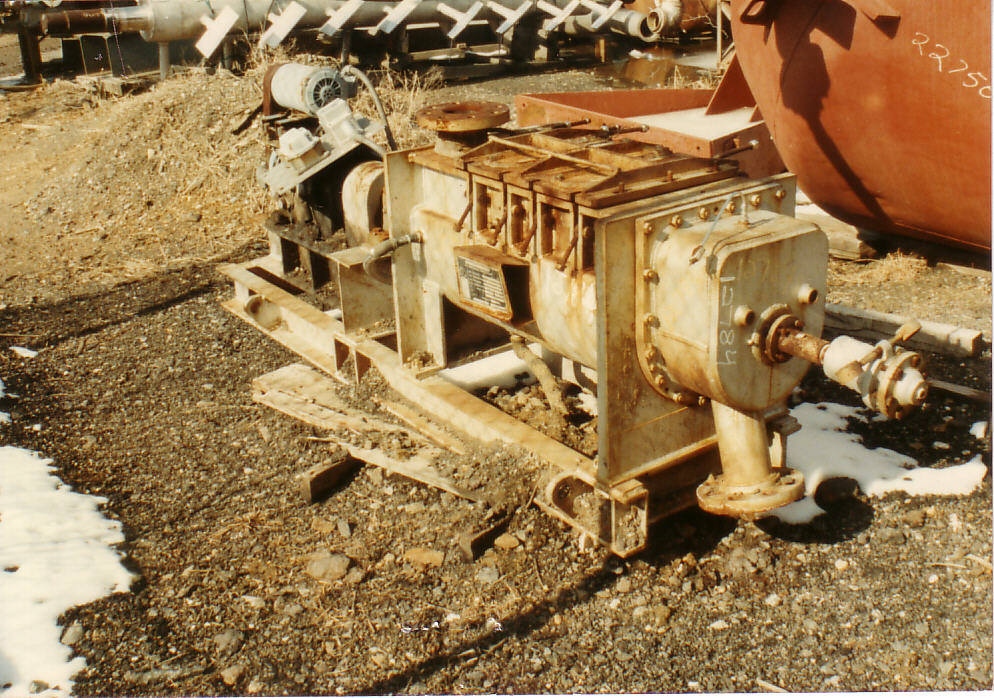

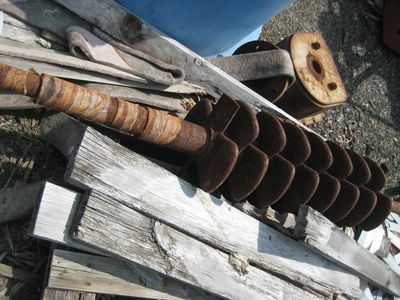

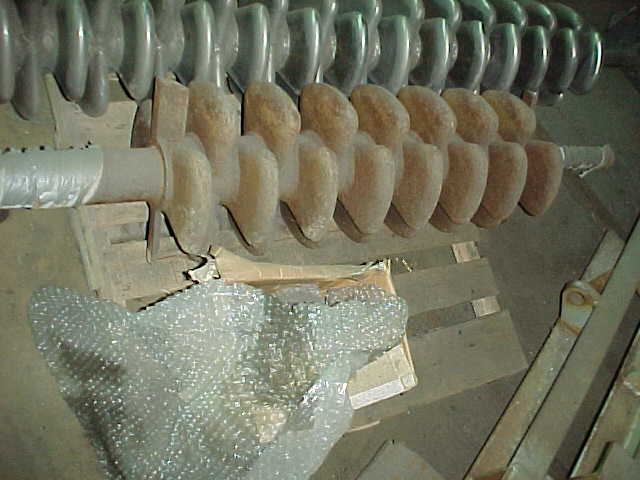

Carbon Steel Gale Process Solutions 1P1203JT Dryer-Porcupine - IPP# 12784

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P3012

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Diameter: 762 mm (30 in)

• With drive and panel coils utilizing steam as the heat transfer medium agitator is ;142 sq. ft Trough is; 208 sq. ft
• The working volume is, 39.3 cu.ft It has a single shaft design supported by pillow block bearings with packing glands on shaft output rpms, 37 Ratio:48:11 service rating HP= 35.1
• Motor:80/40 amps3 phase AC electric motor Trough heating by four separate Tranter plate coils designed for 150 psi at 375 degrees F All have 1" inlets and outlets with weld neck flanges Serial and NB numbers are a follows: NB # 22173-SN PC13125; NB # 22174 SN # PC13126, NB # 22176 SN # PC 13128, NB # 22175 SN # PC 13127
• Bottom opening *' valve with Jamsbury automatic actuator Steam lines to rotary joint are 1.5" inlet & outlet
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 3,658 mm (144 in). Number of Shafts: 1. Porcupine Surface Area: 13.2 m² (142 ft²). Total Heat Transfer Surface Area: 32.5 m² (350 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 2Q3016UTC-R

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• 30" dia x 16' long twin shaft porcupine processor
• Vaportight trough
• Both Rotors have a combined 392 sq ft of heating surface
• Approximately 140 cubic foot trough capacity
• Trough not jacketed
• Shaft speed 14 rpm
• UL label
• 30" vapor outlet on top cover, 12" x 12" feed port, 13" x 19" quick opening inspection door, 8" bottom clean outside discharge
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 762 mm (30 in). Length: 4,877 mm (192 in). Number of Shafts: 2. Porcupine Surface Area: 36.4 m² (392 ft²). Porcupine Operating Pressure: 5.2 bar (75 psi). Porcupine Operating Temperature: 104.4 °C (220 °F).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P3018UTC

Condition: Unused

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• Single agitator design. Trough is not jacketed Agitator is hardfaced and rated 150 psig @ 650 degree F vessel rated atmospheric @ 650 degree F Trough contains approximately 62 cu. ft. of processing space Completely fabricated and assembled except for the following: Johnson rotary joint, panel coils, drive motor, gear reduction, chain and sprocket
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 762 mm (30 in). Length: 5,486 mm (216 in). Number of Shafts: 1. Porcupine Surface Area: 20.7 m² (223 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 25.7 m² (277 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1208JTC

Condition: Unused

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• UNUSED One agitator.
• Jacketed trough
• Completely fabricated and assembled except for the following: Johnson rotary joint, drive motor, drive gear and coupling
• No cover, agitator 35 sq.ft. trough 55 sq.ft.
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 2,438 mm (96 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 5.1 m² (55 ft²). Porcupine Surface Area: 3.3 m² (35 ft²). Total Heat Transfer Surface Area: 8.4 m² (90 ft²). Size: 1208.
