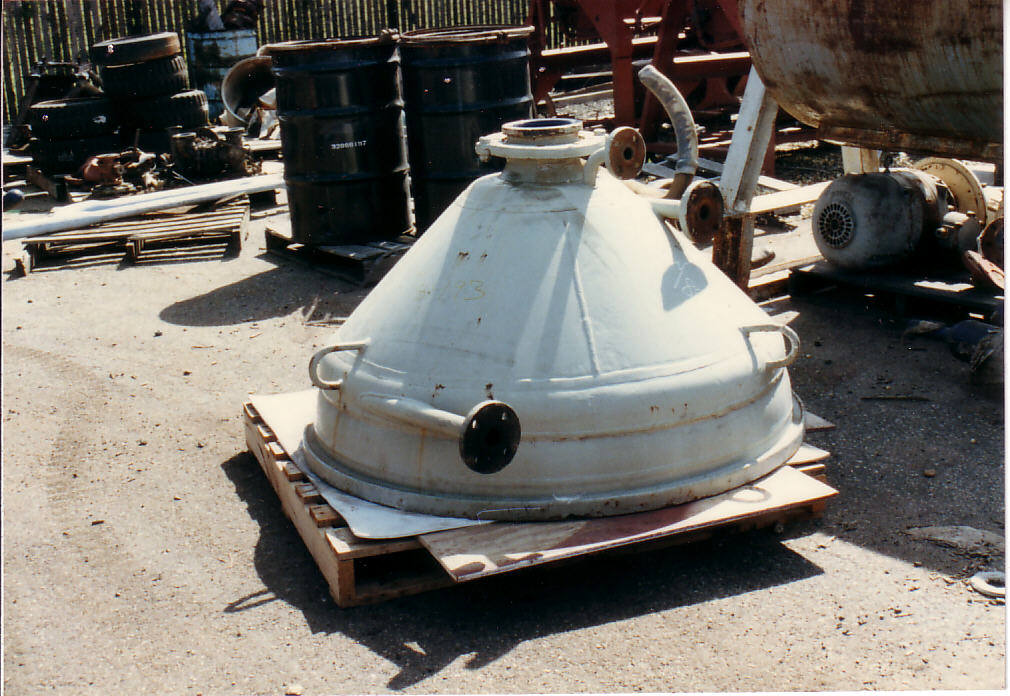

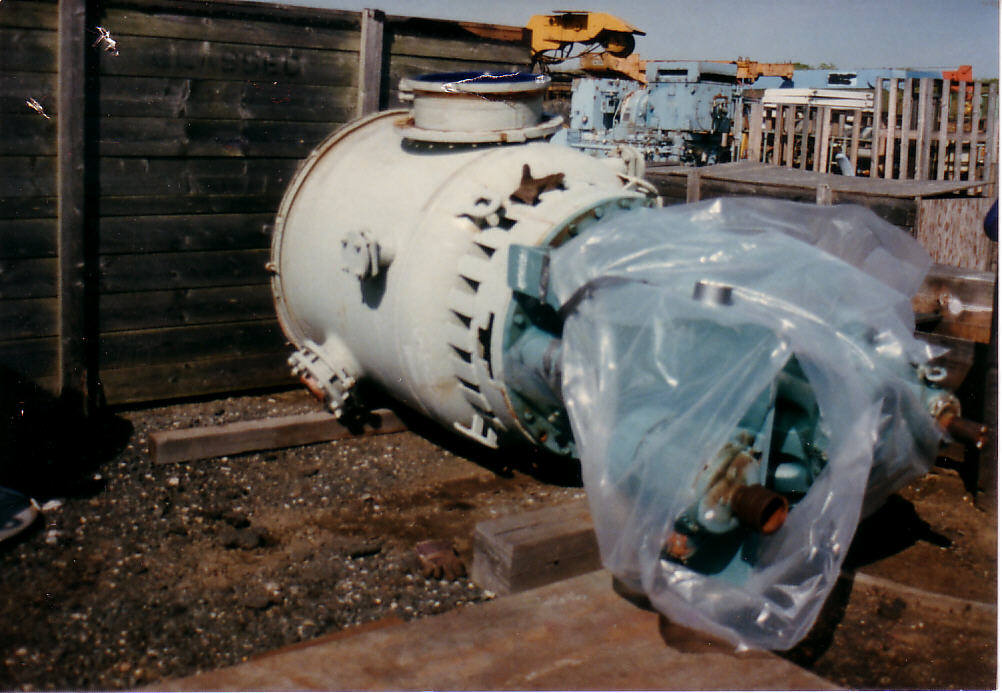

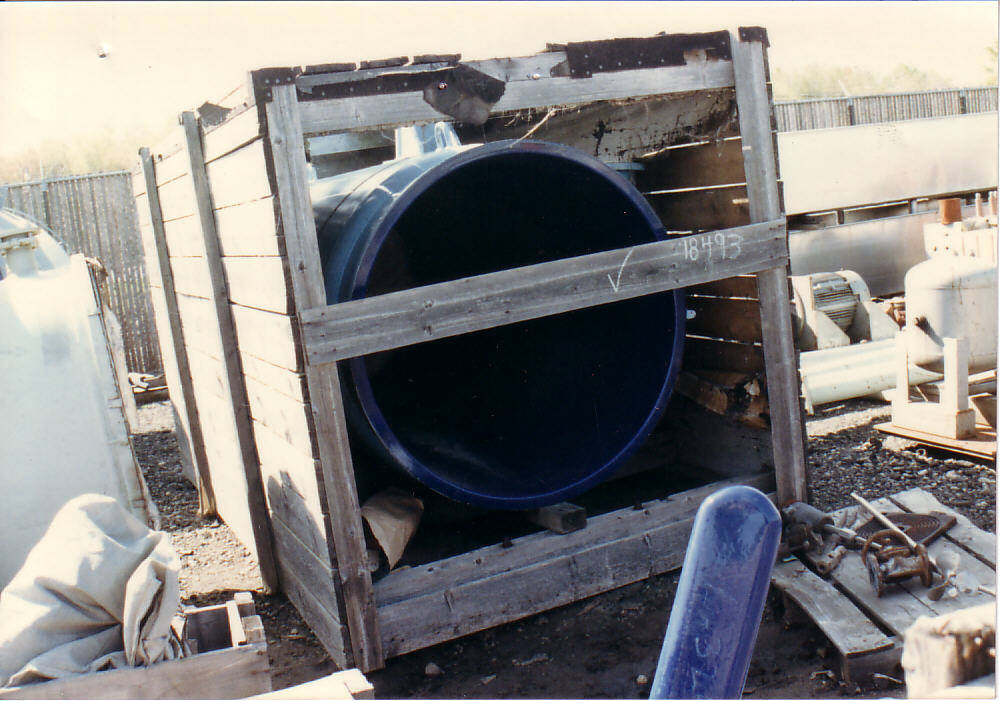

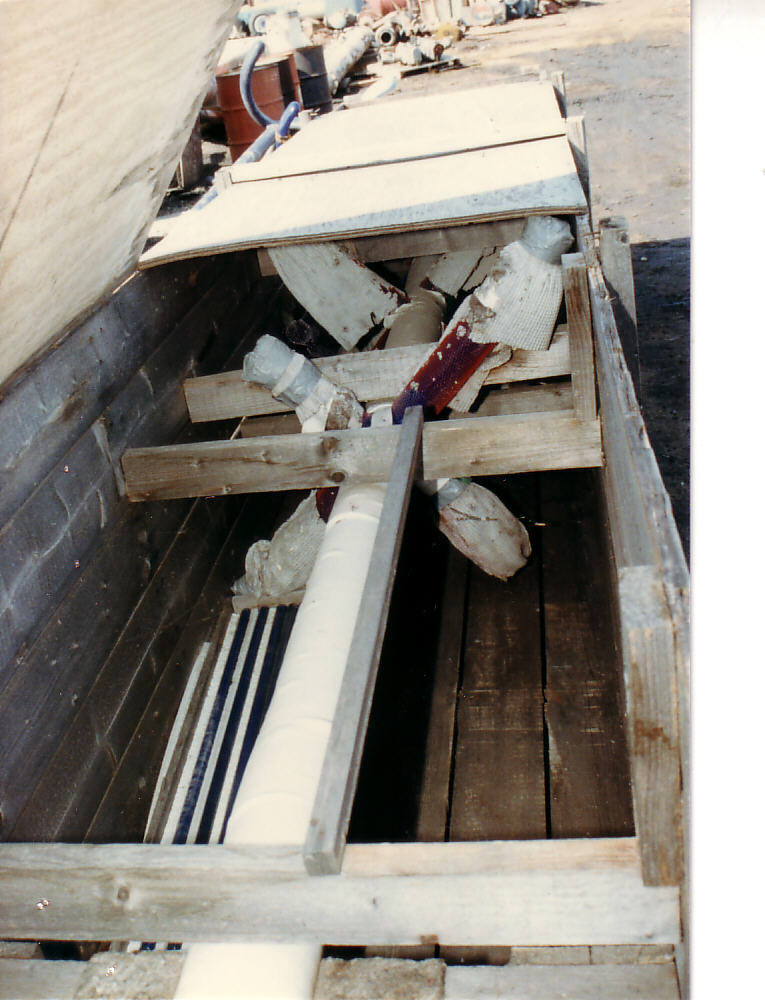

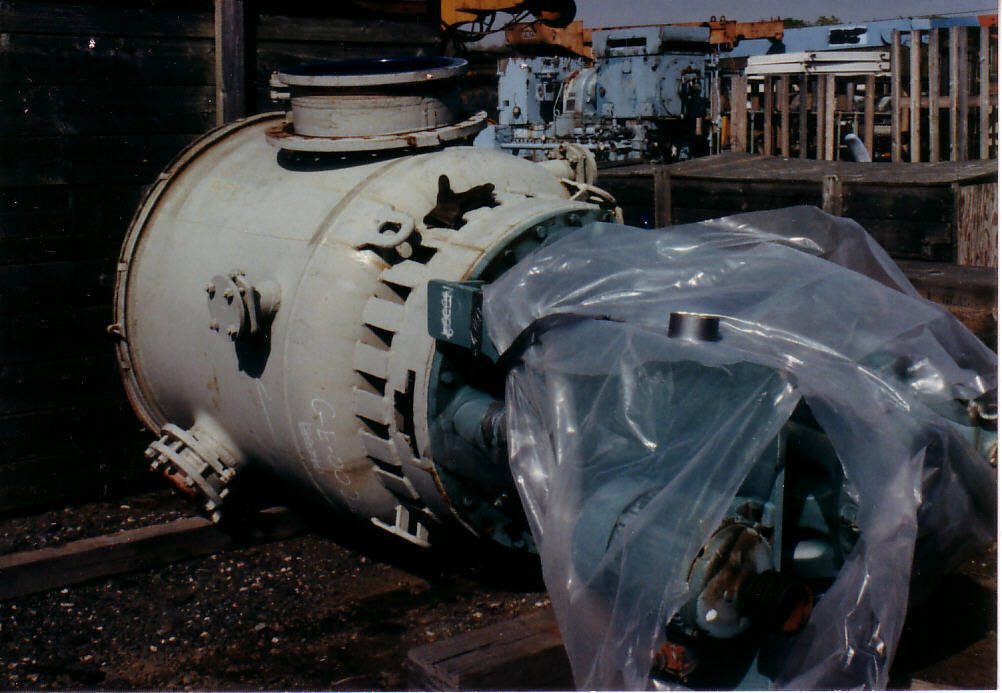

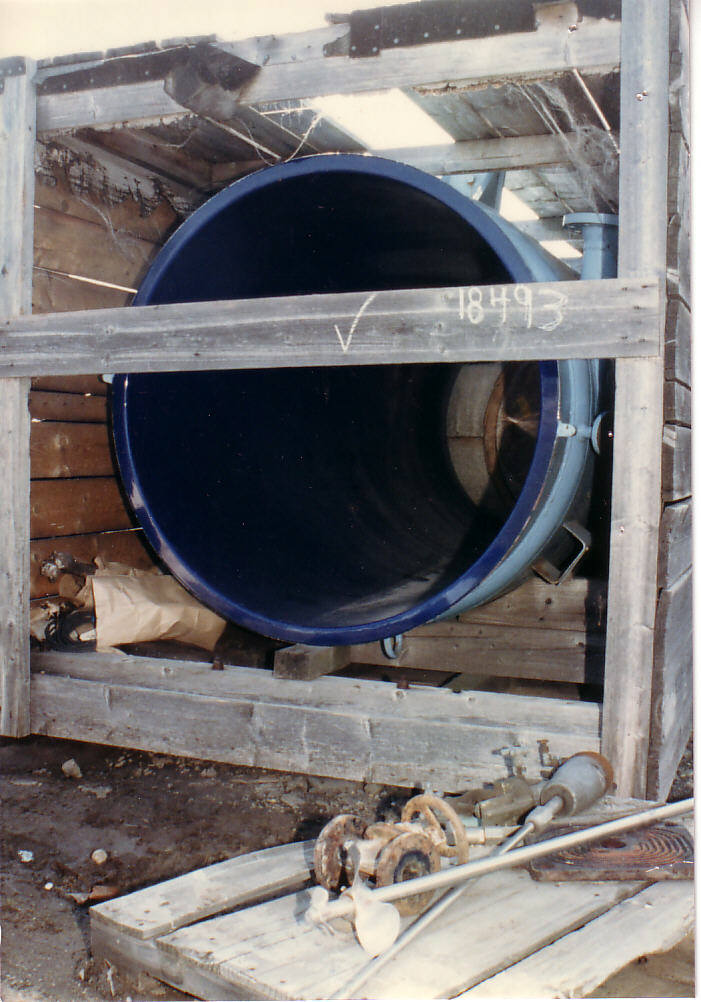

Mfd by Balfour/Sybron Order #48621 Lined w/glass #3115 CS jkt 98 psi @ 392 deg F Has glass covered int rotor w/graphite wipers. Retaining pins and rotor shaft are titanium. jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.Has 3-sections: clamped dish entrainment section, 48" dia x 42" str side; jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.
Drive is Pfaudler Type VS80-U21983, belt driven by approx 10 HP motor w/mech seal on shaft.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 79.4 kg/h (175 lb/h)
Total Heat Transfer Surface Area: 3.3 m² (35 ft²)
wiped film evaporator system. Jacket rated for 160 psi at 650 degrees F. Drive system by Pfaudler, 3 DTW With 158 Sq.Ft. external condenser, 316 SS tubes 316 SS tube sheet 316 SS heads CS shell NB # 43399 Shell side rated for 75 psi at 350 degrees F tube side rated for 75 psi at 350 degrees F. Serial # R384-1817. TEMA type BEU
Orientation: Vertical. Diameter: 914.4 mm (36 in). Height: 1,118 mm (44 in). Pressure: 1.03 bar (15 psi). Temperature: 343.3 °C (650 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Pfaudler
Model: 103.4-36V-274
Condition: Unused
Material: Stainless Steel 304
Evaporation Rate: 226.8 kg/h (500 lb/h)
Total Heat Transfer Surface Area: 9.5 m² (102 ft²)
Orientation: Vertical. Diameter: 889 mm (35 in). Height: 4,648 mm (183 in). Pressure: 5.9 bar (85 psi). Temperature: 300 °C (572 °F). Internal Condenser: Yes. Internal Condenser size: 2.4 m² (25.4 ft²). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: CGL.
