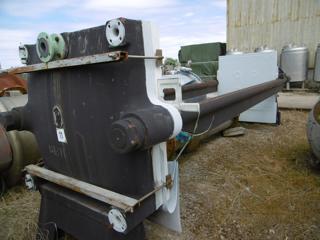

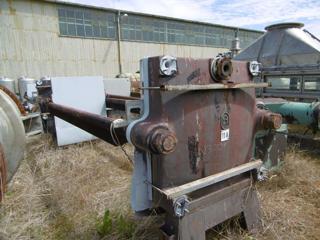

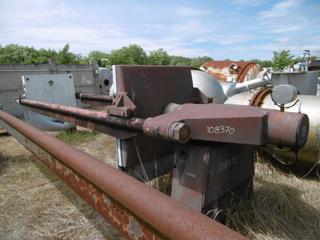

Polypropylene Rittershaus & Blecher Press Filter - IPP# 200696

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 209 m² (2,250 ft²)

Pressure: 6 bar (87 psi)

• Non gasketed recessed plate filter press.
• 1 & 3 button 2 eye open delivery with single hydraulic piston closer.

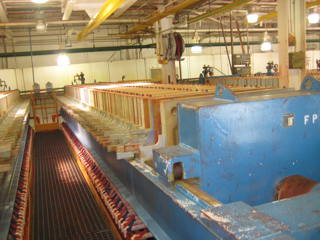

• Includes rubber belt conveyor that runs the length of the press for cake removal.

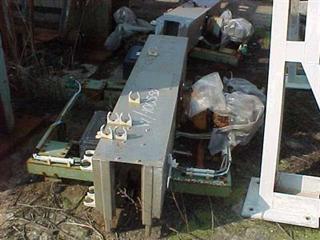

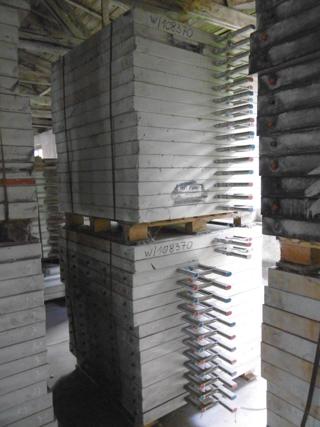

• Press has been dissasembled.

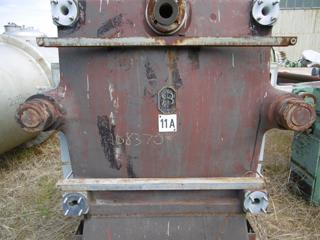

Cake Volume: 3.8 m3 (134.2 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 95. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plate Thickness: 79.8 mm (3.1 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

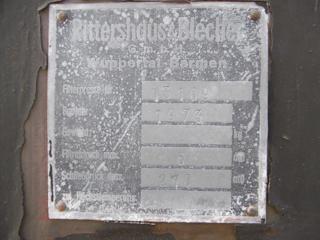

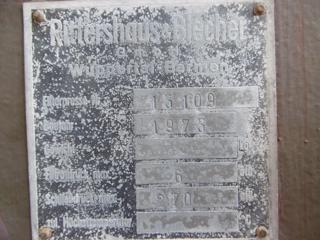

Model: 13109

Condition: Used

Material: Polypropylene

Filtration Area: 96.7 m² (1,050 ft²)

Pressure: 6 bar (87 psi)

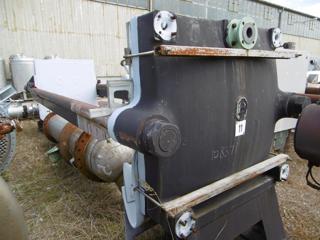

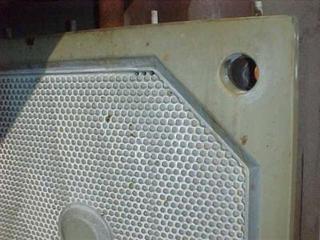

• (42) recessed plates with red and blue buttons for washing.
• (2) end plates 2.25 cubic meter cake capacity.
• 4-eye top center feed, closed delivery.

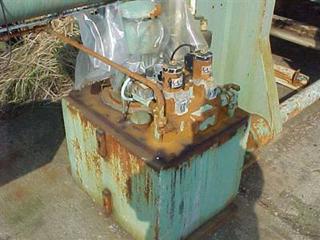

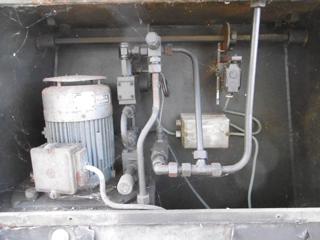

• Motorized hydraulic closure pressure 270 bar.

Cake Volume: 2,250 m3 (79,450 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 44. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Model: 13109

Condition: Used

Material: Polypropylene

Filtration Area: 96.7 m² (1,050 ft²)

Pressure: 6 bar (87 psi)

• (42) recessed plates with red and blue buttons for washing,
• (2) end plates. 2.25 cubic meter cake capacity.
• 4-eye top center feed, closed delivery.
• Motorizzed hydraulic closure pressure 270 bar.

Cake Volume: 2.2 m3 (79.5 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 44. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,200 mm (47.2 in). Plate Height: 1,200 mm (47.2 in). Plates Recessed: Yes. Plates Shifted By: Manual.

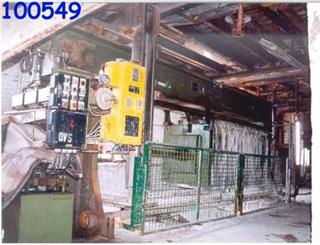

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 sq meter filter area, can be expanded to (60) plates (96 sq meter).
• 4 eye center feed,
• Motorized hydraulic closure. Rated 170-200 bar. With safety mirrors, Cake thickness approx 30 mm.
• Filter plates are suspended from an overhead beam.

Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Shifted By: Automatic.
