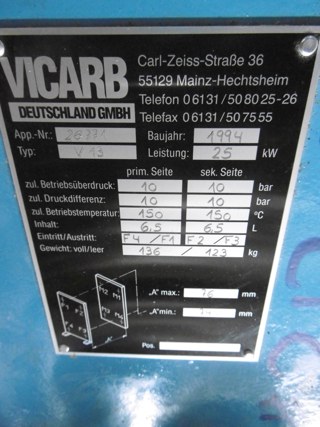

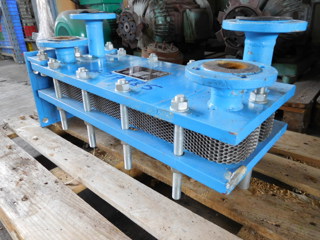

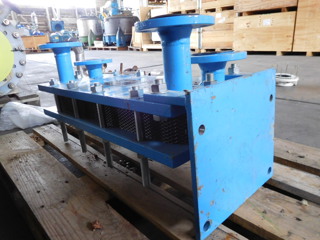

Hastelloy - C276 Plate and Frame Heat Exchanger - IPP# 201585

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: VICARB

Model: V13

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 2.5 m² (26.6 ft²)

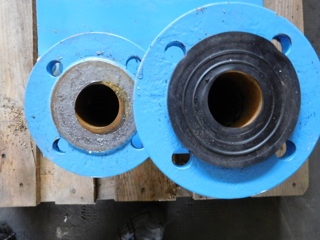

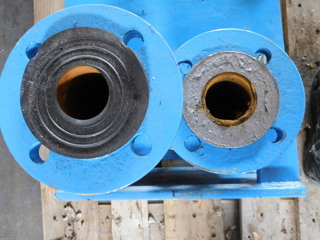

Nozzle Schedule: openings (4) DN50

• Primary side volume: 6.5 liters
• Secondary side volume: 6.5 liters

Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 19.

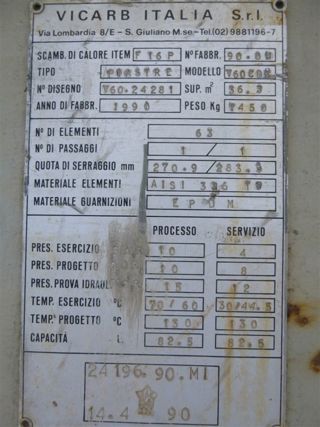

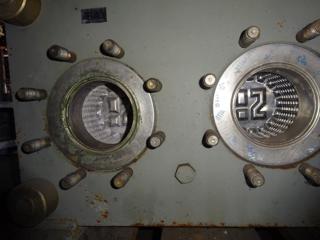

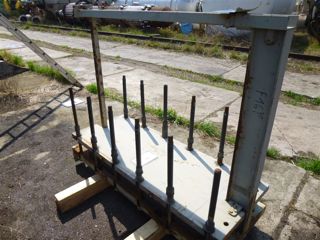

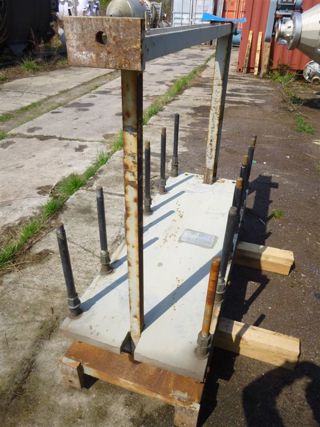

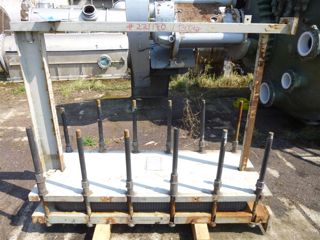

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: VICARB

Model: 760C95

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 36.3 m² (390.7 ft²)

Cold-side Pressure: 4 bar (58 psi)

Type: V60.SST.A carbon steel frame

Cold-side Temperature: 130 °C (266 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 130 °C (266 °F). Housing Material: Carbon Steel. Number of Plates: 34.

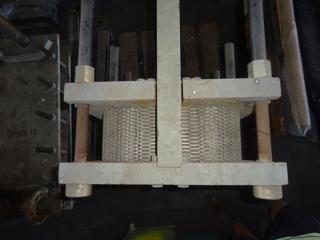

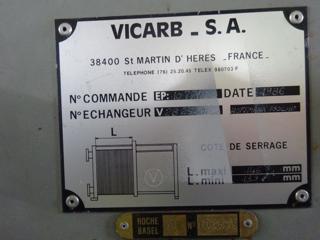

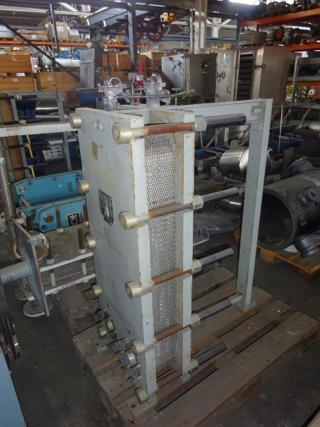

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: VICARB

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 13.9 m² (150 ft²)

Cold-side Pressure: 0.21 bar (3 psi)

Alfa Laval Plate Heat exchanger Process side rated 72.6 L, 3 Bar @ 75 degrees C; Service side rated 72.6L, 3 bar @ 95 degrees C.

Cold-side Temperature: 35 °C (95 °F). Hot-side Pressure: 0.21 bar (3 psi). Hot-side Temperature: 23.9 °C (75 °F).

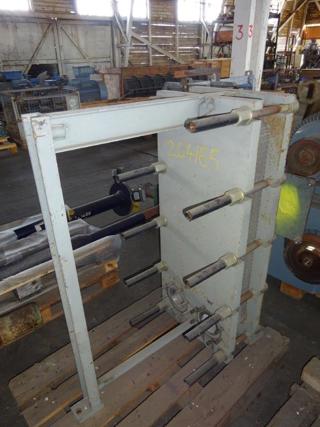

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: VICARB

Model: V28CH

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 8.1 m² (87.4 ft²)

Nozzle Schedule: - Openings: 4-100mm

2-pass both sides

Cold-side Pressure: 4 bar (58 psi). Cold-side Temperature: 24.9 °C (76.8 °F). Hot-side Pressure: 4 bar (58 psi). Hot-side Temperature: -1.11 °C (30 °F). Number of Plates: 31.
