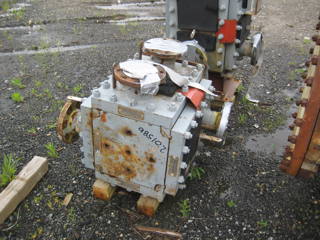

13.9 m² (150 ft²) Stainless Steel Austenitic Plate and Frame Heat Exchanger For Sale - IPP# 221171

Type: Heat Exchanger

Subtype: Plate and Frame

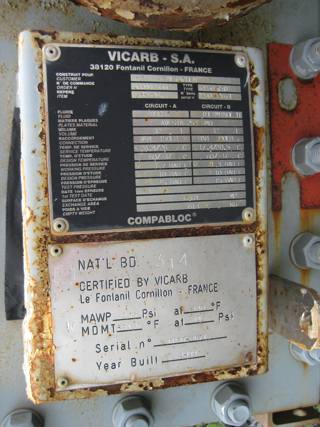

Manufacturer: VICARB

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 8.6 m² (93 ft²)

Nozzle Schedule: Openings: 2-3" service side, 2-2" process side.

Rated 145 PSI @-34/+140 degrees F on process side, 145 PSI @ -34/+ 140 degrees F on service side.

Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 60 °C (140 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 60 °C (140 °F).

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: VICARB

Model: V13

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 2.5 m² (26.6 ft²)

Nozzle Schedule: openings (4) DN50

• Primary side volume: 6.5 liters
• Secondary side volume: 6.5 liters

Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 19.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: VICARB

Model: 760C95

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 36.3 m² (390.7 ft²)

Cold-side Pressure: 4 bar (58 psi)

Type: V60.SST.A carbon steel frame

Cold-side Temperature: 130 °C (266 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 130 °C (266 °F). Housing Material: Carbon Steel. Number of Plates: 34.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: VICARB

Model: V28CH

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 8.1 m² (87.4 ft²)

Nozzle Schedule: - Openings: 4-100mm

2-pass both sides

Cold-side Pressure: 4 bar (58 psi). Cold-side Temperature: 24.9 °C (76.8 °F). Hot-side Pressure: 4 bar (58 psi). Hot-side Temperature: -1.11 °C (30 °F). Number of Plates: 31.
