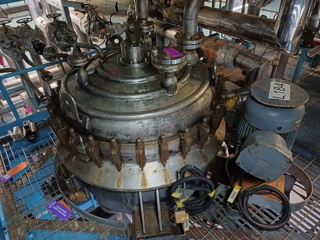

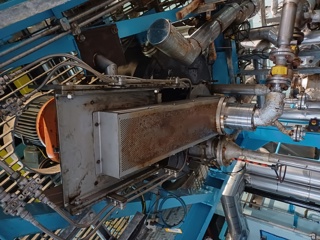

Pressure Leaf Filter 4.6 m² (50 ft²) Hastelloy - C22 For Sale - IPP# 203742

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Filtroba

Model: 6.3

Condition: Used

Material: Hastelloy - C22

Filtration Area: 6.3 m² (67.8 ft²)

Diameter: 1.1 mm (0.04 in)

• design pressure internal -1/10 barg @ 200 degrees C,
• jacket -1/10 barg @ 200 degrees C,
• filter pack (heating) 10 bar + full vacuum @ 200 degrees C,
• electro polished Hastelloy C22 internals,
• elements are hot water heated
• shaft with rotary union joint
• batch operation
• Hazardous area classification is Zone 1, Gas Group IIC, Temp T4

Orientation: Vertical. Pressure: 10 bar (145 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 200 °C (392 °F). Cake Volume: 0.29 m3 (10.1 ft3). Seal Type: Mechanical. Number of Filter Elements: 5. Filter Element Details: 5 layers sintered 'Absolta' 15 micron.
