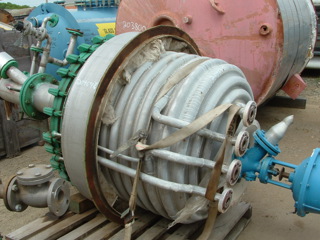

Stainless Steel 316 Batch-Type Agitated Reactor - IPP# 204542

  • Stainless Steel 316 Batch-Type Agitated Reactor - IPP# 204542 Stainless Steel 316 Batch-Type Agitated Reactor - IPP# 204542
  • Stainless Steel 316 Batch-Type Agitated Reactor - IPP# 204542
Overview
Reactor
Batch-Type Agitated
Alpha Ltd. (Switzerland)
Used
Stainless Steel 316
189.3 L (50 gallons)
Yes
Jacket/Internal Coil
Stainless Steel 316
Dimensions
609.6 mm (24 in)
558.8 mm (22 in)
Heads
Dish
Dish
Inlets & Outlets
Openings include: Top - (1) 6" hand hole with cover, (2) 4", (1) 3/4"; Bottom (1) 2" outlet.
