Stainless Steel 304 Batch-Type Agitated Reactor - IPP# 204763

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Alloy Fab

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 2.07 bar (30 psi)

straight side and top head 304SS and bottom head 316SS

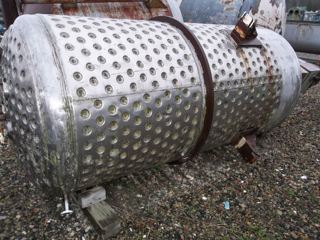

12 gauge dimple jkt
head .1875"" thick, jkt .109"" thick

Internal Full Vacuum: Yes. Internal Temperature: 177 °C (350 °F). Jacket Pressure: 6.89 bar (100 psi). Jacket Temperature: 177 °C (350 °F). Jacket Material of Construction: Inconel. Orientation: Vertical. Diameter: 1,372 mm (54 in). Straight Side Length: 2,642 mm (104 in). Support Type: Lugs.

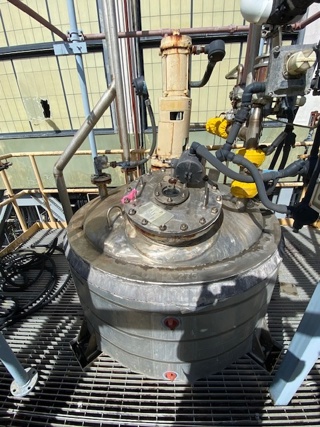

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Alloy Fab

Condition: Refurbished/Rebuilt

Material: Hastelloy - C276

Capacity (Design): 1,325 L (350 gallons)

Internal Pressure: 6.89 bar (100 psi)

• Note for pressure and seal rating" "Pressure in the pressure vessel internal is limited to 100 psig at 450F for this specific mechanical seal design.  If higher internal pressure needed up to the original 600 psig @600F rating, an alternate seal for higher pressure rating should be considered as should gaskets for the specific application."
• Reconditioned Vessel rated for 600 psi at 600 degrees F. , jacket good for FV/90 psi at 400 psi.

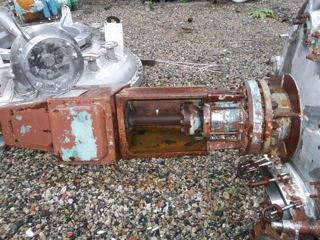

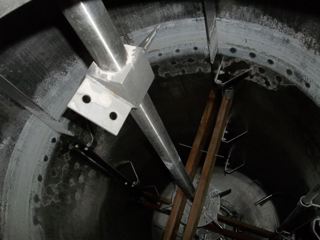

• Assembled with a reconditioned 4 RDTW drive with a mechanical seal with new bearings and seals and motor.
• New -Gear box recondition, new mechanical seal, agitator , assembly run tested, as per Romania

Internal Full Vacuum: Yes. Internal Temperature: 232 °C (450 °F). Jacket Pressure: 6.21 bar (90 psi). Jacket Temperature: 204 °C (400 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,219 mm (48 in). Straight Side Length: 965 mm (38 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Alloy Fab

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 3.45 bar (50 psi)

Head .3125" thick, Jacket is .109" thick.

Internal Full Vacuum: Yes. Internal Temperature: 65.6 °C (150 °F). Jacket Pressure: 6.89 bar (100 psi). Jacket Temperature: 37.8 °C (100 °F). Jacket Material of Construction: Stainless Steel Other. Orientation: Vertical. Agitation: Yes. Diameter: 1,524 mm (60 in). Straight Side Length: 2,743 mm (108 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Alloy Fab

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,271 L (600 gallons)

Internal Pressure: 2.76 bar (40 psi)

Internal Full Vacuum: Yes. Internal Temperature: 204 °C (400 °F). Jacket Pressure: 12.4 bar (180 psi). Jacket Temperature: 204 °C (400 °F). Jacket Material of Construction: Stainless Steel 304L. Orientation: Vertical. Agitation: Yes. Diameter: 1,372 mm (54 in). Straight Side Length: 1,524 mm (60 in). Support Type: Lugs.
