low pressure hydrogen compressor, vertical,two stage. V-belts Hydrogen humidity 100% compressor, capacity 65 kW, suction pressure, 1 stage 1.05 bar,30 C; 2nd stage 3,0 bar/34 C; discharge pressure abs 1 st stage 3.2 bar/145 C; 2nd stage 7.1 bar/122 C. 1st stage cylinder dia 370mm; 2nd stage 220mm. Cylinder material Ni-resist. Safety valve on 1st stage react at 3.5 bar; on 2nd stage 7.5 bar. Cooling water 5 cbm inlet temp 24 C@3 bar.
Type: Compressor
Subtype: Reciprocating
Manufacturer: Neuman Esser
Model: BV 35-145/65
Condition: Used
Compressor Type: Reciprocating
Inlet Pressure: 6 bar (87 psi)

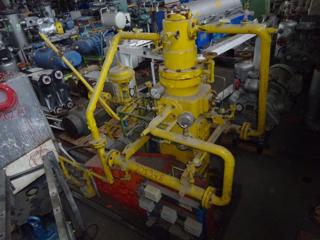

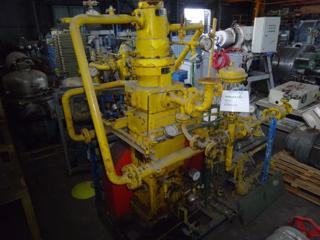

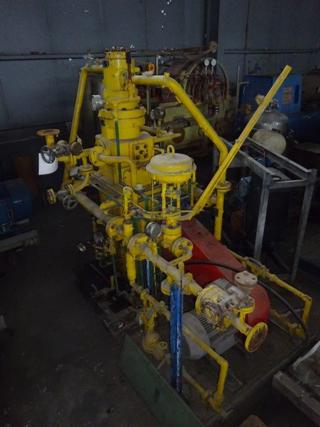

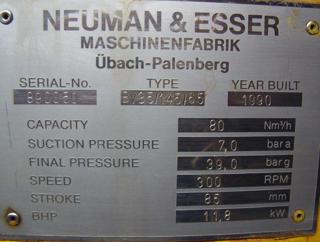

high pressure hydrogen compressor vertical, two stage, type BV 35-145/65 Rated capacity 80 cbm/hr,300 rpm, stroke 85 mm, drive 11,8 kW. V belt driven by 15 kw, 50 hz, 1460 rpm. Hydrogen humidity 100%. Suction 1st stage 6 bar/30 C, suction 2nd stage 22.2 bar/34 C, discharge 1st stage 22.4 bar/148C, discharge 2nd stage 40 bar/75 C, 1st stage cylinder dia 145mm, 2nd stage 65mm, cylinder mat GGz 25,safety valve on 1st stage reacts at 21.5 bar,on 2nd at 43 bar,cooling water 0.3 cbm/hrinlet 10C,outlet 22c@3 bar
Discharge Pressure: 40 bar (580.2 psi). Flow Rate: 80 m3/h (47.1 CFM). Inlet Diameter: 50 mm (1.97 in). Speed (RPM): 300.
