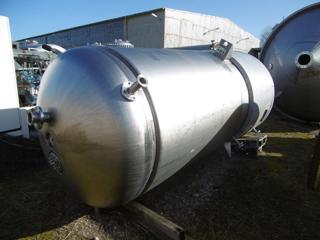

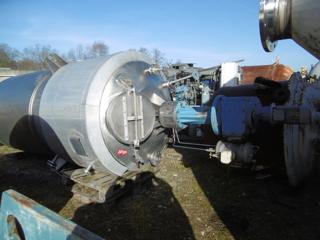

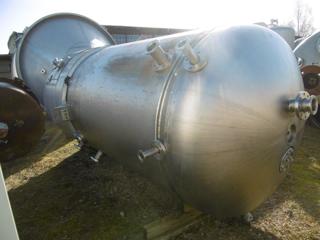

agitated reactor with coils, Pressure Vessel Code TKN 1987 (Swedish), Vessel is heated with (3) steam tube bundles mounted through the lower side wall, each tube bundle has 2,3 square meters of heating surface area, they are rated for 3 bar at 143 degrees C., and each has 19 tubes at 800 mm long, each have a bolted carbon steel head. Tube Material is titanium ASTM B 265 Gr.2. Top mounted agitator drive, SEW eurodrive Type RF87AM123S/M, max moment 1280 Nm, 700mm span,
Type: Reactor
Subtype: Batch-Type Agitated

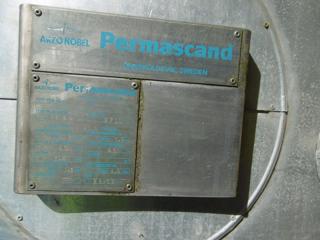

Manufacturer: Permascand (Sweden)
Condition: Used
Material: Titanium
Capacity (Design): 7,400 L (1,955 gallons)
Internal Pressure: 1 bar (14.5 psi)
6.65 Cu meter 2-sets of jacket on straight side and 1-set of jacket on bottom dish

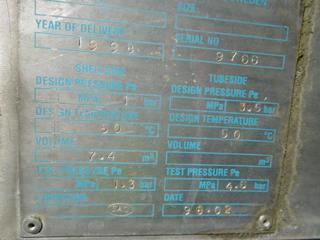

Internal Temperature: 50 °C (122 °F). Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 50 °C (122 °F). Agitation: Yes. Diameter: 1,760 mm (69.3 in). Straight Side Length: 3,000 mm (118.1 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: CARL GANZLER
Condition: Used
Material: Titanium
Clad: Yes
Capacity (Design): 15,200 L (4,015 gallons)
Internal Pressure: 10 bar (145 psi)
weld domed top, Ekato type HWL-1100-D agitator drive, 28-70 kw, 89-44 rpm, direct driven by electric motor, (3) sets of 2-blade pitched paddles on shaft, (4) internal baffles on sidewall, TUV certified
Internal Temperature: 300 °C (572 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 300 °C (572 °F). Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 2,570 mm (101.2 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Pfaudler
Condition: Used
Material: Titanium
Clad: Yes
Capacity (Design): 3,785 L (1,000 gallons)
Internal Pressure: 12.4 bar (180 psi)
Inconel dimple jkt on straight side and bottom head motor 3/60/220/440 Cladding: 3/16" thick titanium 20% palladium cladding
Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Inconel. Agitation: Yes. Diameter: 1,676 mm (66 in). Straight Side Length: 1,524 mm (60 in). Support Type: Legs.
