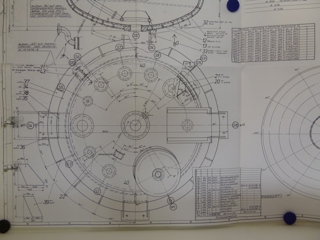

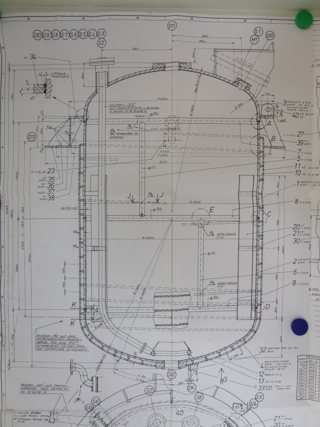

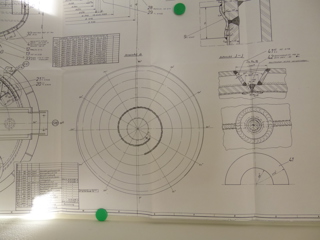

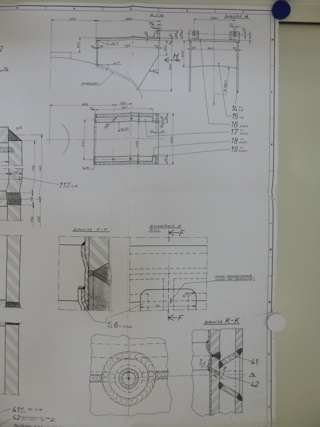

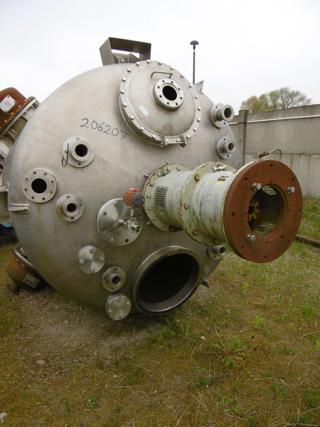

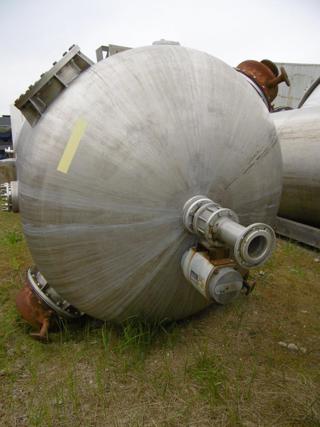

7,400 L (1,955 gallons) Titanium Batch-Type Agitated Reactor For Sale - IPP# 206208

Type: Reactor

Subtype: Batch-Type Agitated

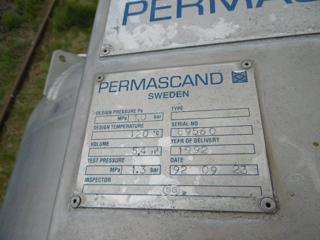

Manufacturer: Permascand (Sweden)

Condition: Used

Material: Titanium

Capacity (Design): 5,400 L (1,427 gallons)

Internal Pressure: 1 bar (14.5 psi)

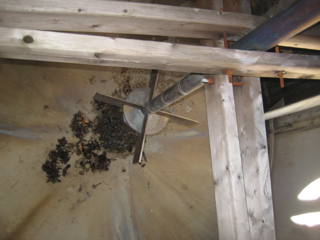

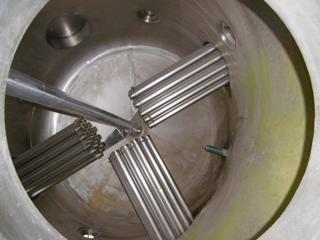

agitated reactor with coils, Pressure Vessel Code TKN 1987 (Swedish), Vessel is heated with (3) steam tube bundles mounted through the lower side wall, each tube bundle has 2,3 square meters of heating surface area, they are rated for 3 bar at 143 degrees C., and each has 19 tubes at 800 mm long, each have a bolted carbon steel head. Tube Material is titanium ASTM B 265 Gr.2. Top mounted agitator drive, SEW eurodrive Type RF87AM123S/M, max moment 1280 Nm, 700mm span,

Internal Temperature: 120 °C (248 °F). Agitation: Yes. Diameter: 1,900 mm (74.8 in). Straight Side Length: 2,300 mm (90.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: CARL GANZLER

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 15,200 L (4,015 gallons)

Internal Pressure: 10 bar (145 psi)

weld domed top, Ekato type HWL-1100-D agitator drive, 28-70 kw, 89-44 rpm, direct driven by electric motor, (3) sets of 2-blade pitched paddles on shaft, (4) internal baffles on sidewall, TUV certified

Internal Temperature: 300 °C (572 °F). Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 300 °C (572 °F). Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 2,570 mm (101.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

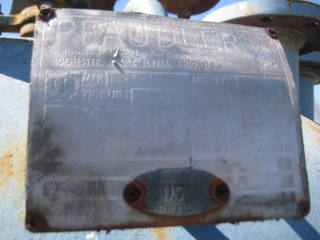

Manufacturer: Pfaudler

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 12.4 bar (180 psi)

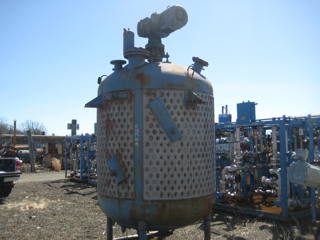

Inconel dimple jkt on straight side and bottom head motor 3/60/220/440 Cladding: 3/16" thick titanium 20% palladium cladding

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Inconel. Agitation: Yes. Diameter: 1,676 mm (66 in). Straight Side Length: 1,524 mm (60 in). Support Type: Legs.
