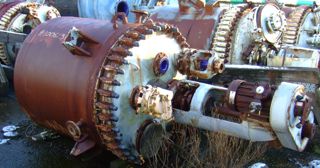

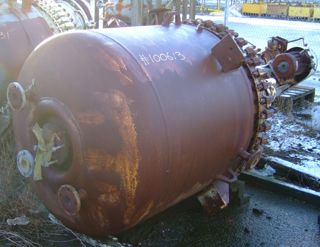

Glasslined DeDietrich STA Batch-Type Agitated Reactor - IPP# 207128

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STA

Condition: Used

Material: Glasslined

Capacity (Design): 980 L (258.9 gallons)

Internal Pressure: 6 bar (87 psi)

rated -1/6 bar @ 200 degrees F internal;
6 bar @ 200 degrees C
Jacket volume: 200 liter,
2,5 kw/3/50Hz/380V/5,2A/ 1420rpm motor

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 100 mm (3.9 in). Straight Side Length: 1,200 mm (46.5 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STA

Condition: Used

Material: Glasslined

Capacity (Design): 3,800 L (1,000 gallons)

Internal Pressure: 6 bar (87 psi)

Ekato drive HWL 2060,
Lining: Glass 3008

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 1,400 mm (55.1 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STA

Condition: Used

Material: Glasslined

Capacity (Design): 980 L (258.9 gallons)

Internal Pressure: 6 bar (87 psi)

Internal pressure -1/6bar@ 200 Degrees C, 980 liter,
jacket 6 bar@ 200 Degrees C, 200 liter,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,200 mm (46.5 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: STA

Condition: Used

Material: Glasslined

Capacity (Design): 875 L (231.2 gallons)

Internal Pressure: 2 bar (29 psi)

Glass type: #2222N
Lighting: Yes
Contract number: 414834
Standards: Designed to APAVE standards
800mm dia.
Driven by 2.2 KW, 3/50/220/380 volt
Designed to APAVE standards.
w/fluid gear and varispeed pulley

Internal Full Vacuum: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,000 mm (39.4 in). Straight Side Length: 1,200 mm (46.5 in). Support Type: Lugs.
