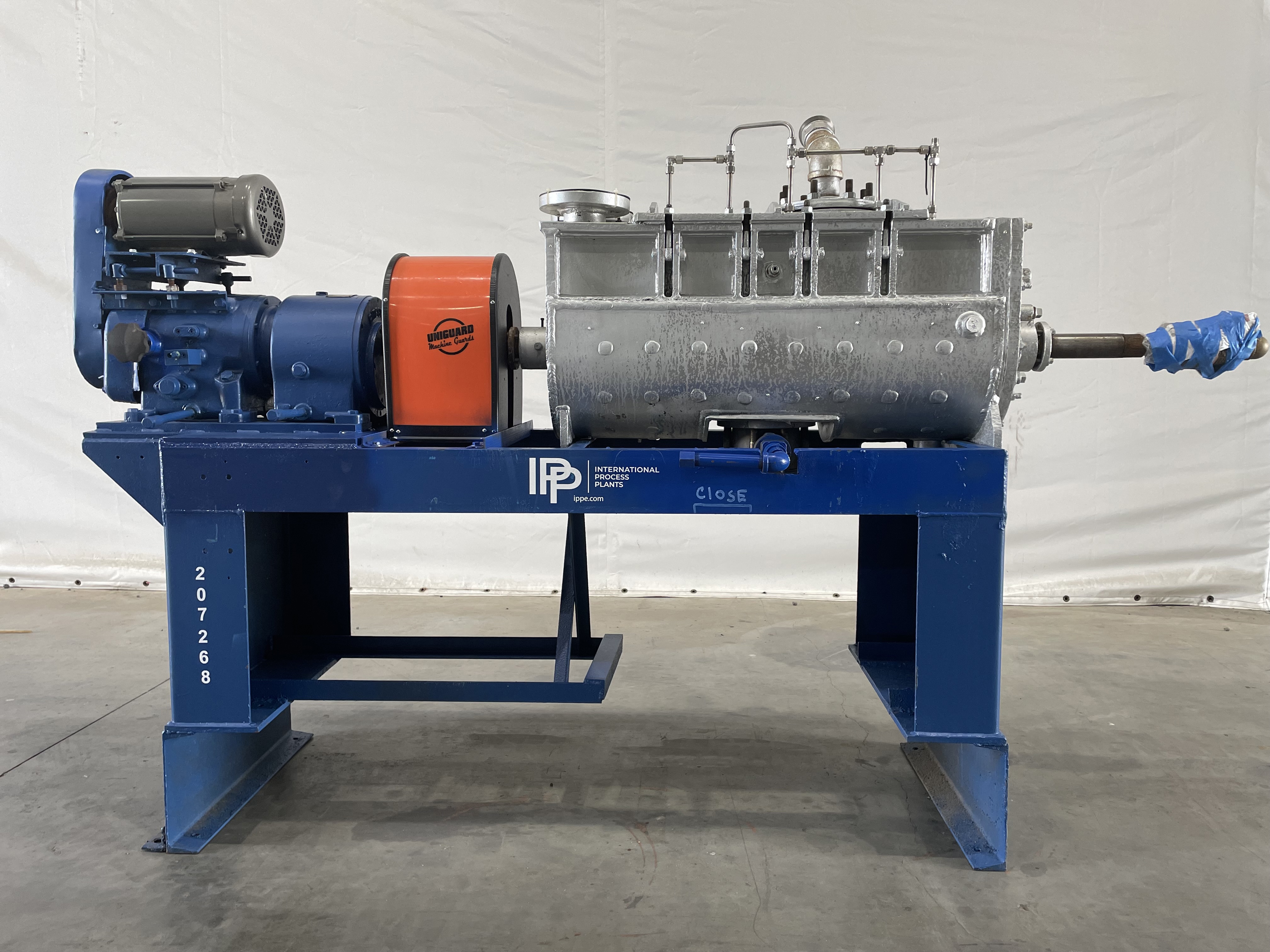

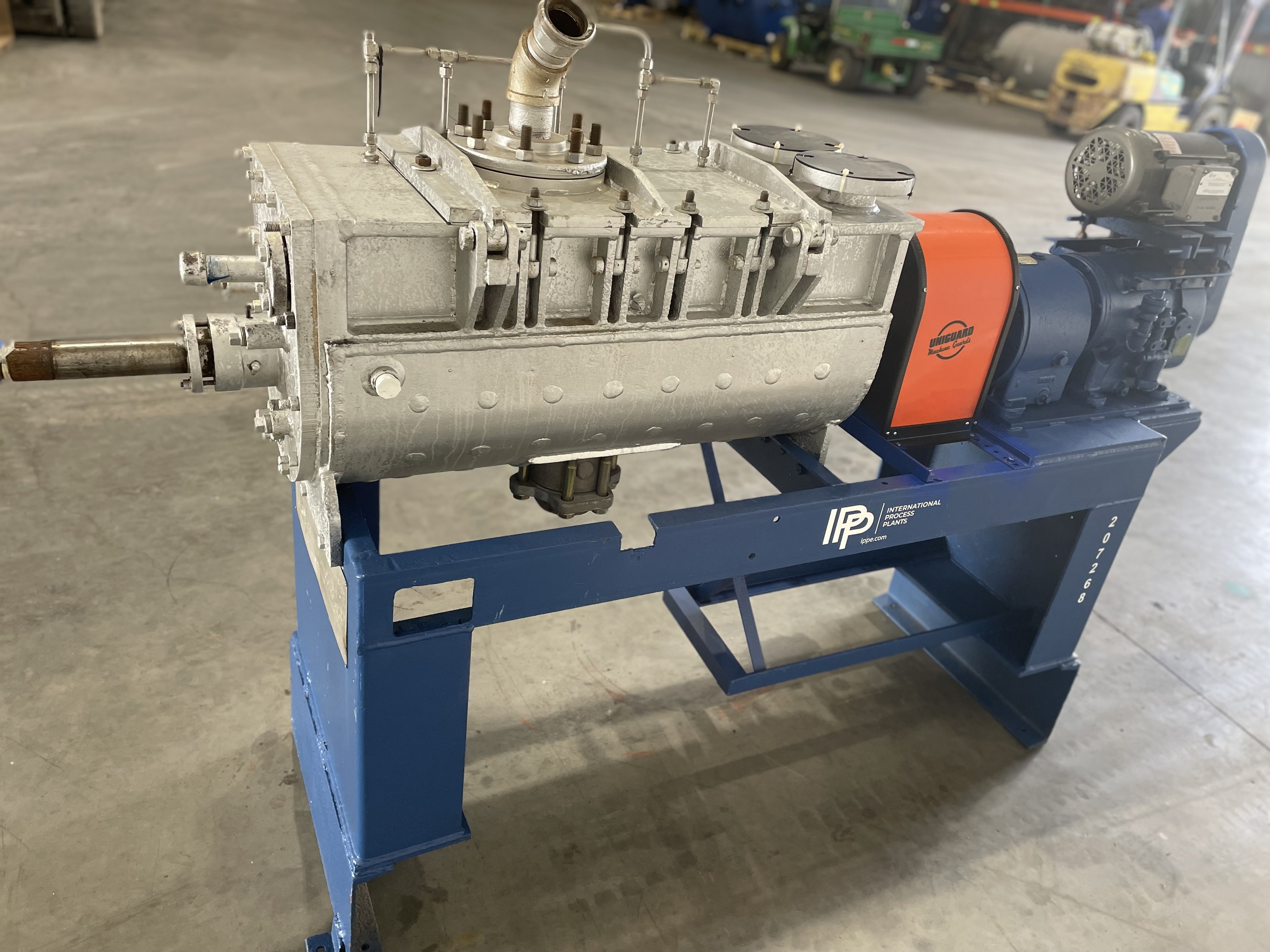

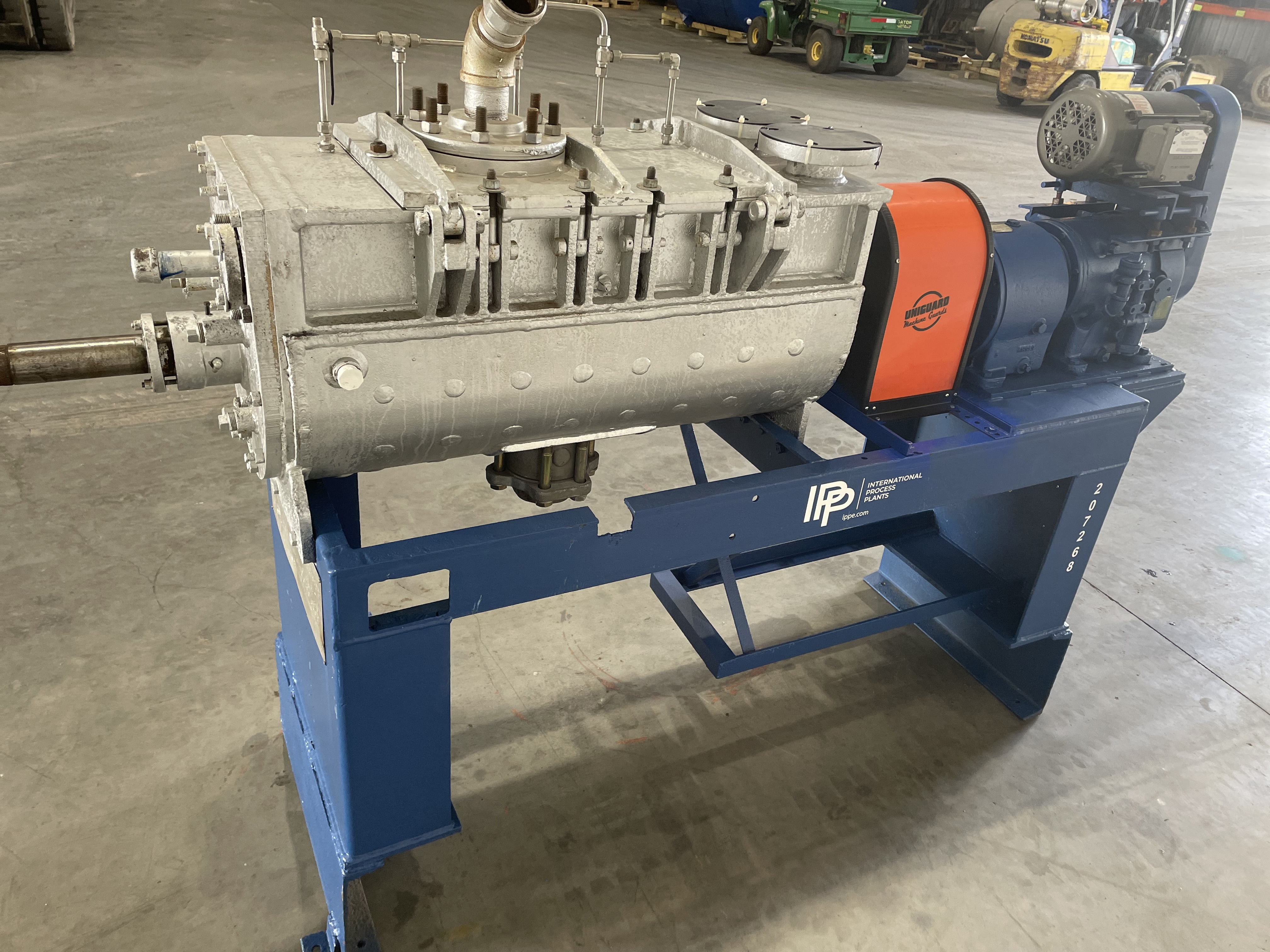

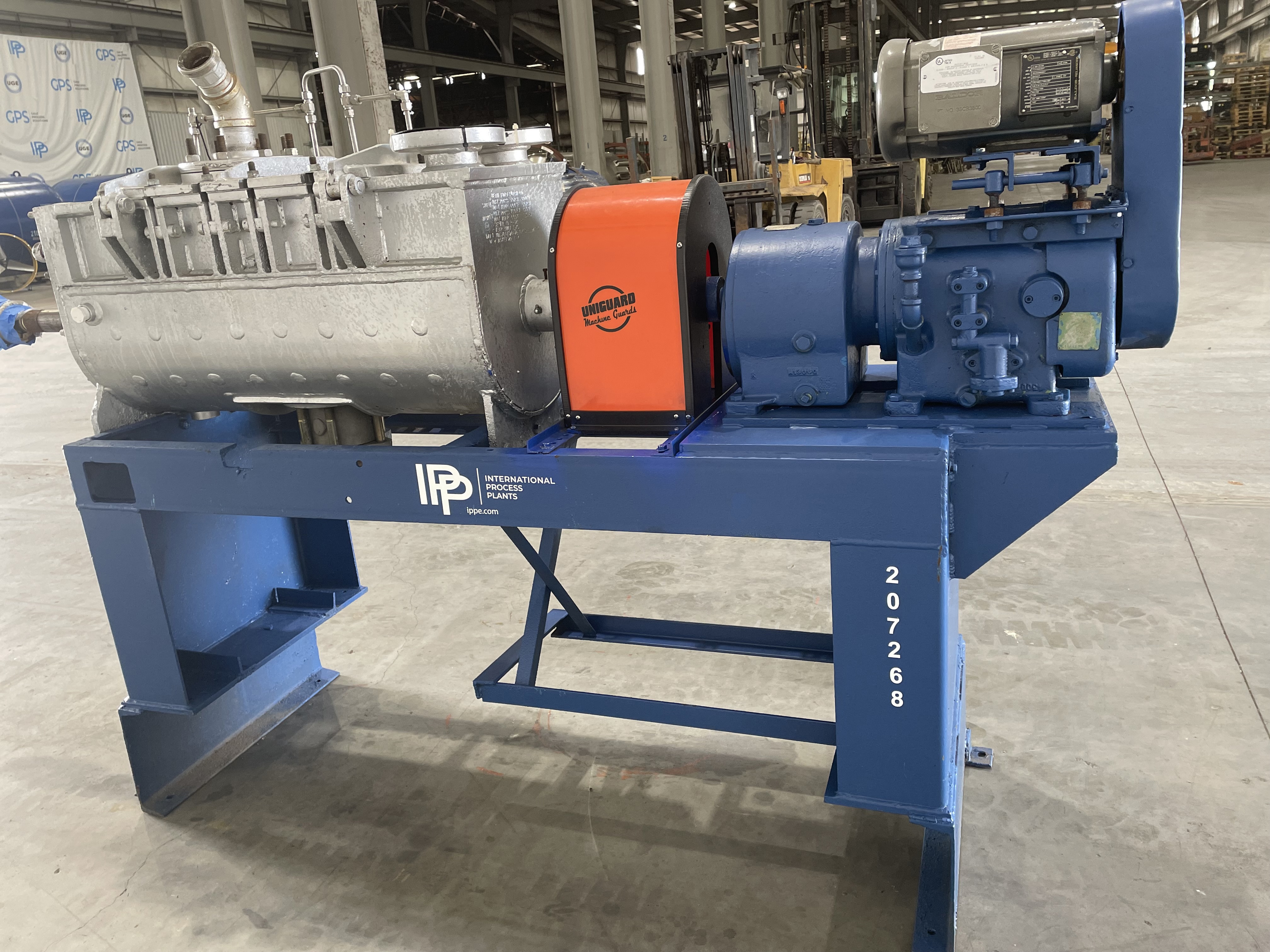

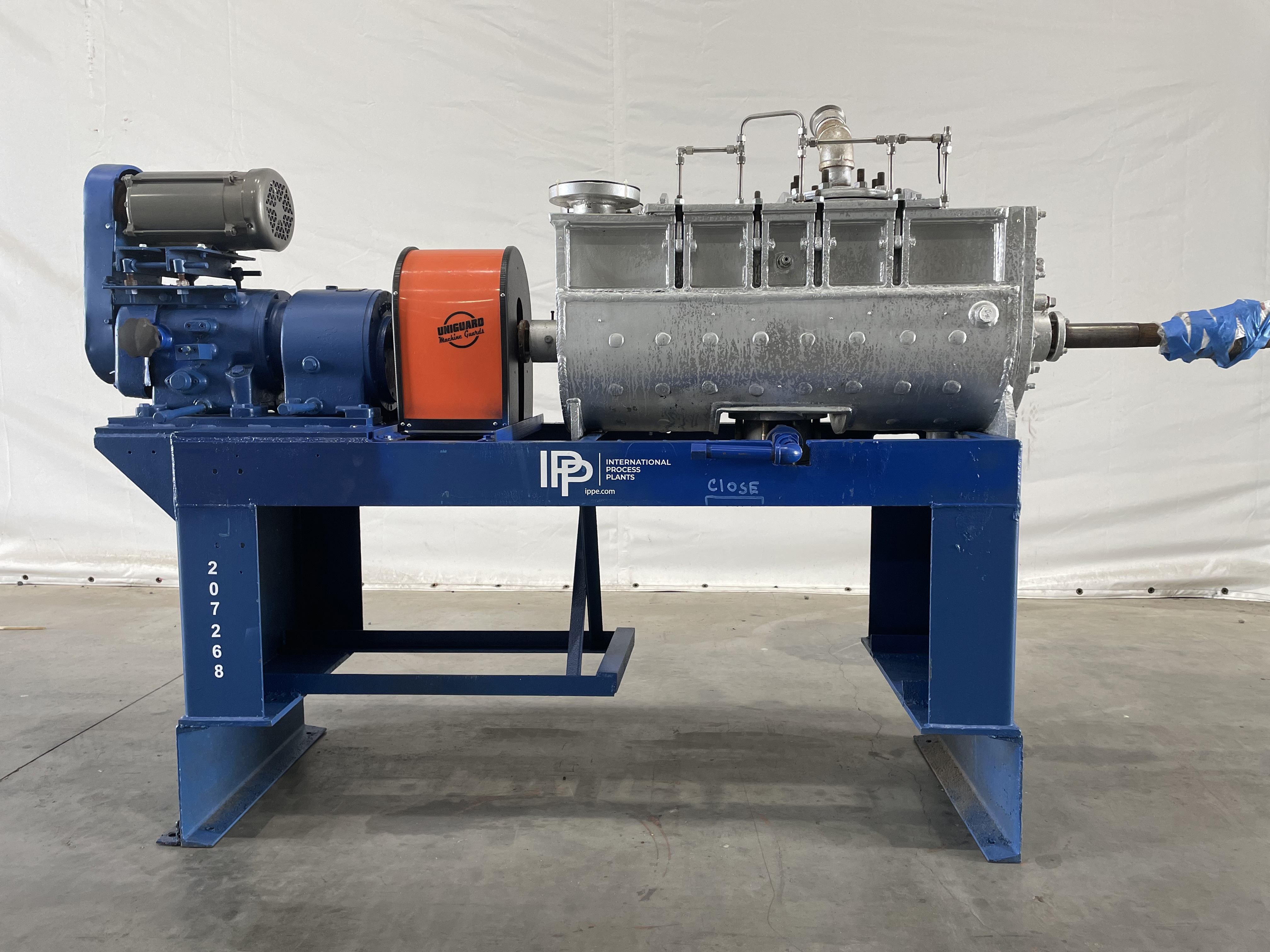

Type: Dryer-Porcupine

Manufacturer: Bethlehem Corp

Model: 1P1207JTB

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• processor Single agitator design Agitator 12" diameter, 7' long
• Heating medium hot oil or steam Vessel rated 15 psig and full vacuum @ 320 degree F, jacket rated 75 psig @ 320 degree F, agitator rated 75 psig @ 320 degree F

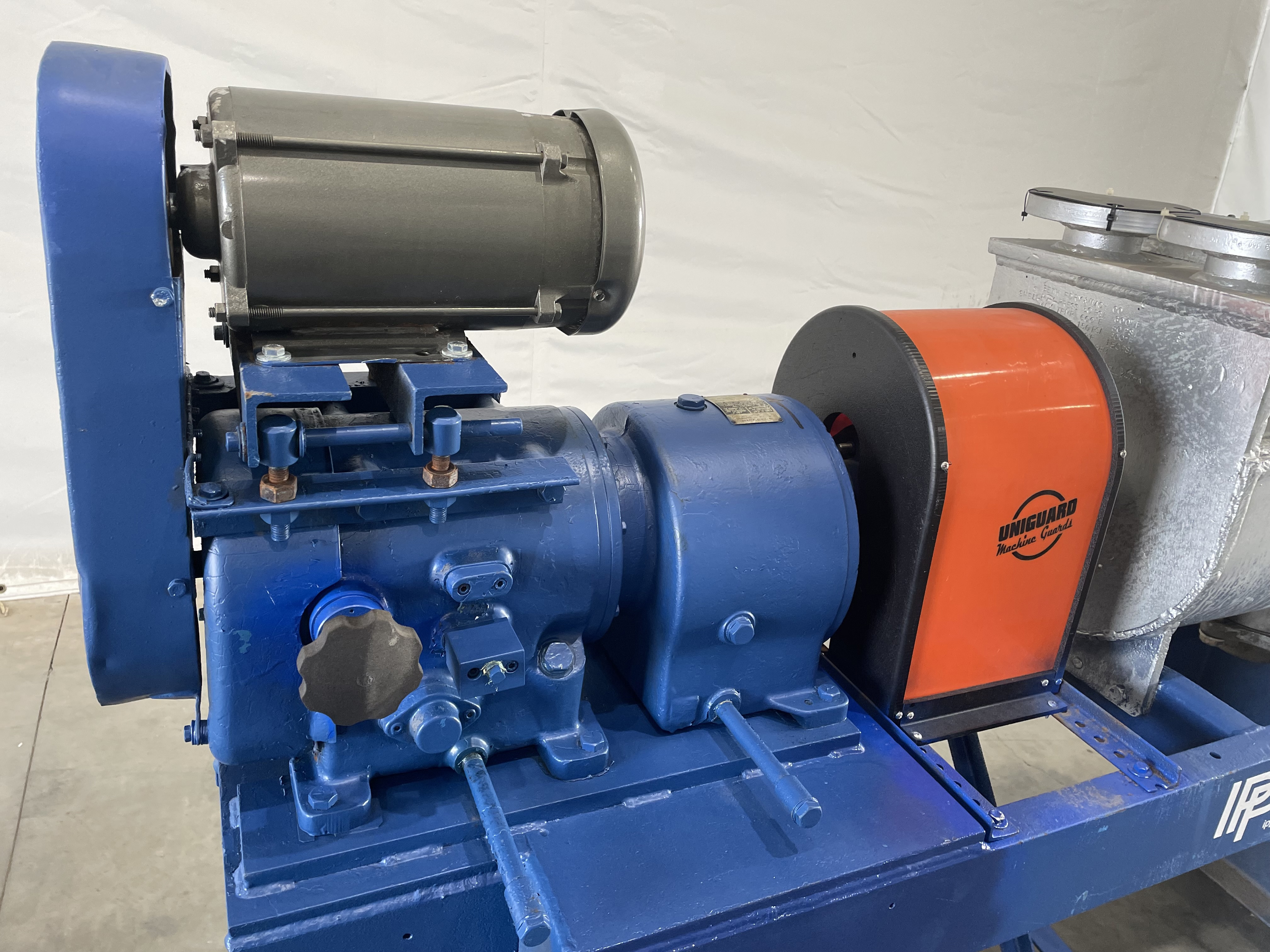

• Working volume is 4.4 cubic feet Agitator has 29 square feet of heating area and jacket 15 square feet With direct coupled gear reducer and motor

Diameter: 304.8 mm (12 in). Length: 2,134 mm (84 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 1.39 m² (15 ft²). Porcupine Surface Area: 2.7 m² (29 ft²). Porcupine Operating Pressure: 5.2 bar (75 psi). Porcupine Operating Temperature: 160 °C (320 °F). Jacket Operating Pressure: 5.2 bar (75 psi). Jacket Operating Temperature: 160 °C (320 °F). Total Heat Transfer Surface Area: 4.1 m² (44 ft²).

Type: Dryer-Porcupine

Manufacturer: Bethlehem Corp

Model: 1P1208JTC

Condition: Unused

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• UNUSED One agitator.
• Jacketed trough Completely fabricated and assembled except for the following: Johnson rotary joint, drive motor, drive gear and coupling No cover, agitator 35 sq.ft. trough 55 sq.ft.

Diameter: 304.8 mm (12 in). Length: 2,438 mm (96 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 5.1 m² (55 ft²). Porcupine Surface Area: 3.3 m² (35 ft²). Total Heat Transfer Surface Area: 8.4 m² (90 ft²). Size: 1208.

Type: Dryer-Porcupine

Manufacturer: Bethlehem Corp

Model: 1P3015JTC

Condition: Used

Material: Carbon Steel

Shell Configuration: Trough

Operational Mode: Continuous

• Good candidate for refurbishment
• 30" diameter--Last operated at 80 lbs/ft3 bulk density, previously processing 420 ft3 per day. (except the last 5’ of agitator is Inconel 625 )Continuous feed with bottom discharge recycle screw. 177 sq. ft. of heat transfer surface area on the agitator, and 266 sq. ft. of heat transfer surface area on jacket. Packed stuffing box assemblies seal the shaft, hardened removable wear sleeves on the shaft seal areas to extend the shaft life Hot oil Johnson joints on the agitators non drive end. Agitator chain driven by 20 hp explosion proof motor at 5 rpm through a reducer. Bottom discharge with a fixed weir. Last operated at 80 lbs/ft3 bulk density, previously processing 420 ft3 per day.

Diameter: 762 mm (30 in). Length: 4,572 mm (180 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 24.7 m² (266 ft²). Porcupine Surface Area: 16.4 m² (177 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 121.1 °C (250 °F). Jacket Operating Pressure: 1.03 bar (15 psi). Jacket Operating Temperature: 148.9 °C (300 °F). Total Heat Transfer Surface Area: 41.2 m² (443 ft²).

Type: Dryer-Porcupine

Manufacturer: Bethlehem Corp

Model: 1P1203JTB

Condition: Unused

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

Agitator 12" diameter, 3' long. (18% Cr, 11% nickel) hot oil or steam and full vacuum Working volume 1.89 cubic feet Agitator 12.4 square feet of heating area and jacket 7.3 square feet. (requires motor and gear drive) full vacuum 650 degree F jacket 7.3 square feet

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.68 m² (7.3 ft²). Porcupine Surface Area: 1.15 m² (12.4 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 1.86 m² (20 ft²).
