IPP# 208479 - Separators Screener 950 mm (37.4 in) Carbon Steel For Sale

Overview

Type:

Screener

Subtype:

Separators

Manufacturer:

Rhewum

Model:

WAF-4/95x100/180/1

Condition:

Used

Material:

Carbon Steel

Other Specifications

Rotary Screen Diameter:

950 mm (37.4 in)

Screen Size:

0 in

Motor

Motor Power:

8.54 kW (11.4 HP)

Motor Make:

Rhewum FX 800-6

Motor Voltage:

380

Motor Cycles:

50

Motor Phase:

3

Capacity

Screen Diameter:

950 mm (37.4 in)

Dimensions

Length:

4,400 mm (173 in)

Width:

1,300 mm (51.2 in)

Height:

2,200 mm (86.6 in)

Additional Information

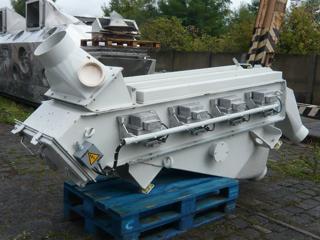

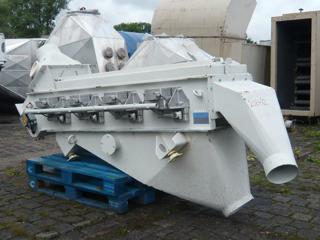

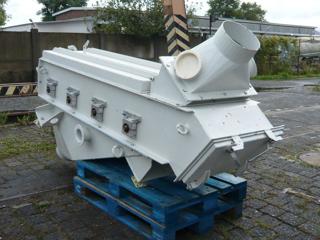

vibrating screen
with 2 stainless steel sievs
continous design
rectangular bed

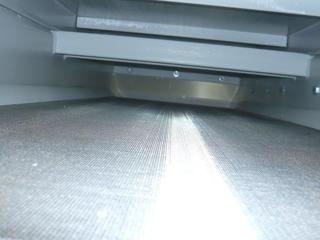

siev diameter mesh approximately 6mm x 6mm, 1800mm long x 950mm wide
siev diameter mesh approximately 2mm x 5mm, 1000mm long x 950mm wide
Driven by 2 x 4 kw 3/50Hz/ 220-380V/15, 2-8 , 8A 980 rpm vibrating motors

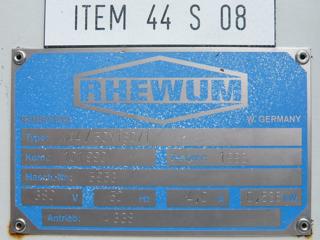

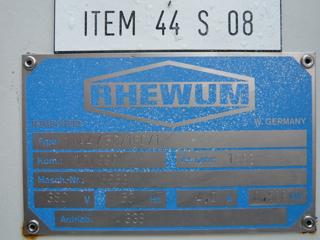

mfd by Rhewum,
type FX 800-6, serial # 9212030 and # 9212031
material of sieves and screen cloths is 1.4301
approx 4400mm long x 1300mm wide x 2200mm high
