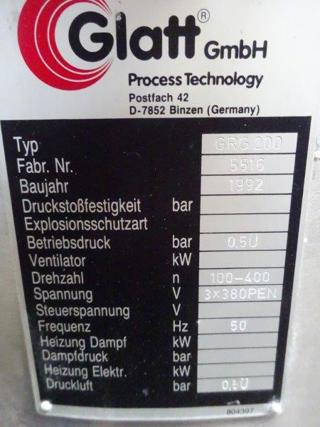

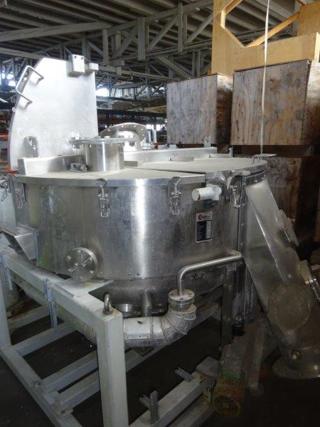

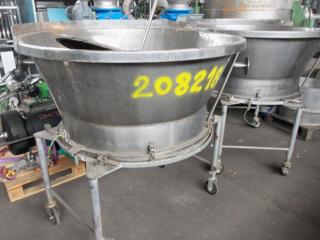

Stainless Steel Other Glatt GRG 200 Spheronizer Dryer-Fluid Bed - IPP# 208486

Type: Dryer-Fluid Bed

Manufacturer: Glatt

Model: GRG 200 Spheronizer

Condition: Used

Material: Stainless Steel Other

Capacity: 200 L (52.8 gallons)

Air Flow Rate: 6,000 m3/h (3,531 CFM)

Fluid Bed Dryer Spheronizer perforated bed electrical motor Motor: 3 phase type KPER200L4-TWS

Pressure: 0.5 bar (7.3 psi). Temperature: 60 °C (140 °F). Bowl Diameter: 1,450 mm (57.1 in). Bowl Height: 400 mm (15.7 in). Particle Coating Ability: Polymeric coating to spheres containing or layered with drugs, Layering spheres with drugs..

Type: Dryer-Fluid Bed

Manufacturer: Glatt

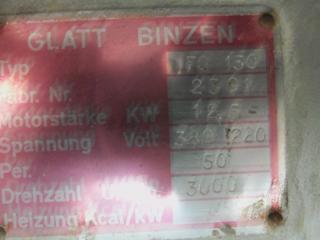

Model: TFO 150

Condition: Used

Material: Stainless Steel Other

Capacity: 500 L (132.1 gallons)

Orientation: Vertical

Air circulation fan is 12,5 KW, 50/220/380 Volt @ 3000rpm.

Type: Dryer-Fluid Bed

Manufacturer: Glatt

Model: GPCG 300/500

Condition: Used

Material: Stainless Steel Other

Capacity: 1,200 L (317 gallons)

Bowl Diameter: 3,000 mm (118.1 in)

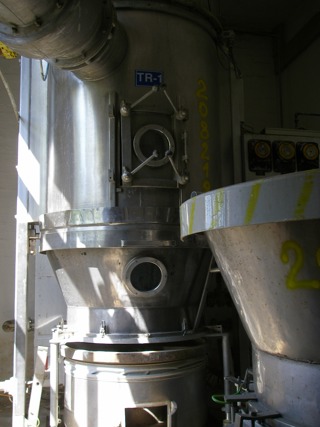

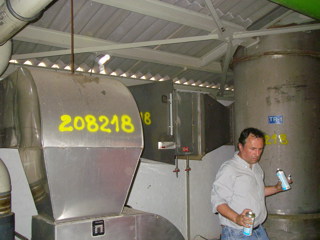

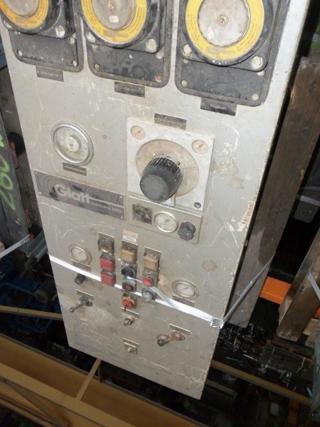

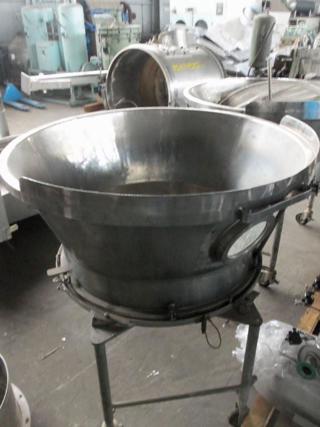

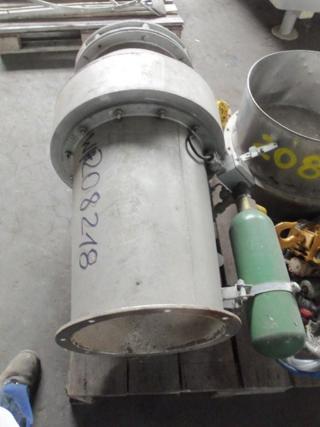

stainless steel highly polished Glatt fluid bed dryer system, manufactured by Glatt AG (Switzerland), nominal capacity 1000kg, max capacity 1600kg, approx 3m diameter drying chamber, stainless steel bowl, dimensions 3m top diameter x 1.1m high x 1.1m bottom diameter, bowl fixed to a lifting mechanism, internal filters with hoist, (2) inspection doors for filter, suppression system, system include: blower, dust filter, air handling unit, control panels, duct work and other ancillaries

Bowl Height: 1,100 mm (43.3 in). Orientation: Vertical. Dust Collection: Yes. Explosion-Shock Resistant: Yes.

Type: Dryer-Fluid Bed

Manufacturer: Glatt

Model: GPCG 5/9

Condition: Used

Material: Stainless Steel Other

Capacity: 25 L (6.6 gallons)

Bowl Diameter: 400 mm (15.7 in)

stainless steel (highly polished) Glatt Fluid Bed Dryer system, chamber approx 490mm diameter, (2) interchangeable bottom sections each with its own bowl, (1) stainless steel bowl 400mm top diameter x 270mm straight side x 270mm bottom diameter with trolley, (1) stainless steel bowl 350mm top diameter x 630mm straight side x 160mm bottom diameter with trolly, both bowls with internal filter meshes, internal hoist for filter bags, mounted on stainless steel legs, system includes : blower, heater, dust filter, control panel with Eurotherm Chessel 6100X10 graphic chart recorder, and other ancillaries

Orientation: Vertical.
