11,000 L (2,906 gallons) Stainless Steel 316 Batch-Type Agitated Reactor For Sale - IPP# 209904

Type: Reactor

Subtype: Batch-Type Agitated

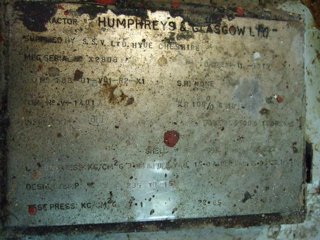

Manufacturer: S.S.V Ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 11,000 L (2,906 gallons)

Internal Pressure: 3.8 bar (54.8 psi)

• Features: internal coils, external limpet coil on bottom dish

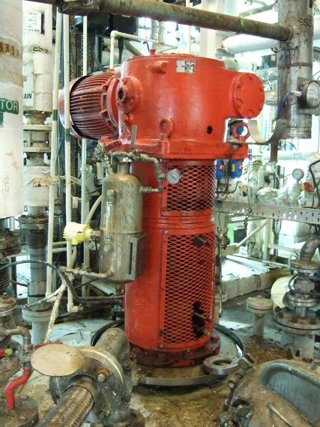

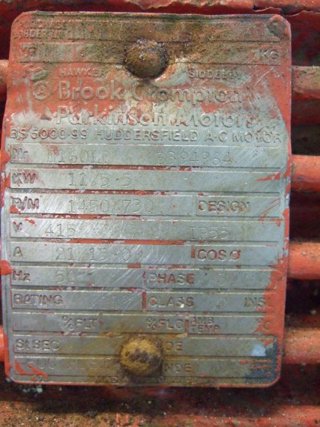

• Coils: 2 sets of 316 stainless steel internal coils, each 3" diameter x 7 turns internal operating pressure 3.5 kg/cm2 @ -10/+185 deg C motor 3/50/415 volt mechanical seal with lubricator

Internal Full Vacuum: Yes. Internal Temperature: 235 °C (455 °F). Jacket Pressure: 14.7 bar (213.2 psi). Jacket Temperature: 235 °C (455 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,290 mm (90.2 in). Straight Side Length: 2,580 mm (101.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757.1 L (200 gallons)

Jacket Material of Construction: Carbon Steel

• With Lightnin, 1.5 hp mixer.
• 1" jacket supply and return lines.

Orientation: Vertical. Diameter: 965.2 mm (38 in). Straight Side Length: 914.4 mm (36 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Hamilton Kettle

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 5,678 L (1,500 gallons)

Internal Pressure: 3.4 bar (50 psi)

• sanitary reactor body,
• Wall thickness: 0.25" thick side wall, 0.220" thick top head, 0.218" thick bottom head
• Sanitary construction, vessel and jacket are insulated and covered with a SS shroud.
• Previously used for creams and lotions processing.

Internal Full Vacuum: Yes. Internal Temperature: 138.3 °C (281 °F). Sanitary Construction: Yes. Jacket Pressure: 10.4 bar (151 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 304. Body Only: Yes. Diameter: 1,930 mm (76 in). Straight Side Length: 1,702 mm (67 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Cream City Boiler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Top Head 9/16", Bottom Head 1 3/16"; CS jacket 9/16" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.

Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,676 mm (66 in). Straight Side Length: 1,448 mm (57 in). Support Type: Lugs.
