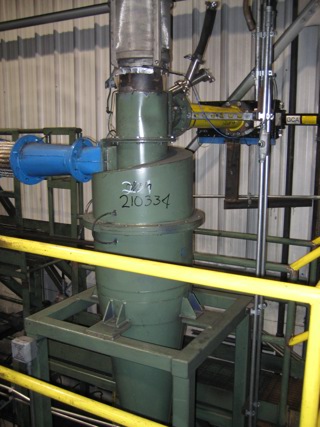

inlet Carbon Steel skid mounted High Efficiency Fine classifier 3600 RPM rotor max speed.15kW. 460 vac 35 amps Inlet size is 9", outlet is 21" x 19 " square flange. Rejects line is 5" Particle wheel has hinged door for clean out and wheel access This classifier is rated for 2000-2600 m3h, and 200/2400 kG/h Finess is rated for 3.0-4.0 (c/37um).
Type: Classifier
Condition: Used
Material: Carbon Steel
Cone Length: 3,048 mm (120 in)
Cyclone: Yes
Seperator 10' cone bottom 10" top tankgential opening, 10" side tangential opening, 6" bottom opening with valve Mounted in CS stand. Unit housing clamps together for cleaning
Diameter: 609.6 mm (24 in). Length: 508 mm (20 in).
Type: Classifier
Condition: Used
Material: Carbon Steel
Air Flow Rate: 4,248 m3/h (2,500 CFM)
Cone Length: 1,829 mm (72 in)
Seperator with 6' cone bottom 8" top tangential opening, 8" side tangential opening, 6" bottom opening with valve Mounted in CS stand Unit housing clamps together for cleaning
Cyclone: Yes. Diameter: 457.2 mm (18 in). Length: 381 mm (15 in).
