Carbon Steel Classifier 457.2 mm (18 in) For Sale - IPP# 210334

Type: Classifier

Condition: Used

Material: Carbon Steel

Cone Length: 3,048 mm (120 in)

Cyclone: Yes

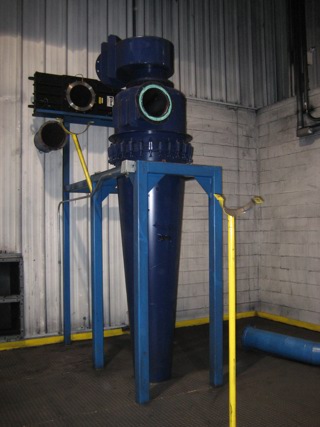

Seperator 10' cone bottom 10" top tankgential opening, 10" side tangential opening, 6" bottom opening with valve Mounted in CS stand. Unit housing clamps together for cleaning

Diameter: 609.6 mm (24 in). Length: 508 mm (20 in).

Type: Classifier

Manufacturer: NETZSCH-CODUX

Model: CSF 170 HD

Condition: Used

Material: Carbon Steel

Air Flow Rate: 2,600 m3/h (1,530 CFM)

Diameter: 304.8 mm (12 in)

inlet Carbon Steel skid mounted High Efficiency Fine classifier 3600 RPM rotor max speed.15kW. 460 vac 35 amps Inlet size is 9", outlet is 21" x 19 " square flange. Rejects line is 5" Particle wheel has hinged door for clean out and wheel access This classifier is rated for 2000-2600 m3h, and 200/2400 kG/h Finess is rated for 3.0-4.0 (c/37um).

Particle Size (microns): 37.
