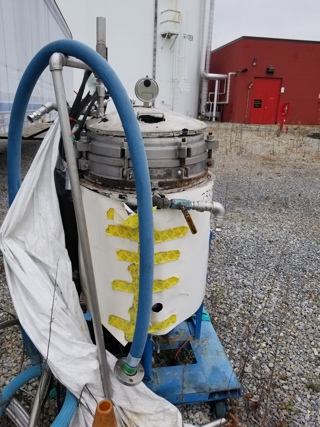

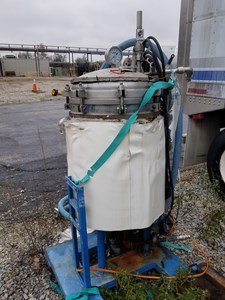

1.05 m² (11.3 ft²) Stainless Steel 316 Pressure Leaf Filter For Sale - IPP# 211006

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: 18-S-7

Condition: Used

Material: Stainless Steel 304

Filtration Area: 1.05 m² (11.3 ft²)

Diameter: 508 mm (20 in)

Has (7) 18" dia shallow plates. Has .414 cu ft cake capacity. Has 2" btm outlet w/scavenger plate.

Orientation: Vertical. Pressure: 4.1 bar (60 psi).

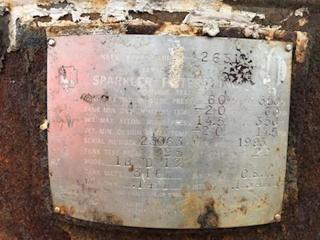

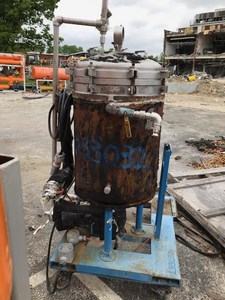

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: 18 D 12

Condition: Used

Material: Stainless Steel 316

Filtration Area: 2 m² (22 ft²)

Diameter: 457.2 mm (18 in)

Internal pressure rating: 60psi @ -20 to 350 degree F Jacket pressure rating: 14.5psi @ -20 to 350 degree F (12) 18" Deep plates. 70 Gallon volume, Vessel dimensions: 2' diameter x 3' straight side

Orientation: Vertical. Pressure: 4.1 bar (60 psi). Temperature: 176.7 °C (350 °F). Jacket: Yes. Jacket Type: Standard. Jacket MOC: Carbon Steel. Jacket Pressure: 1 bar (14.5 psi). Jacket Temperature: 176.7 °C (350 °F). Vessel Liquid Capacity: 265 L (70 gallons).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Condition: Used

Material: Stainless Steel 316

Filtration Area: 1.11 m² (12 ft²)

Jacket: Yes

jacketed Unit has (12) 2" deep plates

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Sparkler

Model: HRC200

Condition: Used

Material: Stainless Steel 316

Filtration Area: 19.2 m² (206.9 ft²)

Diameter: 1,219 mm (48 in)

ASME #19142 250" thick heads 187" shell Tank has 1100 gal capacity (1) dish head is hinged and has swing bolts Horiz tank, horiz plate design (12) plates, 34.5 cu ft cake capacity Dry cake discharge w/hydraulic cylinder to rotate plates to vert for cake discharge Unit has (12) 1" openings with manifold for filtrate discharge

Pressure: 4.1 bar (60 psi). Temperature: 204.4 °C (400 °F).
