Graphite Block Heat Exchanger 7.6 m² (81.8 ft²) For Sale - IPP# 211577

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri

Model: SD 63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.2 m² (12.9 ft²)

Orientation: Vertical

Cylindrical

Shell Temperature: 100 °C (212 °F). Vacuum: Yes. Process Pressure: 5 bar (72.5 psi). Process Temperature: 25 °C (77 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri

Model: DK72 308 6.1.1

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.4 m² (80 ft²)

Shell Pressure: 6.9 bar (100 psi)

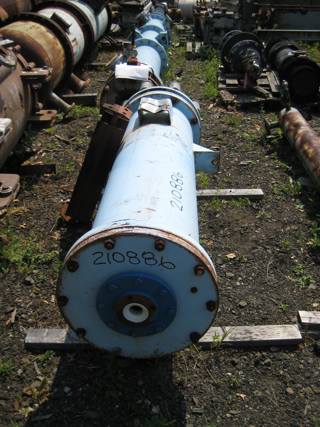

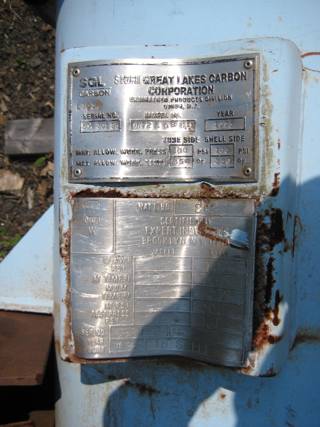

Great Lakes Carbon Corp. Inlet is 8" reduced to 6", outlet is 2" Diameter is 18" x 68" long with an overall length of 90"

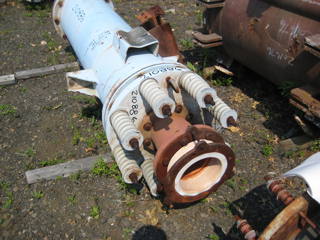

Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Length: 1,727 mm (68 in). Nozzle Schedule: Inlet is 8" reduced to 6", outlet is 2". Shell side nozzles are 6".. Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri GmbH

Model: SD63-0720

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.1 m² (76 ft²)

Orientation: Vertical

• Estimated surface area to be 76 ft 2
• cylindrical pressure service side 5 atu @ 26 degrees C28 liters

Shell Temperature: 100 °C (212 °F). Shell Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 240 mm (9.4 in). Head Material: Carbon Steel. Length: 1,800 mm (70.9 in). Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50. Block Type: Karbate. Process Pressure: 5 bar (72.5 psi). Pack Material: Graphite. Process Temperature: 100 °C (212 °F).

Type: Heat Exchanger

Subtype: Block

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.96 m² (21.1 ft²)

cubic block
