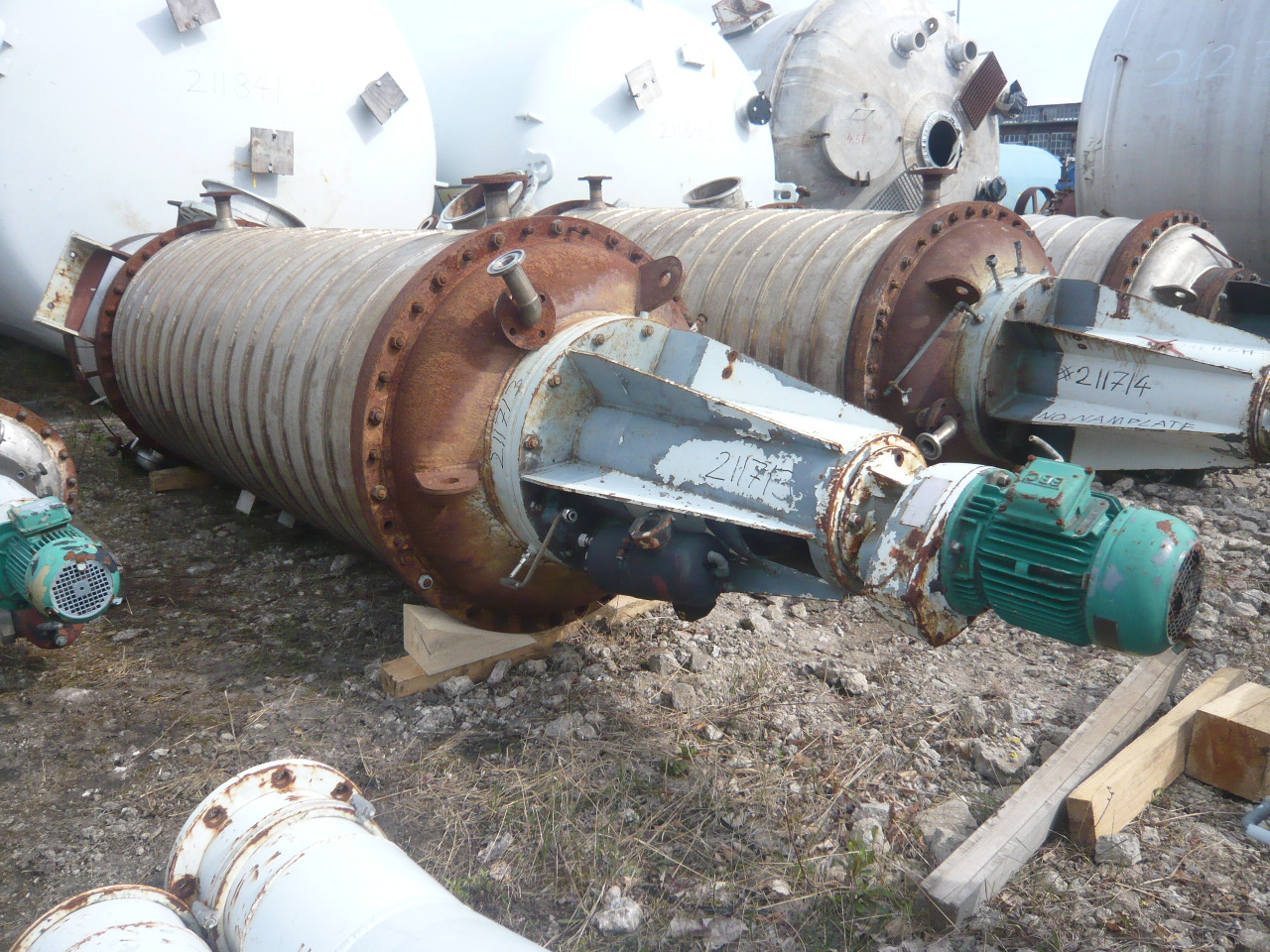

Short Path wiped film evaporator system with internal condensor includes SS seperator tank Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, Graphite wipers on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buss-SMS-Canzler GmbH
Model: 450/3,5-KO
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 3.5 m² (37.7 ft²)
Orientation: Vertical

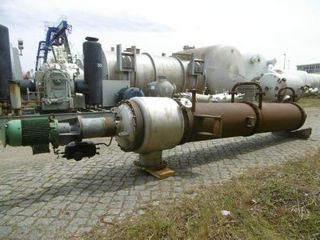

wiped thin film evaporator with external condensor and seperator tank rated 440 liter With top mounted 3.7 KW, 50 Hz gear motor, mechanical seal on rotor, (4) blade rotor with wipers With 2 SqM external 1.4435 SS spiral coil condenser, manufactured by Zurcher, Serial number 630, rated -1/2 bar @ -20 to 200 degrees C in vessel; -1/6 bar @ -20 to 200 degrees C in the coil. Vessel is 419mm diameter x 936mm tangent to tangent, with bolted dished top, dished bottom, and (2) bank of internal spiral condensing coil. Coil and tank are 1.4435 SS.
Diameter: 450 mm (17.7 in). Height: 4,233 mm (166.7 in). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Eberhard Bauer DF 2A43HZ/309.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buss-SMS-Canzler GmbH
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 158.8 kg/h (350 lb/h)
Total Heat Transfer Surface Area: 6.5 m² (70 ft²)
Short Path wiped film evaporator system with internal condensrr includes SS seperator tank Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, graphite wiper on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.

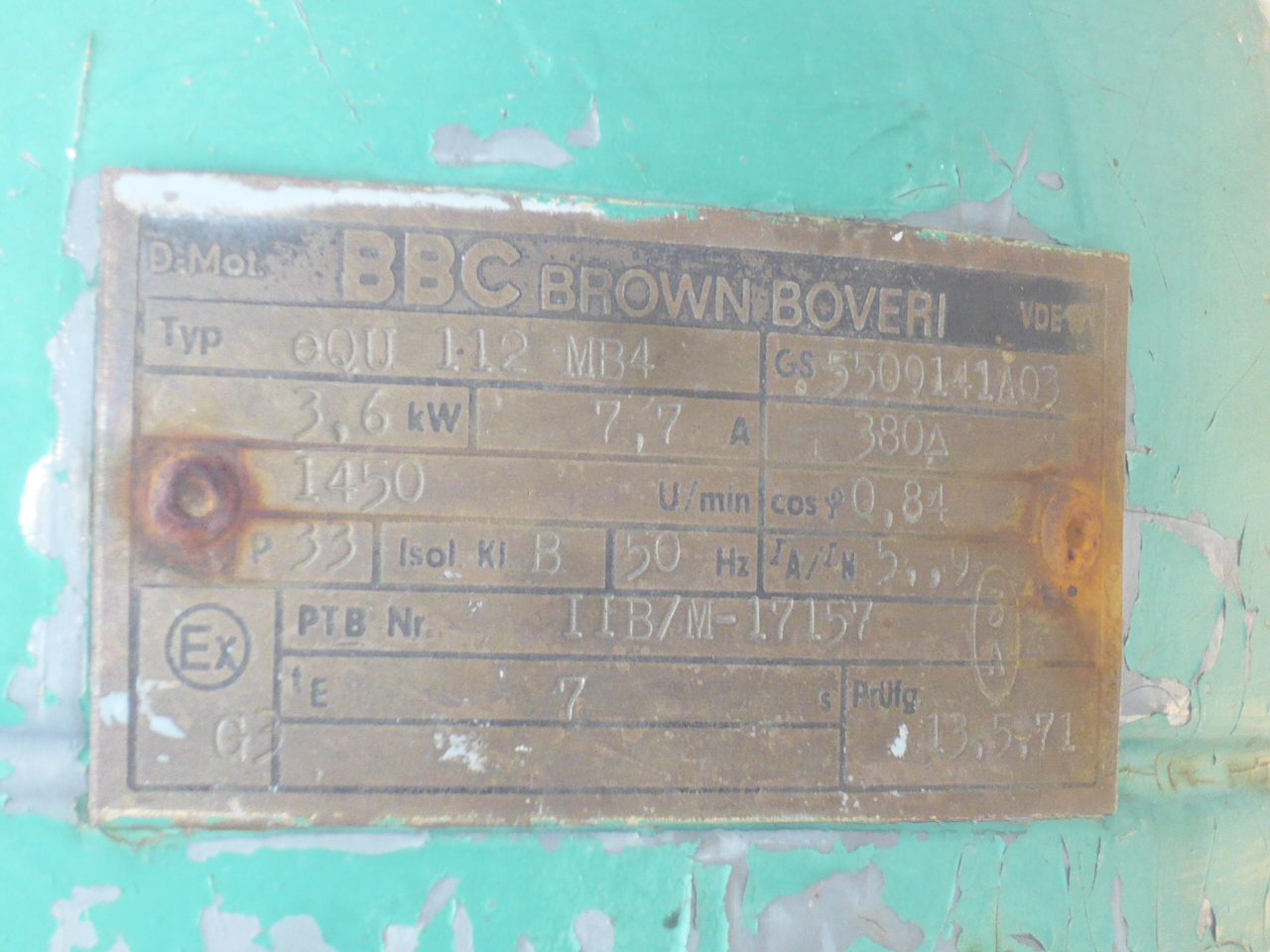

Orientation: Vertical. Diameter: 900 mm (35.4 in). Height: 4,715 mm (185.6 in). Pressure: 5 bar (72.5 psi). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Brown Boveri EQU112 MB4.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Buss-SMS-Canzler GmbH
Model: 450/3,5-KO
Condition: Used
Material: Stainless Steel 316
Total Heat Transfer Surface Area: 3.5 m² (37.7 ft²)
Orientation: Vertical
wiped thin film evaporator system Rotafilm straight side made up of (2) 1354mm long bolted sections, c/steel jackets on straight side and bottom cone, rotor direct driven by 3.6 kw, 3/50/380 volt, 1450 rpm gear motor, mechanical seal on rotor, (4) blade rotor with wipers evaporator mounted lugs. system includes (1) 2 Sqm 1.4435 s/steel coil condenser, fabrik #645, shell pressure -1/2 bar @ -20/200 deg C, coil -1/6 bar @ -20/200 degs C, 419mm diameter x 936mm tangent to tangent shell, bolted dished top,weld dished bottom, (2) banks of internal spiral condensing coil. mounted on lugs, (1) 88ltr 1.4435 s/steel vertical separator tank with internal coil, fabrik #646, internal pressure -1/6 bar @ -30/300 deg C, coil -1/13 bar @ -30/200 deg C (4ltr), 280mm diameter x1m straight side
Diameter: 450 mm (17.7 in). Height: 4,233 mm (166.7 in). Pressure: 16 bar (232.1 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film

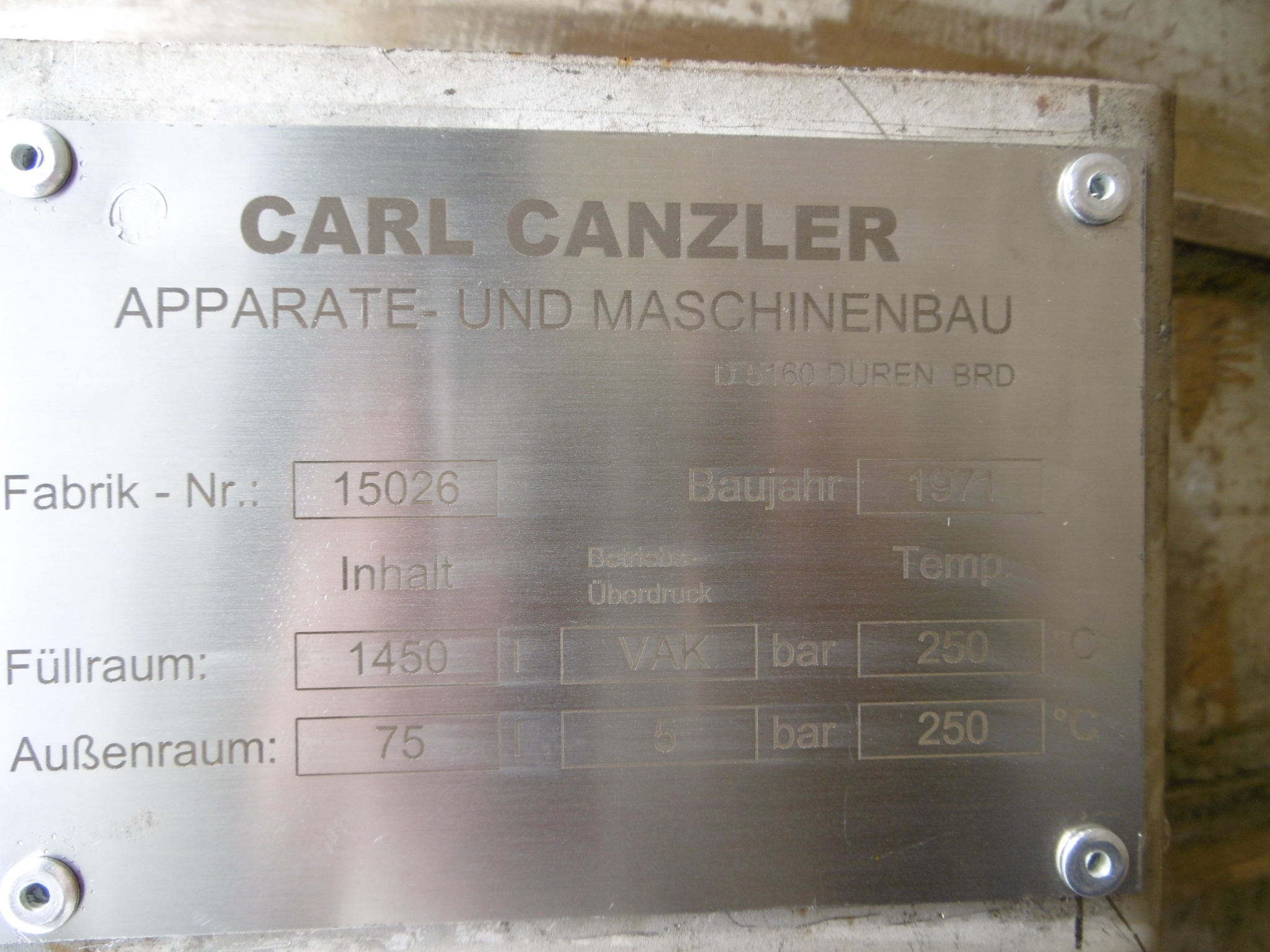

Manufacturer: CARL GANZLER
Model: 900/6,5-K10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 158.8 kg/h (350 lb/h)
Total Heat Transfer Surface Area: 6.5 m² (70 ft²)

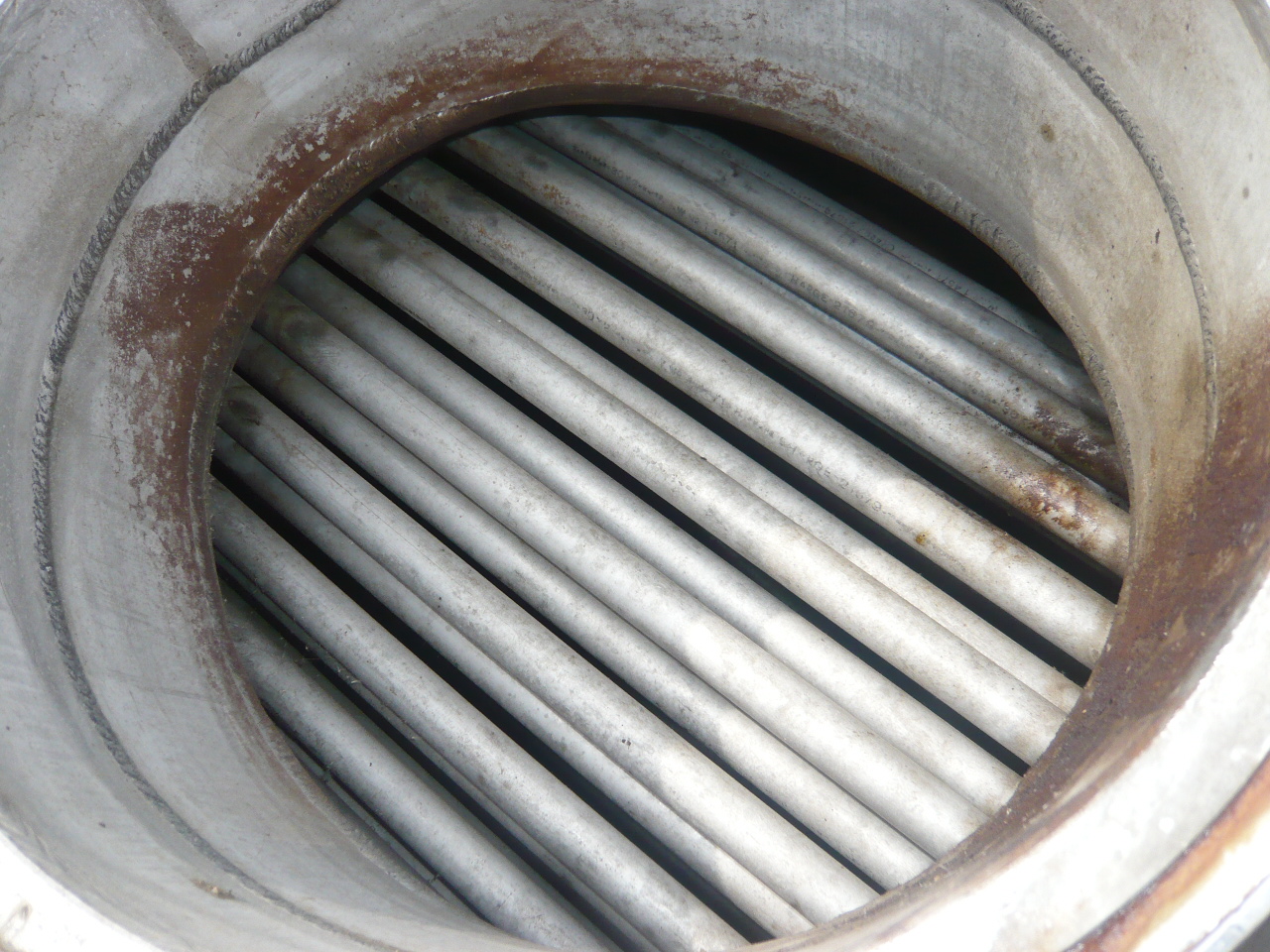

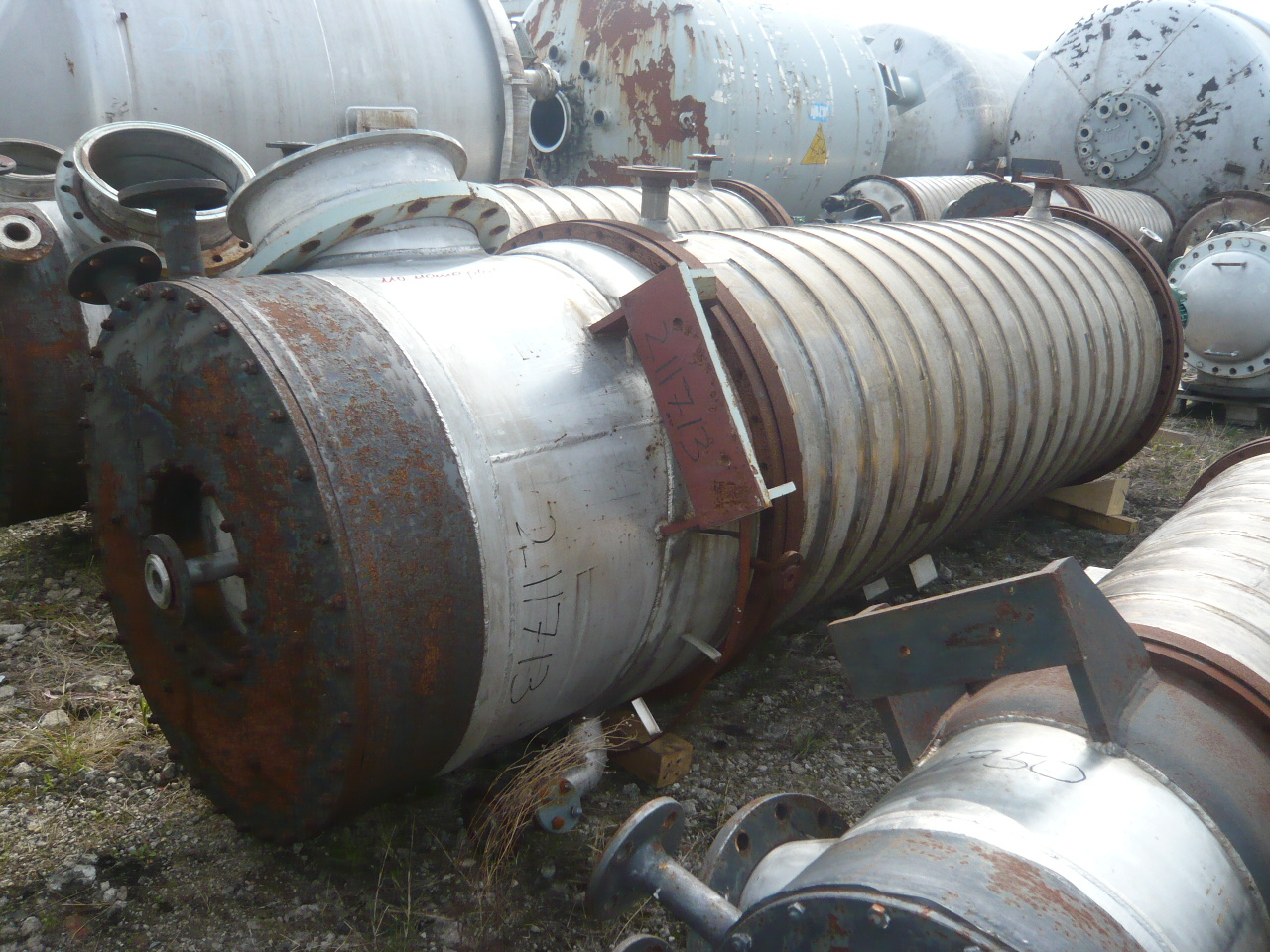

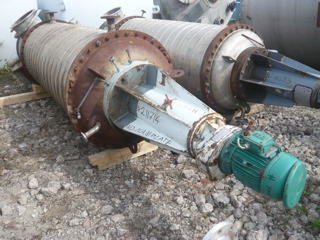

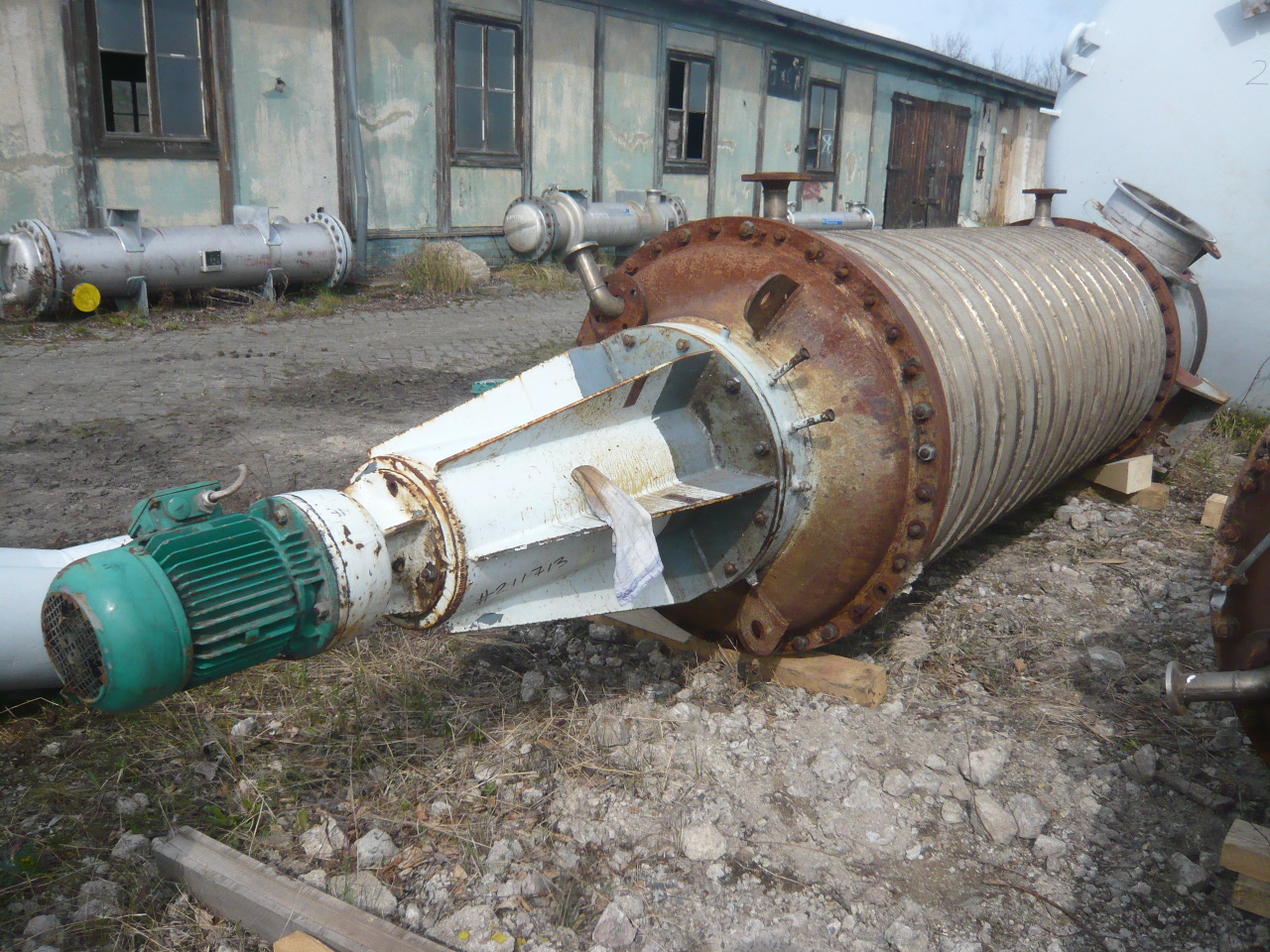

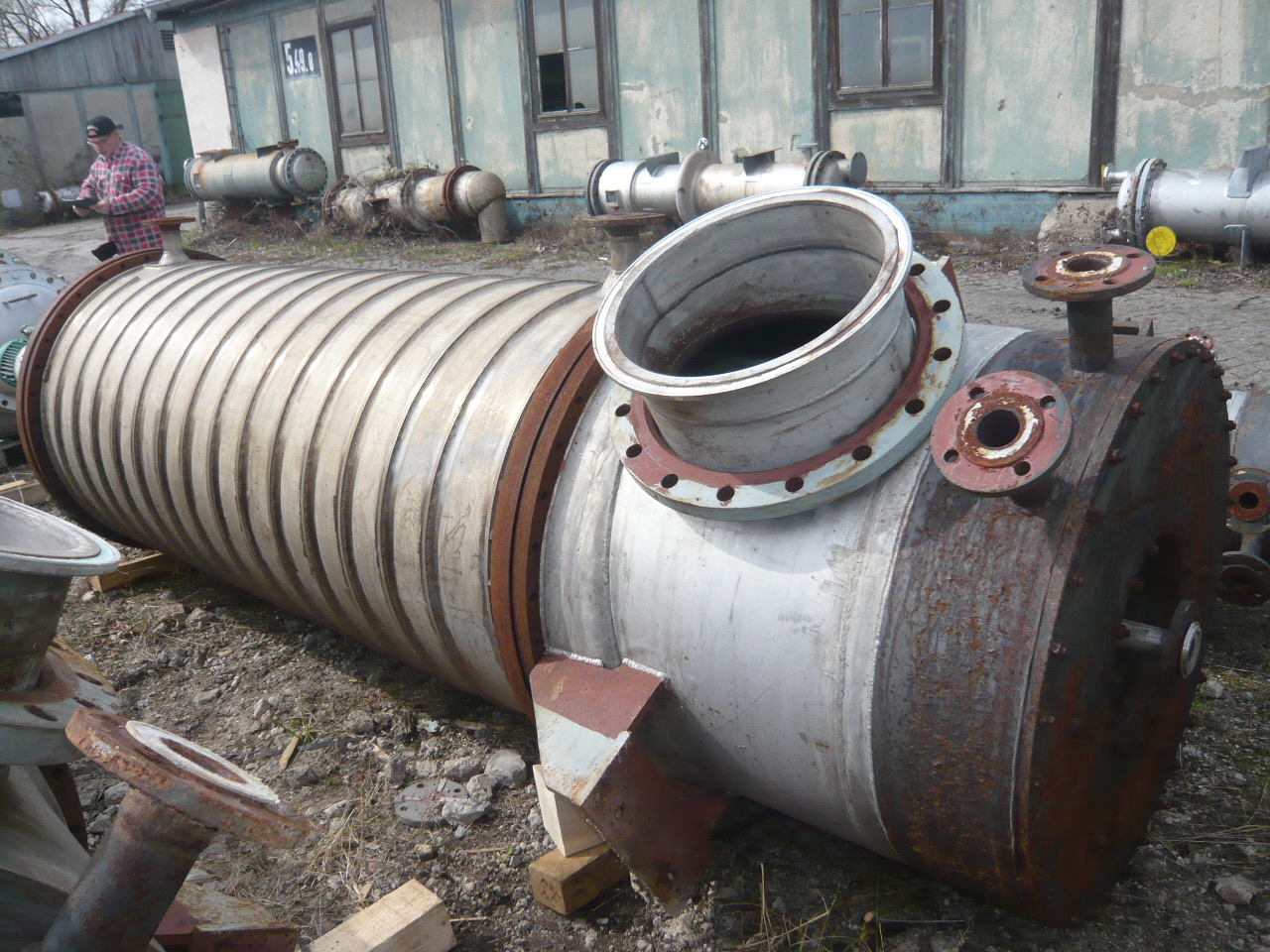

Short Path wiped film evaporator system with internal condensor includes SS seperator tank. Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, Graphite wipers on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.
Diameter: 900 mm (35.4 in). Height: 4,715 mm (185.6 in). Pressure: 5 bar (72.5 psi). Temperature: 250 °C (482 °F). Internal Condenser: Yes. Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Brown Boveri eOU 112 MB 4 .
