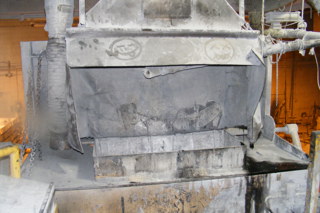

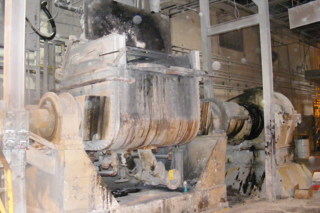

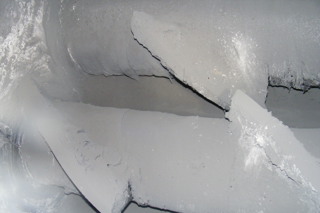

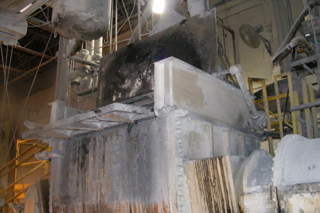

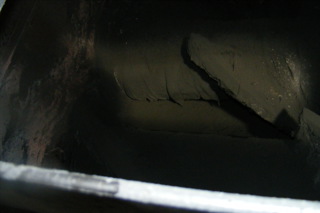

Double sigma blade mixer with jacketed trough. Rated atmospheric internal. Trough is jacketed on bottom 1/3 of trough. Unit has tangential sigma blades, driven one side, with packing glands on shaft. Top cover is hinged with pneumatic cylinder, rated atmospheric internal. Trough has bolted sides. Inside trough dimensions are 40" W x 36" wide x 47" deep. Chain and sprocket drive, 3 hp gearhead motor to operate tilt discharge.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 1,703 L (450 gallons)
Capacity (Working): 1,136 L (300 gallons)
Sigma Blade mixer Jacket trough, with inside dimensions approx 56" long x 50" wide x 48" deep, bolted sides Unit is geared one side, with chain and sprocket drive 230/460 volt Amperage is rated for 174/87a Vessel has a tilt discharge. Hydraulic system is mounted to the machine base for the tilt function.
Blade Type: Sigma Blade. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: JH Day
Model: Mogul
Condition: Used
Material: Carbon Steel
Capacity (Design): 2,082 L (550 gallons)
Capacity (Working): 1,136 L (300 gallons)

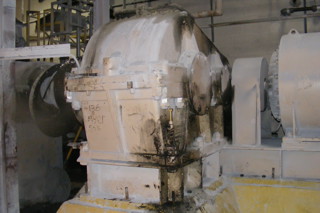

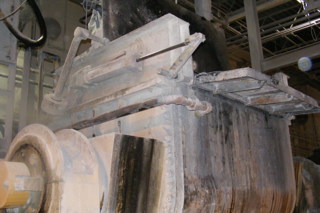

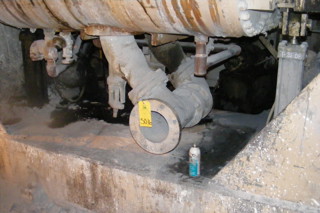

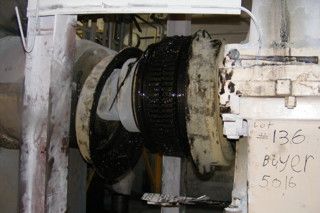

Mogul line heavy duty design with double nobben blades for extra shearing actions, tangential shaft design, packing glands on shafts Front agitator rated 30 RPM, rear agitator rated 20 RPM Unit designed for tilt discharge 8" bottom disharge valves. With bombay door style cover. Trough has bolted sides Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep Total capacity is 550 gallon Unit driven one side by, Allis-Chalmer Induction Motor Motor type: AZZT HP: 300/300, PRM: 1180/880 Amps: 376/386 Enclosed Gear Drive Serial number: A-104 Input: 1150/870, Output: 39.3/29.8 HP rating: 300
Blade Type: with double nobben blades. Blade Speed (RPM): 30. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 567.8 L (150 gallons)
Capacity (Working): 378.5 L (100 gallons)
Sigma Blade Mixer jacket trough, tilt discharge. With tangential sigma blades, packing glands on shaft, rated atmospheric internal, with dust cover. Geared both sides, driven through a jack shaft, with chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge.
Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 204.4 °C (400 °F). Blade Type: tangential sigma blades. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 567.8 L (150 gallons)
Capacity (Working): 378.5 L (100 gallons)
Sigma Blade Mixer jacket trough, tilt discharge. packing glands on shaft, rated atmospheric internal, with dust cover Geared both sides, driven through a jack shaft, with chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge.
Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 204.4 °C (400 °F). Blade Type: tangential sigma blades. Tilting: Yes.
