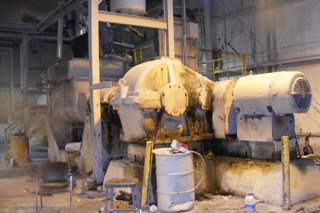

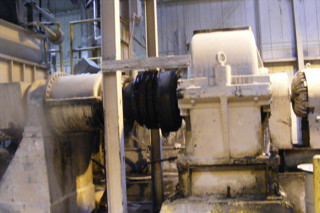

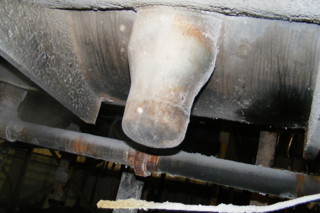

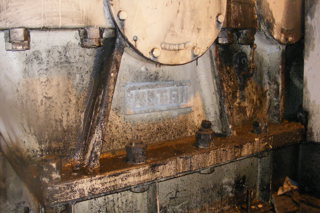

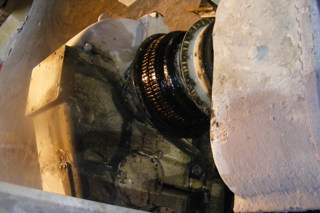

Mogul line heavy duty design with double nobben blades for extra shearing actions, tangential shaft design, packing glands on shafts Front agitator rated 30 RPM, rear agitator rated 20 RPM Unit designed for tilt discharge 8" bottom disharge valves. With bombay door style cover. Trough has bolted sides Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep Total capacity is 550 gallon Unit driven one side by, Allis-Chalmer Induction Motor Motor type: AZZT HP: 300/300, PRM: 1180/880 Amps: 376/386 Enclosed Gear Drive Serial number: A-104 Input: 1150/870, Output: 39.3/29.8 HP rating: 300
Type: Mixer-Double Arm
Manufacturer: JH Day
Model: Mogul
Condition: Used
Material: Stainless Steel 304
Capacity (Design): 946.4 L (250 gallons)
Capacity (Working): 378.5 L (100 gallons)

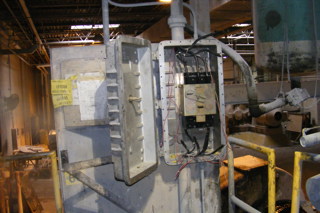

jacketed double arm mixer Shell rated atmospheric Front mixing blade 45/30 rpm, rear mixing blade 30/20 rpm x-proof motor and starter box.
Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 178.3 °C (353 °F). Jacket Material: Stainless Steel 304. Blade Type: cored dispersion mixing blades.. Blade Speed (RPM): 45.3. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: JH Day
Condition: Used
Material: Carbon Steel
Capacity (Design): 2,082 L (550 gallons)
Capacity (Working): 1,136 L (300 gallons)

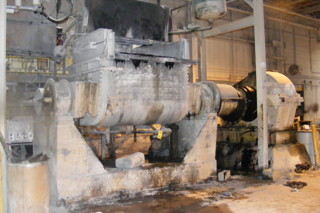

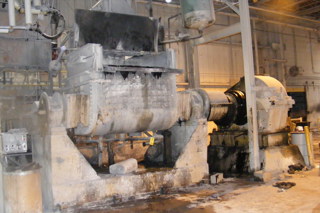

Mogul line heavy duty design jacketed trough double nobben blades for extra shearing actions tangential shaft design, packing glands on shafts. Front agitator rated 30 RPM, rear agitator rated 20 RPM Unit designed for tilt discharge With top atmospheric cover. Trough has bolted sides Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep total capacity is 550 gallon Unit has single end drive, with a chain and sprocket drive Enclosed Gear Drive , serial # A-233 Input Rpm =1750, output rpm=30.36, ratio 57.65. Type CEA
Blade Type: double nobben blades. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: JH Day
Condition: Used
Material: Carbon Steel
Capacity (Design): 2,082 L (550 gallons)
Capacity (Working): 1,136 L (300 gallons)
Mogul line heavy duty design jacketed trough cored shafts with Double nobben blades for extra shearing actions, tangential shaft design, packing glands on shafts. Front agitator rated 30 RPM, rear agitator rated 20 RPM Unit designed for tilt discharge With top atmospheric cover Cover has (2) 18" x 18" hatches Trough has bolted sides. Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep. Unit has single end drive, with a chain and sprocket drive
Jacket Material: Carbon Steel. Blade Type: Double nobben blades. Blade Speed (RPM): 30. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: JH Day
Condition: Used
Material: Carbon Steel
Capacity (Design): 2,082 L (550 gallons)
Capacity (Working): 1,136 L (300 gallons)
Double Arm Mixer Mogul line heavy duty design jacketed trough with vacuum hood, cored shafts with double nobben blades for extra shearing actions tangential shaft design packing glands on shafts Front agitator rated 30 RPM, rear agitator rated 20 RPM. Unit designed for tilt discharge. With top atmospheric cover. Cover has (1) 18" diameter hatch with cover, (1) approx 24" for vacuums. Trough has bolted sides. Trough inside dimensions - 50" wide x 56" long x 36 1/2" deep total capacity is 550 gallon Unit has single end drive, with a chain and sprocket drive Enclosed Gear Drive , serial # A-168 Input Rpm =1750, output rpm=30.36, Pace Maker AC Model 4-2756820 01, 300 HP, 460 va, 3 ph, 60 Hz. Rpm 1785, amps 357.
Blade Type: double nobben blades. Blade Speed (RPM): 30. Tilting: Yes. Vacuum: Yes.
