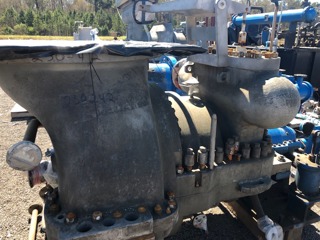

Steam Turbine Worthington 3TDFOV2 - IPP# 212810

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 3TDFOV2

Condition: Used

Material: Carbon Steel

Power: 7,532 kW (10,100 HP)

Speed (RPM): 6175

condensing turbine SO number U-14351 ( double flow on 4th & 5Th stage) HG. ABS. at 128 degrees F 12" inlet nozzle. Rotation clockwise.

Inlet Pressure: 10.3 bar (150 psi). Inlet Temperature: 232.2 °C (450 °F). Inlet Steam Flow: 5.1 kg/h (11.2 lb/h). Outlet Pressure: 0.14 bar (1.96 psi). Condensing?: Yes. Stages: 5. Rotation Direction: Clockwise.

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 1SU2

Condition: Used

Material: Cast Iron

Power: 2,461 kW (3,300 HP)

Speed (RPM): 9670

Cast Iron Non-Condensing turbine mounted Horizontally Inlet nozzle is 6" mounted on the side Exhaust pressure is 55 psi exhaust nozzle is 12" and mounted up Designed to drive compressor IPPE # 207980.

Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F). Outlet Pressure: 3.8 bar (55 psi).

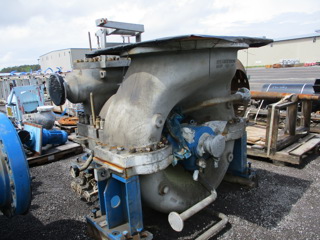

Type: Turbine

Subtype: Steam

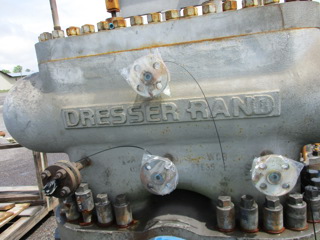

Manufacturer: Dresser Rand

Model: ET-5

Condition: Used

Material: Carbon Steel

Power: 2,804 kW (3,760 HP)

Speed (RPM): 6309-6760

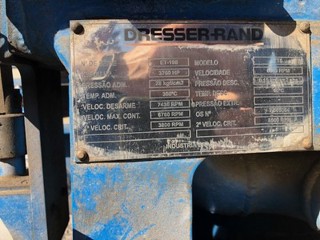

• Series ET-190. No. T 505064, Multi stage, condensing turbine with horizontally split case.
• Normal speed, (max. continues=6760 rpm,. Trip speed 7436 rpm. First critical 3800 rpm, second critical 8500 rpm
• Complete pressurized oil system operating at 116 psig.

Inlet Pressure: 27.5 bar (398.3 psi). Inlet Temperature: 380 °C (716 °F). Outlet Pressure: 0.15 bar (2.1 psi). Outlet Temperature: 60 °C (140 °F). Condensing?: Yes. Stages: 5. Rotation Direction: Clockwise.

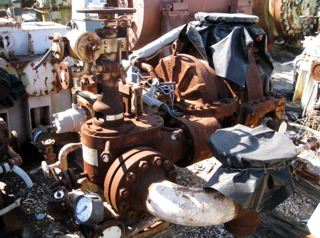

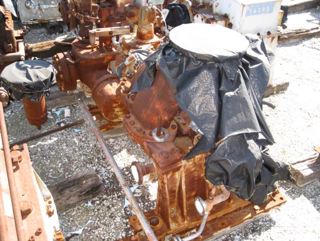

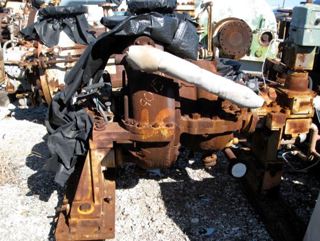

Type: Turbine

Subtype: Steam

Manufacturer: General Electric (GE)

Model: UY125R6

Condition: Used

Material: Carbon Steel

Power: 1,467 kW (1,967 HP)

Speed (RPM): 3888-4860

• Starting turbine
• 57,875 #/hr. capacity.
• 21.8 #/HP Hour
• Rotating Clockwise
• 6" inlet side nozzle, 10" exhaust side nozzle.

Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F). Inlet Steam Flow: 19,450 kg/h (42,880 lb/h). Outlet Pressure: 3.4 bar (50 psi). Outlet Steam Flow: 26,252 kg/h (57,875 lb/h). Stages: 1. Rotation Direction: Clockwise.
