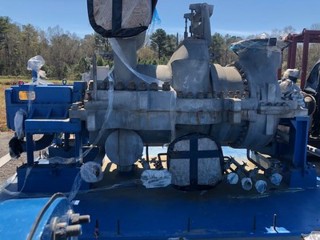

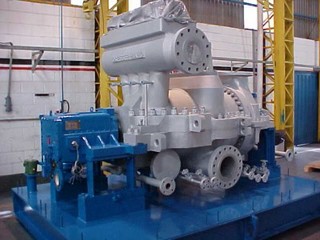

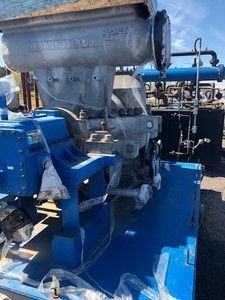

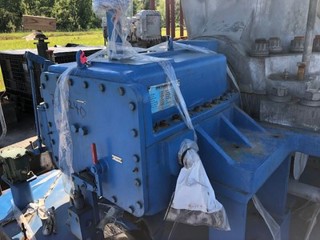

Carbon Steel Dresser Rand ET-5 Steam Turbine - IPP# 212612

Type: Turbine

Subtype: Steam

Manufacturer: Dresser Rand

Model: E-1SU2B1SU4

Condition: Unused

Material: Carbon Steel

Power: 2,051 kW (2,750 HP)

Speed (RPM): 5400-6540

Steam turbine originally designed to be used to drive a compressor, but can be used to drive other machines.

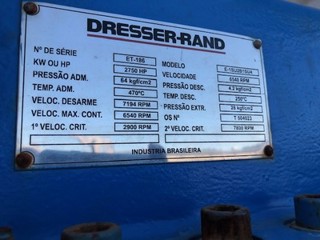

Dresser Rand Series ET-186, Five Rateau stages. Normal speed is 6540 rpm, max. speed is 6760 rpm. First critical speed is 2900 rpm, second critical speed is 7800 rpm. Speed regulation is by a Woodward governor, model 505E.

The turbine has the following alarms/shutdowns; Over speed, Emergency valve, solenoid valve, Low oil pressure, and high input steam pressure.

Requires 63 gpm cooling water for oil cooler. Complete pressurized oil system operating at 116 psig. Size of turbine alone is 9’ x 6’ x 7’ at 14,000 lbs.

Inlet Pressure: 62.7 bar (910 psi). Inlet Temperature: 470 °C (878 °F). Outlet Pressure: 4.1 bar (59.7 psi). Outlet Temperature: 250 °C (482 °F). Extraction Points: 1. Extraction Details: Steam extraction at 27.45 bar at 373 deg. C.. Stages: 5. Rotation Direction: Counter-Clockwise.

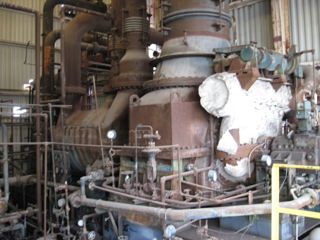

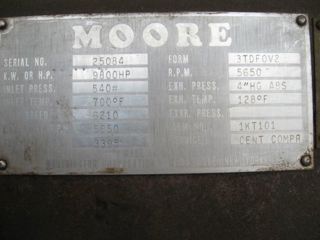

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 3TDFOV2

Condition: Used

Material: Carbon Steel

Power: 7,308 kW (9,800 HP)

Speed (RPM): 5650

• Turbine with 5 Rateau stages.

Inlet Pressure: 37.2 bar (540 psi). Inlet Temperature: 371.1 °C (700 °F). Outlet Pressure: 0.14 bar (1.96 psi). Outlet Temperature: 53.3 °C (128 °F). Condensing?: Yes. Stages: 5. Rotation Direction: Clockwise.

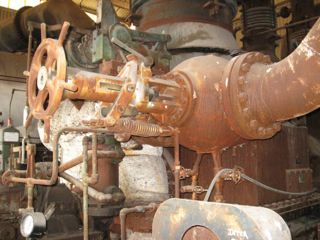

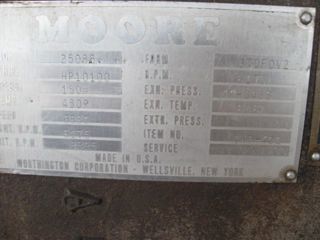

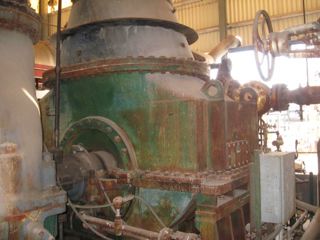

Type: Turbine

Subtype: Steam

Manufacturer: Worthington

Model: 3TDFOV2

Condition: Used

Material: Carbon Steel

Power: 7,532 kW (10,100 HP)

Speed (RPM): 6175

condensing turbine SO number U-14351 ( double flow on 4th & 5Th stage) HG. ABS. at 128 degrees F 12" inlet nozzle. Rotation clockwise.

Inlet Pressure: 10.3 bar (150 psi). Inlet Temperature: 232.2 °C (450 °F). Inlet Steam Flow: 5.1 kg/h (11.2 lb/h). Outlet Pressure: 0.14 bar (1.96 psi). Condensing?: Yes. Stages: 5. Rotation Direction: Clockwise.

Type: Turbine

Subtype: Steam

Manufacturer: General Electric (GE)

Model: UY125R6

Condition: Used

Material: Carbon Steel

Power: 1,467 kW (1,967 HP)

Speed (RPM): 3888-4860

• Starting turbine
• 57,875 #/hr. capacity.
• 21.8 #/HP Hour
• Rotating Clockwise
• 6" inlet side nozzle, 10" exhaust side nozzle.

Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F). Inlet Steam Flow: 19,450 kg/h (42,880 lb/h). Outlet Pressure: 3.4 bar (50 psi). Outlet Steam Flow: 26,252 kg/h (57,875 lb/h). Stages: 1. Rotation Direction: Clockwise.
