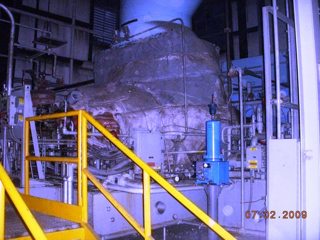

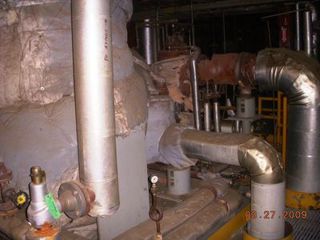

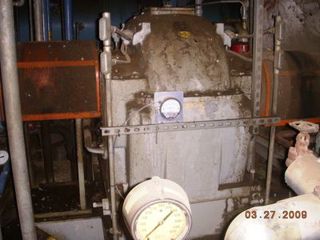

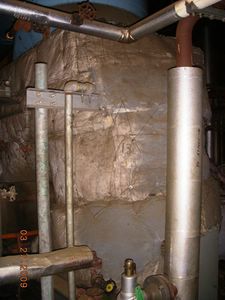

Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240

  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240 Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240 Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240 Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240 Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240 Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240 Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
  • Unused Steam Turbine Dresser Rand E-1SU2B1SU4 - IPP# 230240
Overview
Turbine
Steam
Dresser Rand
E-1SU2B1SU4
Unused
Carbon Steel
Capacity
2,051 kW (2,750 HP)
Other Specifications
5400-6540
62.7 bar (910 psi)
470 °C (878 °F)
4.12 bar (59.7 psi)
250 °C (482 °F)
1
Steam extraction at 27.45 bar at 373 deg. C.
5
Counter-Clockwise
1st critical: 2900rpm, 2nd critical: 7800rpm.
7,194
Yes
14.3 m3/h (63 GPM)
Standalone oil system, operating at 116psi.
Electrical
Woodward model 505E.
406 mm (16 in)
254 mm (10 in)
Additional Information

Steam turbine originally designed to be used to drive a compressor, but can be used to drive other machines.

Dresser Rand Series ET-186, Five Rateau stages. Normal speed is 6540 rpm, max. speed is 6760 rpm. First critical speed is 2900 rpm, second critical speed is 7800 rpm. Speed regulation is by a Woodward governor, model 505E.

The turbine has the following alarms/shutdowns; Over speed, Emergency valve, solenoid valve, Low oil pressure, and high input steam pressure.

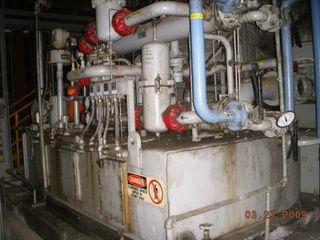

Requires 63 gpm cooling water for oil cooler. Complete pressurized oil system operating at 116 psig. Size of turbine alone is 9’ x 6’ x 7’ at 14,000 lbs.
