Buy your unused & surplus, second hand / used Steam Turbines from IPP. Choose from 22 models in stock now for immediate delivery.

Steam turbine originally designed to be used to drive a compressor, but can be used to drive other machines.

Dresser Rand Series ET-186, Five Rateau stages. Normal speed is 6540 rpm, max. speed is 6760 rpm. First critical speed is 2900 rpm, second critical speed is 7800 rpm. Speed regulation is by a Woodward governor, model 505E.

The turbine has the following alarms/shutdowns; Over speed, Emergency valve, solenoid valve, Low oil pressure, and high input steam pressure.

Requires 63 gpm cooling water for oil cooler. Complete pressurized oil system operating at 116 psig. Size of turbine alone is 9’ x 6’ x 7’ at 14,000 lbs. Rated Power: 2,691 kW (3,609 HP). Diameter: 1,829 mm (72 in). Exhaust Temperature: 250 °C (482 °F). Inlet Pressure: 62.7 bar (910 psi). Inlet Temperature: 470 °C (878 °F). Length: 2,743 mm (108 in). Powered By: Steam.

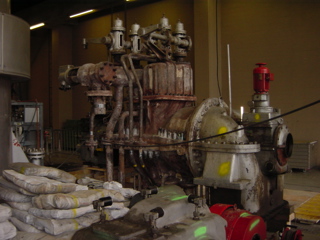

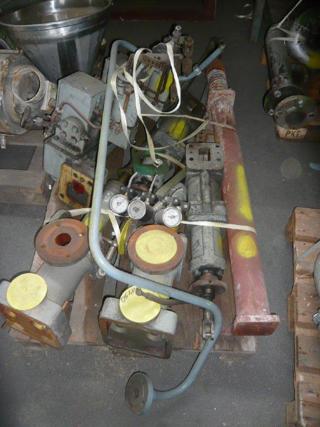

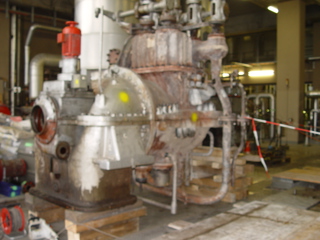

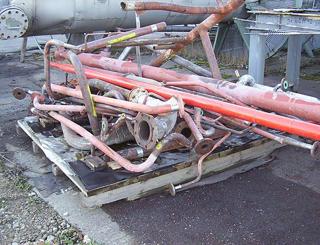

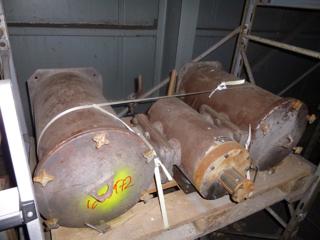

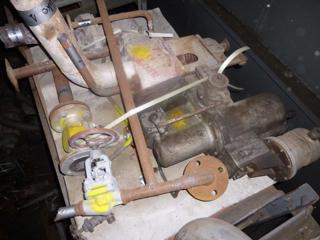

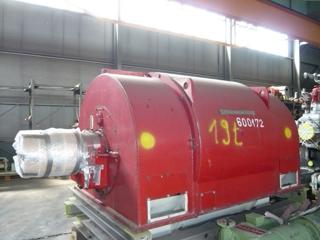

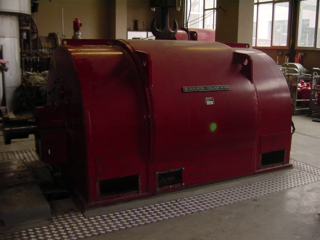

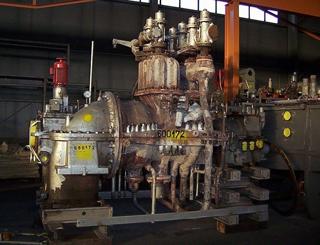

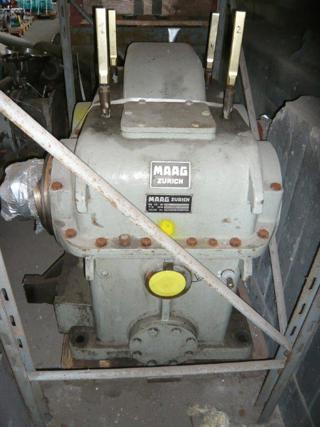

50 Cycle, steam turbine generator set, with extraction. Extraction 1: non controlled 2800 kg/h max, Extraction 2: controlled 27000 kg/h, pressure: 11-14 kp/cm² ( 156-199 psi) with 7.150 PS MAAG gearbox, 6614/3000 rpm, order # 714321A G-40 spez. steam turbine weight 16.000kg. System included a generator MFO 56420 K01.1, type 14 S 250, 6600 KVA , COS Phi 0.8, Voltage: 11 kV, 50 Hz, 3.000 rpm, generator weight 19.000 kg. (1) causative agent MFO 564420 K03.1, type R 841, Voltage: 70 kW/165V. (2) 3.6 ltr/sec GEA air-cooled water-cooler, type 6425/320/32-NSV-S119-32D182, order # 104/13785, rated 10 bar, volume 9.5 ltr. (1) 12.2 m² Oil cooler, type EW, 1.200mm long with (216) pipes 15mm diameter x 1mm thickness , material of pipes (SoMs 71) brass, rated @ 45 degrees C normal, @ 50 degrees C max with Oil tank inhold 2.800 liter, Oil tank weight 2.000kg. (1) 500 ltr/min main oil pump, type ALG 60-4, rated 7 kp/cm² eff. (1) 500 ltr/min Auxiliary electrical pump, type 60-3N7K, rated 7 kp/cm² eff. (1) 24 m² c/steel shell vertical preheater, type EW, 5.300mm long with (96) pipes 15mm diameter x 1mm thickness , material of pipes (SoMs 71) brass. (with) different valves, controls and c/steel pipes. SEE PLANT INVENTORY FOR MORE INFO. Inlet Pressure: 35.3 bar (512 psi). Inlet Temperature: 410 °C (770 °F). Number of Extractions: 2.

multi valve , single row, solid rotor, backpressure design. Casing is manufactured from a Chrome Molly Alloy, with a forged Shaft. "Engineering solution" Single stage. Special 13,506 rpm, rated 1150 psi steam @ 890 deg F, 550 psi exhaust. Includes spare parts. Rated Power: 8,572 kW (11,495 HP). Inlet Pressure: 79.3 bar (1,150 psi). Inlet Temperature: 476.7 °C (890 °F).

multi valve single row, solid rotor Casing is manufactured from a Chrome Molly Alloy, with a forged Shaft. "Engineering solution" Single stage Special 13,506 rpm, rated 1150 psi steam @ 890 deg F, 550 psi exhaust Includes spare rotor and parts Inlet Pressure: 79.3 bar (1,150 psi). Inlet Temperature: 476.7 °C (890 °F). Powered By: Steam.

back pressure turbine. steam consumption 13.2 lb/BHP/hr Total flow 106900 lbs/hr. Exhaust Temperature: 248.9 °C (480 °F). Inlet Pressure: 127.6 bar (1,850 psi). Inlet Temperature: 518.3 °C (965 °F).

Order #U-19182 6435 trip speed. Frame S5, 2nd critical rpm 11,500. Includes a spare rotor. (NOTE: Used to drive a gas compressor, see IPP# 222927 for full compressor). Exhaust Temperature: 189.4 °C (373 °F). Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F).

strating turbine 57,875 #/hr capacity. 21.8 #/HP Hour Rotation Clockwise 6" inlet side nozzle, 10" exhaust side nozzle. Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F).

Single cylinder extraction backpressure of Axial flow type extraction steam 205 psi (14.2 bar), Steam consumption 130 ton/hr. Inlet Pressure: 40.7 bar (590 psi).

series ET-190. No. T 505064 Multi stage, condensing turbine with horizontally split case Normal speed, (max. continues=6760 rpm,. Trip speed 7436 rpm. First critical 3800 rpm, second critical 8500 rpm Complete pressurized oil system operating at 116 psig. 14,000 lbs. Rated Power: 2,804 kW (3,760 HP). Diameter: 2,743 mm (108 in). Exhaust Temperature: 60 °C (140 °F). Inlet Pressure: 27.4 bar (398 psi). Inlet Temperature: 380 °C (716 °F). Length: 2,452 mm (96.5 in). Powered By: Steam.

type 101JT Turbine rotor.

counter clockwise rotation

Spare rotor for steam turbine stock # 701561 Manufactured from a forged blank of Alloy, containing impulse blades, reaction blades, and moving blades.

multi stage Rotation is clock wise. 5 stage Rateau Exhaust Temperature: 53.3 °C (128 °F). Inlet Pressure: 37.2 bar (540 psi). Inlet Temperature: 371.1 °C (700 °F).

condensing turbine SO number U-14351 ( double flow on 4th & 5Th stage) HG. ABS. at 128 degrees F 12" inlet nozzle. Rotation clockwise. Exhaust Temperature: 53.3 °C (128 °F). Inlet Pressure: 10.3 bar (150 psi). Inlet Temperature: 232.2 °C (450 °F).

Turbodyne Steam Multistage turbine, single valve. Used to drive compressor IPP # 216225 & 216226 . ABS Clock wise rotation, Driving centrifugal compressor. Inlet Pressure: 43.1 bar (625 psi). Inlet Temperature: 256.1 °C (493 °F).

101,000 lbs./hr. at 600 psig, 750 degrees F., 2.5 in HGA. Electronic governor with direct actuation manufactured by Woodword. Base mounted on a common plate with a Tacke, With 600 gallon lube oil supply system, mechanical drive by a 10 hp AC motor Back up oil lube is by a 1.5 hp, DC electric motor Part of 10MW Ideal Generator IPP #212617. Exhaust Temperature: 46.7 °C (116 °F). Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F).

Cast Iron Non-Condensing turbine mounted Horizontally Inlet nozzle is 6" mounted on the side Exhaust pressure is 55 psi exhaust nozzle is 12" and mounted up Designed to drive compressor IPPE # 207980. Inlet Pressure: 41.4 bar (600 psi). Inlet Temperature: 398.9 °C (750 °F).

condensing turbine. inlet pressure normal 190 psig steam consumption 9.9 lb/BHP/hr, Total flow 83000 lbs/hr. Inlet Pressure: 14.5 bar (210 psi). Inlet Temperature: 248.9 °C (480 °F).

back pressure turbine. steam consumption 13.2 lb/BHP/hr, Total flow 106900 lbs/hr. Exhaust Temperature: 248.9 °C (480 °F). Inlet Pressure: 127.6 bar (1,850 psi). Inlet Temperature: 518.3 °C (965 °F).

back pressure turbine. steam consumption 13.55 lb/BHP/hr, Total flow 148200 lbs/hr. Rated Power: 10,200 kW (13,678 HP). Exhaust Temperature: 248.9 °C (480 °F). Inlet Pressure: 127.6 bar (1,850 psi). Inlet Temperature: 518.3 °C (965 °F).

back pressure turbine, steam consumption 13.55 lb/BHP/hr, inlet temp normal 940 deg F, inlet temp max 965 deg F, Total flow 148200 lbs/hr. Exhaust Temperature: 248.9 °C (480 °F). Inlet Pressure: 127.6 bar (1,850 psi). Inlet Temperature: 518.3 °C (965 °F).

condensing steam turbine, Exhaust 4" HGA; Maximum Continuous RPM 6956; 1st Critical Speed 3480 RPM; Trip Speed 7512/7651 RPM Inlet Test Pressure 900 PSIG, Maximum Inlet Steam 600 PSIG; Exhaust Test Pressure 25 PSIG; Maximum exhaust casing 15 PSIG; Note: used in train with ,compressor # 206304 Inlet Pressure: 37.6 bar (545 psi). Inlet Temperature: 321.1 °C (610 °F).
